Height Adjuster: Removal

  1. Remove the quarter trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the shoulder safety belt height adjuster cover.

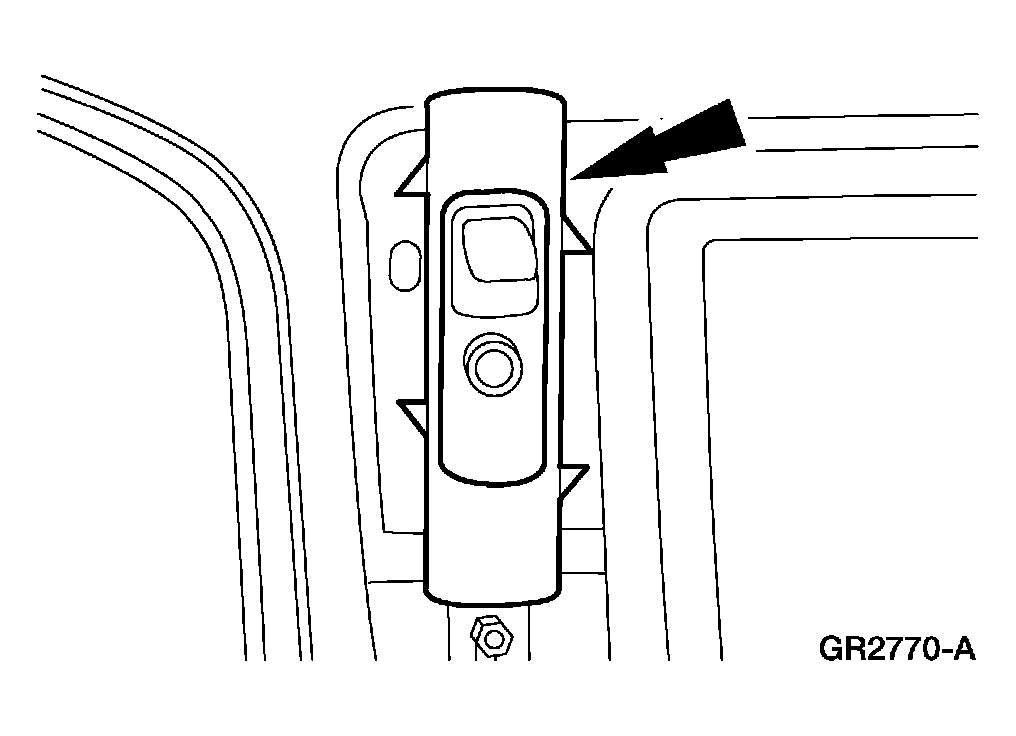

    Fig 1: Removing Shoulder Safety Belt Height Adjuster Cover
    G03977637Courtesy of FORD MOTOR CO.
  3. Remove the shoulder safety belt height adjuster.
    1. Use Safety Belt Bolt Bit to remove the bolts.
    2. Remove the shoulder safety belt height adjuster.

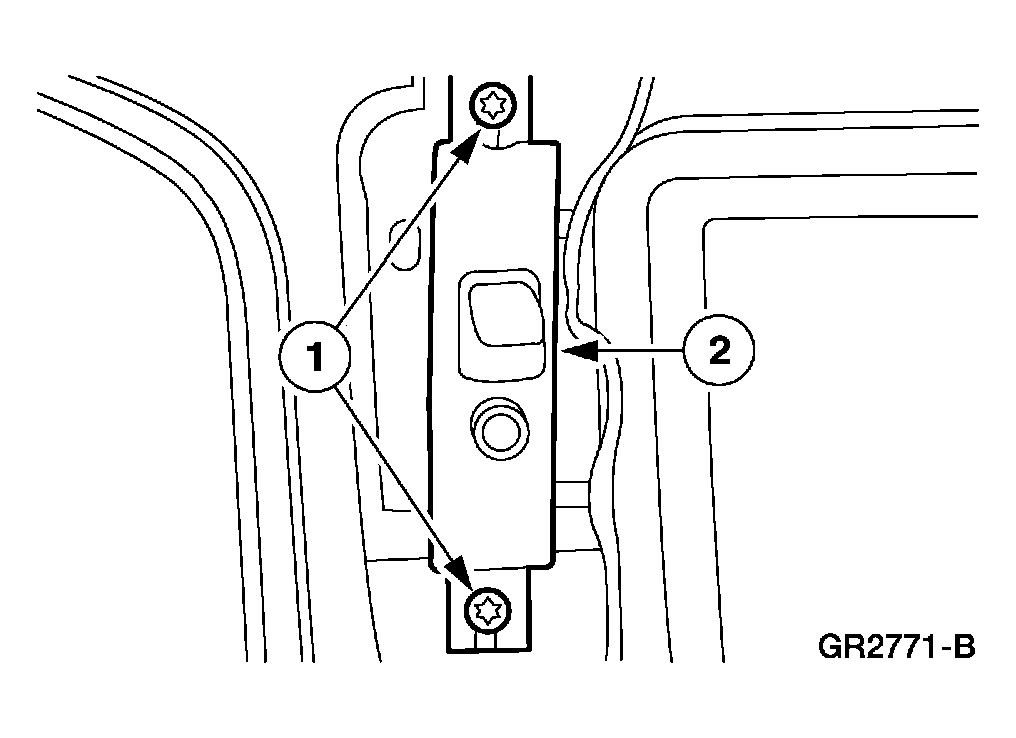

      Fig 2: Removing Shoulder Safety Belt Height Adjuster
      G03977638Courtesy of FORD MOTOR CO.
