Principles of Operation: Notes

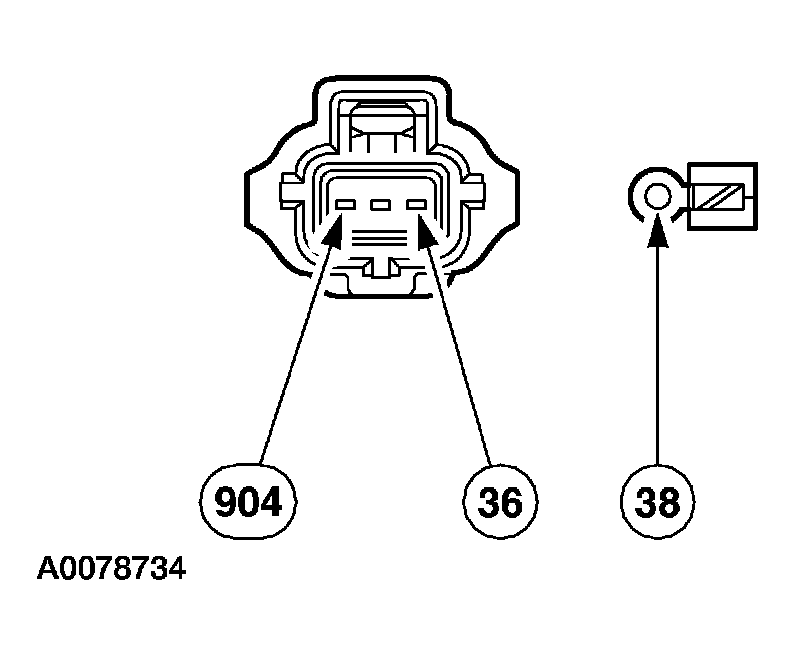

CONNECTOR C102A END VIEW AND C102B SIDE VIEW (2.3L ENGINE)
|
|
| I Circuit 904 (LG/RD) |
| A Circuit 36 (YE/WH) |
| B+ Circuit 38 (BK/OG) |

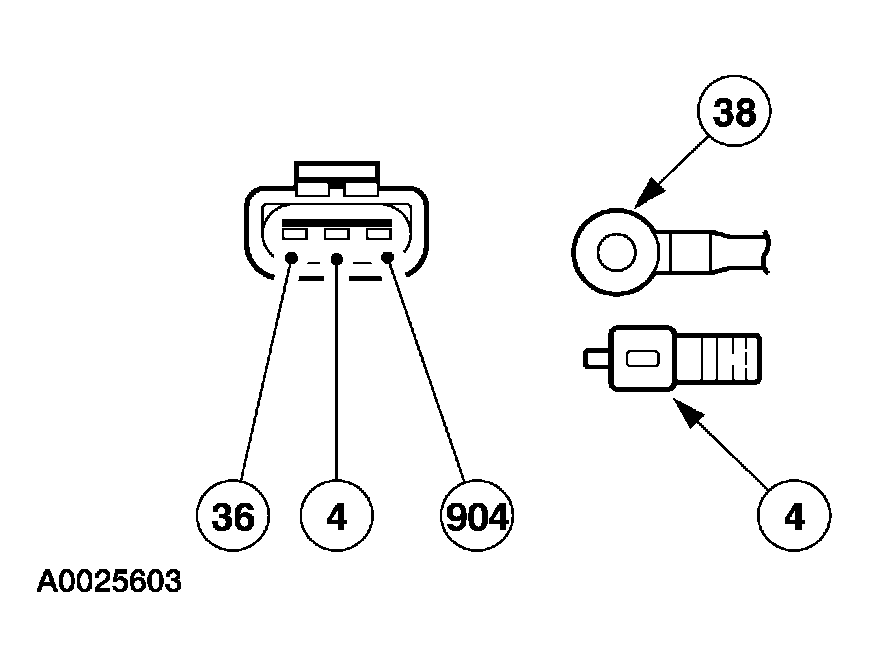

CONNECTOR C102A END VIEW, C102B AND C102C SIDE VIEWS (3.0L AND 4.0L ENGINES)
|
|
| A Circuit 36 (YE/WH) |
| S Circuit 4 (WH/BK) |
| I Circuit 904 (LG/RD) |
| B+ Circuit 38 (BK/OG) |
