Removal and Installation

  1. Remove the door trim panel finish panel screws.

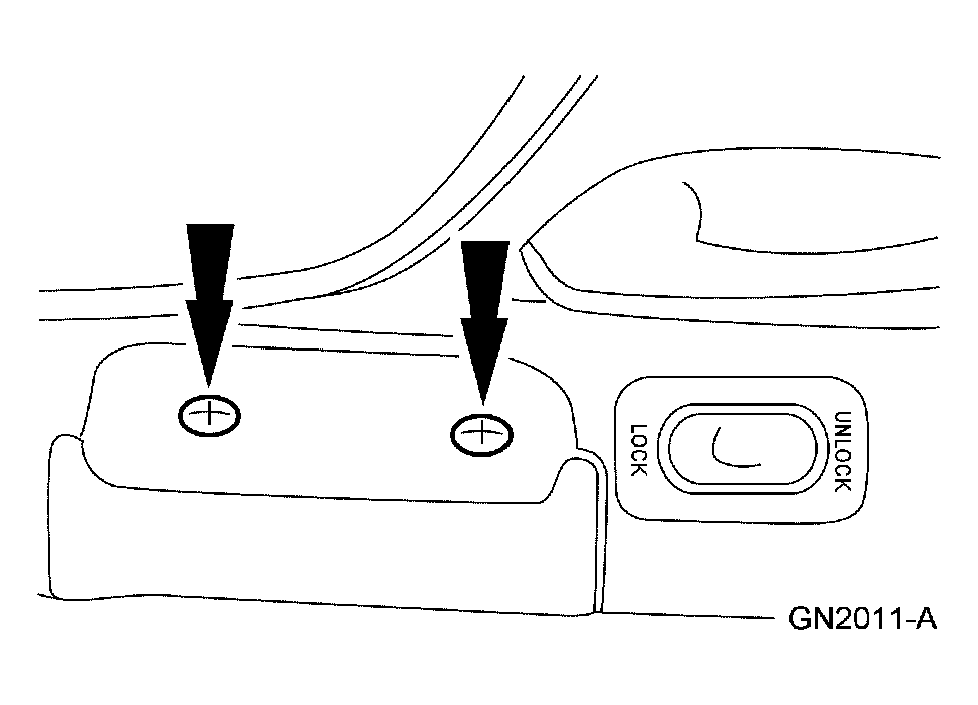

    Fig 1: Removing Door Trim Panel Finish Panel Screws
    G03977065Courtesy of FORD MOTOR CO.
  2. Reposition the door trim panel finish panel.

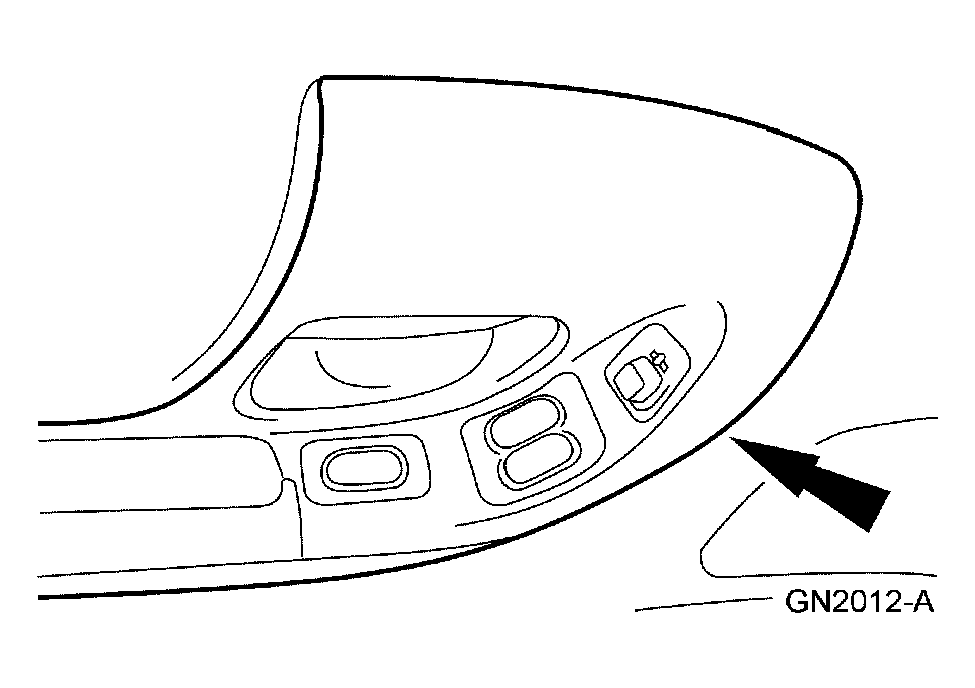

    Fig 2: Repositioning Door Trim Panel Finish Panel
    G03977066Courtesy of FORD MOTOR CO.
  3. Remove the window regulator control switch from the door trim panel finish panel.
    1. Remove the screws.
    2. Remove the window regulator control switch plate from the switch.
    3. Remove the window regulator switch.

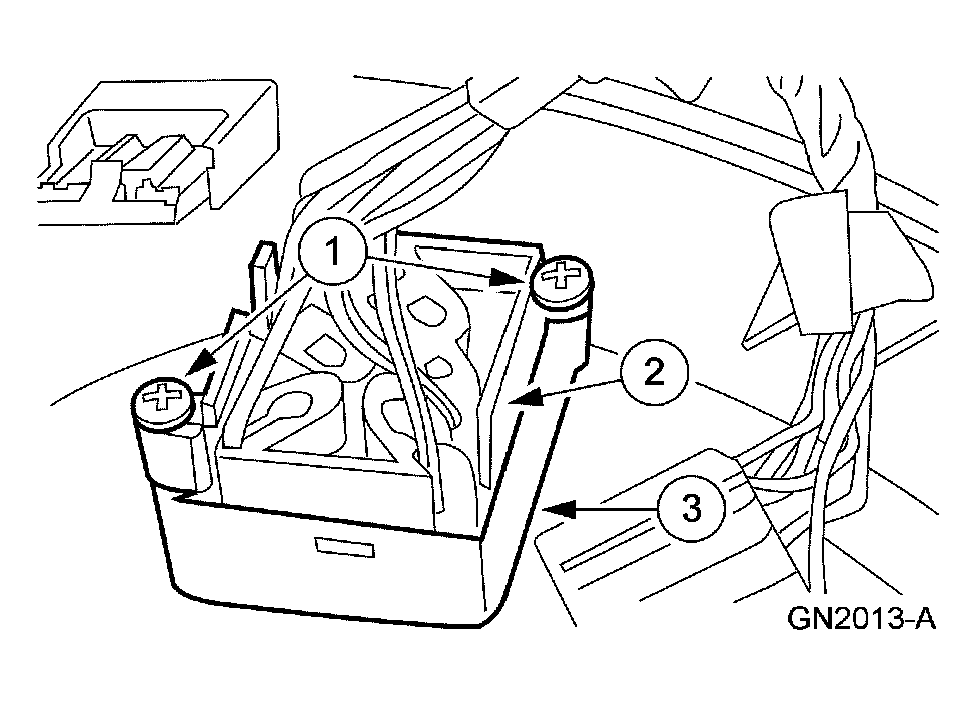

      Fig 3: Removing Window Regulator Control Switch From Door Trim Panel Finish Panel
      G03977372Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.

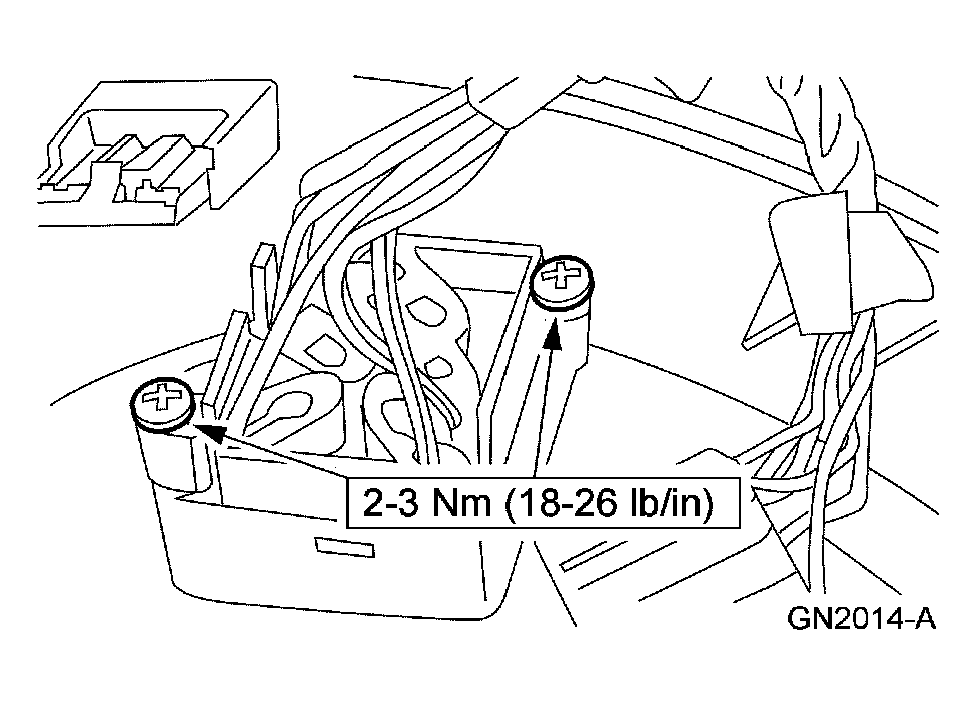

    Fig 4: Installing Window Regulator Control Switch Screws - With Torque Specification
    G03977373Courtesy of FORD MOTOR CO.
