Anti-Lock Brake System (ABS) Module: Notes

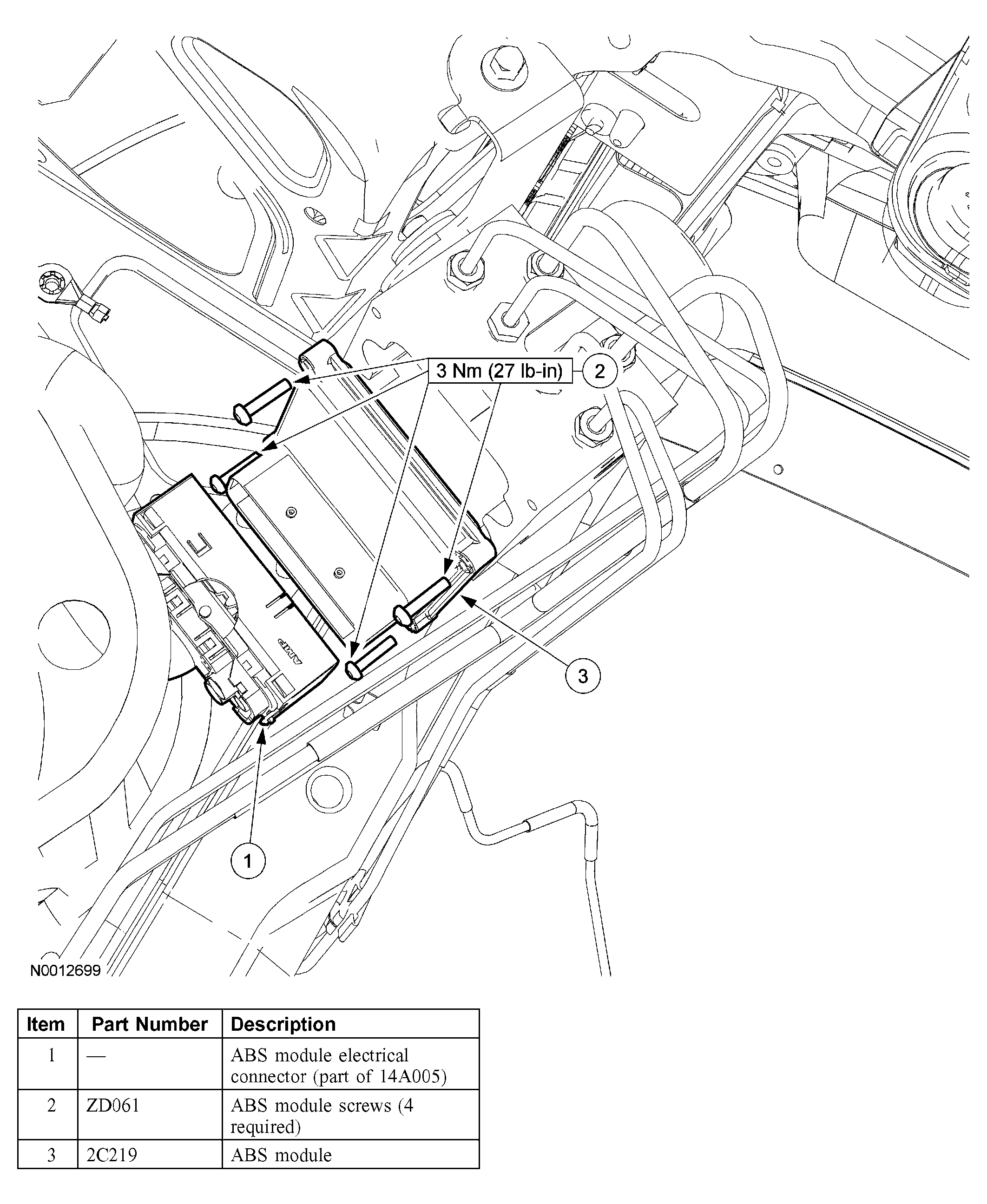

Fig 1: Identifying Anti-Lock Brake System Module
G03983478Courtesy of FORD MOTOR CO.
