Traction Control Switch C2039

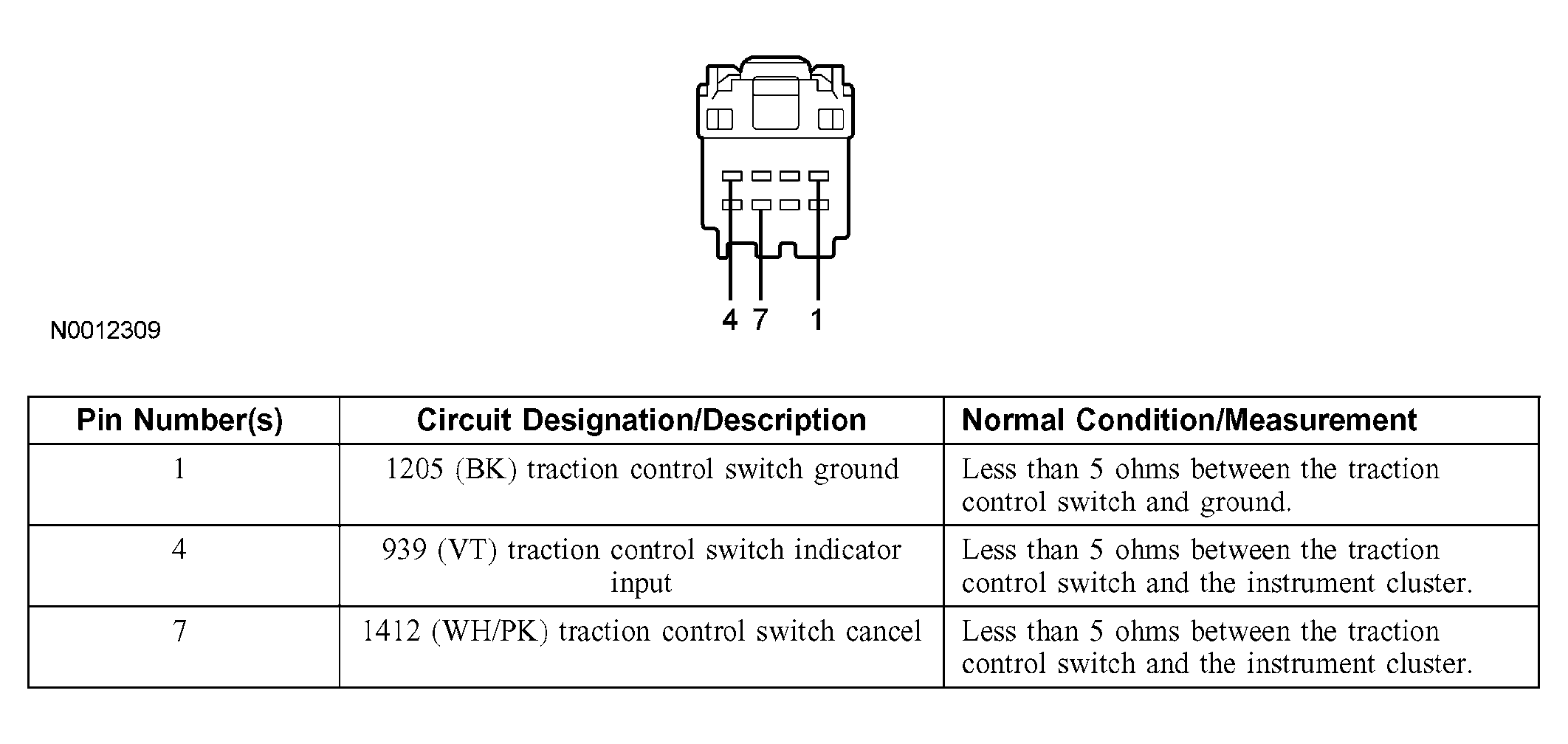

Fig 1: Identifying Connector Terminals Traction Control Switch C2039
G03983459Courtesy of FORD MOTOR CO.
