Home >> Ford >> 2005 >> Mustang Base, 2D Coupe, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> In-Vehicle Repair >> Extension Housing Gasket >> Notes

Extension Housing Gasket: Notes

SPECIAL TOOLS

G04008227Courtesy of FORD MOTOR CO.
 Installer, Drive Pinion Flange 205--479
G04008228Courtesy of FORD MOTOR CO.
 Installer, Output Shaft Flange 307--404
G03985159Courtesy of FORD MOTOR CO.
 Remover, Output Shaft Flange 307--523

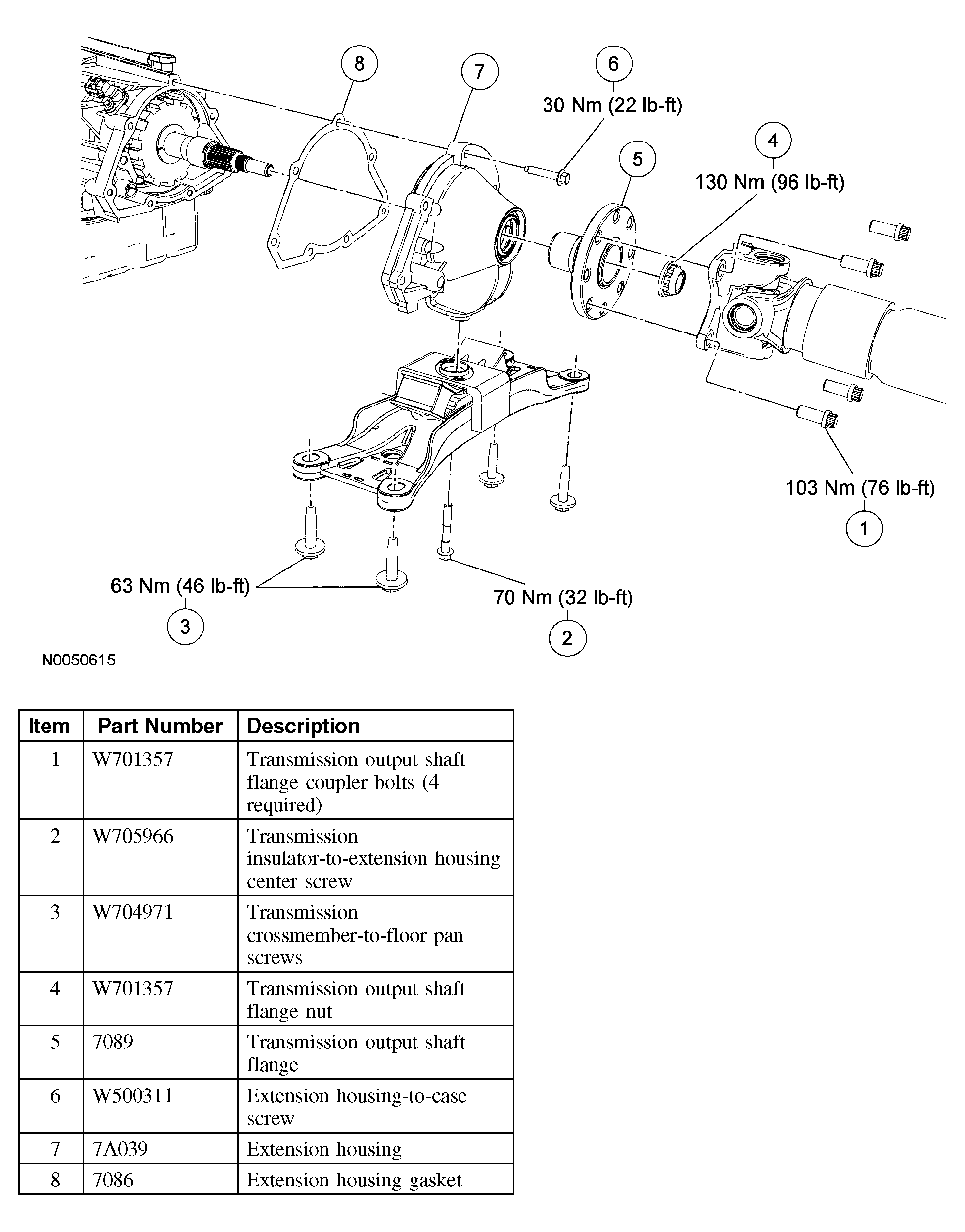

Fig 1: Identifying Extension Housing Gasket
G03985160Courtesy of FORD MOTOR CO.
