Brake Codes

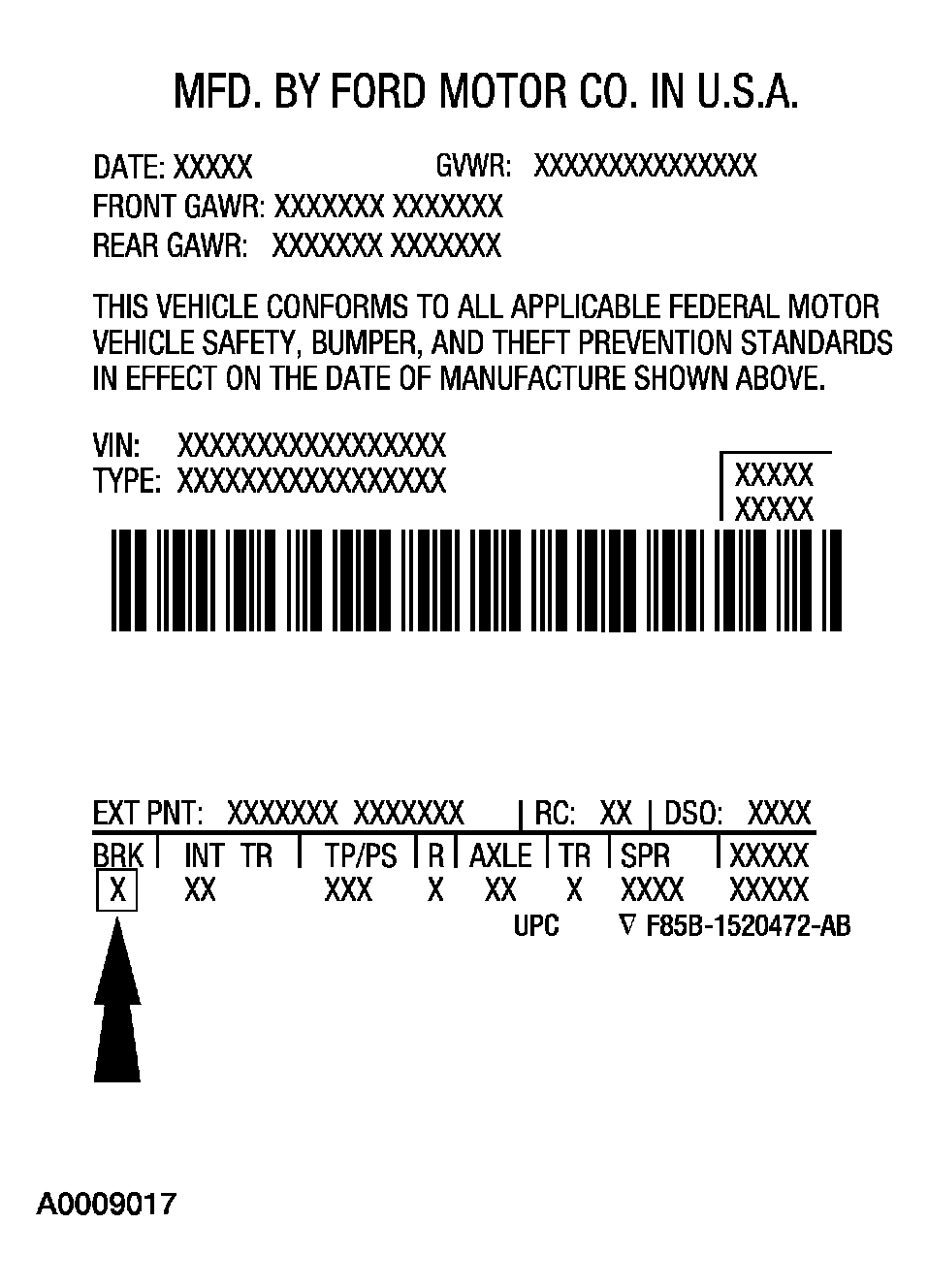

Fig 1: Identifying Vehicle Certification (VC) Label - Brake Code

Courtesy of FORD MOTOR CO.

The brake type codes are:

• 2 - 4-wheel disc with anti-lock brake system (ABS)
• 3 - Traction control
• 5 - 4-wheel disc with anti-lock brake system (ABS) and traction control
• Blank - Standard (non-ABS) brake system
