Toe Adjustment - Front

Start the engine and center the steering wheel.

Fig 1: Centering Steering Wheel
Courtesy of FORD MOTOR CO.
Turn the engine off, and hold the steering wheel in the straight forward position by attaching a rigid link from the steering wheel to the seat.
Check the toe settings. Follow the manufacturer' s instructions.

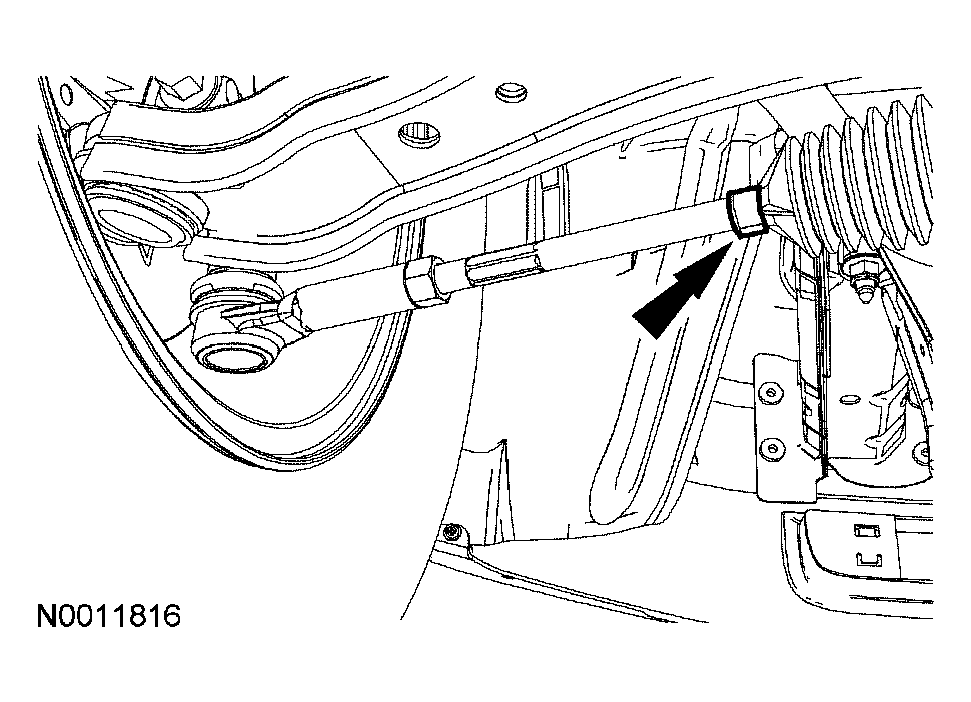

Remove the clamps.

Fig 2: Removing Clamps
Courtesy of FORD MOTOR CO.

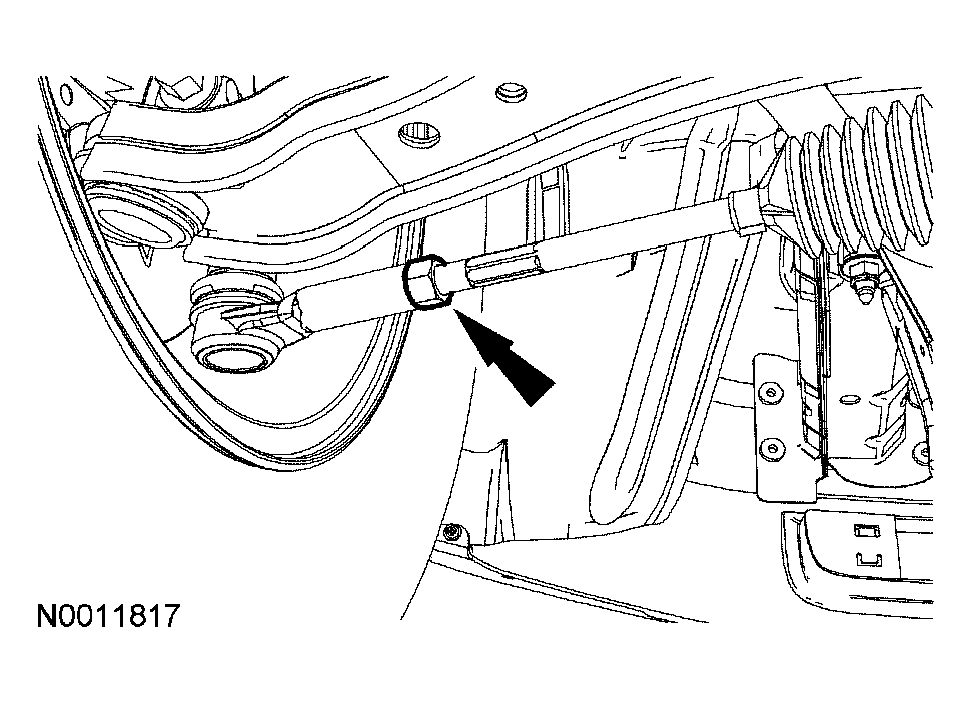

Loosen the nuts.
- Clean and lubricate the nut(s) and front wheel spindle tie rod threads.

  Fig 3: Loosening Nuts
  Courtesy of FORD MOTOR CO.

NOTE: Do not allow the steering gear bellows to twist when the front wheel spindle tie rod is rotated.

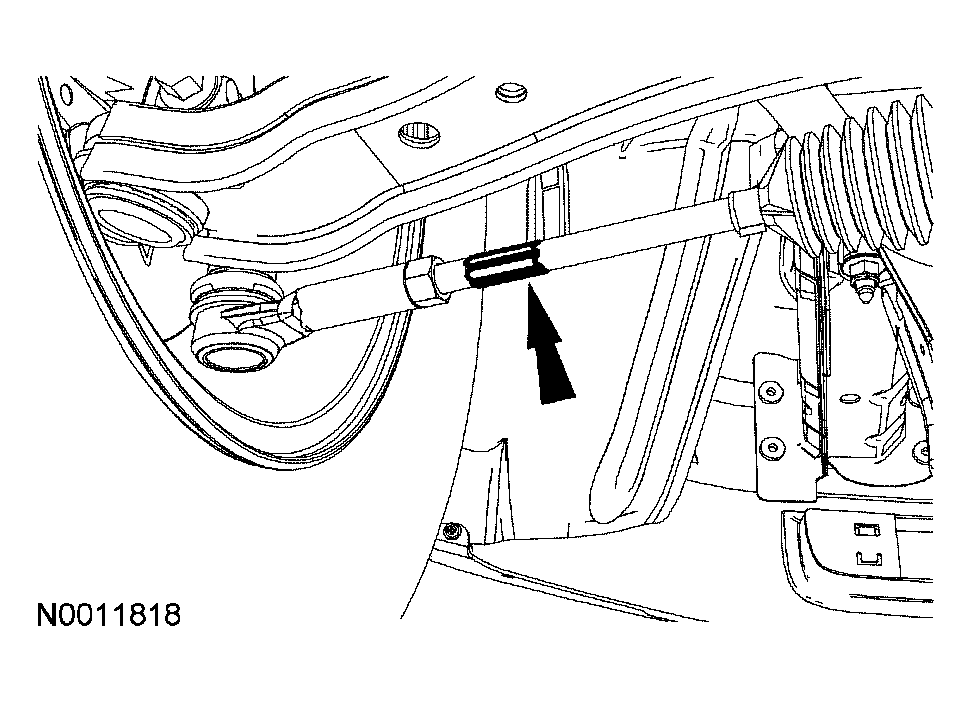

Fig 4: Rotating Front Wheel Spindle Tie Rods

Courtesy of FORD MOTOR CO.

Rotate the front wheel spindle tie rods.
Tighten the nuts to 55 Nm (41 lb-ft).

Fig 5: Tightening Nuts
Courtesy of FORD MOTOR CO.
Install the clamps.

Fig 6: Installing Clamps
Courtesy of FORD MOTOR CO.
Recheck the toe settings. Follow the manufacturer' s instructions.
