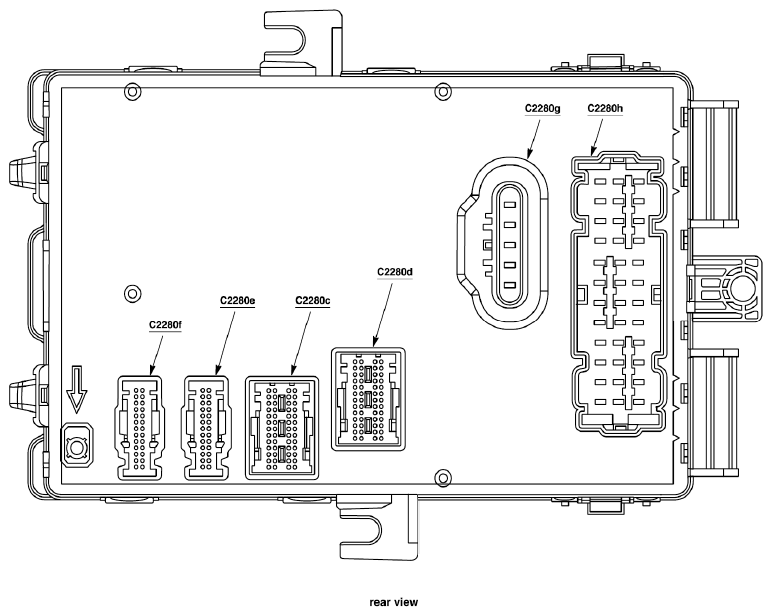

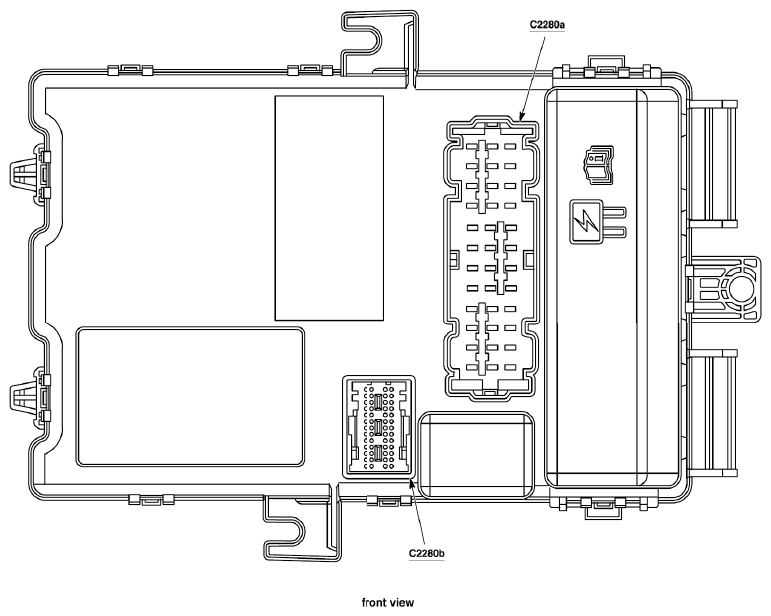

Smart Junction Box (SJB)
NOTE:
For component location, see ELECTRICAL COMPONENT LOCATOR
article.
SMART JUNCTION BOX RELAY IDENTIFICATION
| RELAY DESCRIPTION |
|---|
| Accessory Delay Relay |

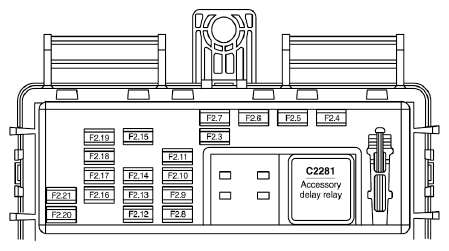

SMART JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F2.3 | 10 | Blower motor relay, Windshield wiper motor |
| F2.4 | 5 | Exterior rear view mirror switch |
| F2.5 | - | not used |
| F2.6 | 5 | Radio, Power windows, Power Door Locks |
| F2.7 | 10 | Transmission overdrive cancel switch |
| F2.8 | 10 | Instrument cluster, Data Link Connector (DLC) |
| F2.9 | - | not used |
| F2.10 | 5 | Climate control module, Overhead console |
| F2.11 | 5 | not used |
| F2.12 | 5 | Climate control module |
| F2.13 | - | not used |
| F2.14 | 5 | A/C clutch cycling pressure switch |
| F2.15 | 10 | Stoplamp switch 1 |
| F2.16 | 5 | Instrument cluster |
| F2.17 | 10 | Occupant classification sensor module, Restraints control module, Passenger Air bag Deactivation (PAD) indicator |
| F2.18 | 10 | Heated Positive Crankcase Ventilation (PCV) valve, Brake pedal position switch, ABS control module |
| F2.19 | 5 | PCM power diode, Passive anti-theft transceiver module, Instrument cluster Air bag indicator |
| F2.20 | 10 | Radio |
| F2.21 | 10 | Starter relay circuit, PCM Key-off relay |
