Seat - Exploded View, Front

NOTE: Driver backrest shown, passenger backrest similar.

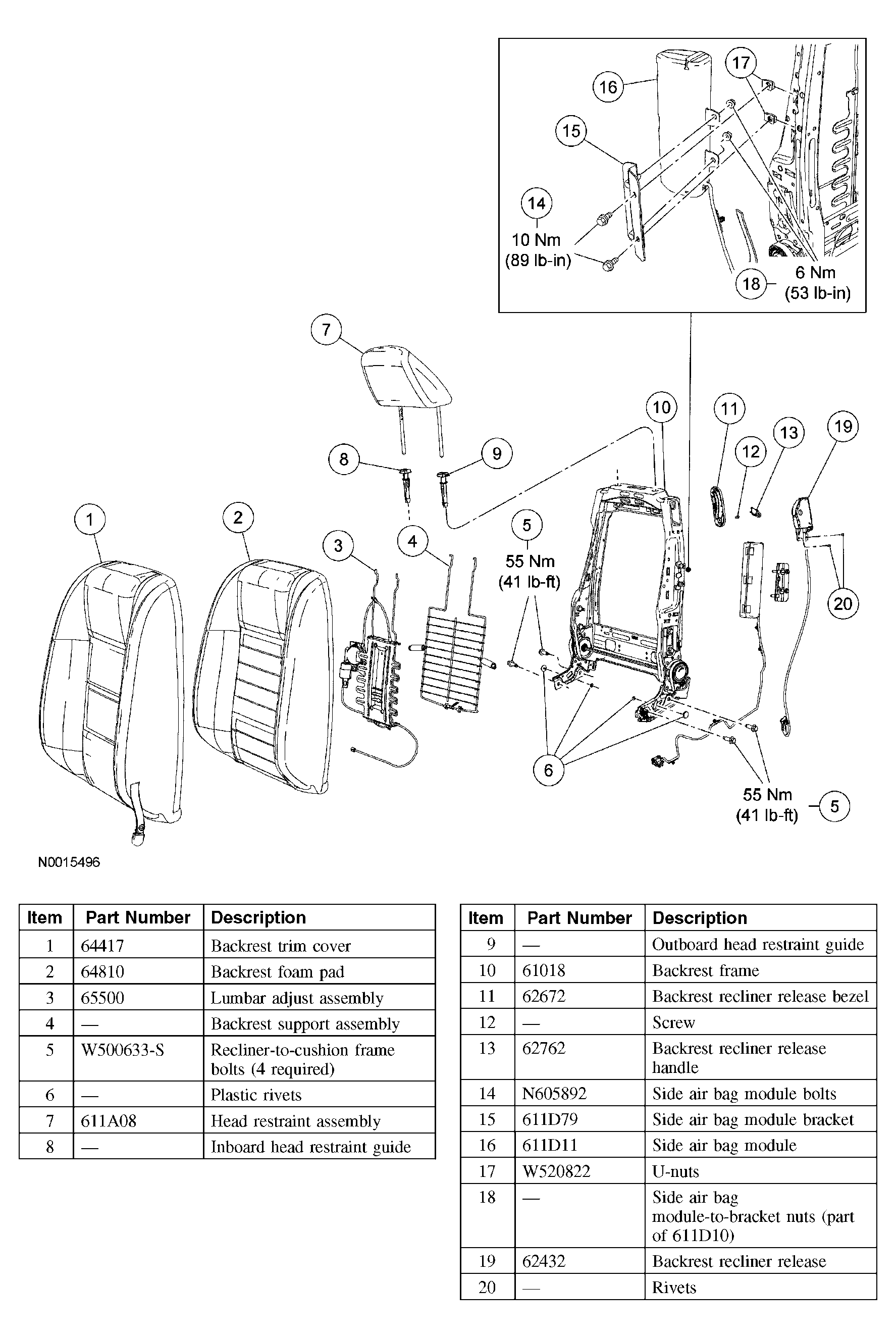

Fig 1: Exploded View Of Front Seat Backrest
G03986955Courtesy of FORD MOTOR CO.

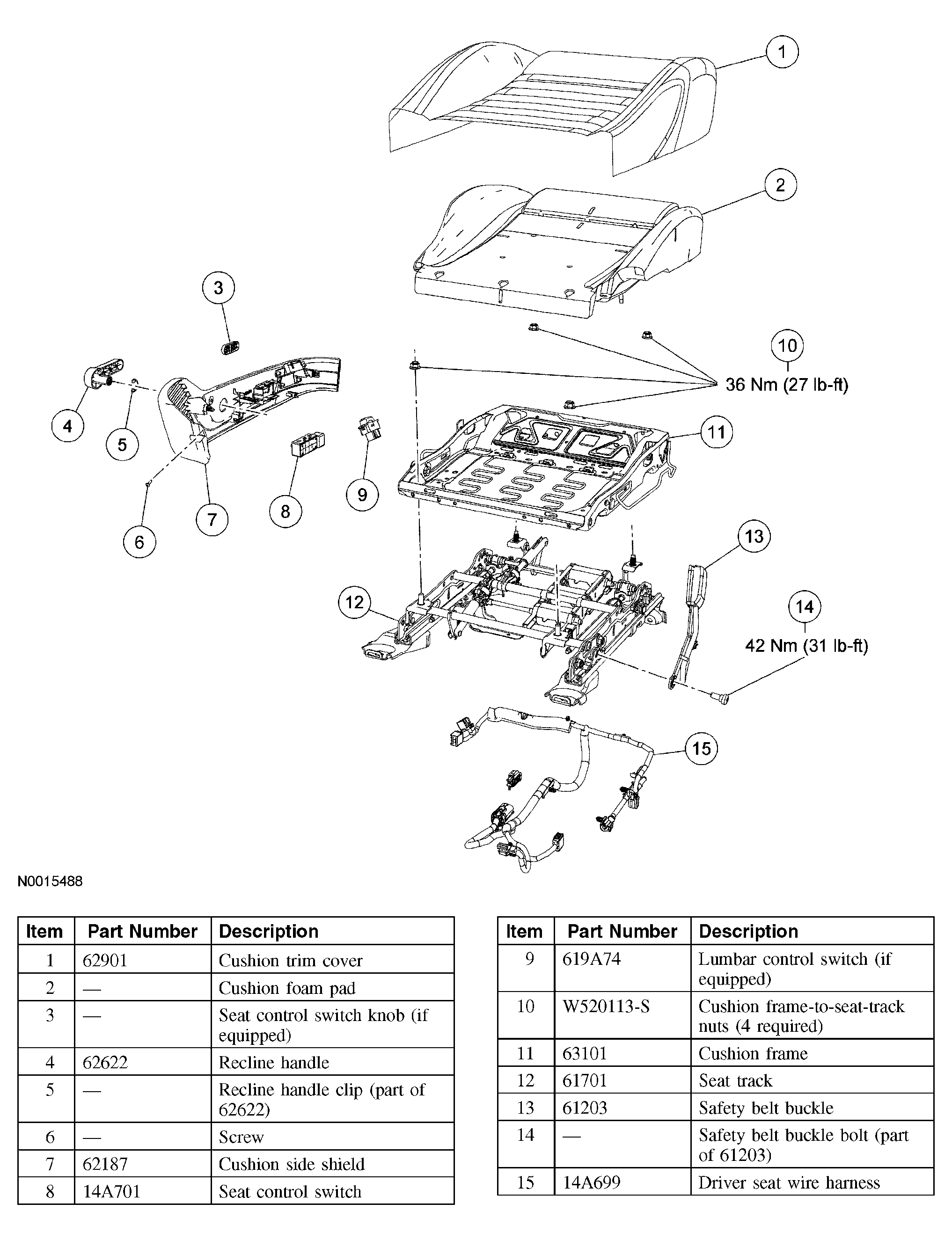

Fig 2: Exploded View Of Driver Power Front Seat Cushion
G03986956Courtesy of FORD MOTOR CO.

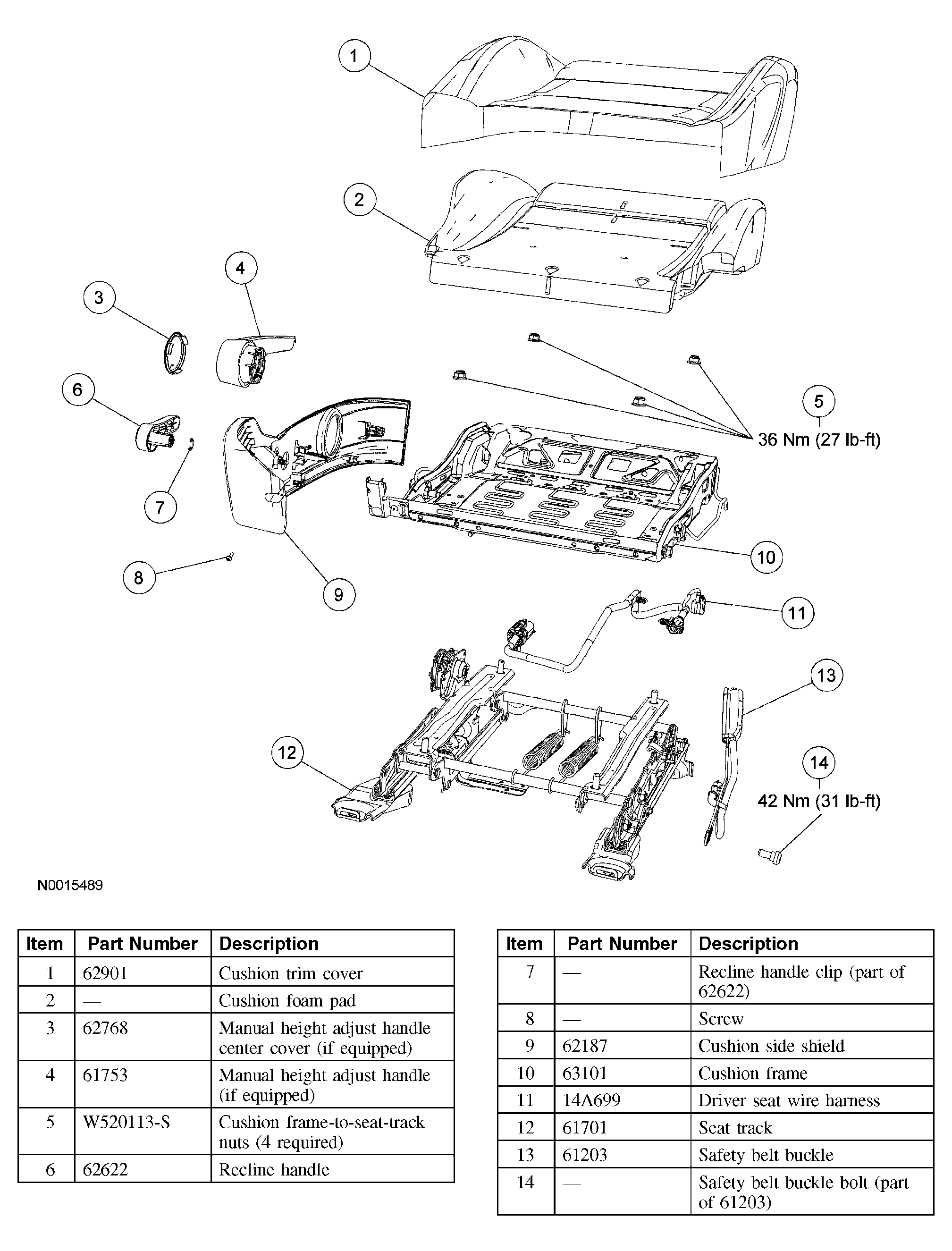

Fig 3: Exploded View Of Driver Manual Front Seat Cushion
G03986957Courtesy of FORD MOTOR CO.

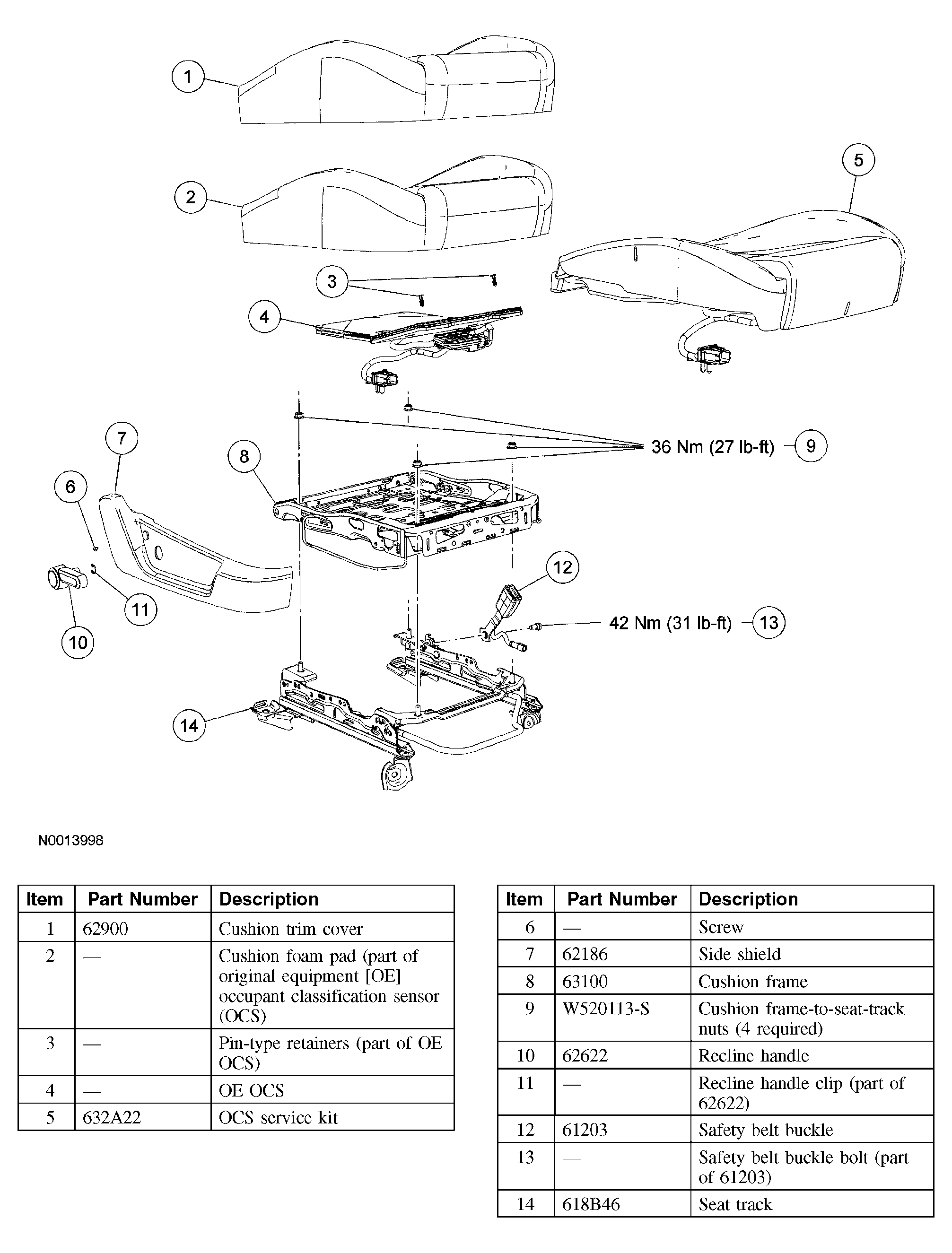

Fig 4: Exploded View Of Passenger Front Seat Cushion
G03986958Courtesy of FORD MOTOR CO.
