Seat Backrest - Front
>>
Notes
Seat Backrest - Front: Notes
Front Seat Backrest
NOTE:
Driver backrest shown, passenger backrest similar.

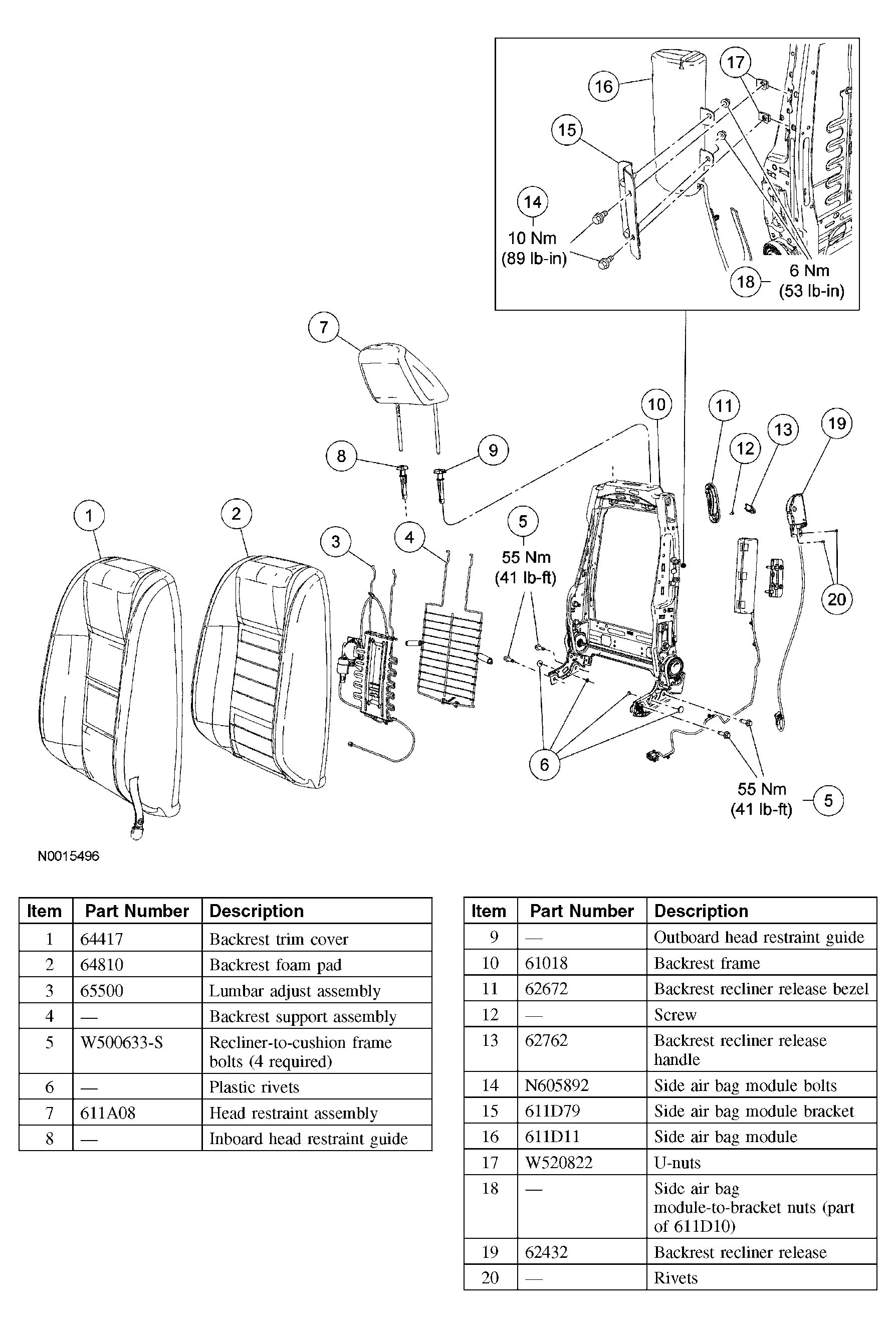

Fig 1: Exploded View Of Front Seat Backrest
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
