Transmission Fluid Drain and Refill - Without Torque Converter Drain Plug: Notes

SPECIAL TOOLS

Courtesy of FORD MOTOR CO.	Rubber Tip Air Nozzle 100-D009 (D93L-7000-A)
Courtesy of FORD MOTOR CO.	Vacuum Pump Kit 416-D002 (D95L-7559-A)
Courtesy of FORD MOTOR CO.	Fluid Transporter/Evacuator/Injector 307-D465
Courtesy of FORD MOTOR CO.	Adapter, Fluid Level and Fill Plug 307-437
Courtesy of FORD MOTOR CO.	Worldwide Diagnostic System (WDS) Vehicle Communication module (VCM) with appropriate adapters, or equivalent diagnostic tool

MATERIAL SPECIFICATIONS

Item	Specification
MERCON® V Automatic Transmission Fluid XT-5-QM	MERCON® V

NOTE: Left side of case is shown.

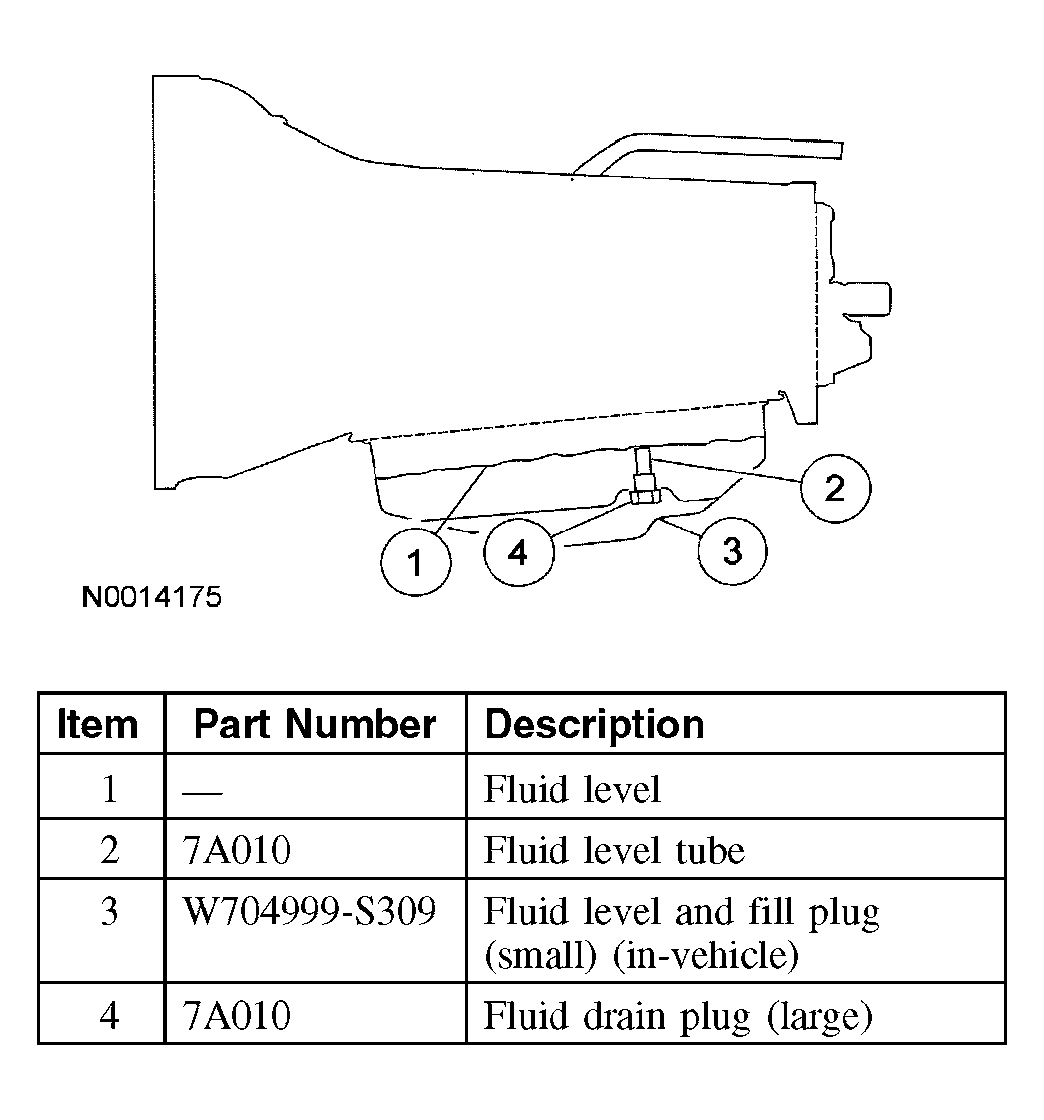

Fig 1: Identifying Transmission Fluid Drain & Fill Components

Courtesy of FORD MOTOR CO.
