Selector Lever Knob: Removal

  1. Remove the transmission selector lever assembly. For additional information, refer to SELECTOR LEVER .
  2. With the shift selector knob pulled to the rear, remove the screw from the knob base.

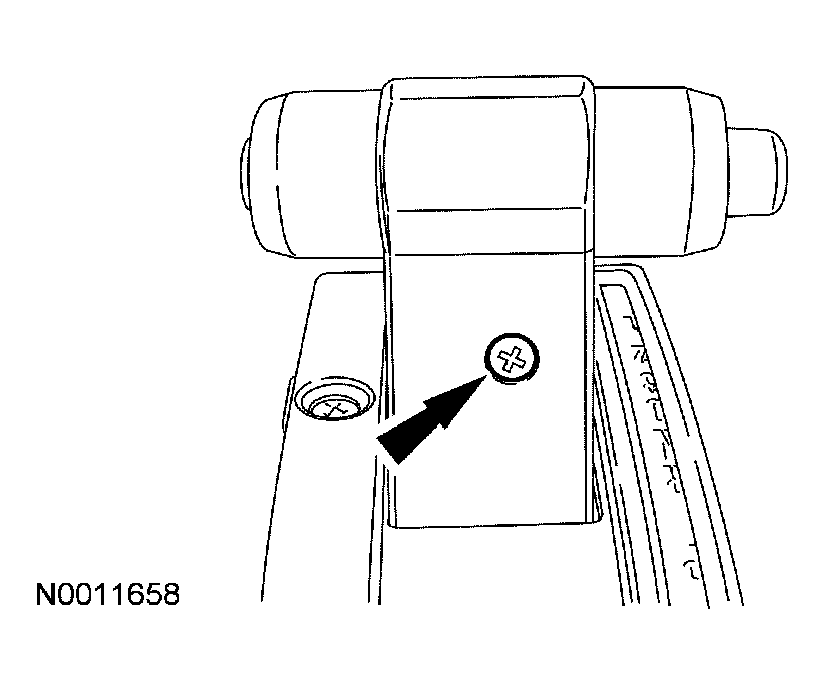

    Fig 1: Removing Screw
    G03985643Courtesy of FORD MOTOR CO.
  3. Slide the knob up and off the selector shaft. Disconnect the transmission control electrical connector.
