Selector Lever Cable and Bracket: Removal

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the cable shift from the shifter lever.

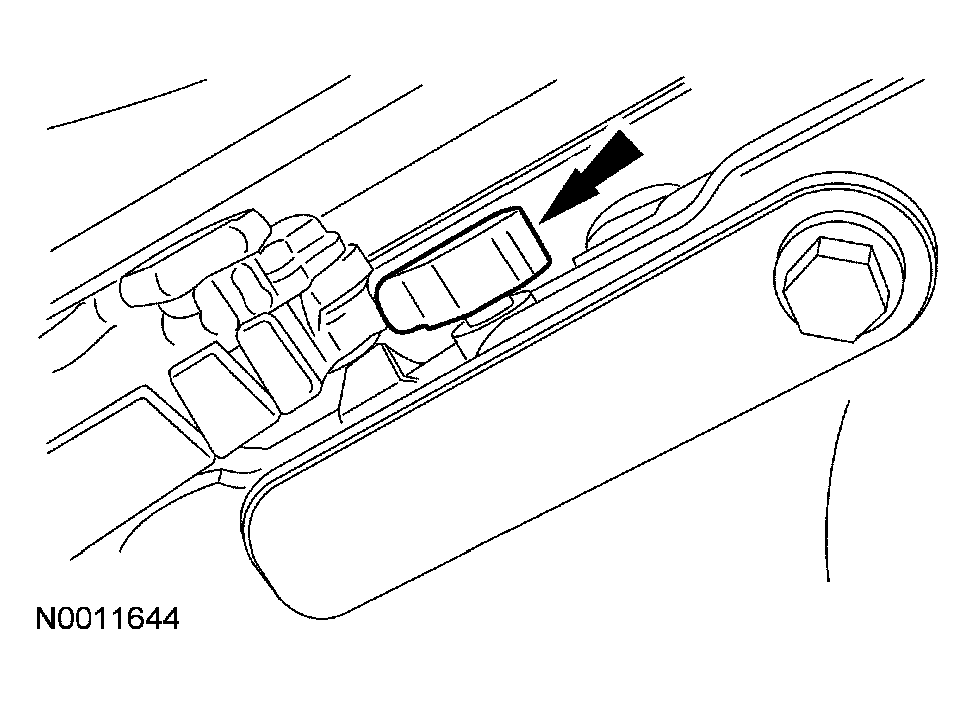

    Fig 1: Removing Cable Shift From Shifter Lever
    G03985625Courtesy of FORD MOTOR CO.
  3. Remove the shift cable from the bracket and discard the clip.
    Fig 2: Removing Shift Cable From Bracket
    G03985626Courtesy of FORD MOTOR CO.
  4. Lift the lock upward to unlock the adjustment lock on the manual lever.
    Fig 3: Lifting Lock Upward
    G03889707Courtesy of FORD MOTOR CO.
  5. Remove the 2 transmission shift cable bracket bolts from the transmission and remove the bracket.
    Fig 4: Removing Transmission Shift Cable Bracket Bolts
    G03949423Courtesy of FORD MOTOR CO.
