Transmission Fluid Cooler Hoses: Notes

MATERIAL SPECIFICATION

Item Specification
MERCON® V Automatic Transmission Fluid XT-5-QM MERCON® V

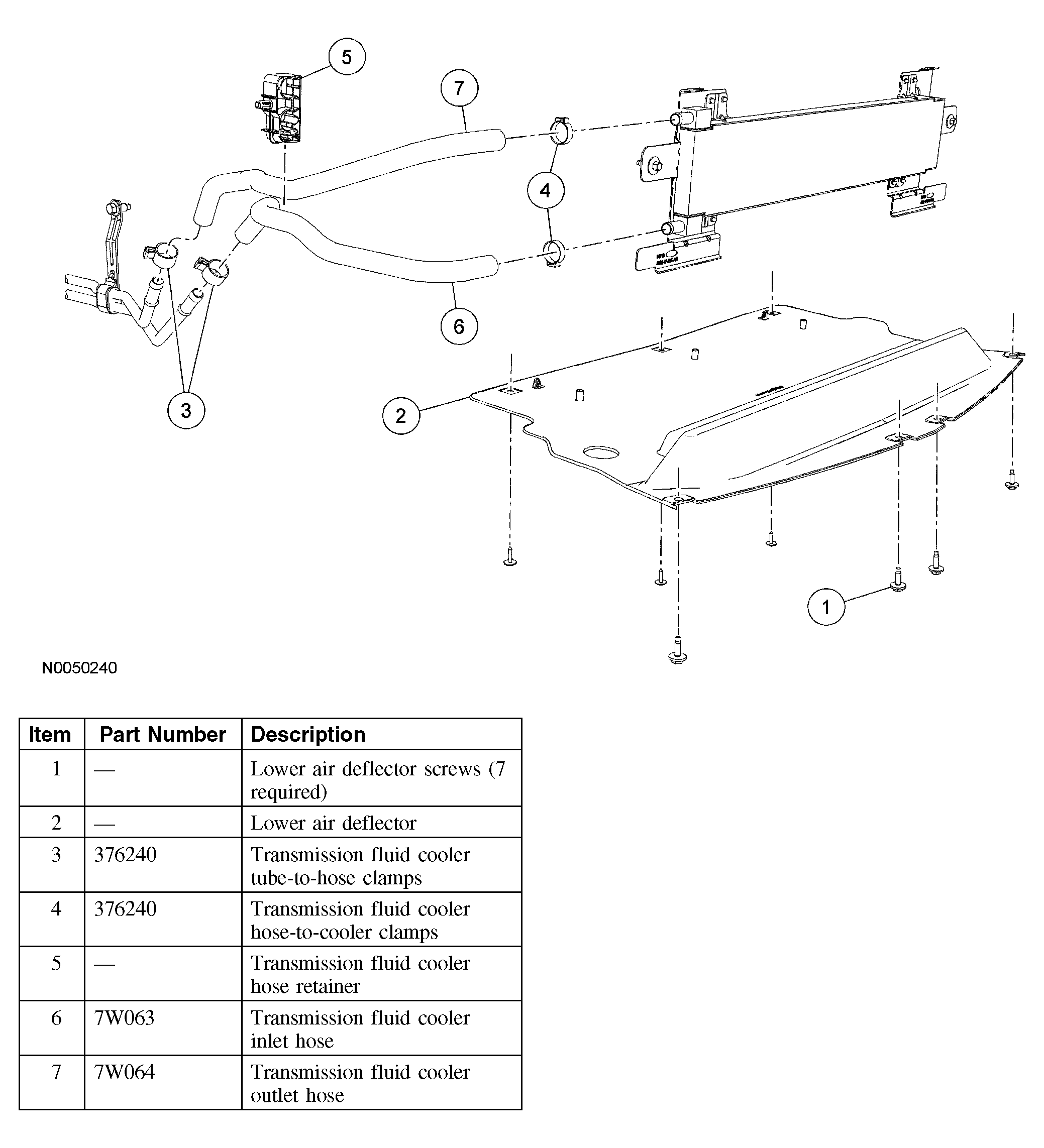

Fig 1: Identifying Components Transmission Fluid Cooler Hoses
G03985614Courtesy of FORD MOTOR CO.
