Safety Belt Retractor - Rear, Convertible
>>
Notes
Safety Belt Retractor - Rear, Convertible: Notes
NOTE:
RH side shown, LH side similar.

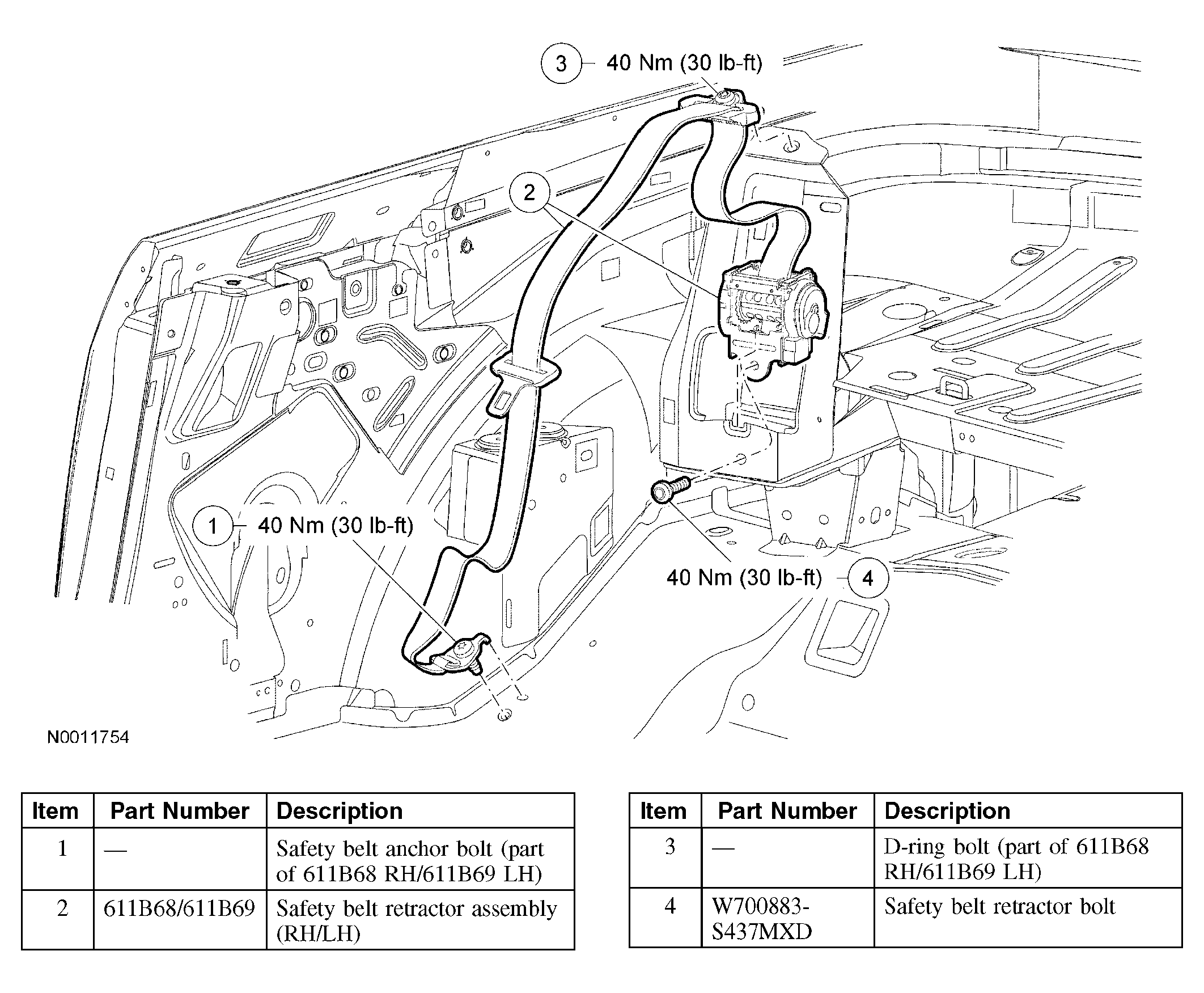

Fig 1: Identifying Safety Belt Retractor - Rear (Convertible)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
