Wheel Speed Sensor Ring - Rear: Installation

Using the special tools, align the rear anti-lock brake sensor indicator to the rear axle shaft.

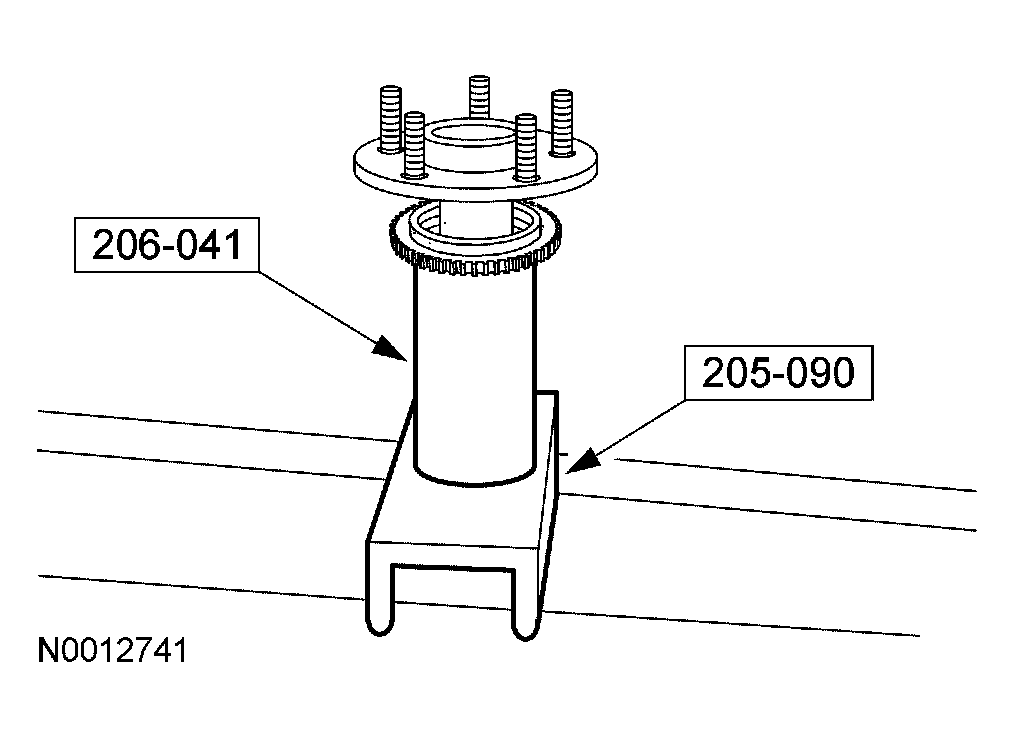

Fig 1: Aligning Rear Anti-Lock Brake Sensor Indicator
Courtesy of FORD MOTOR CO.
Using the special tools, press the rear anti-lock brake sensor on the rear axle shaft to specification.

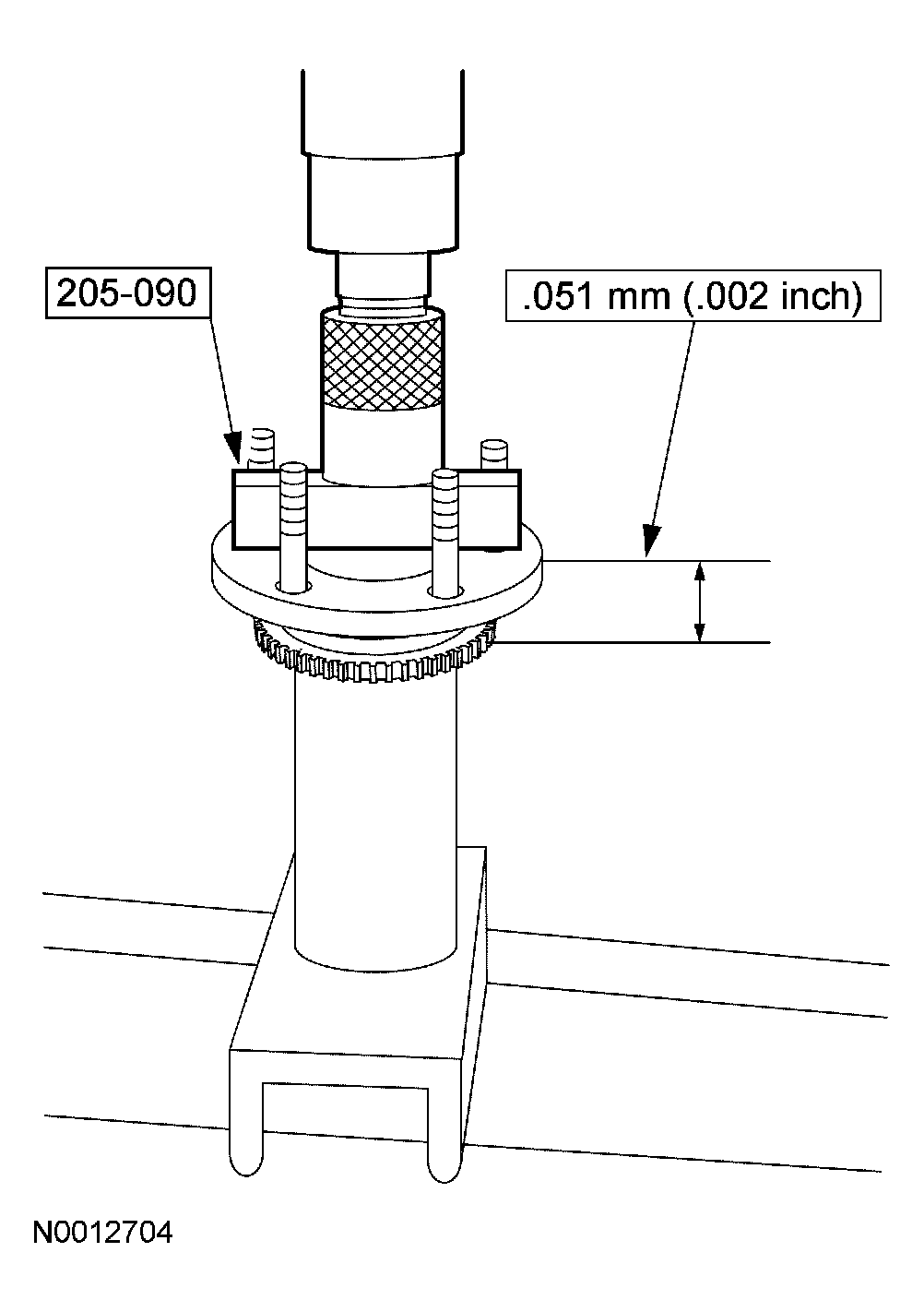

Fig 2: Pressing Rear Anti-Lock Brake Sensor
Courtesy of FORD MOTOR CO.
Install the rear axle shaft. For additional information, refer to AXLE SHAFT for 7.5 inch ring gears or AXLE SHAFT for 8.8 inch ring gears.
