Home >> Ford >> 2005 >> Mustang Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Body & Frame >> Ignition Switch/Steering Lock >> Steering Column Switches >> Removal And Installation >> Steering Column Multifunction Switch >> Notes

Steering Column Multifunction Switch: Notes

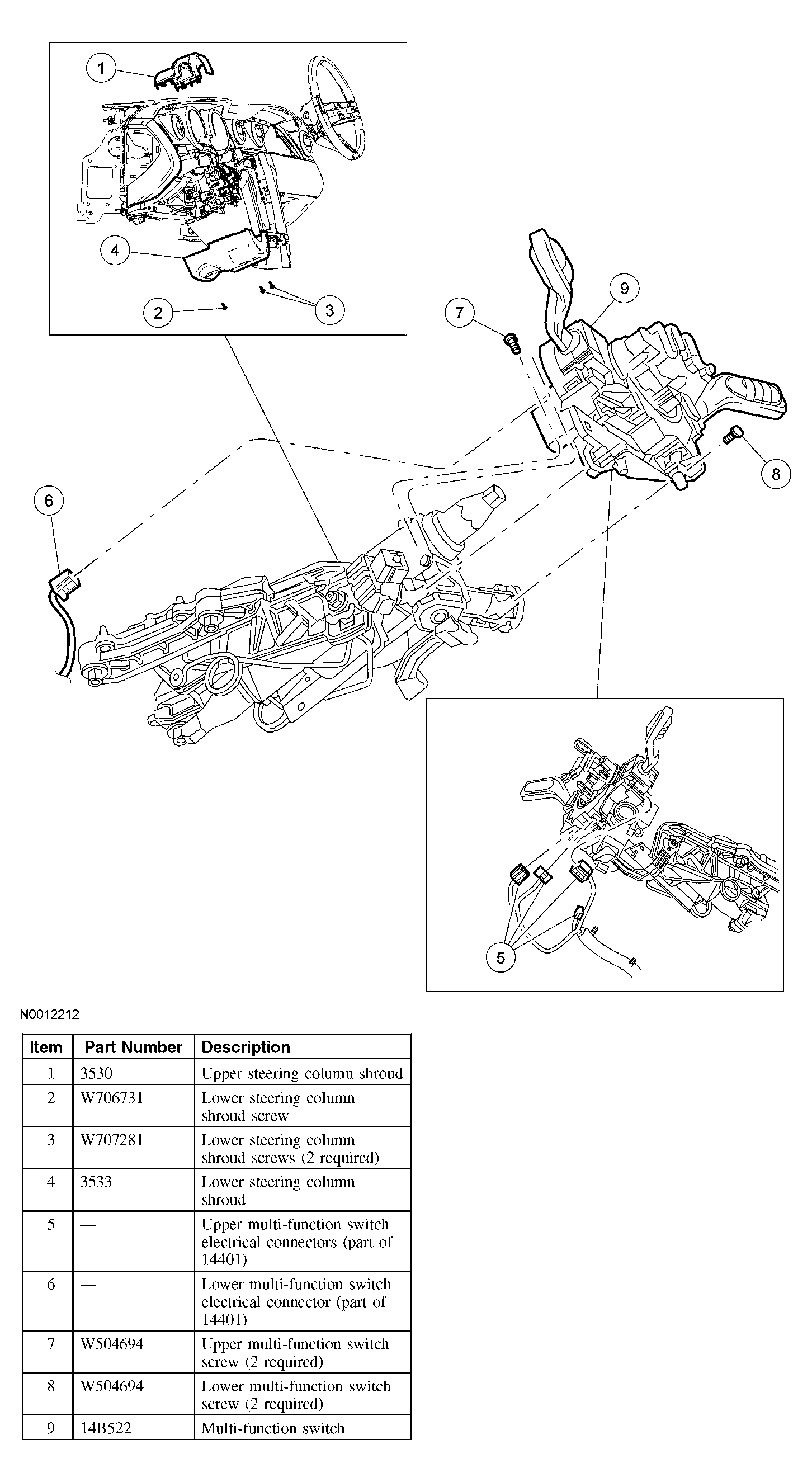

Fig 1: Steering Column Multifunction Switch Components

G03983560

Courtesy of FORD MOTOR CO.
