Smart Junction Box (SJB)
NOTE:
For component location, see appropriate ELECTRICAL COMPONENT LOCATIONS article.
SMART JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse/Relay Location | Fuse Amp Rating | Smart Junction Box Description |
|---|---|---|
| F2.1 | - | not used |
| F2.2 | - | not used |
| F2.3 | 15 | Park lamps |
| F2.4 | 10 | Accessory delay, Ignition switch |
| F2.5 | 2 | PCM power relay |
| F2.6 | 10 | Brake pedal position switch (13480), Brake pressure switch (2B264) |
| F2.7 | 5 | Passive anti-theft transceiver module (19A366), Climate control module |
| F2.8 | 15 | Exterior rear view mirror switch (17B676), Data Link Connector (DLC) (14489), Gauge control module (10849), Audio Unit |
| F2.9 | 20 | Power Door Locks |
| F2.10 | 5 | Rear window defrost switch (18C621) indicator |
| F2.11 | - | not used |
| F2.12 | 5 | Audio unit (18808) |
| F2.13 | - | not used |
| F2.14 | - | not used |
| F2.15 | 30 | Power windows |
| F2.16 | 5 | Audio system power supply - Mclntosh only |
| F2.17 | 15 | Low current board, Headlamps |
| F2.18 | 15 | Interior Lighting |
| F2.19 | - | not used |
| F2.20 | 15 | Hom (13A803) |
| F2.21 | 5 | Safety belt indicator relay |
| F2.22 | - | not used |
| F2.23 | - | not used |
| F2.24 | - | not used |
| F2.25 | 20 | Wiper and Washer Systems |
| F2.26 | 5 | Positive crankcase ventilation heater |
| F2.27 | 5 | Passive anti-theft transceiver module (19A366) |
| F2.28 | 10 | Gauge control module (10849) |
| F2.29 | 10 | Reversing lamps |
| F2.30 | - | not used |
| F2.31 | - | not used |
| F2.32 | 10 | Climate control module |
| F2.33 | 15 | Air bags |
| F2.34 | 5 | ABS control module (2C346) |
| F2.35 | - | not used |

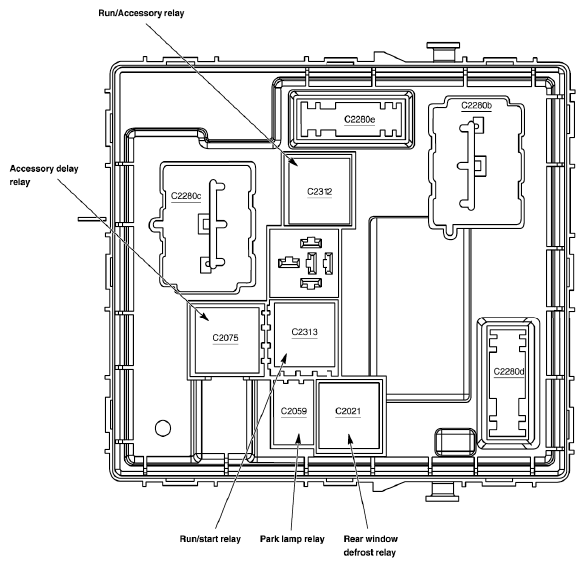

SMART JUNCTION BOX RELAY IDENTIFICATION - REAR VIEW
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| C2075 | Accessory delay relay |
| C2312 | Run/Accessory Relay |
| C2021 | Rear window defrost relay |
| C2059 | Park lamp relay |
| C2313 | Run/start Relay |
