Home >> Ford >> 2005 >> Freestar SES >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission >> In-Vehicle Repair >> Turbine Shaft Speed (TSS) Sensor >> Notes

Turbine Shaft Speed (TSS) Sensor: Notes

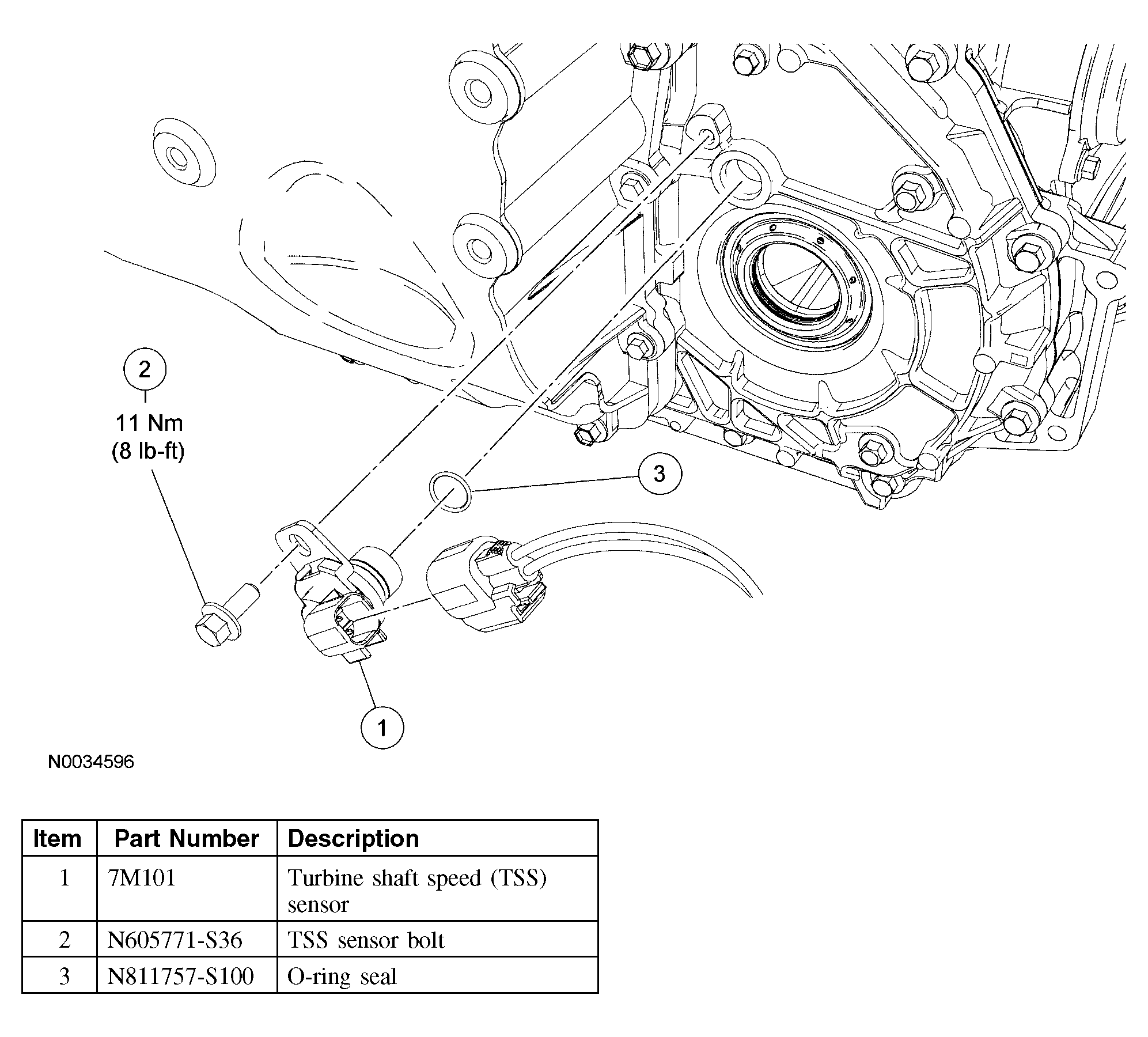

Fig 1: Identifying Tightening Torque Of Turbine Shaft Speed (TSS) Sensor Bolt

G04004716

Courtesy of FORD MOTOR CO.
