Exhaust System - Exploded View
Exhaust System - Exploded View

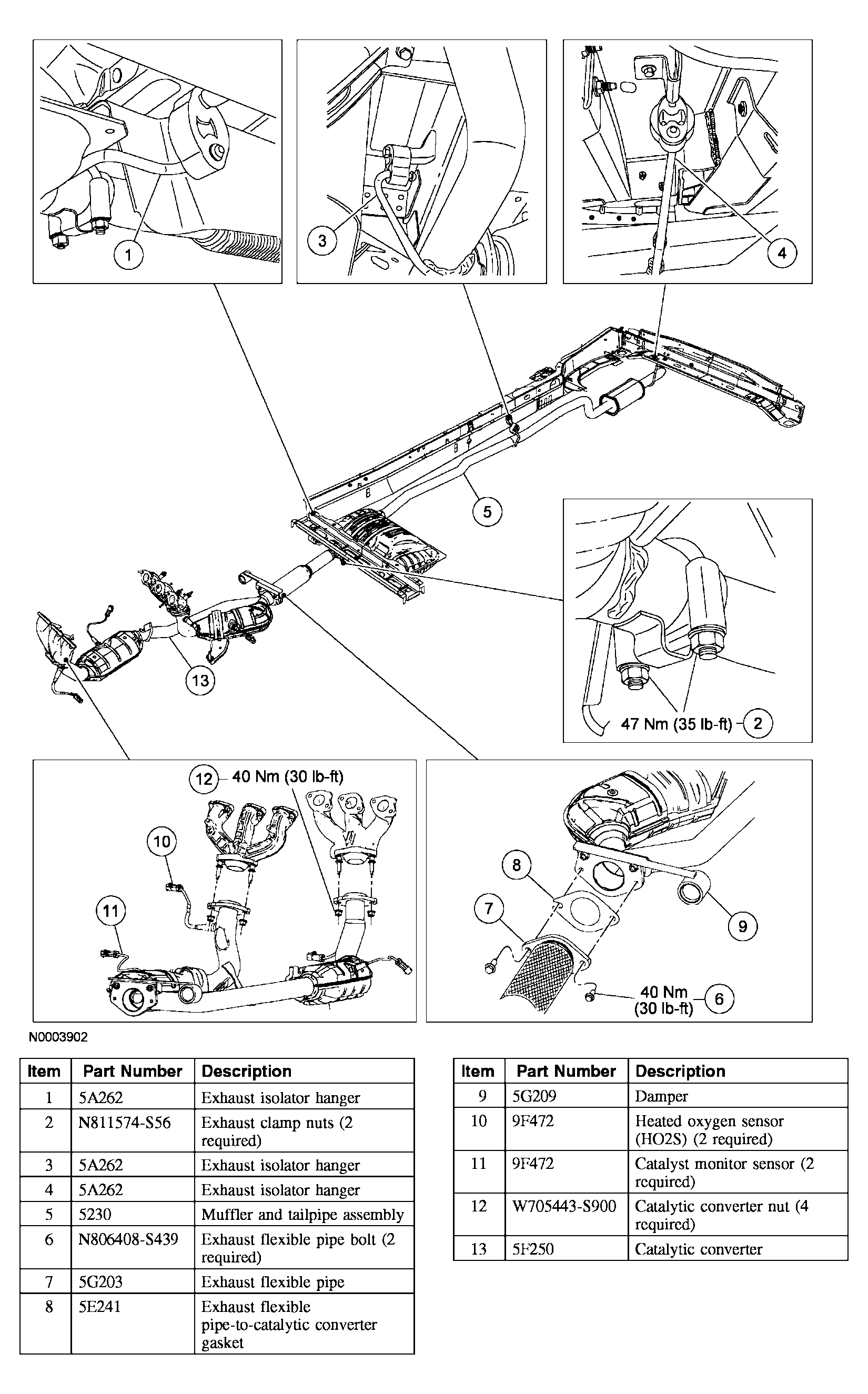

Fig 1: Exploded View Of Exhaust System
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate component removal and installation procedures.
Courtesy of FORD MOTOR CO.
