Power window switch, RH side front
Power window switch, RH side front

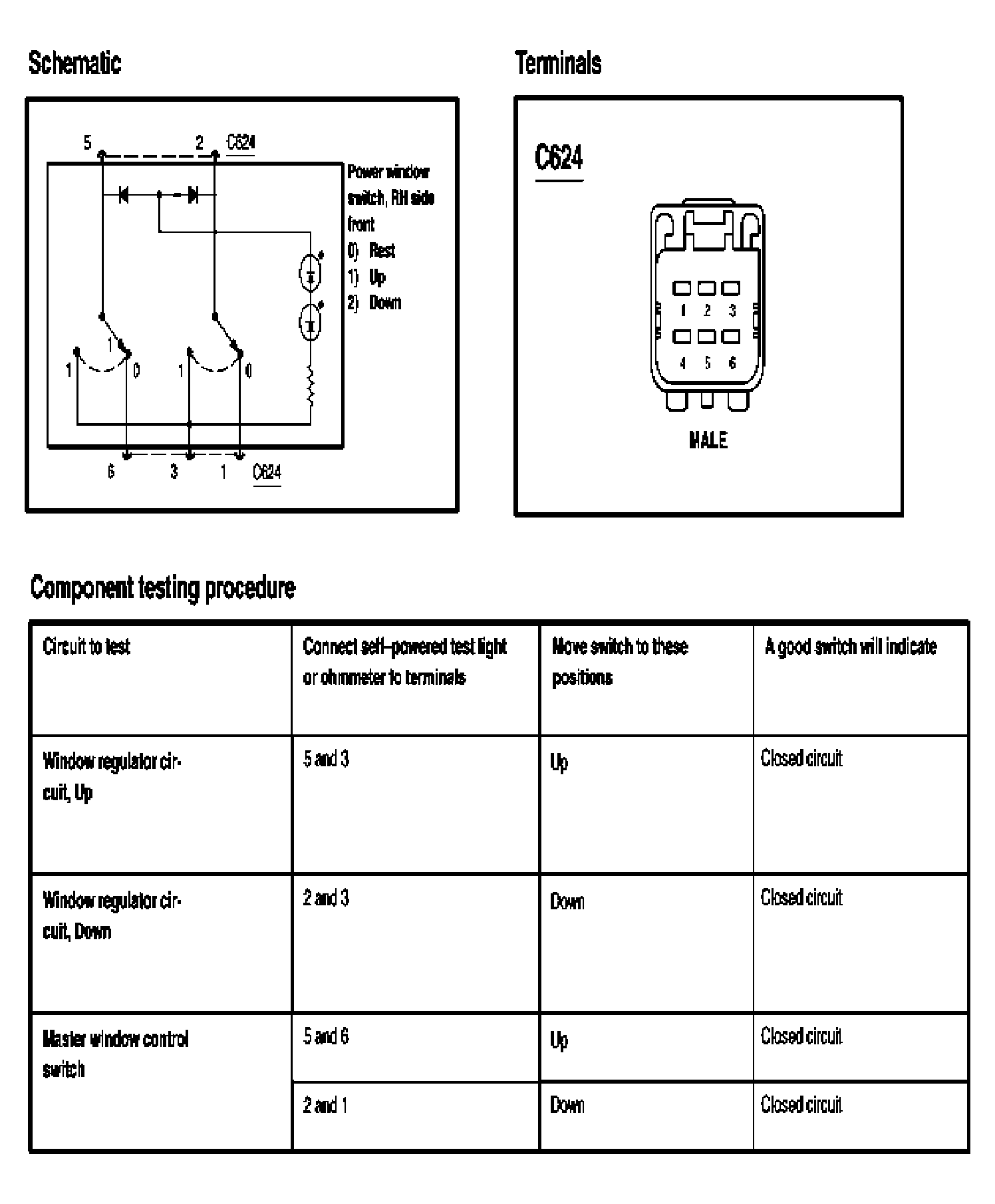

Fig 1: Power Window Switch, RH Side Front - Component Testing
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
