Idle Air Control (IAC) Valve: Notes

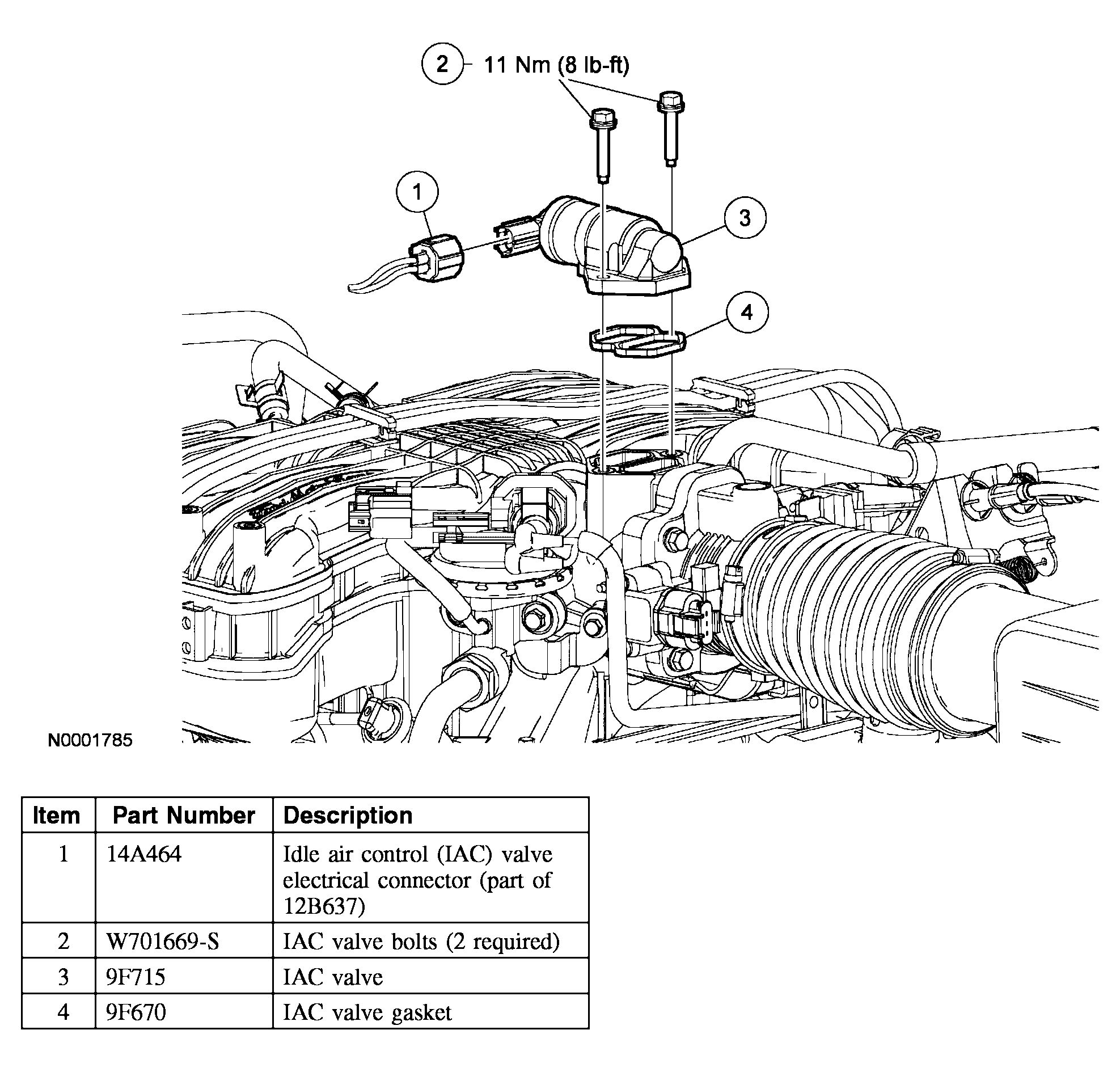

Fig 1: Installing Idle Air Control Valve

G04004506

Courtesy of FORD MOTOR CO.
