Turbine Shaft Speed (TSS) Sensor: Installation

  1. Install the TSS sensor and bolt.
    • Tighten to 11 Nm (8 lb-ft).

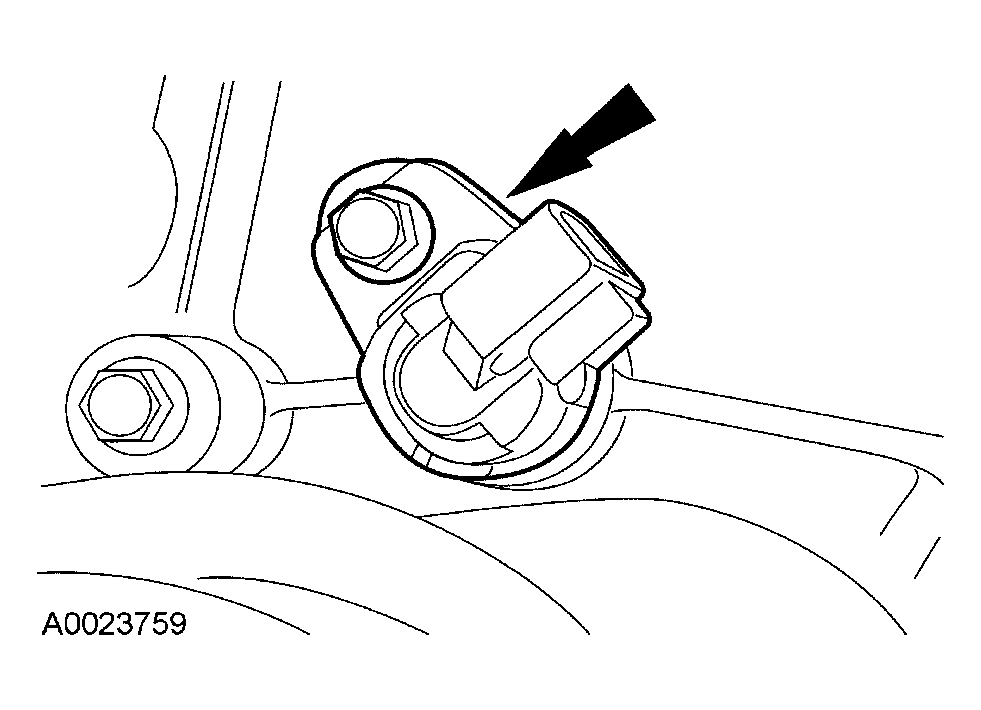

    Fig 1: Installing TSS Sensor And Bolt
    G04004718Courtesy of FORD MOTOR CO.
