Power Steering Pump: Material

MATERIAL SPECIFICATIONS

Item Specification
MERCON® Multi-Purpose (ATF) Transmission Fluid XT-2-QDX MERCON®
NOTE: The power steering pump pulley has been removed for clarity.

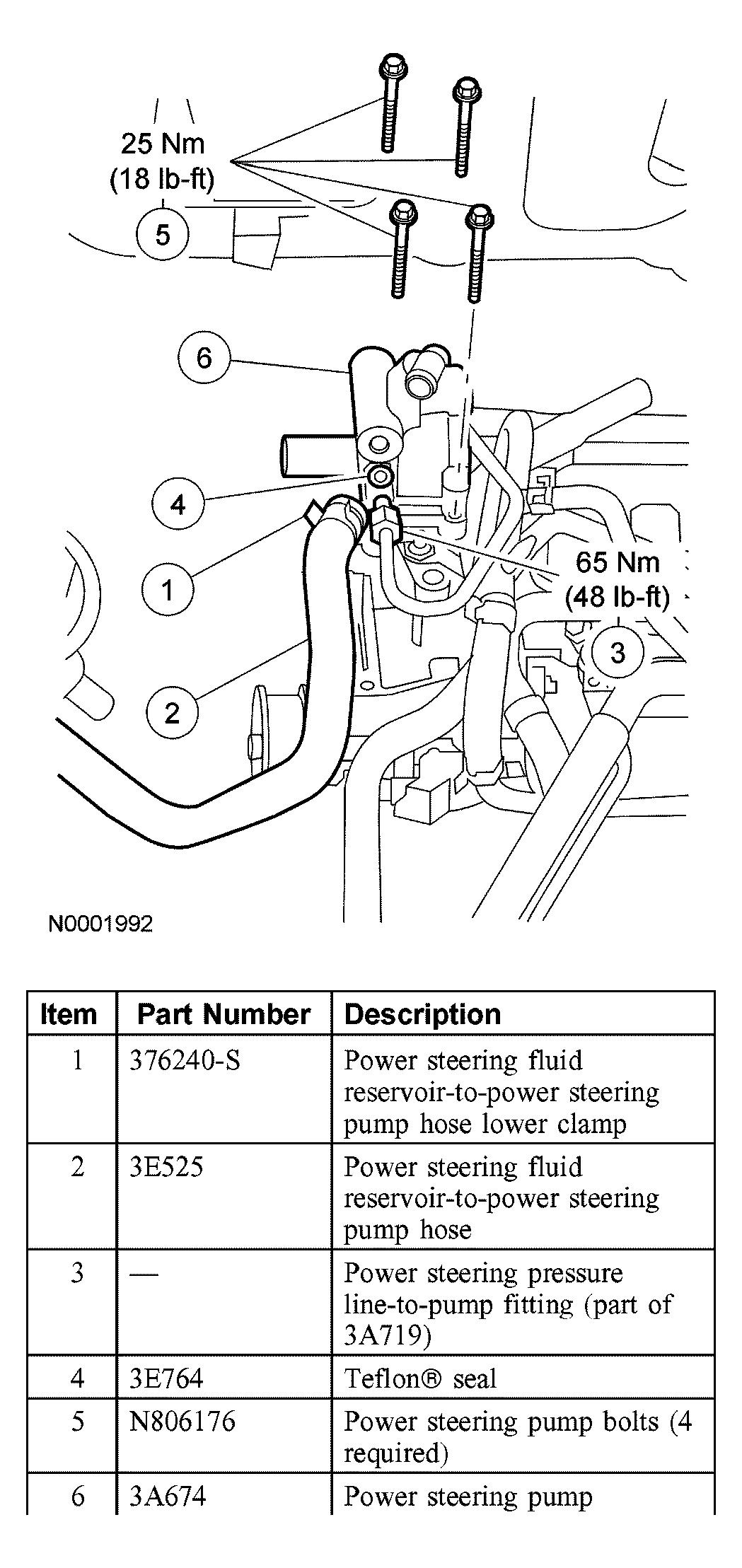

Fig 1: Removing Power Steering Pump
G04000709Courtesy of FORD MOTOR CO.
