Home >> Ford >> 2005 >> Freestar Base >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Inflatable Restraint System >> Removal And Installation >> Side Impact Sensor - First Row >> Notes

Side Impact Sensor - First Row: Notes

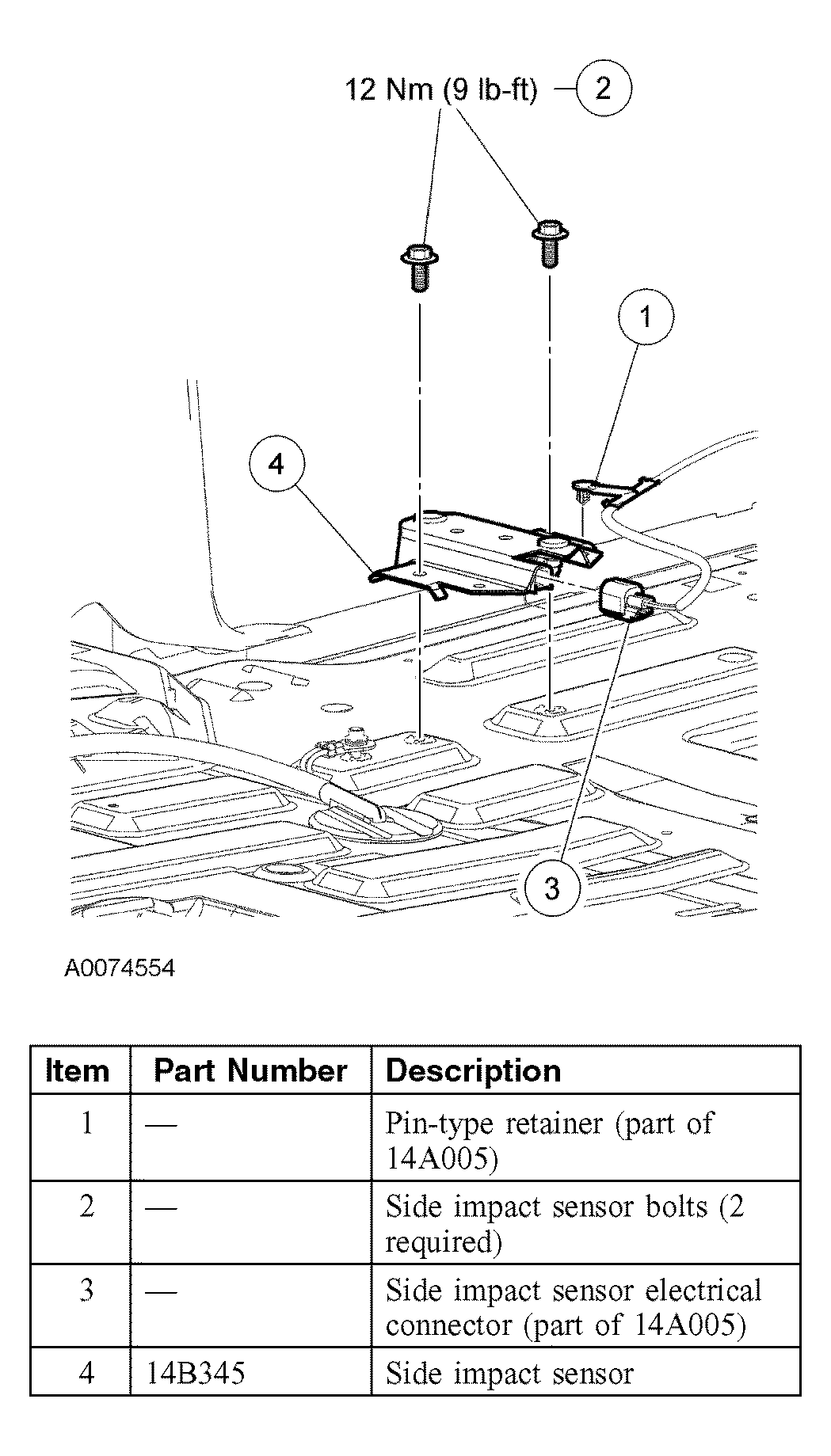

Fig 1: Removing & Installing Side Impact Sensor - First Row

G04011698

Courtesy of FORD MOTOR CO.
