Home >> Ford >> 2005 >> Freestar Base >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Inflatable Restraint System >> Removal And Installation >> Safety Canopy Module - Early Build >> Notes

Safety Canopy Module - Early Build: Notes

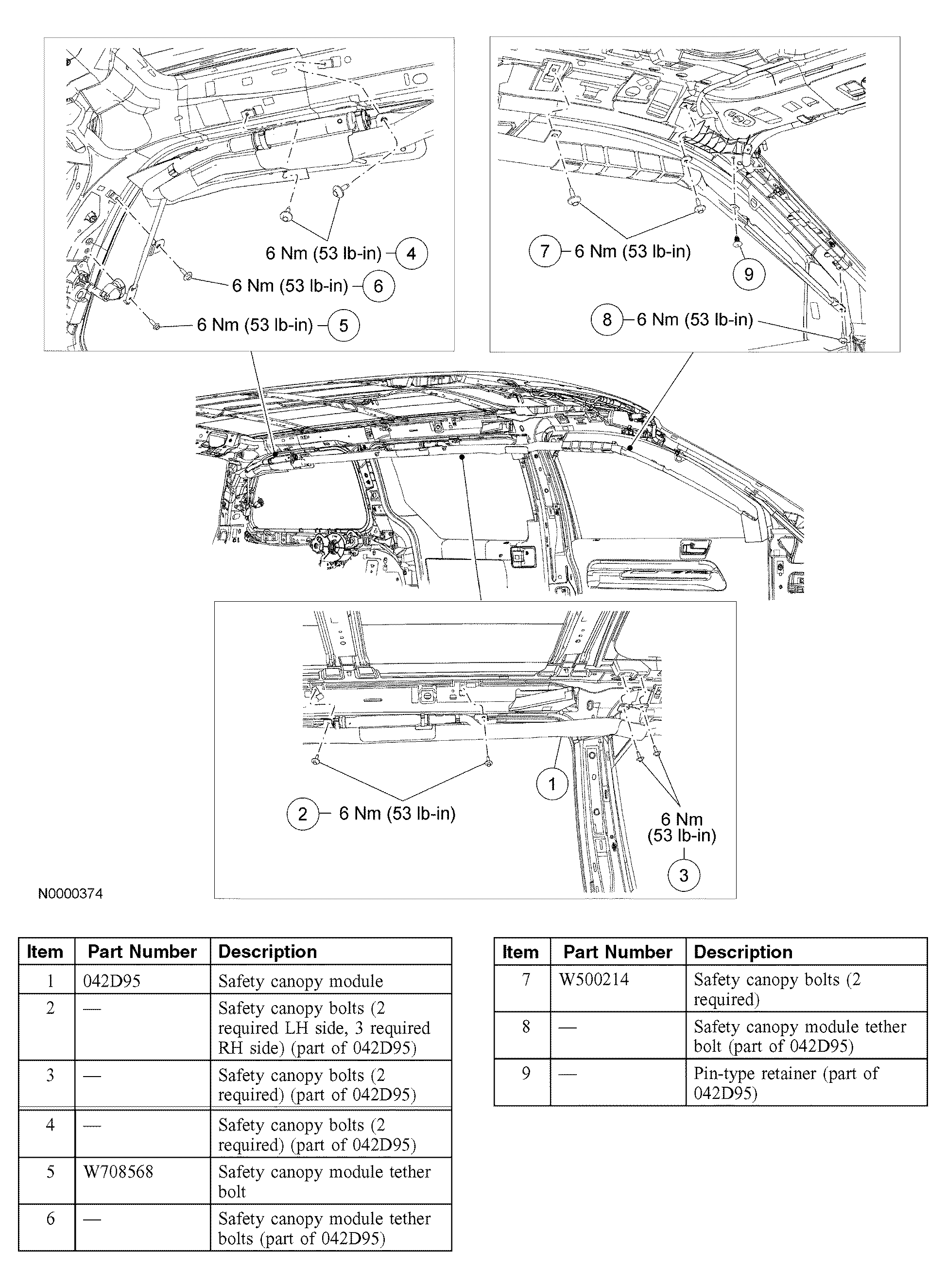

Fig 1: Removing & Installing Safety Canopy Module - Early Build

G04011669

Courtesy of FORD MOTOR CO.
