Passenger Air Bag Module: Notes

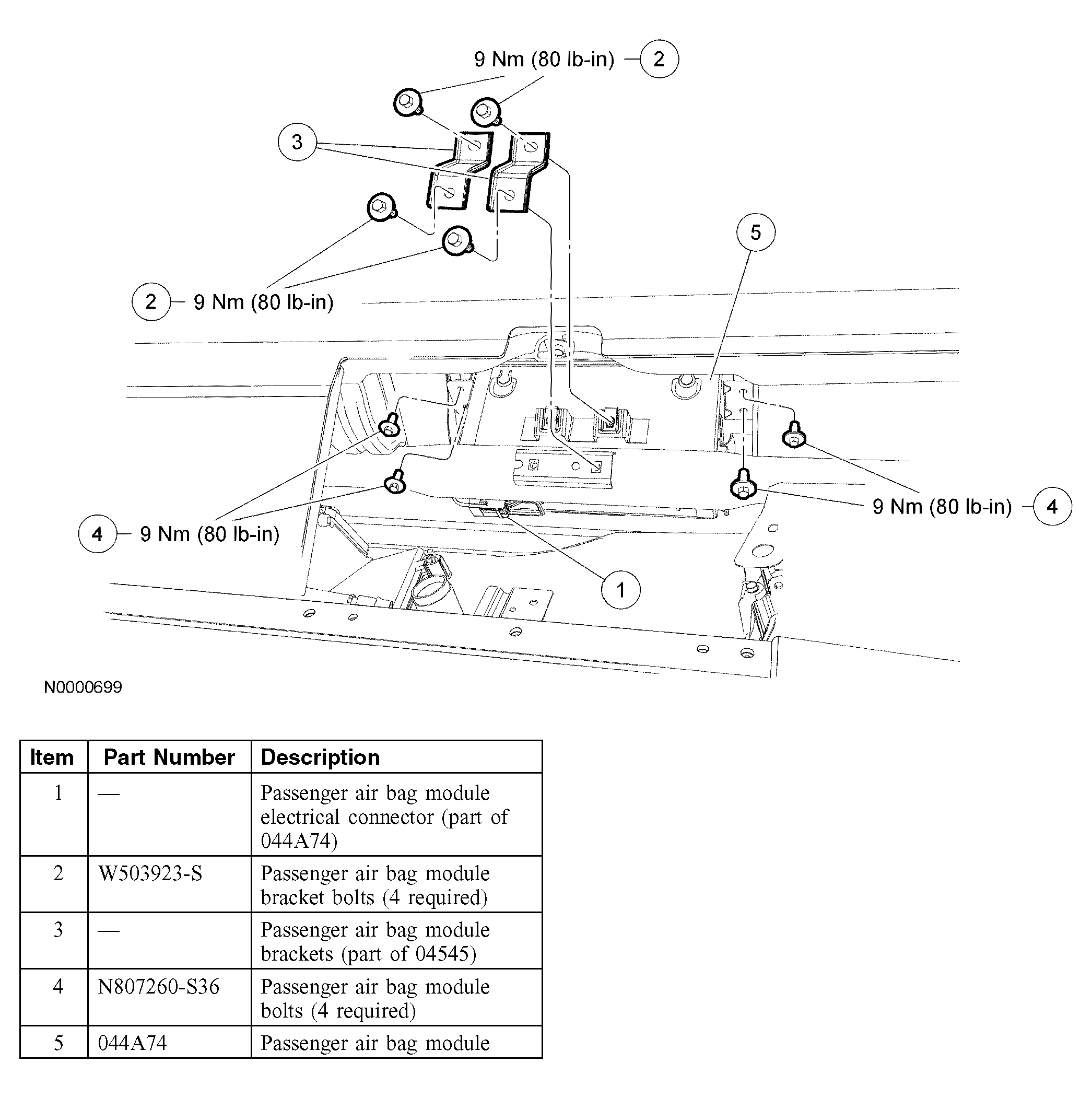

Fig 1: Removing & Installing Passenger Air Bag Module

G04011655

Courtesy of FORD MOTOR CO.
