Front Impact Severity Sensor: Notes

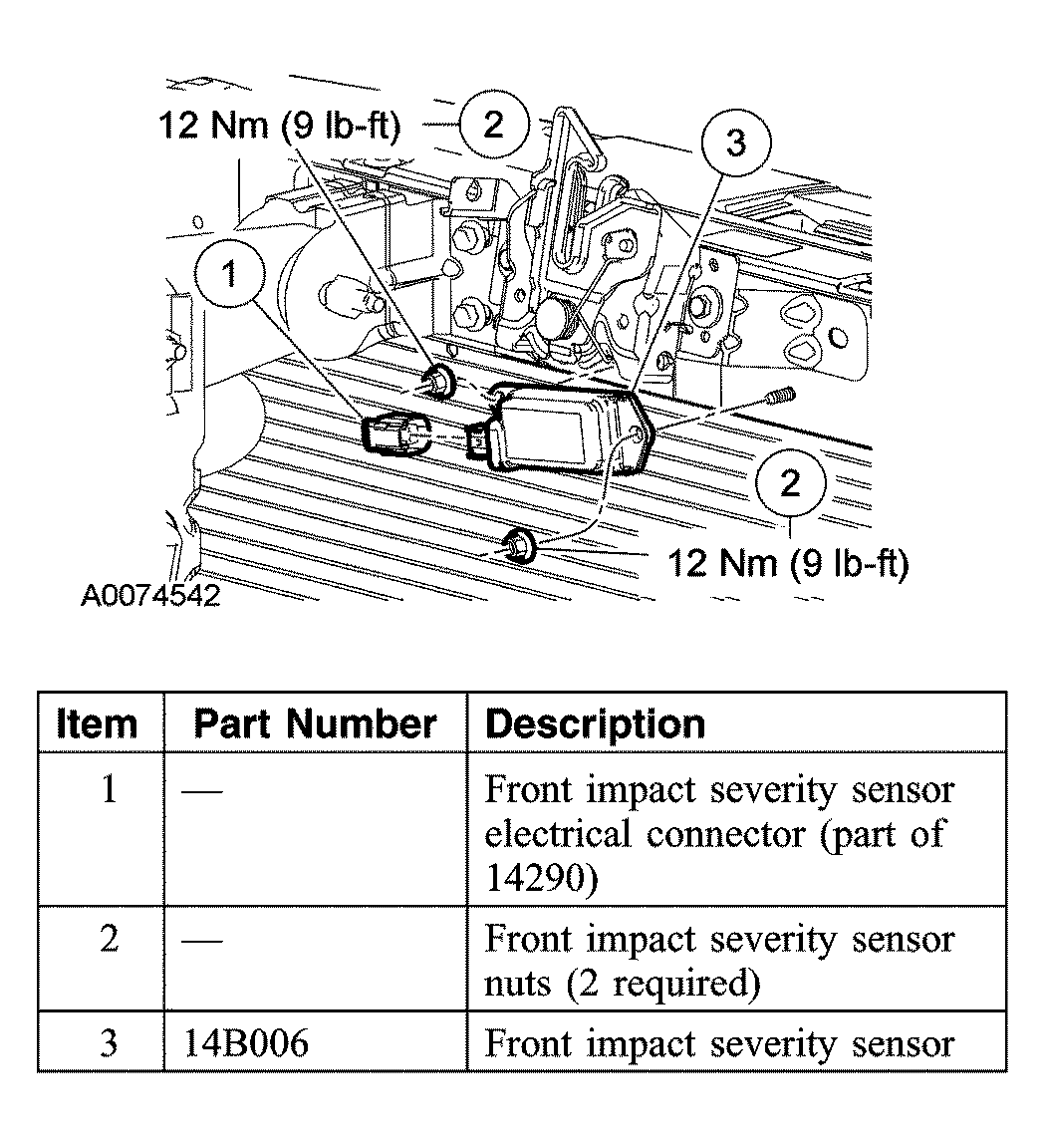

Fig 1: Removing & Installing Front Impact Severity Sensor

G04011629

Courtesy of FORD MOTOR CO.
