Home >> Ford >> 2005 >> Freestar Base >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Inflatable Restraint System >> Removal And Installation >> Clockspring >> Notes

Removal And Installation: Clockspring: Notes

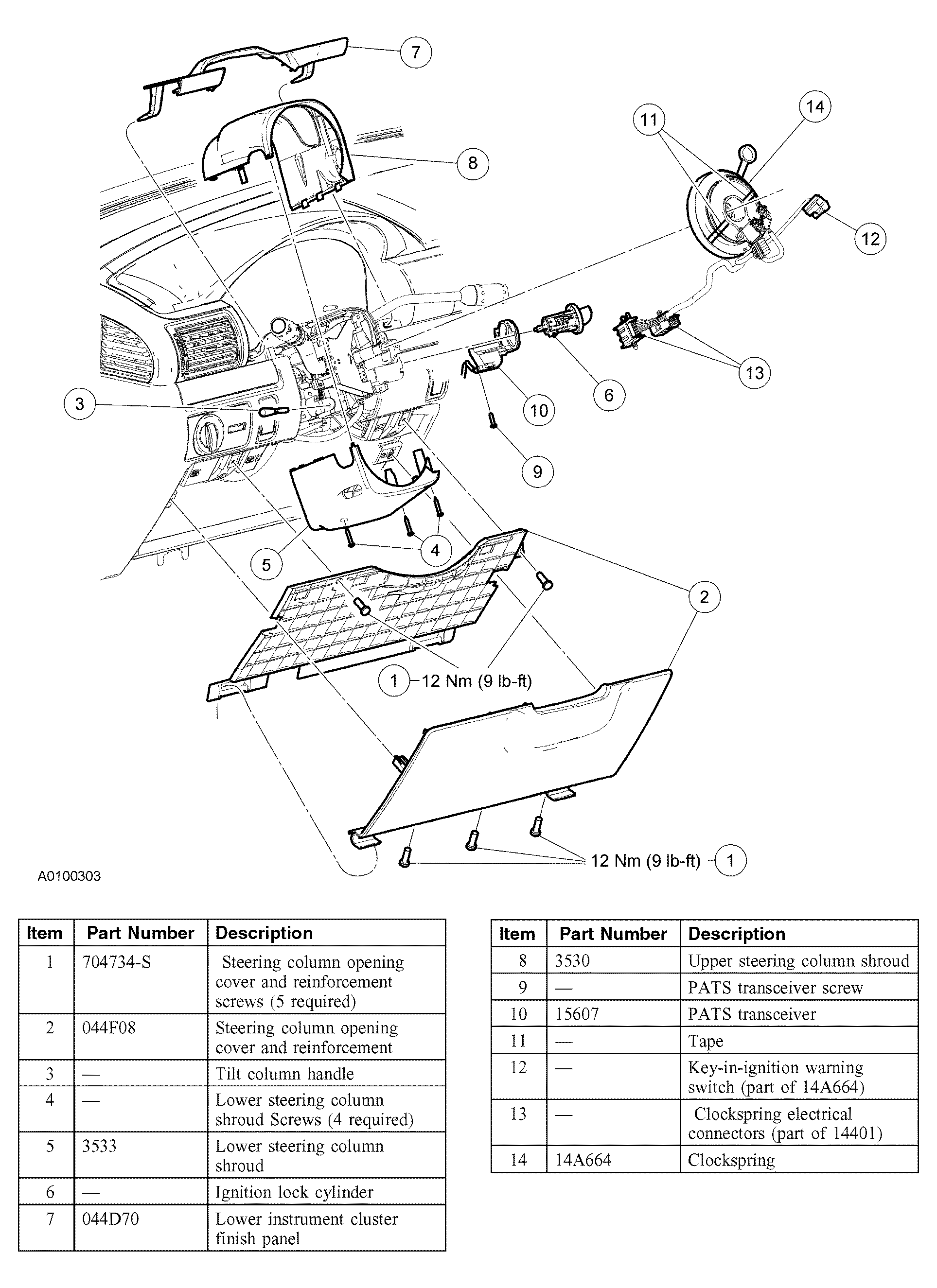

Fig 1: Removing & Installing Clockspring

G04011613

Courtesy of FORD MOTOR CO.
