Exhaust Manifold - LH: Installation

  1. Install a new LH exhaust manifold gasket.
  2. Install the LH exhaust manifold and the 6 nuts.

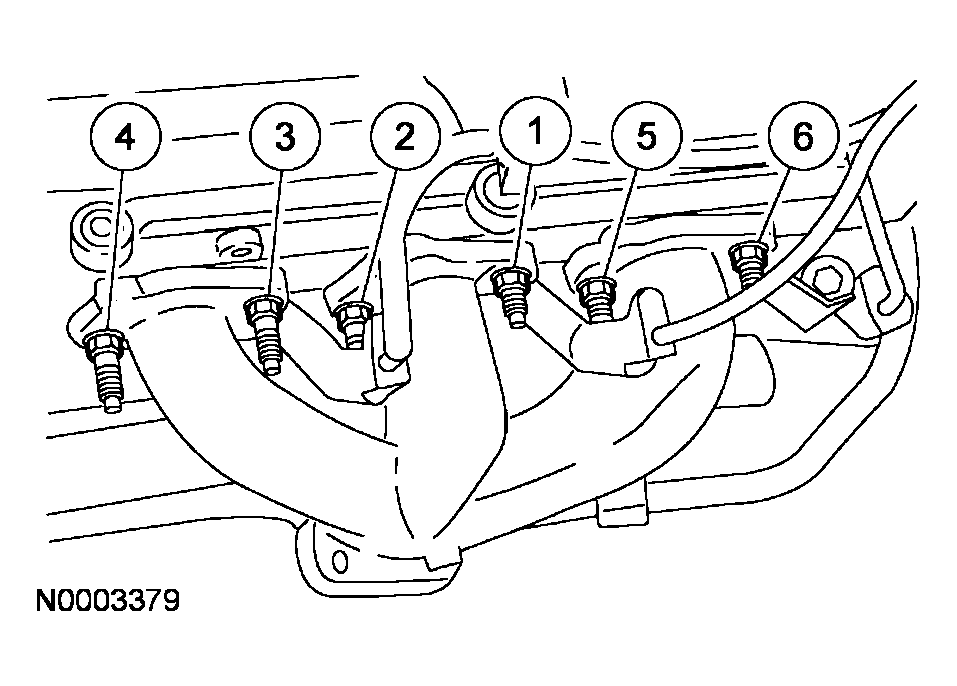

    • Tighten to 25 Nm (18 lb-ft) in the sequence shown in illustration.
    Fig 1: Installing LH Exhaust Manifold
    G04004023Courtesy of FORD MOTOR CO.
  3. Connect the EGR tube to the exhaust manifold.
    • Tighten to 40 Nm (30 lb-ft).
    Fig 2: Connecting EGR Tube To Exhaust Manifold
    G04004022Courtesy of FORD MOTOR CO.
  4. Install the oil level indicator tube bolt.
    • Tighten to 10 Nm (89 lb-in).
  5. Install the dual converter Y-pipe. For additional information, refer to EXHAUST SYSTEM .
