Removal and Installation

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the hood.
  3. Remove the wiper motor and pivot assembly. For additional information, refer to WIPERS AND WASHERS .
  4. Remove the 2 engine roll restrictor bolts and the engine roll restrictor.
    • To install, tighten to 63 Nm (46 lb-ft).
  5. Remove the transaxle support insulator nut.
    • To install, tighten to 90 Nm (66 lb-ft).
  6. Remove the LH engine mount nut.
    • To install, tighten to 90 Nm (66 lb-ft).
  7. Remove the RH engine mount nut.
    • To install, tighten to 90 Nm (66 lb-ft).
  8. Using the special tools, raise the engine.

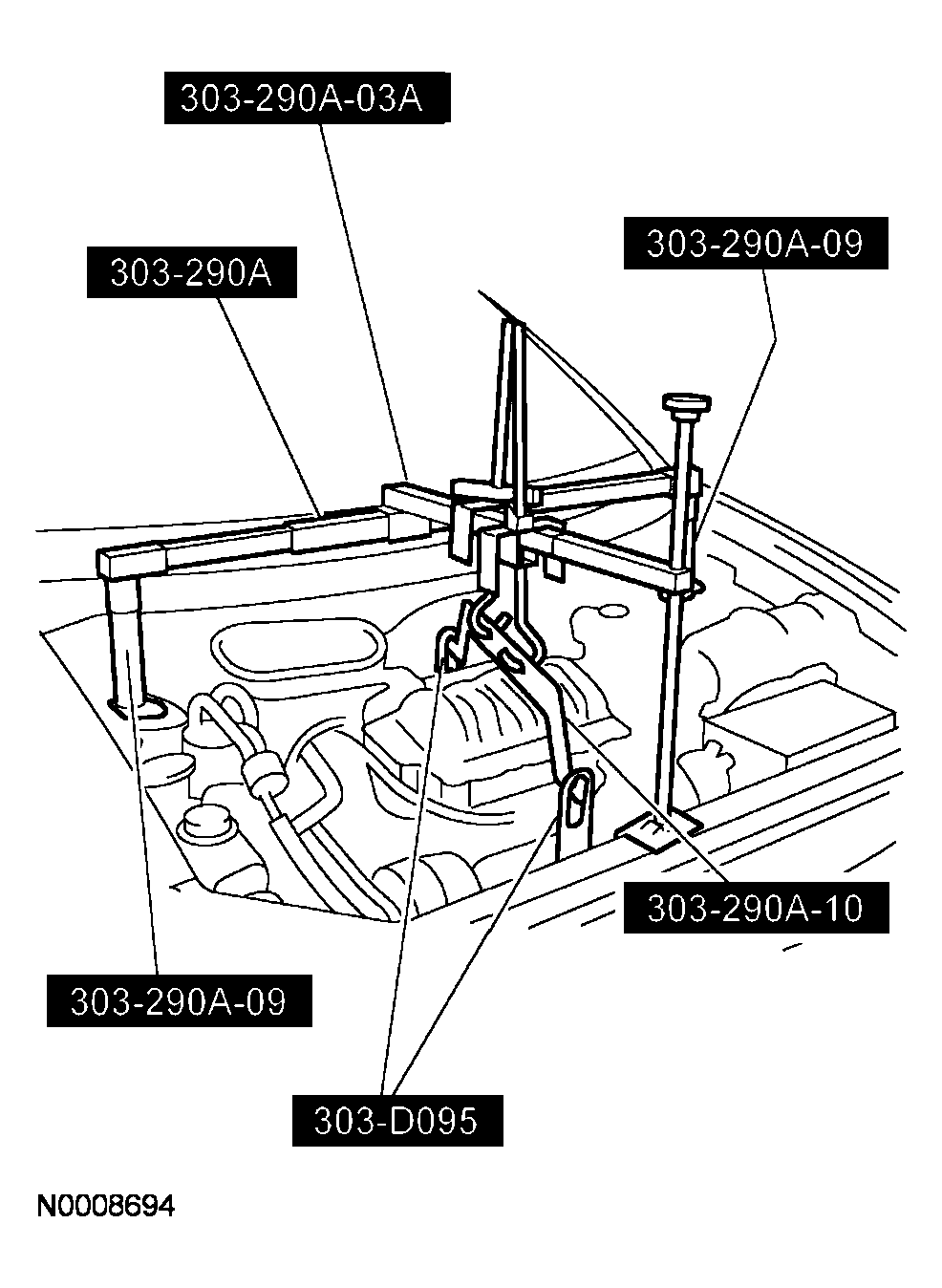

    Fig 1: Using Special Tools To Raise Engine
    G04004032Courtesy of FORD MOTOR CO.
  9. Remove the RH engine mount bolt.
    • To install, tighten to 90 Nm (66 lb-ft).
  10. Remove the RH engine mount.
  11. To install, reverse the removal procedure.
