Connector Circuit Reference

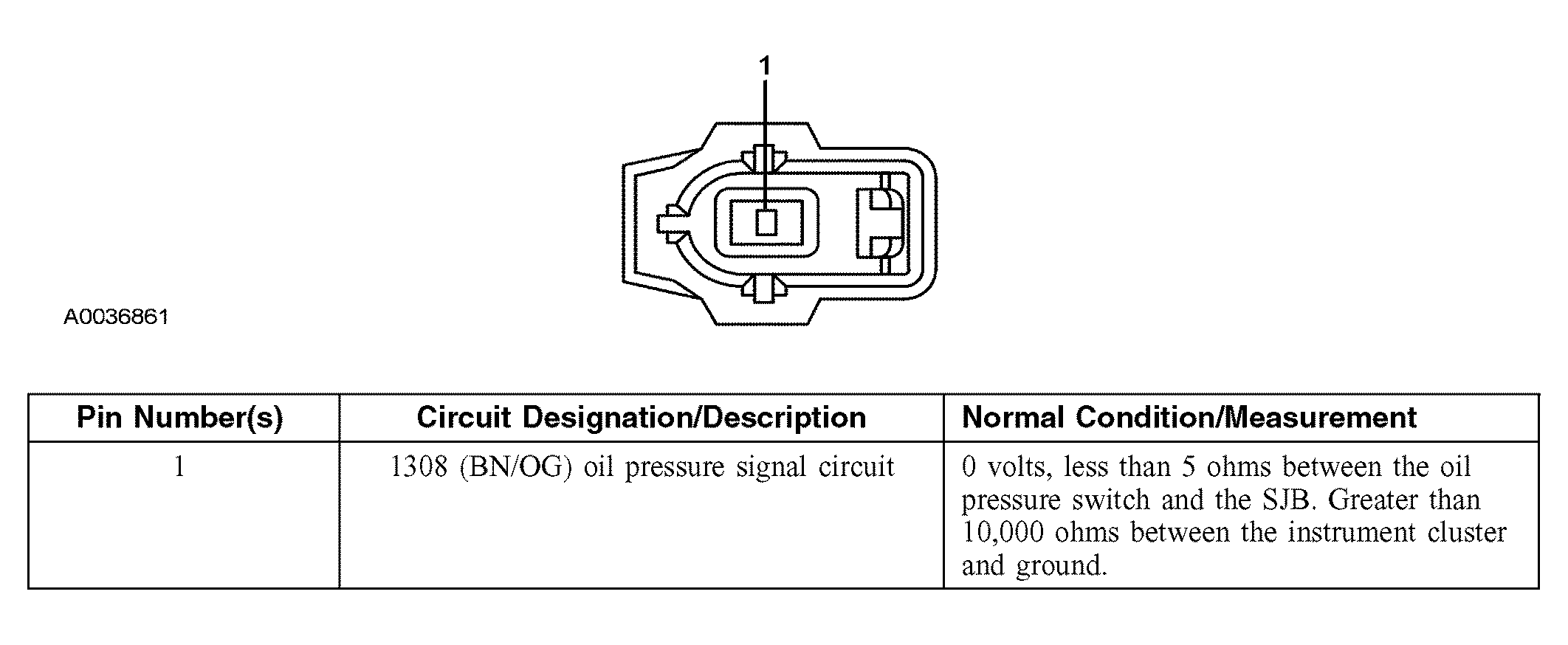

Fig 1: Identifying Oil Pressure Switch C103 Connector
G04005907Courtesy of FORD MOTOR CO.

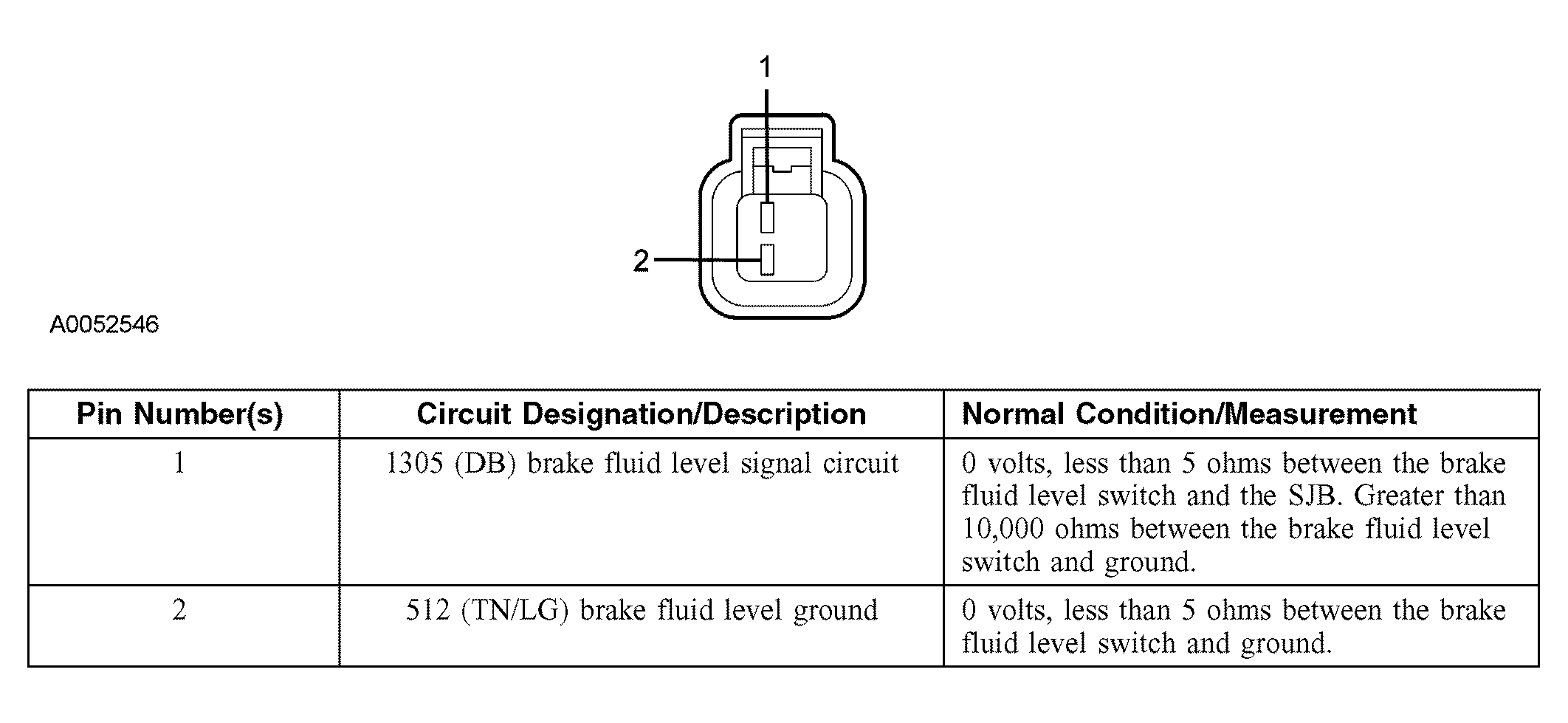

Fig 2: Identifying Brake Fluid Level Switch C124 Connector
G04005908Courtesy of FORD MOTOR CO.

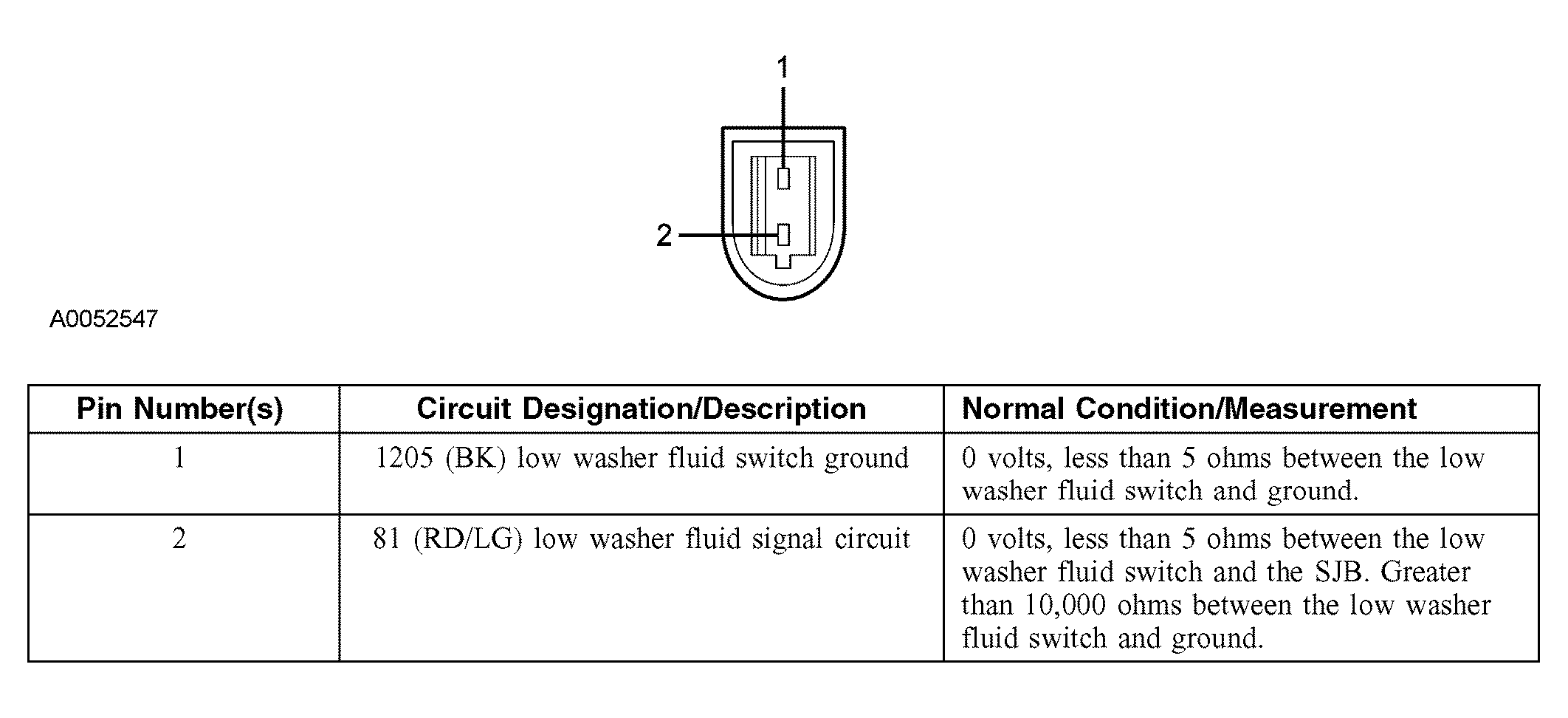

Fig 3: Identifying Washer Fluid Level Switch C138 Connector
G04005909Courtesy of FORD MOTOR CO.

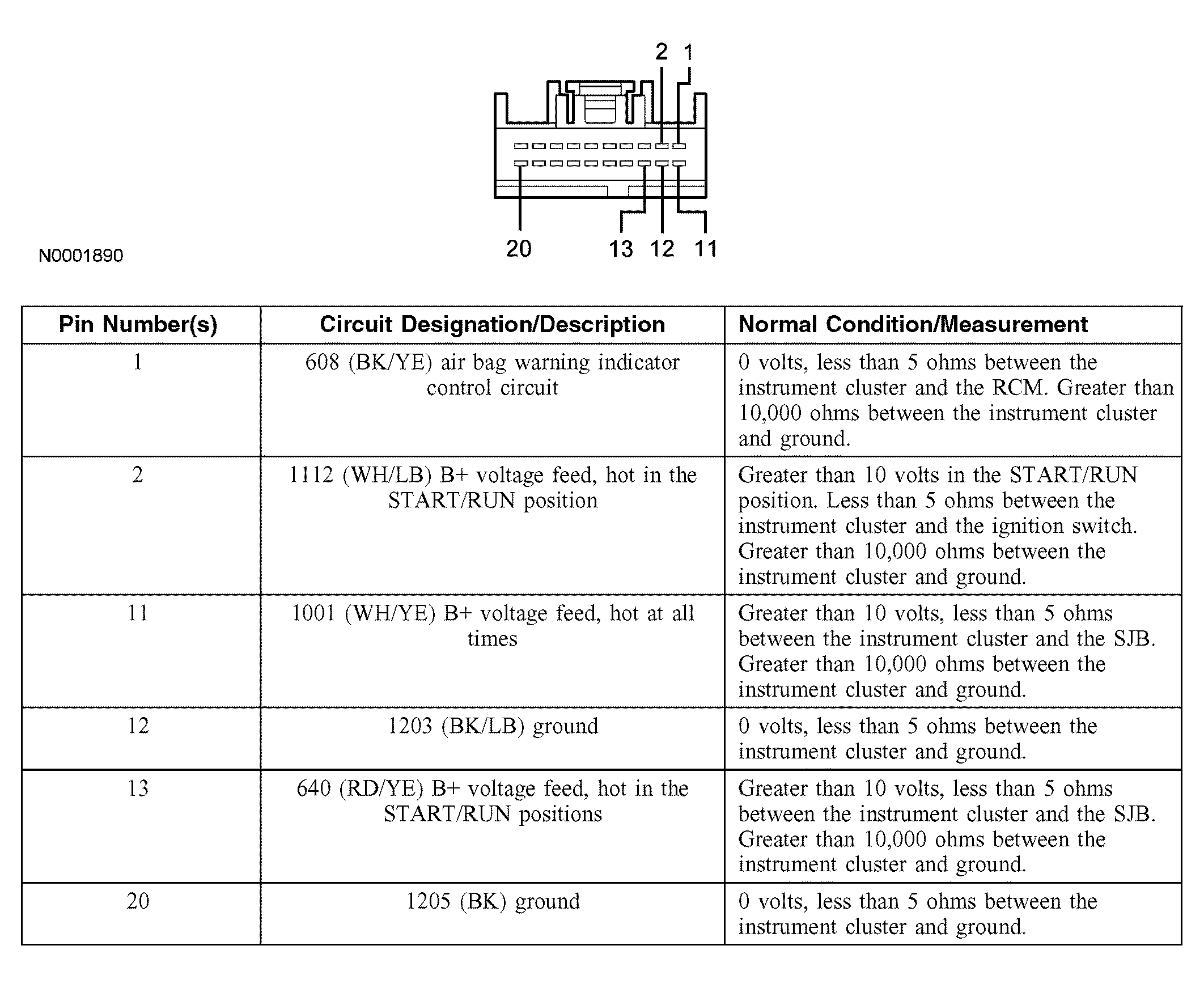

Fig 4: Identifying Instrument Cluster C220a Connector
G04005910Courtesy of FORD MOTOR CO.

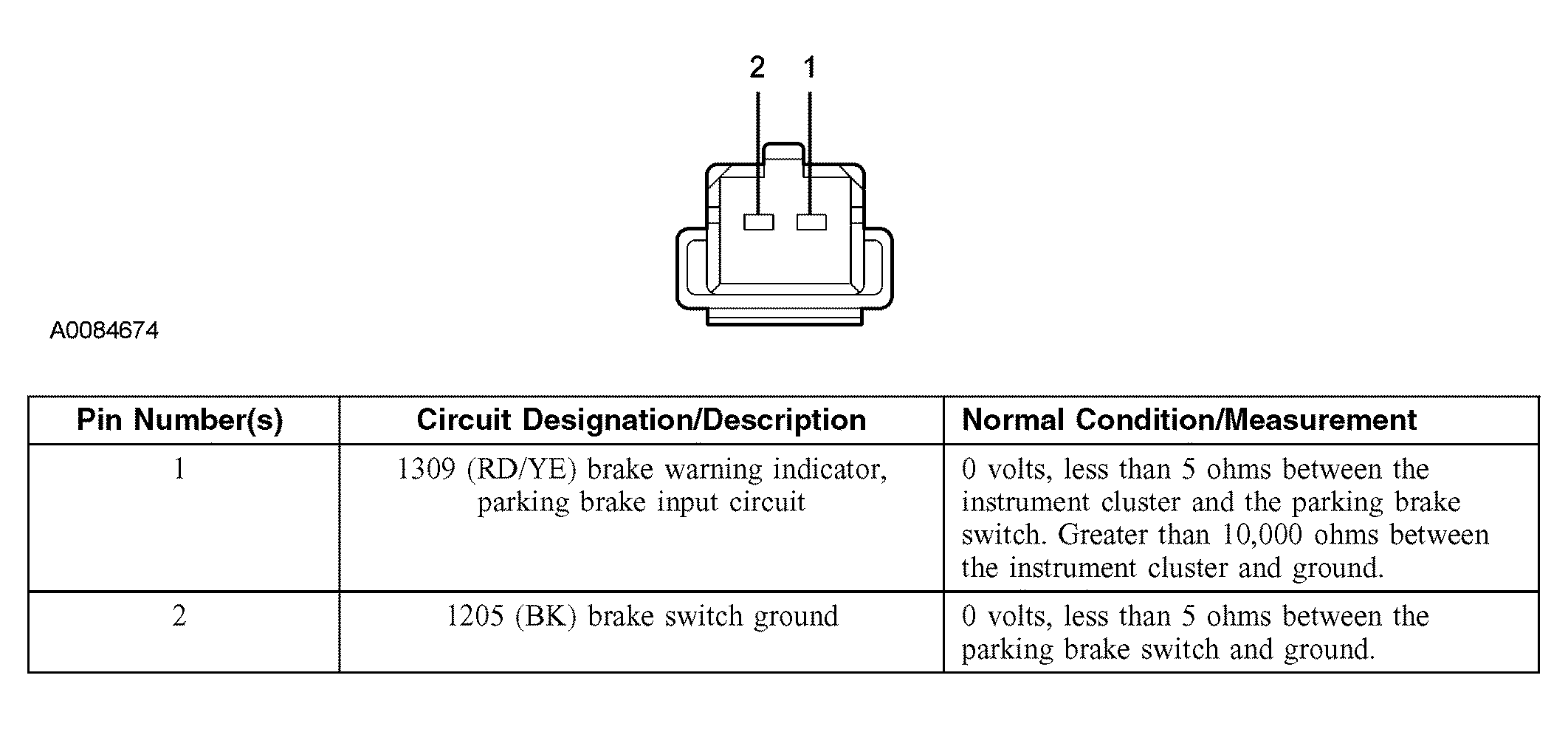

Fig 5: Identifying Parking Brake Switch C306 Connector
G04005911Courtesy of FORD MOTOR CO.

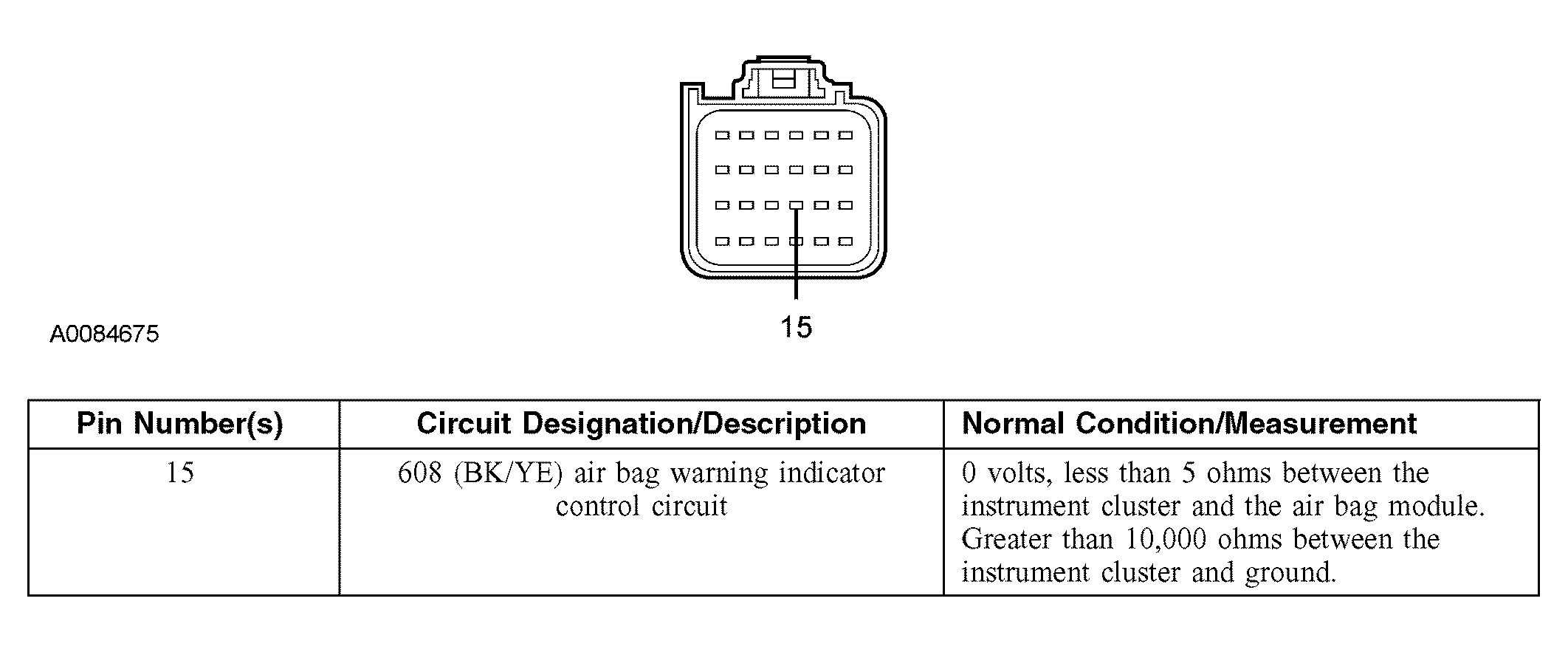

Fig 6: Identifying Restraint Control Module (RCM) C310a Connector
G04005912Courtesy of FORD MOTOR CO.

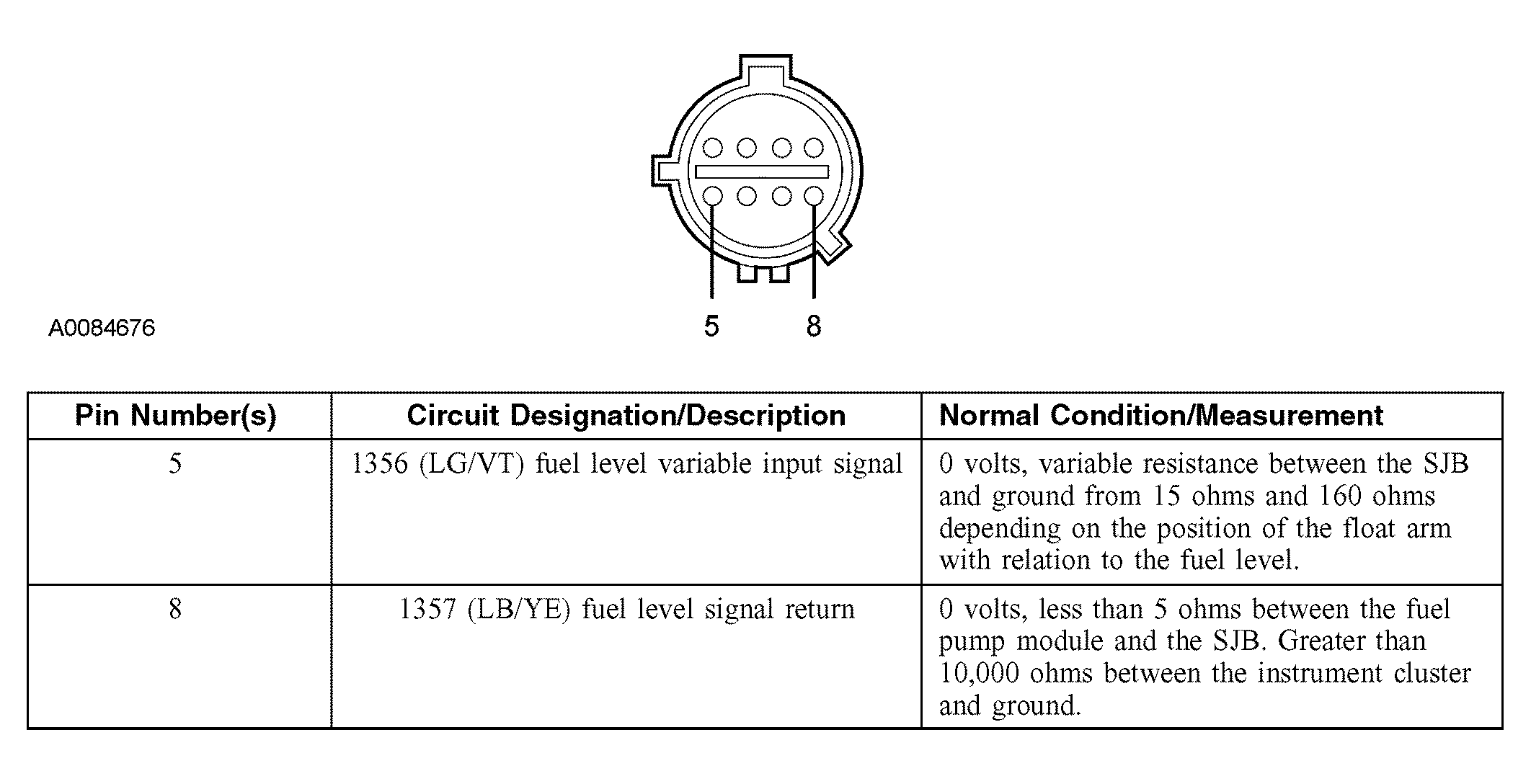

Fig 7: Identifying Fuel Pump Module C433 Connector
G04005913Courtesy of FORD MOTOR CO.

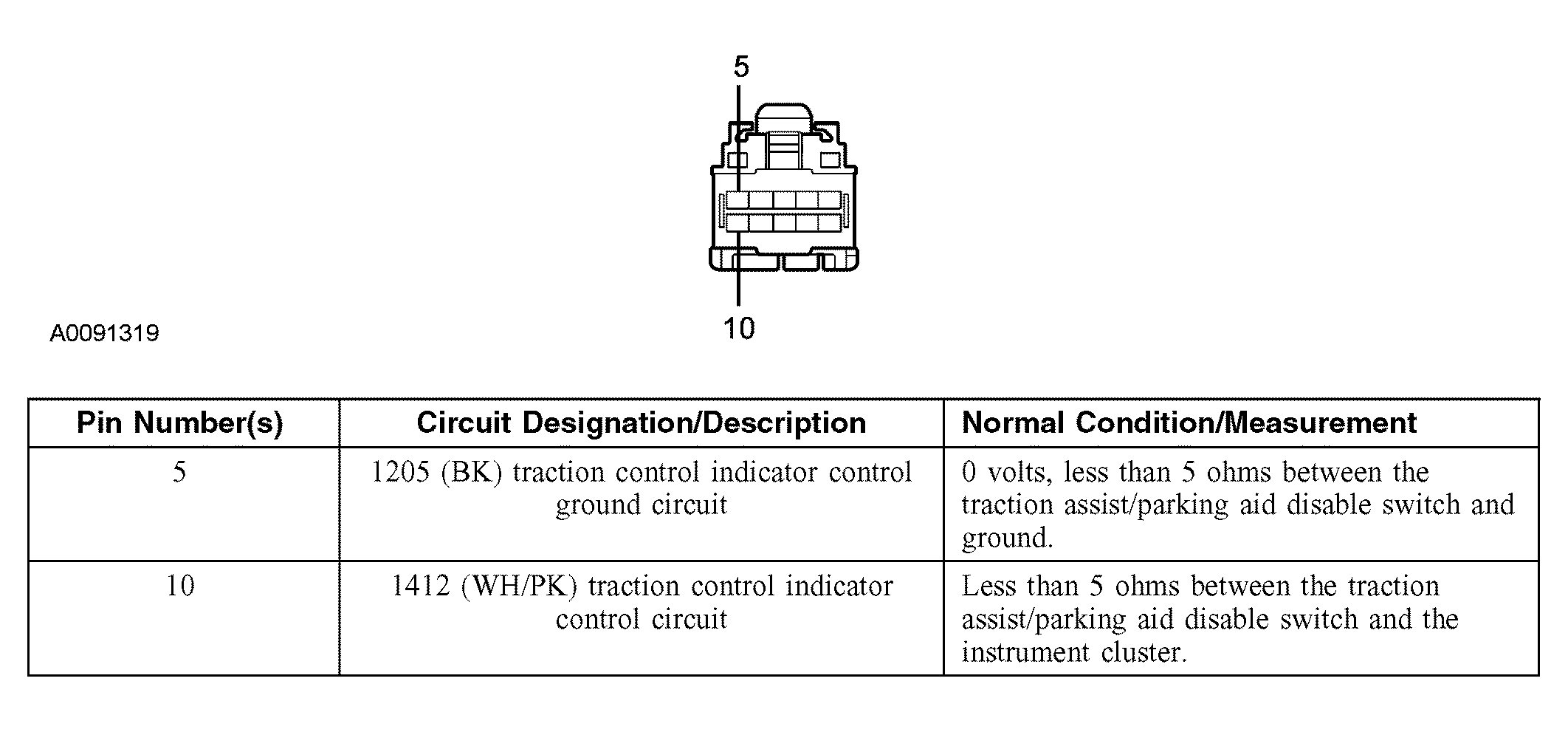

Fig 8: Identifying Traction Assist/Parking Aid Disable Switch C2114 Connector
G04005914Courtesy of FORD MOTOR CO.

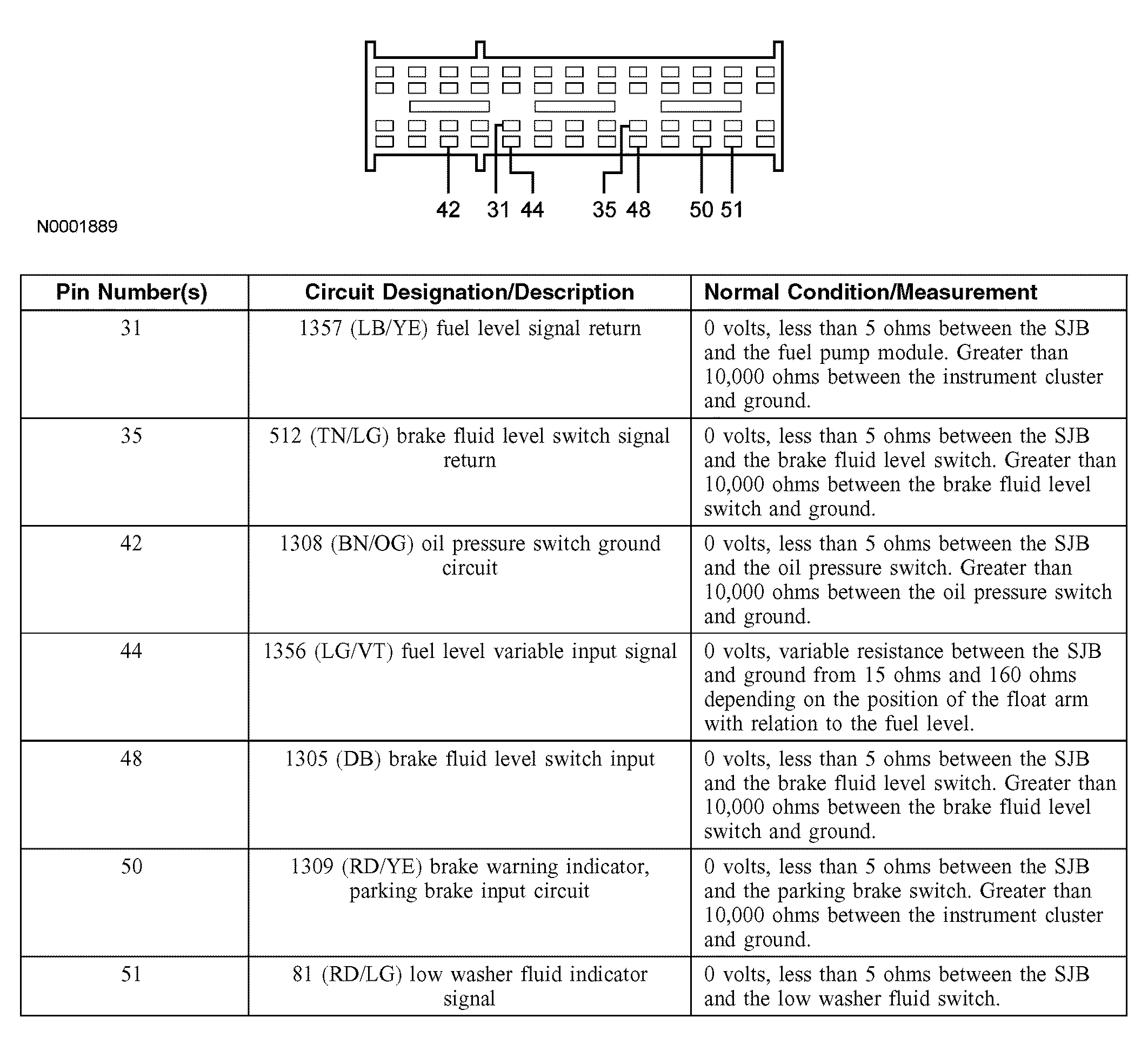

Fig 9: Identifying Smart Junction Box (SJB) C2280c Connector
G04005915Courtesy of FORD MOTOR CO.
