Home >> Ford >> 2005 >> Freestar Base >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat System >> Removal And Installation >> Seat - Front >> Notes

Seat - Front: Notes

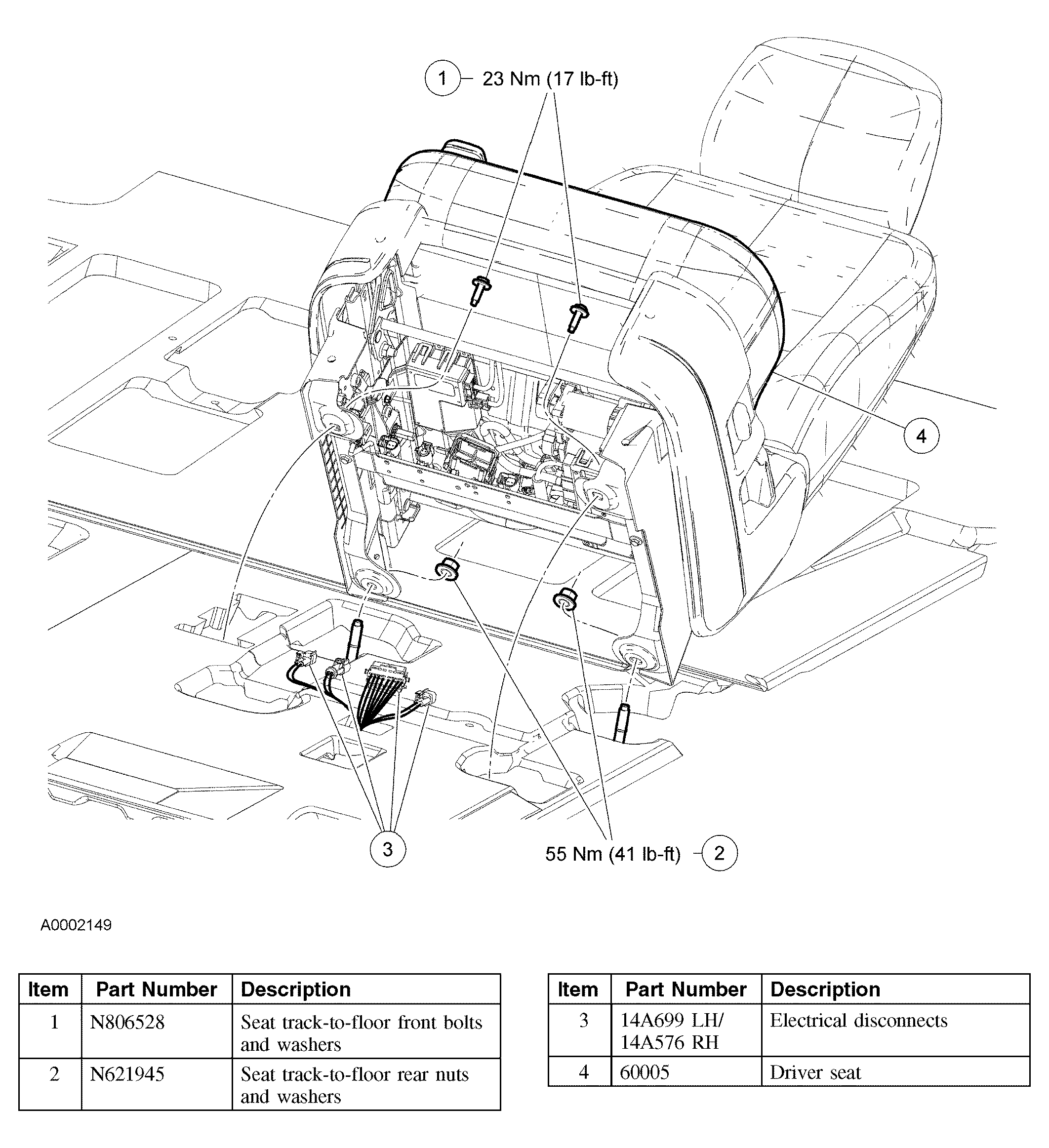

Fig 1: Removing & Installing Seat Front

G04010842

Courtesy of FORD MOTOR CO.
