Seat - Exploded View, Front

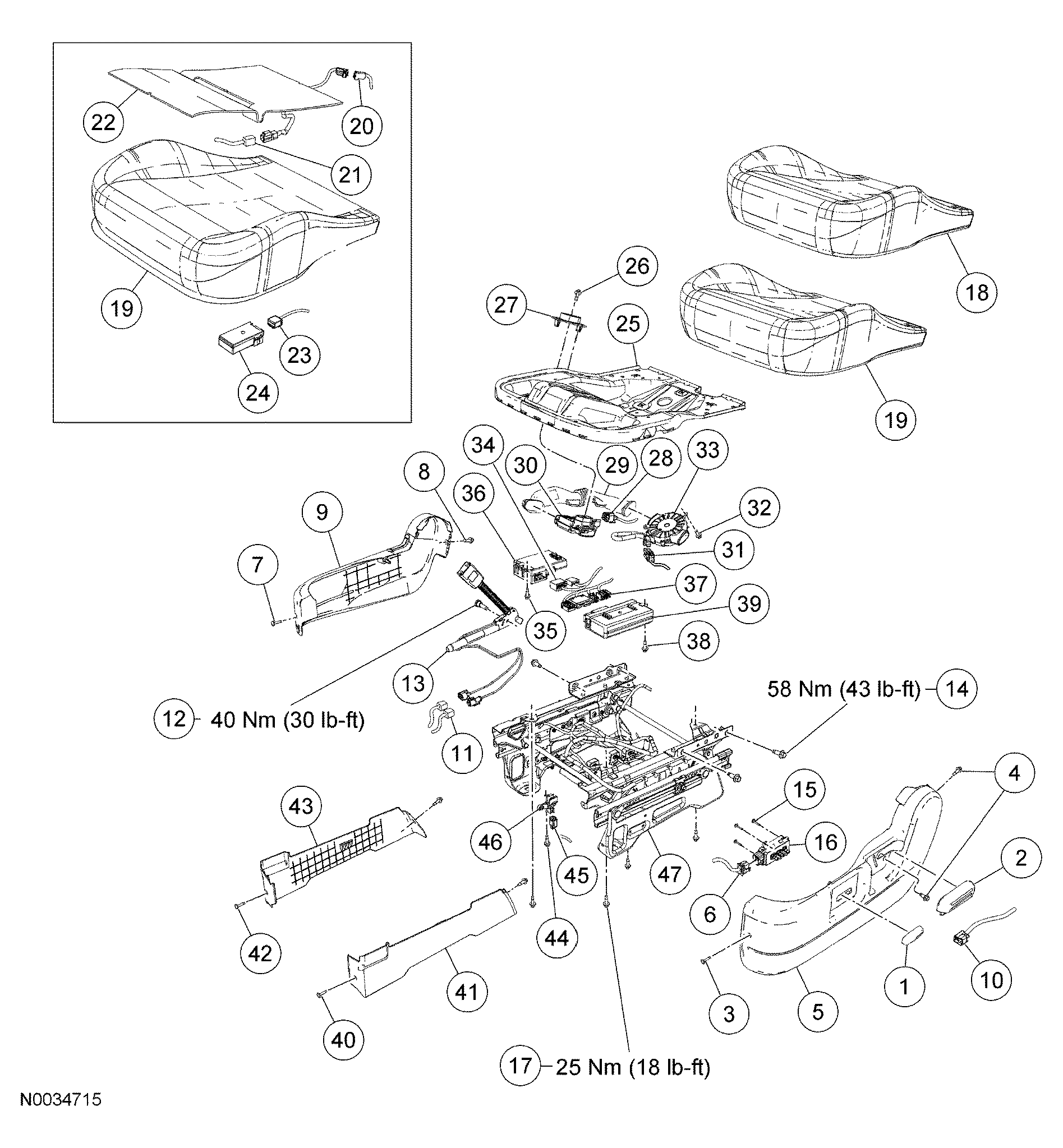

Fig 1: Exploded View Of Front Seat Cushion - Driver (1 Of 2)
G04010844Courtesy of FORD MOTOR CO.

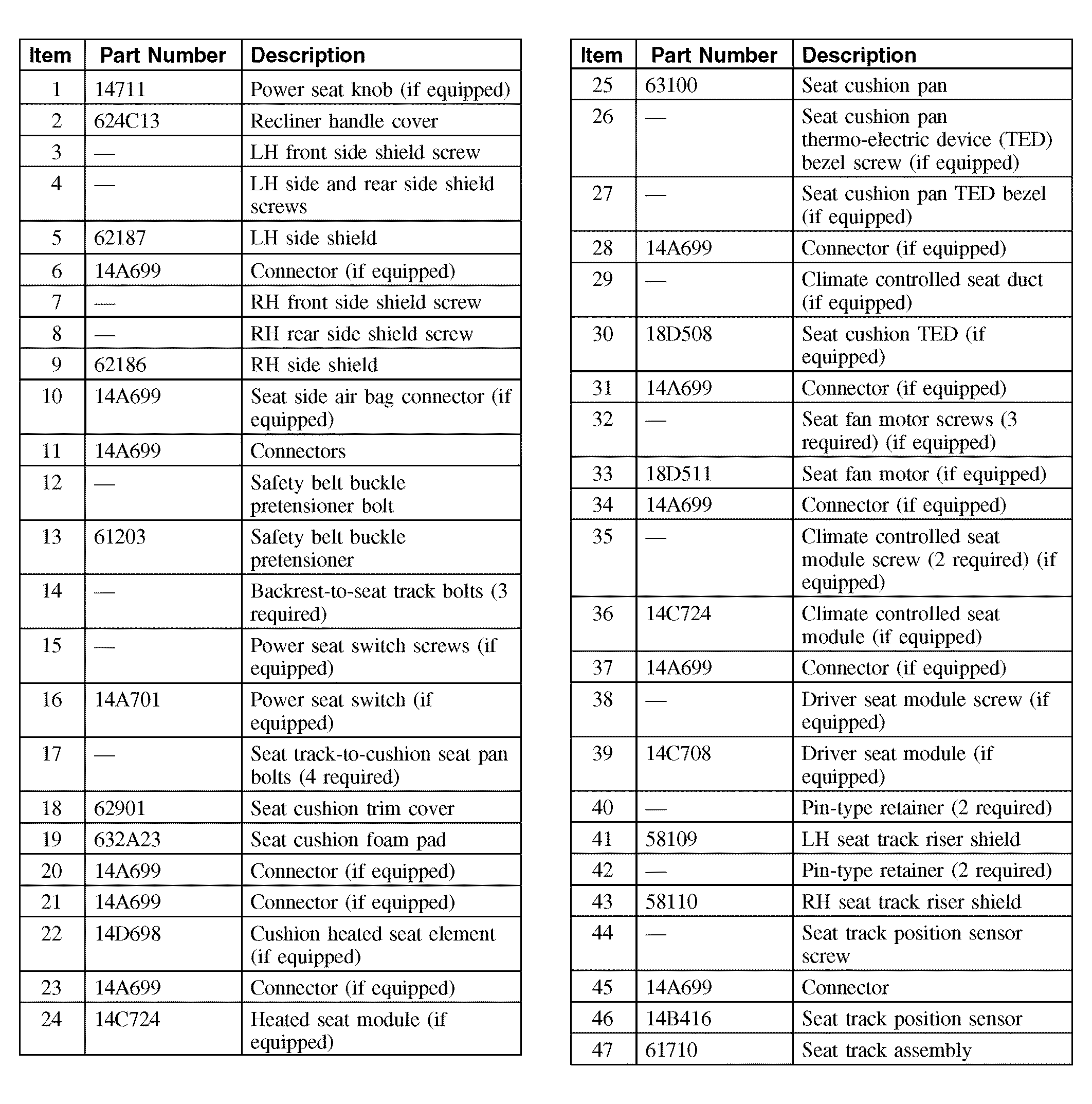

Fig 2: Exploded View Of Front Seat Cushion - Driver (2 Of 2)
G04010845Courtesy of FORD MOTOR CO.

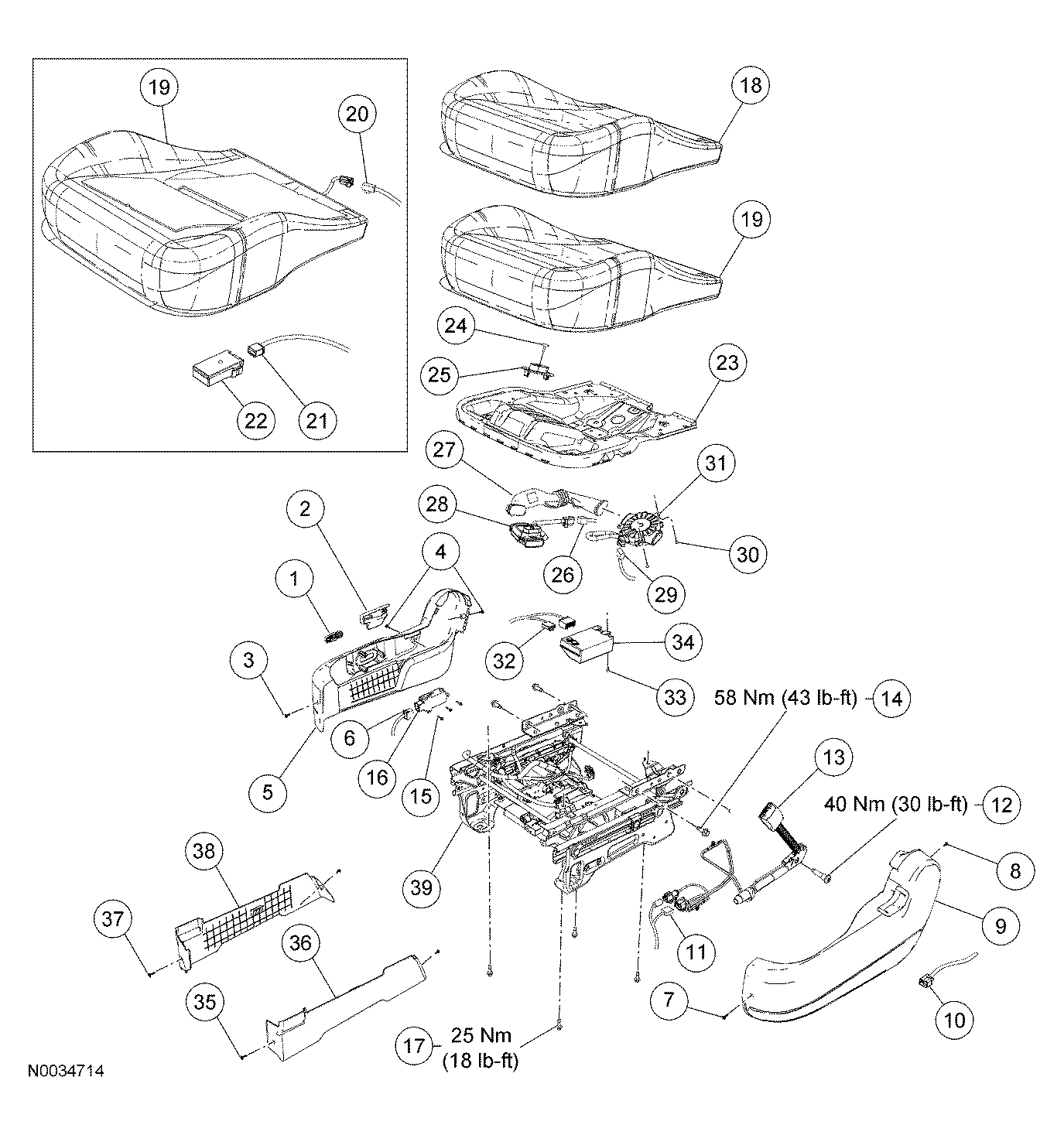

Fig 3: Exploded View Of Front Seat Cushion - Passenger (1 Of 2)
G04010846Courtesy of FORD MOTOR CO.

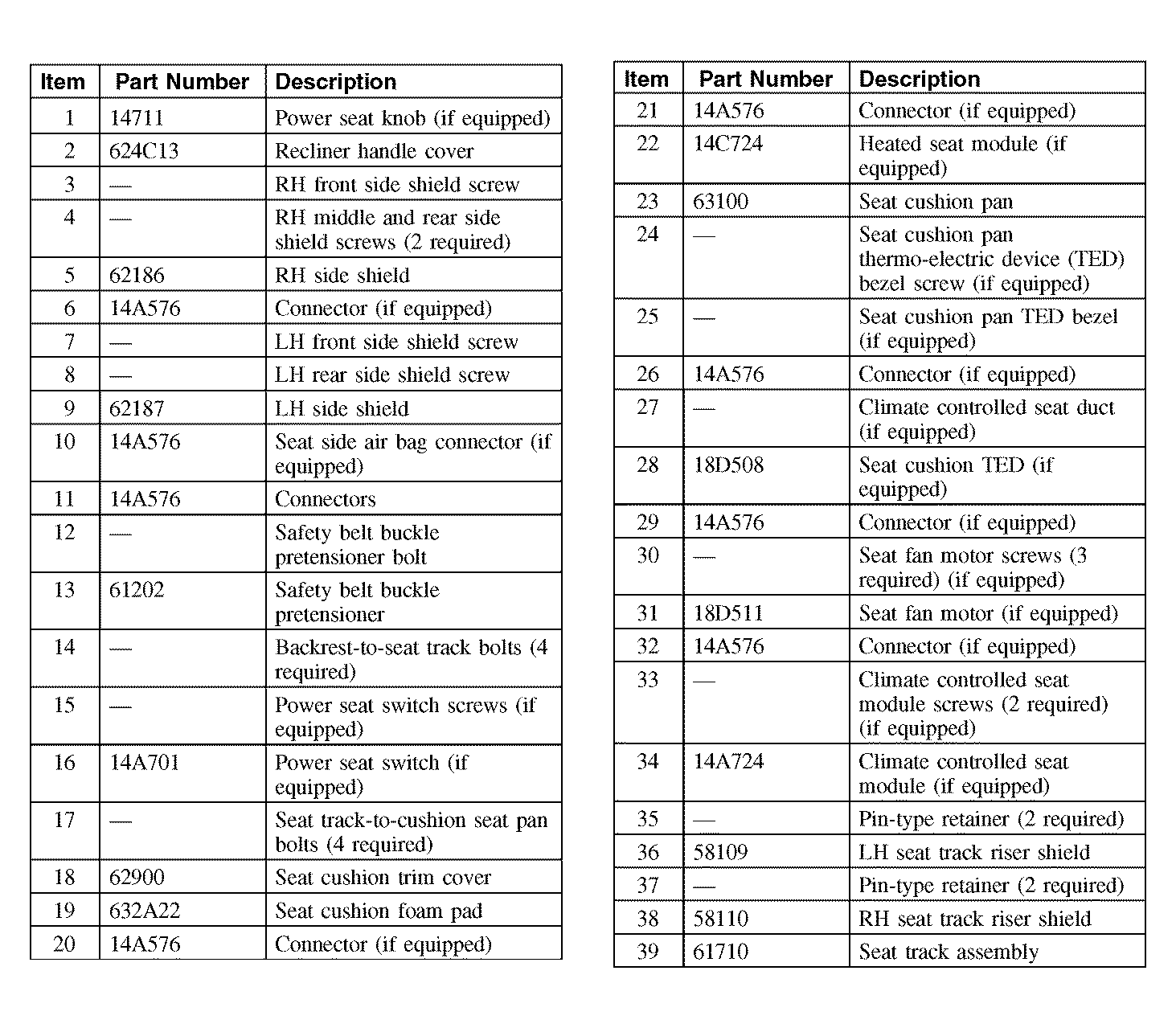

Fig 4: Exploded View Of Front Seat Cushion - Passenger (2 Of 2)
G04010847Courtesy of FORD MOTOR CO.
NOTE: Low-back seat shown in illustration, hi-back seat similar.
NOTE: Driver side shown in illustration, passenger similar.

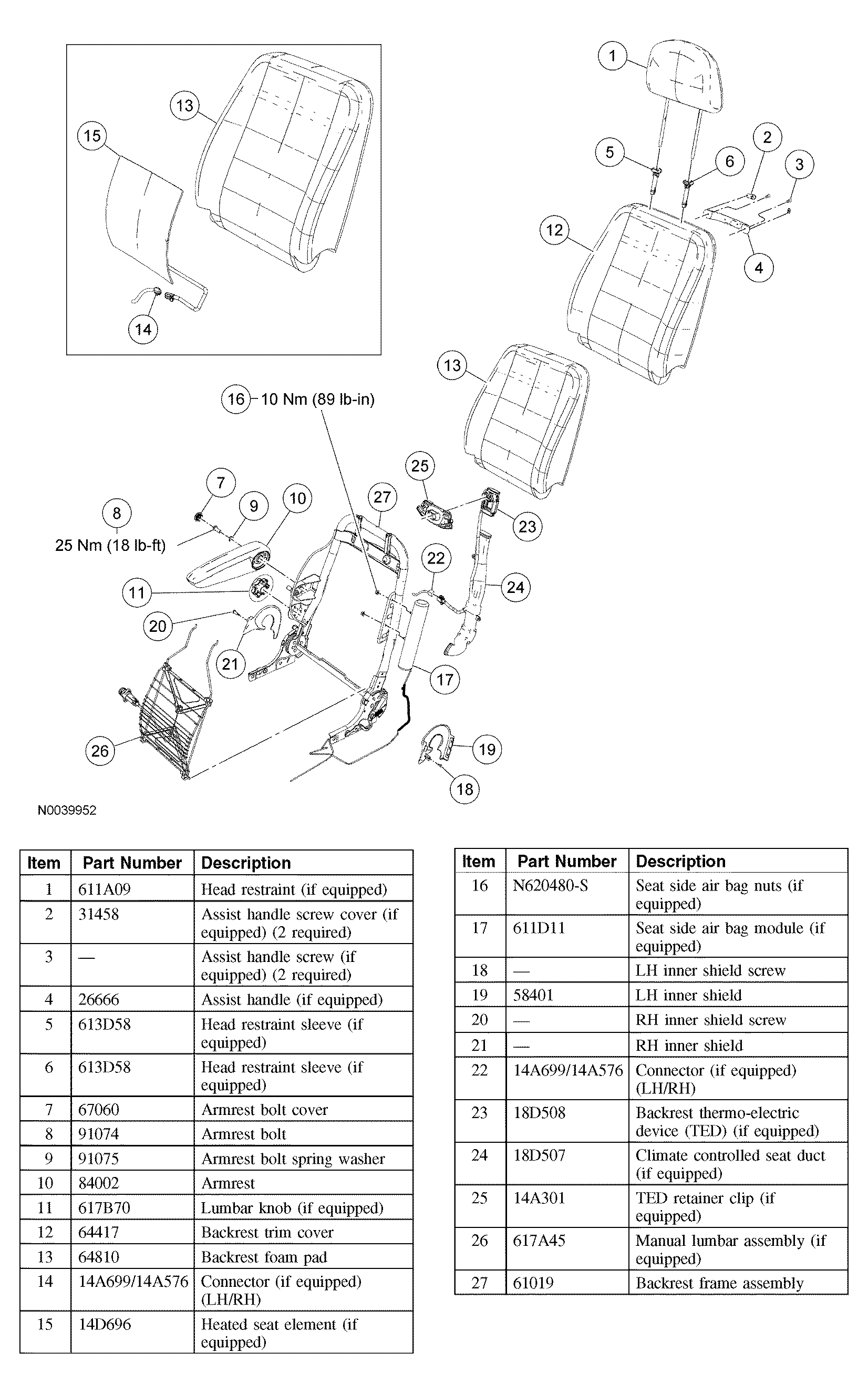

Fig 5: Exploded View Of Front Seat Backrest (Driver)
G04010848Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate component procedures.
