Home >> Ford >> 2005 >> Freestar Base >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat System >> Disassembly And Assembly >> Seat Backrest - Second Row, Bucket >> Notes

Seat Backrest - Second Row, Bucket: Notes

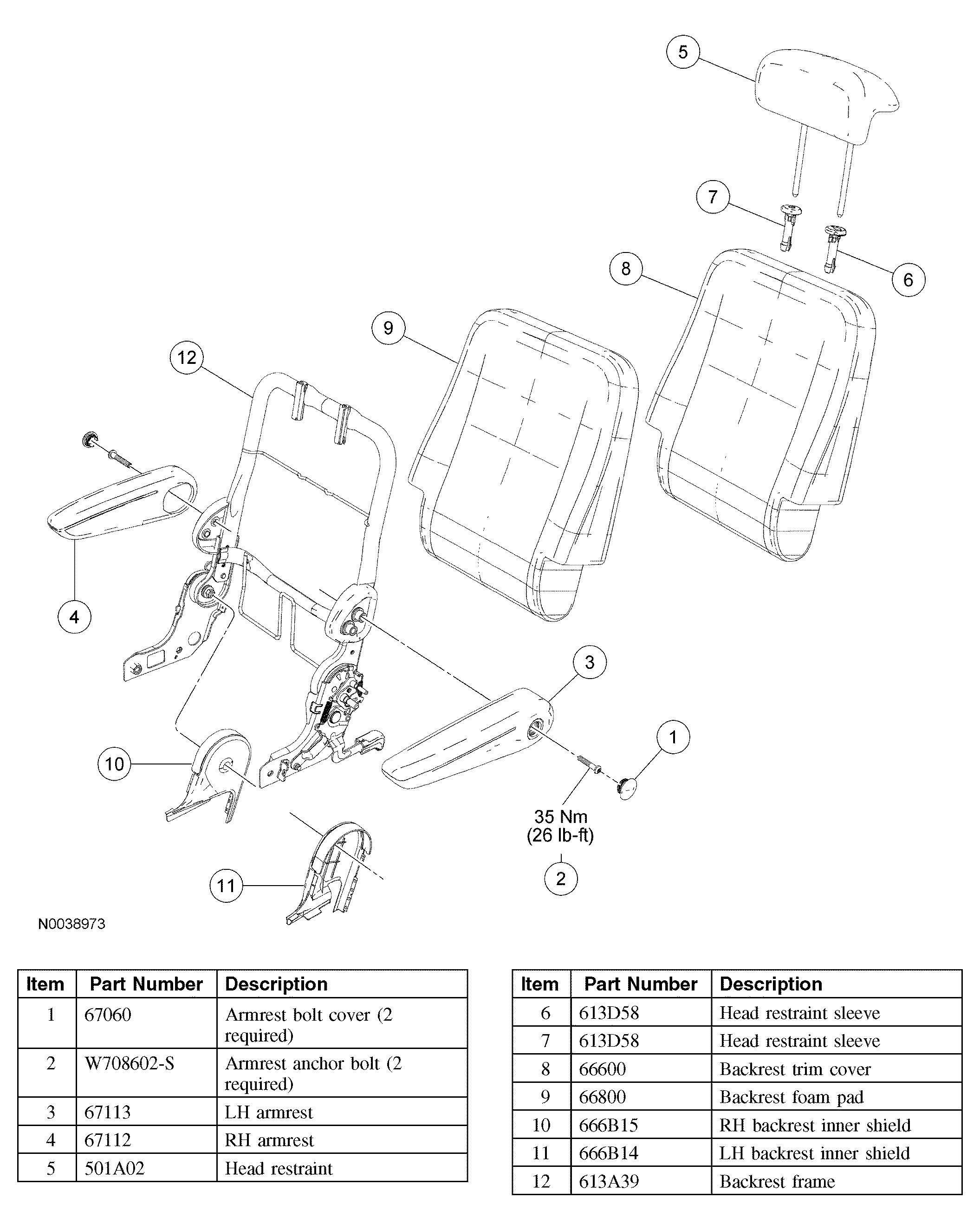

Fig 1: Exploded View Of Seat Backrest - Second Row, Bucket

G04011003

Courtesy of FORD MOTOR CO.
