Home >> Ford >> 2005 >> Freestar Base >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat System >> Disassembly And Assembly >> Seat Backrest - Second Row, Bench >> Notes

Seat Backrest - Second Row, Bench: Notes

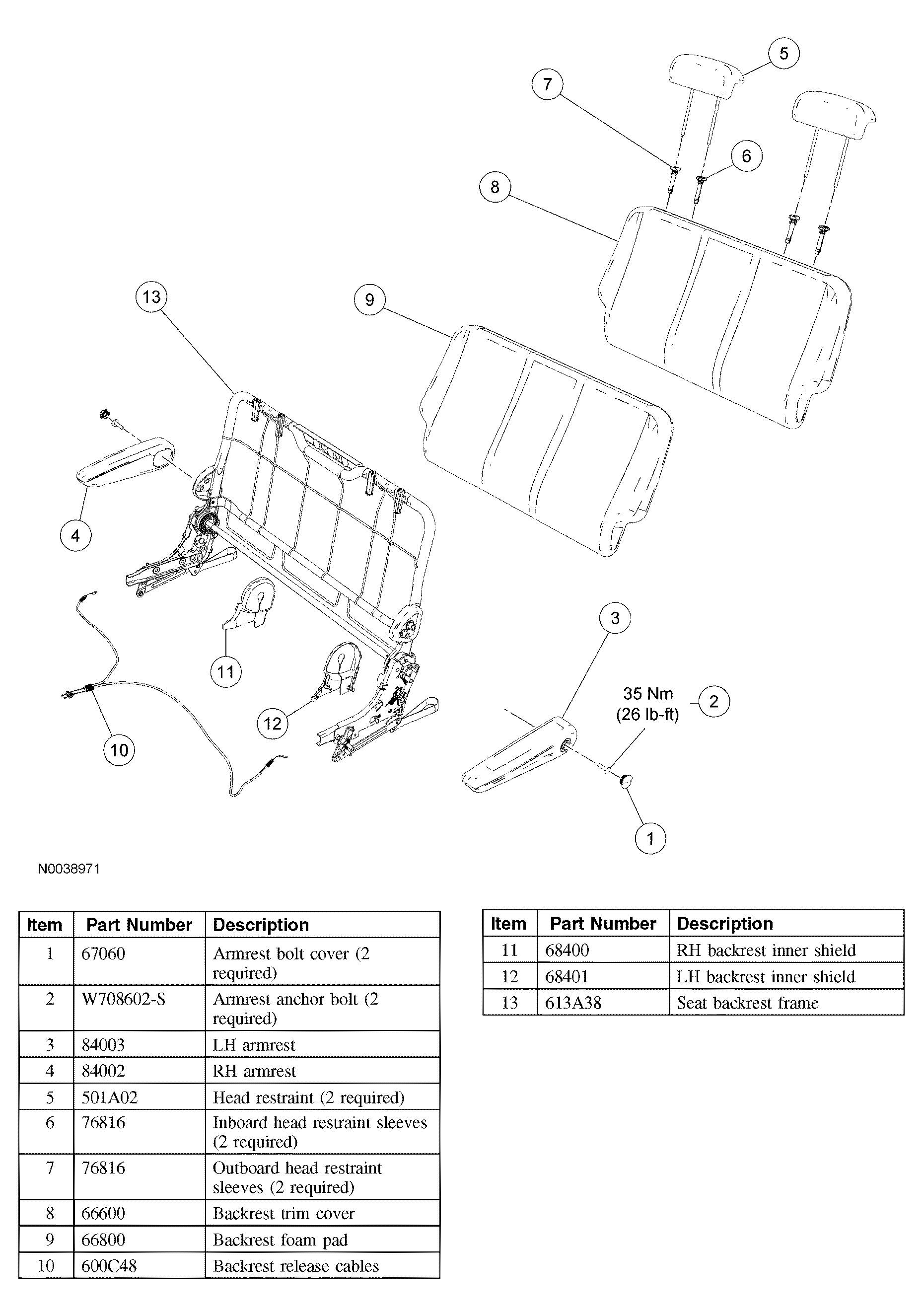

Fig 1: Exploded View Of Seat Backrest - Second Row, Bench

G04010998

Courtesy of FORD MOTOR CO.
