Connector Circuit Reference

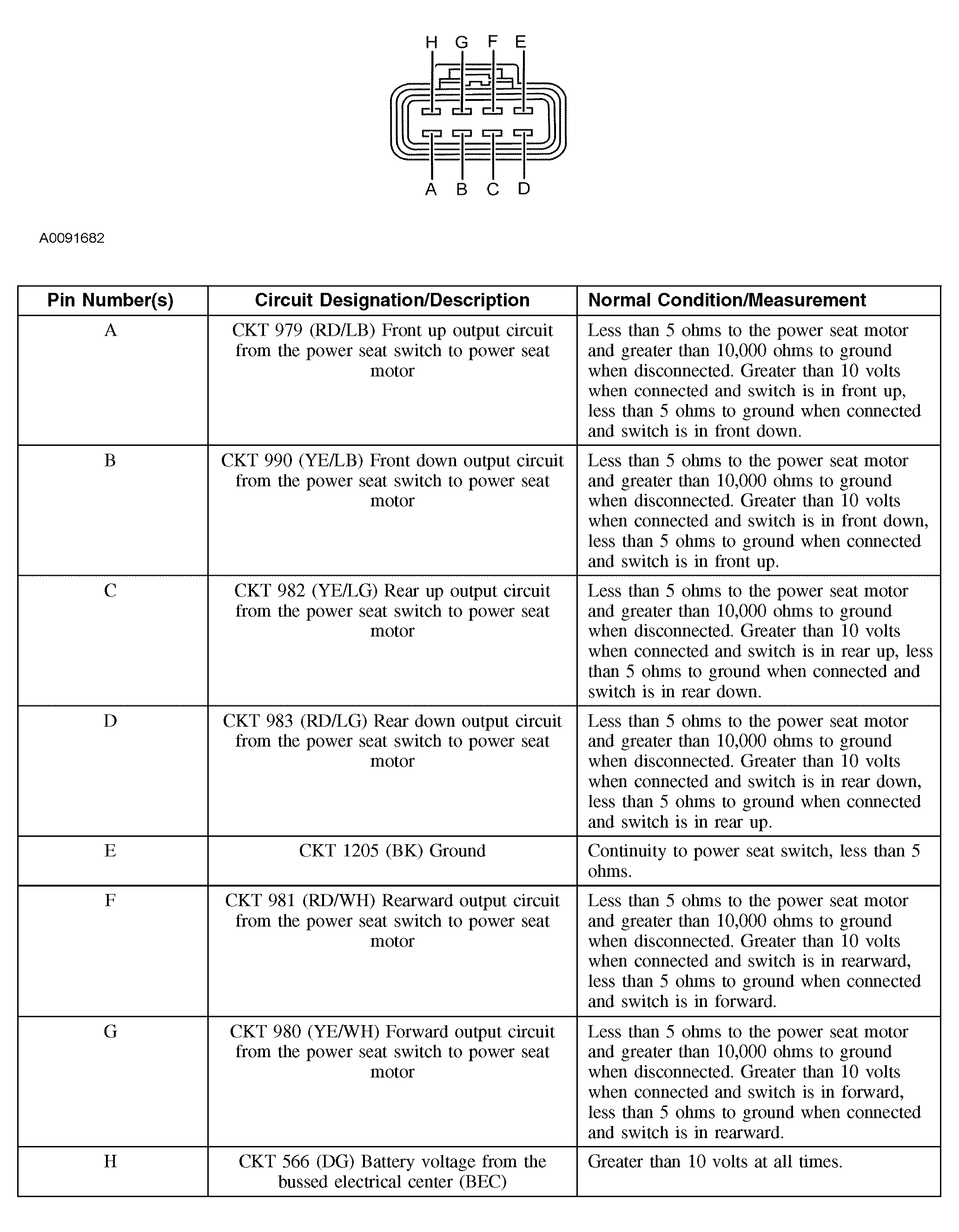

Fig 1: Driver Power Seat Control Switch Without Memory C360 Connector Circuit Reference Table
G04010669Courtesy of FORD MOTOR CO.

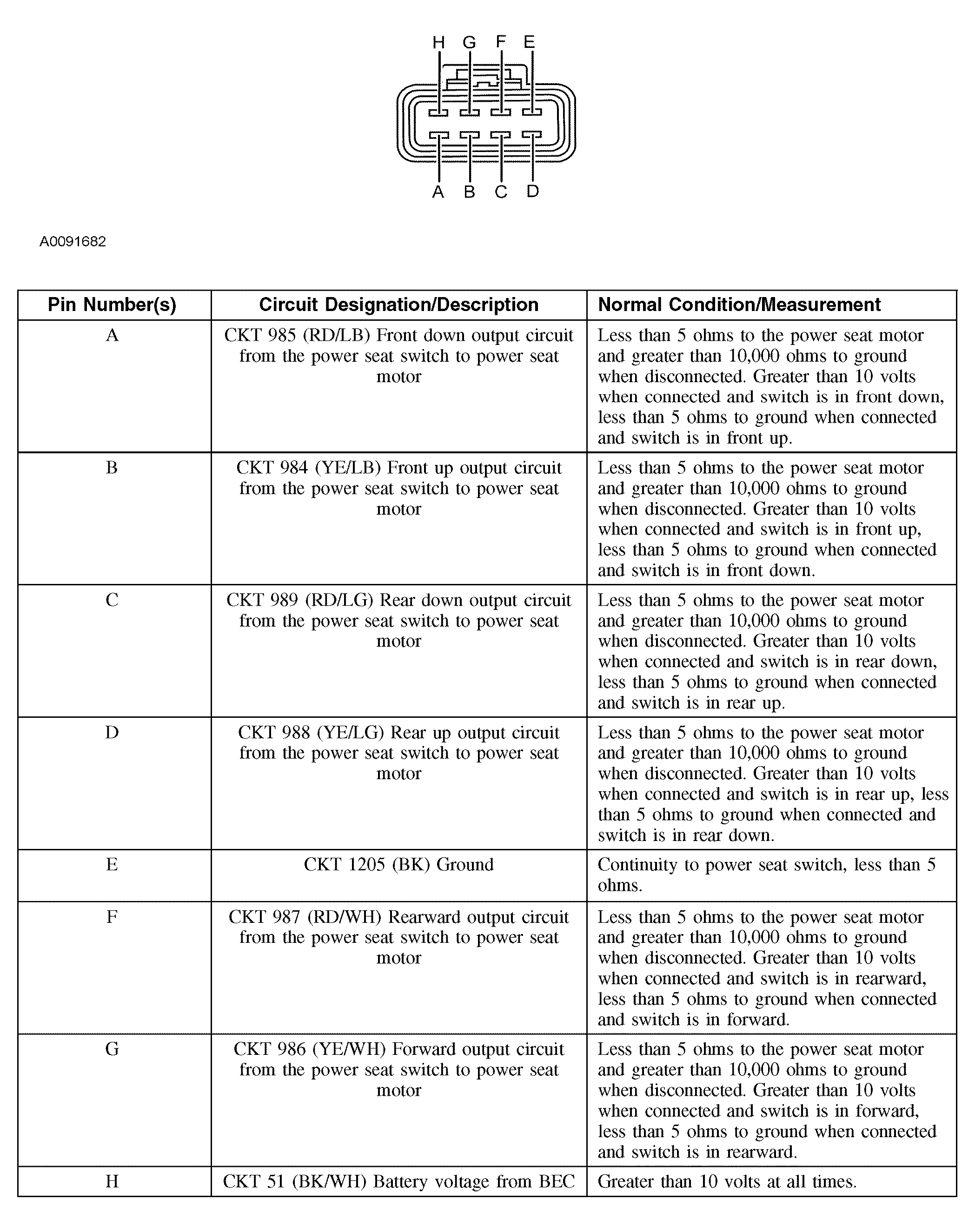

Fig 2: Passenger Power Seat Control Switch C330 Connector Circuit Reference Table
G04010670Courtesy of FORD MOTOR CO.

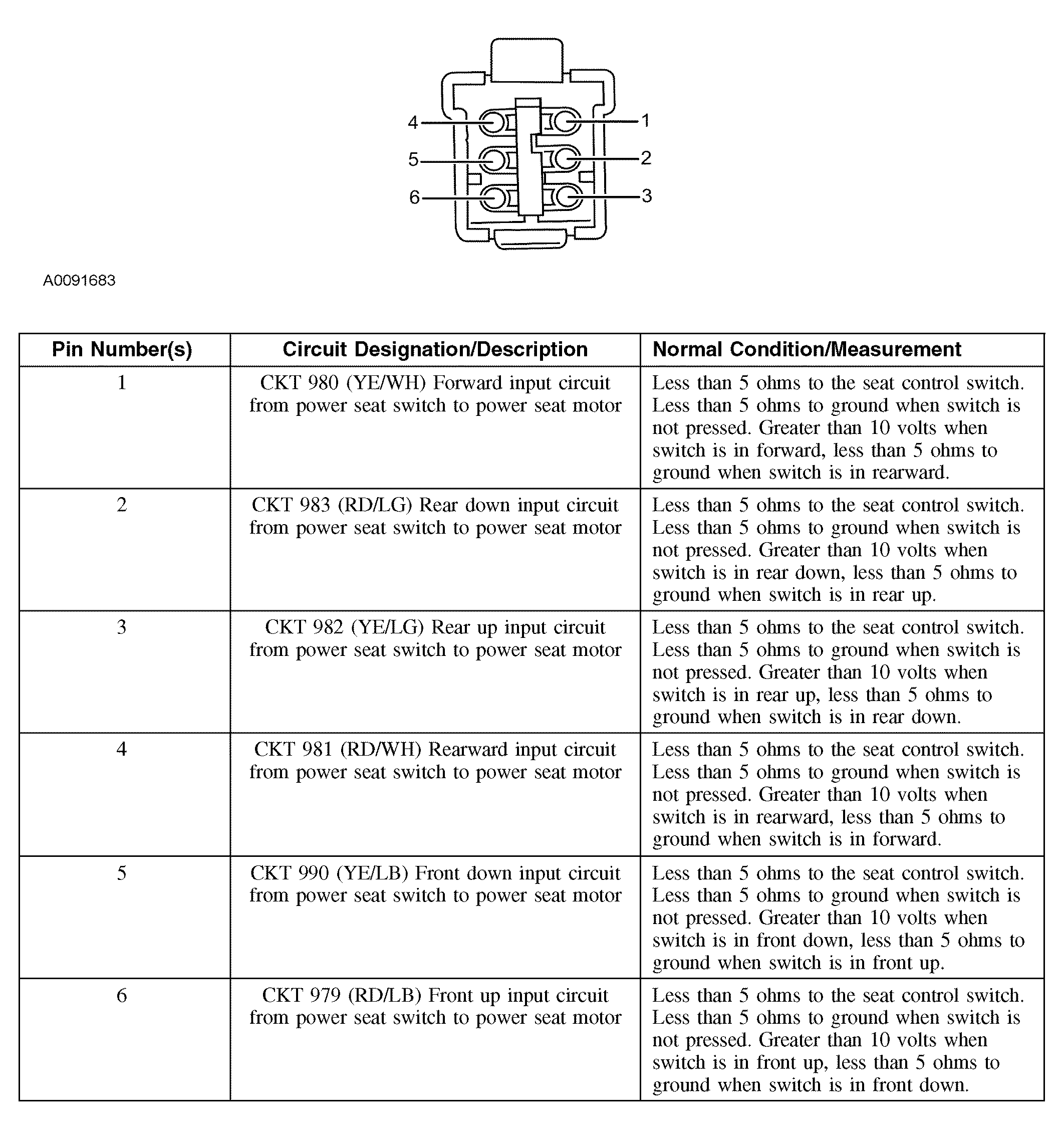

Fig 3: Driver Power Seat Motor Without Memory C357 Connector Circuit Reference Table
G04010671Courtesy of FORD MOTOR CO.
Fig 4: Passenger Power Seat Motor C3015 Connector Circuit Reference Table
G04010672Courtesy of FORD MOTOR CO.

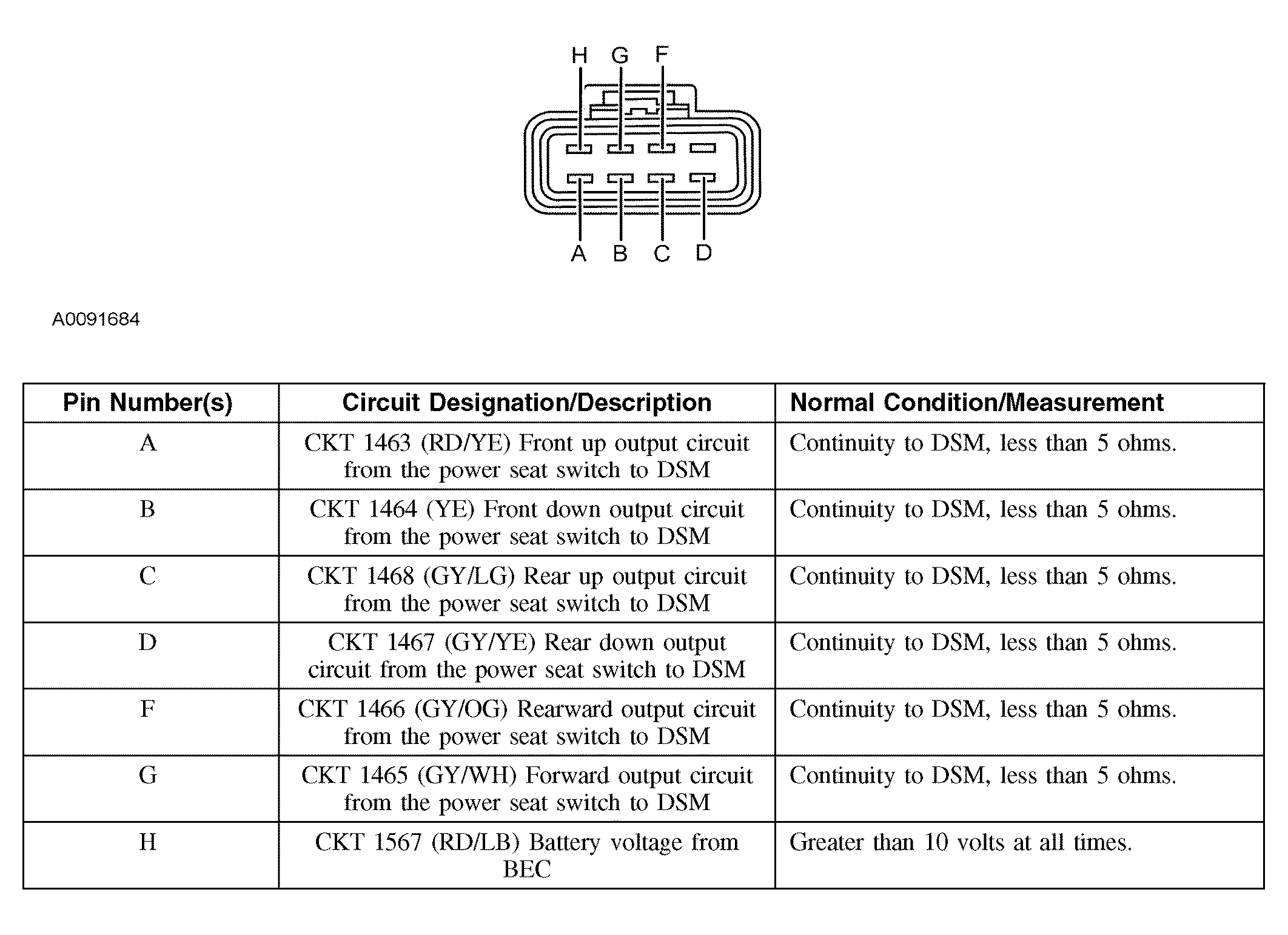

Fig 5: Driver Power Seat Control Switch With Memory C360 Connector Circuit Reference Table
G04010673Courtesy of FORD MOTOR CO.

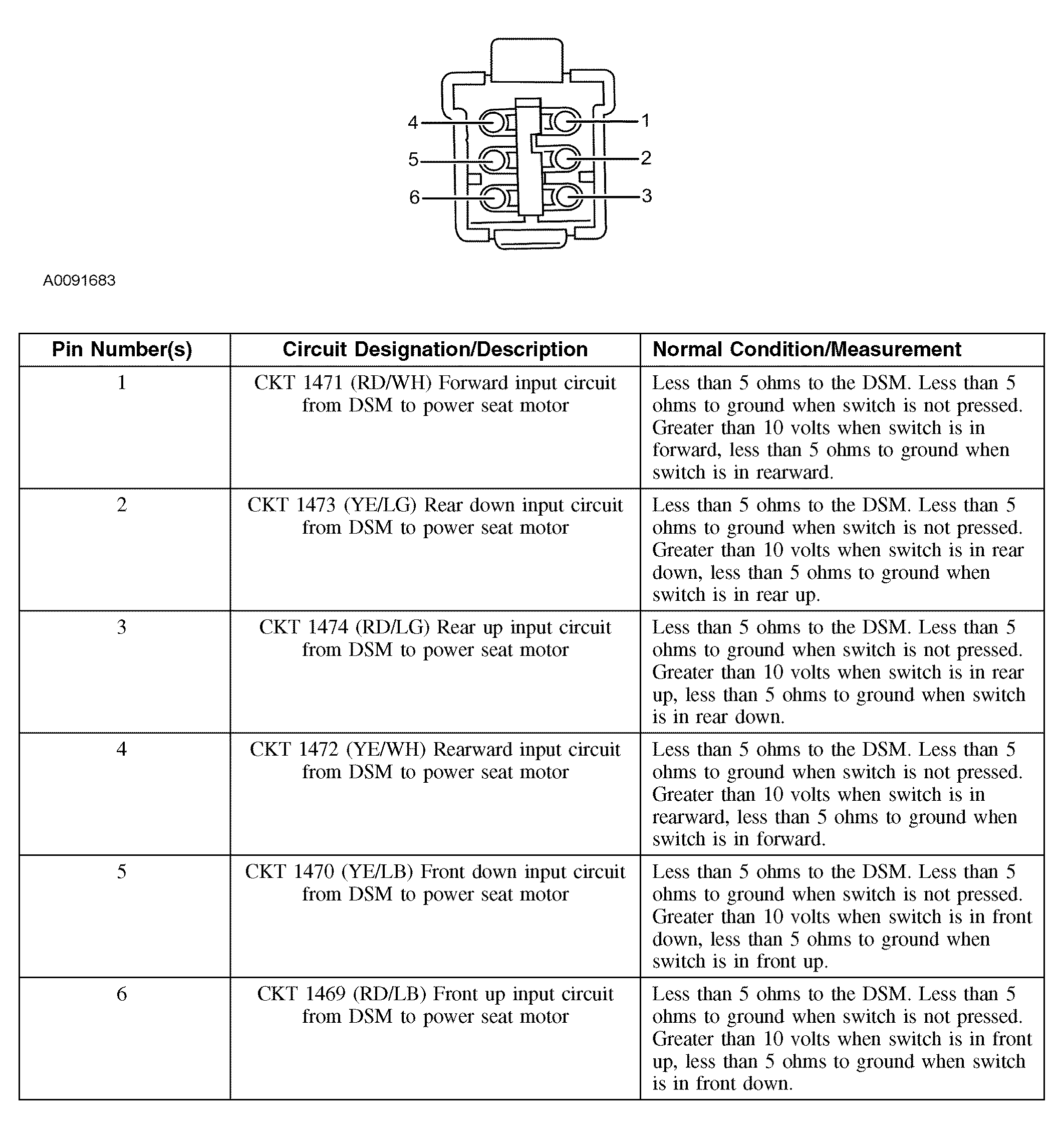

Fig 6: Driver Power Seat Motor With Memory C353 Connector Circuit Reference Table
G04010674Courtesy of FORD MOTOR CO.

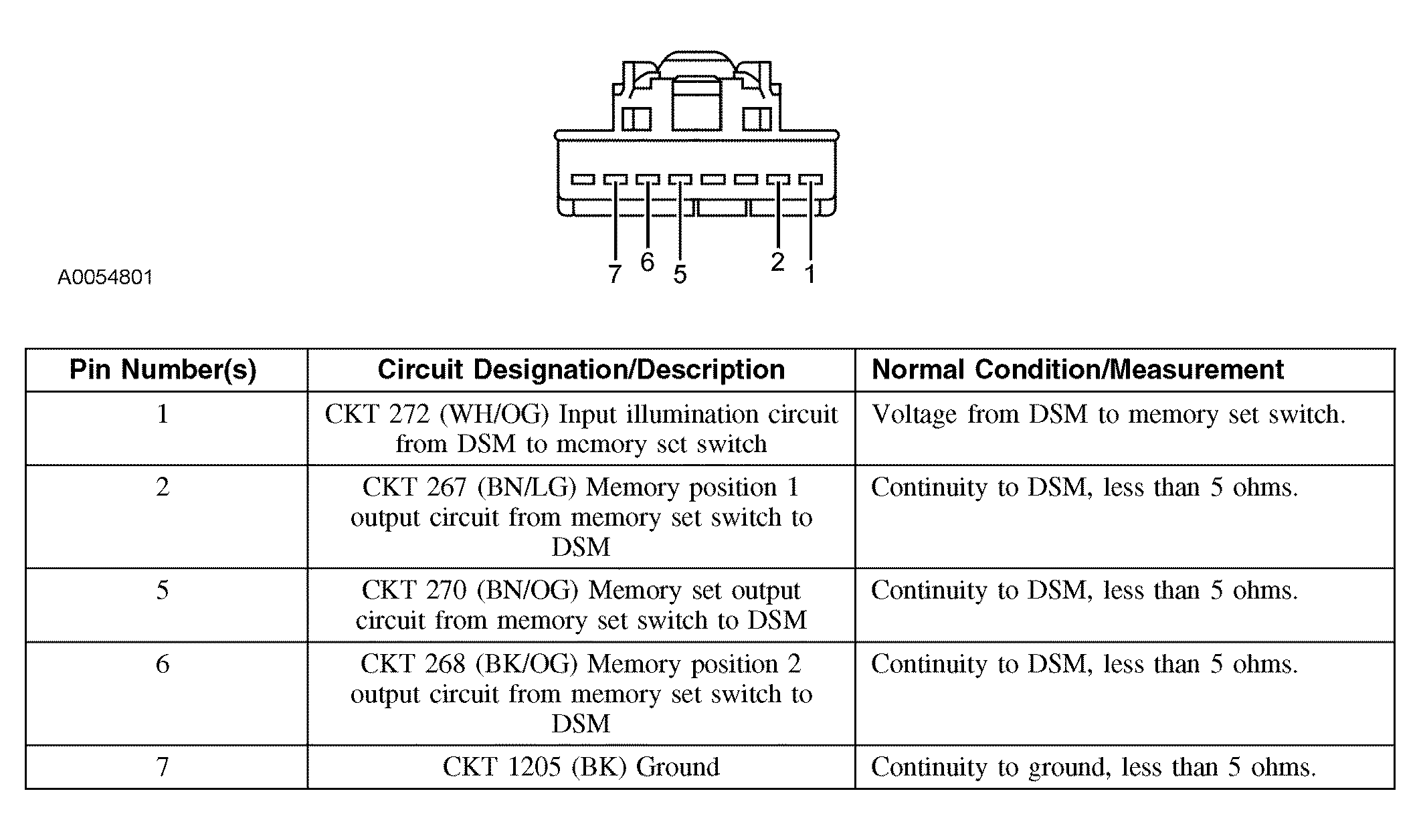

Fig 7: Driver Memory Set Switch C9023 Connector Circuit Reference Table
G04010675Courtesy of FORD MOTOR CO.

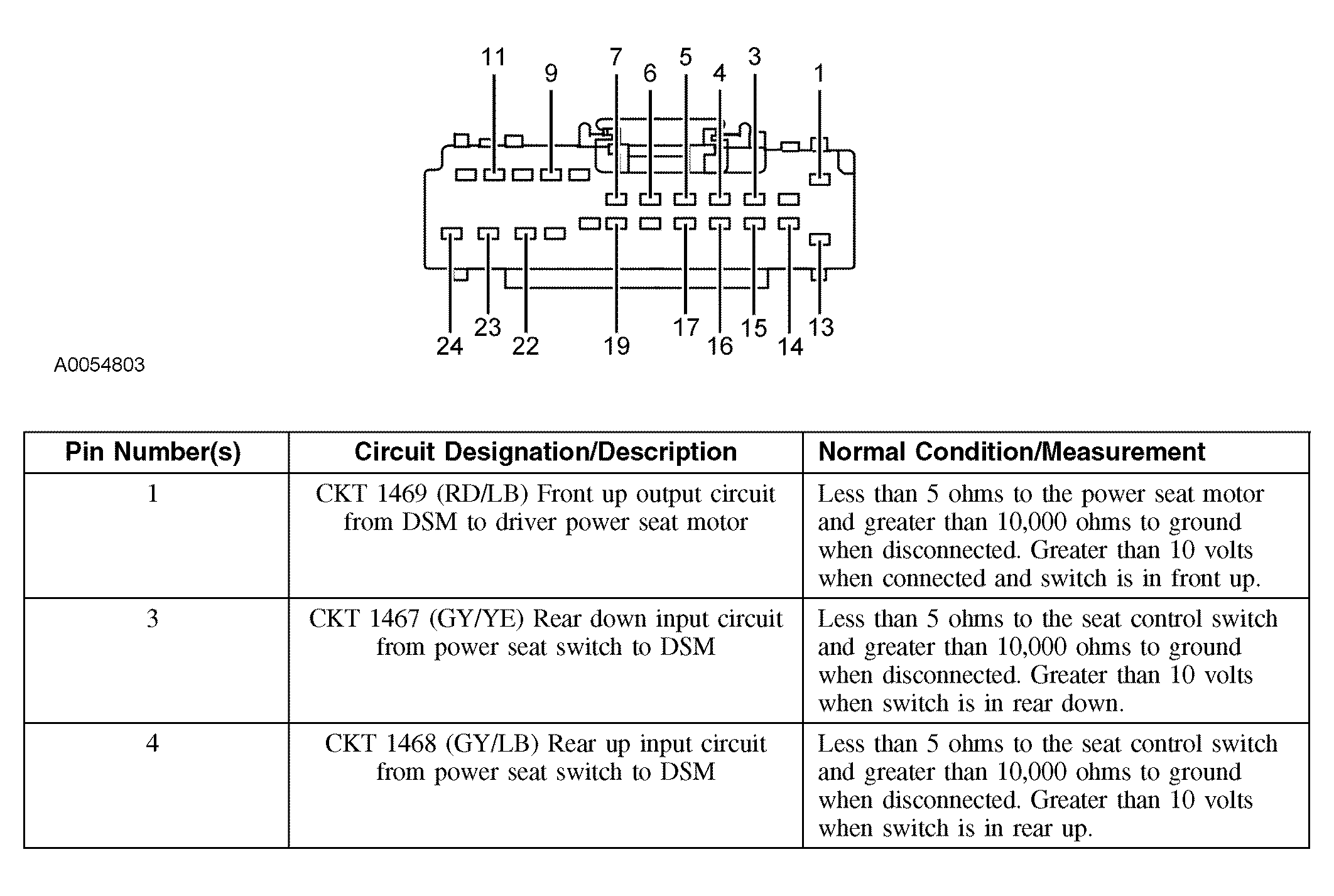

Fig 8: Identifying Driver Memory Seat Module C341b Connector Pins
G04010676Courtesy of FORD MOTOR CO.

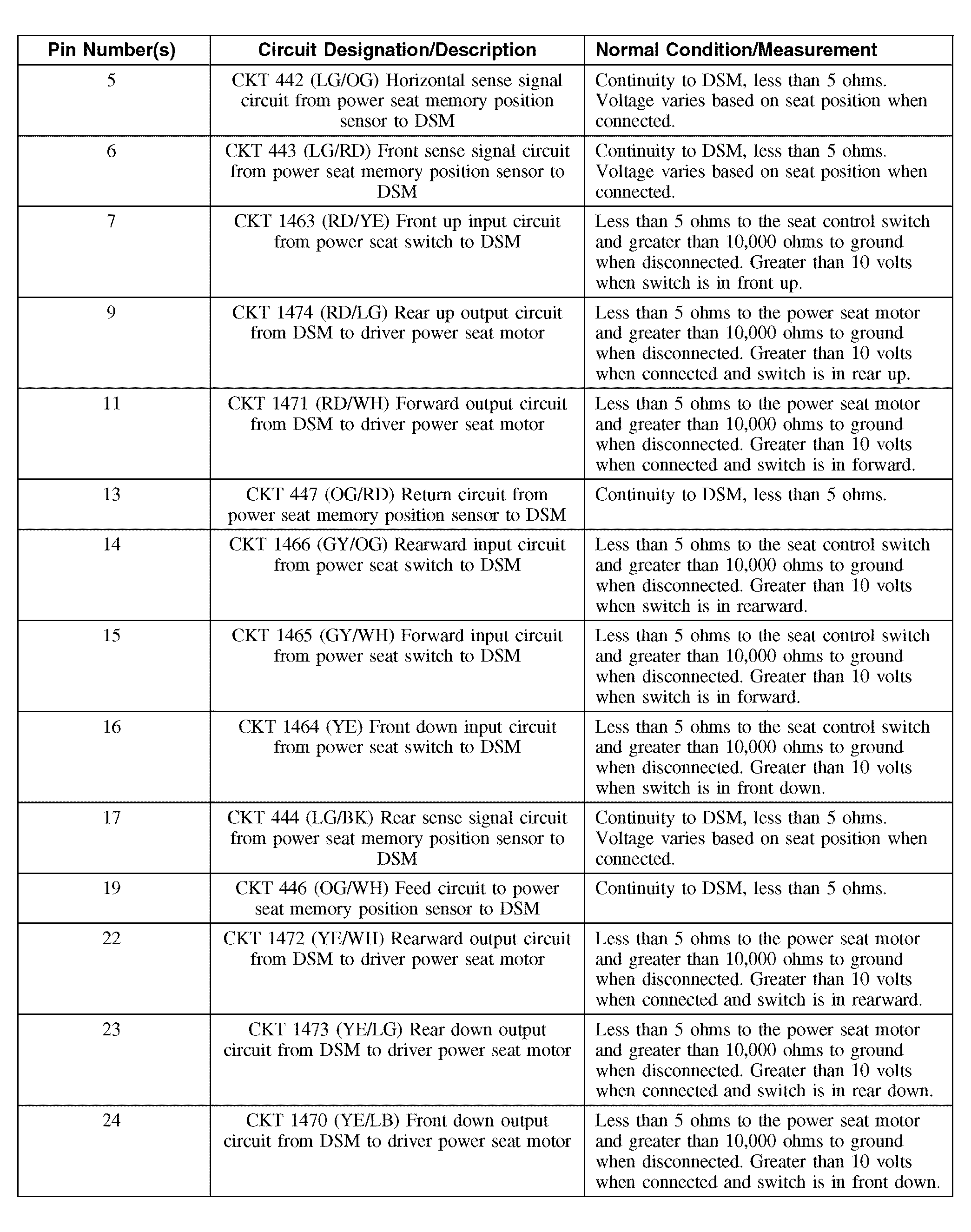

Fig 9: Driver Memory Seat Module C341b Connector Circuit Reference Table
G04010677Courtesy of FORD MOTOR CO.

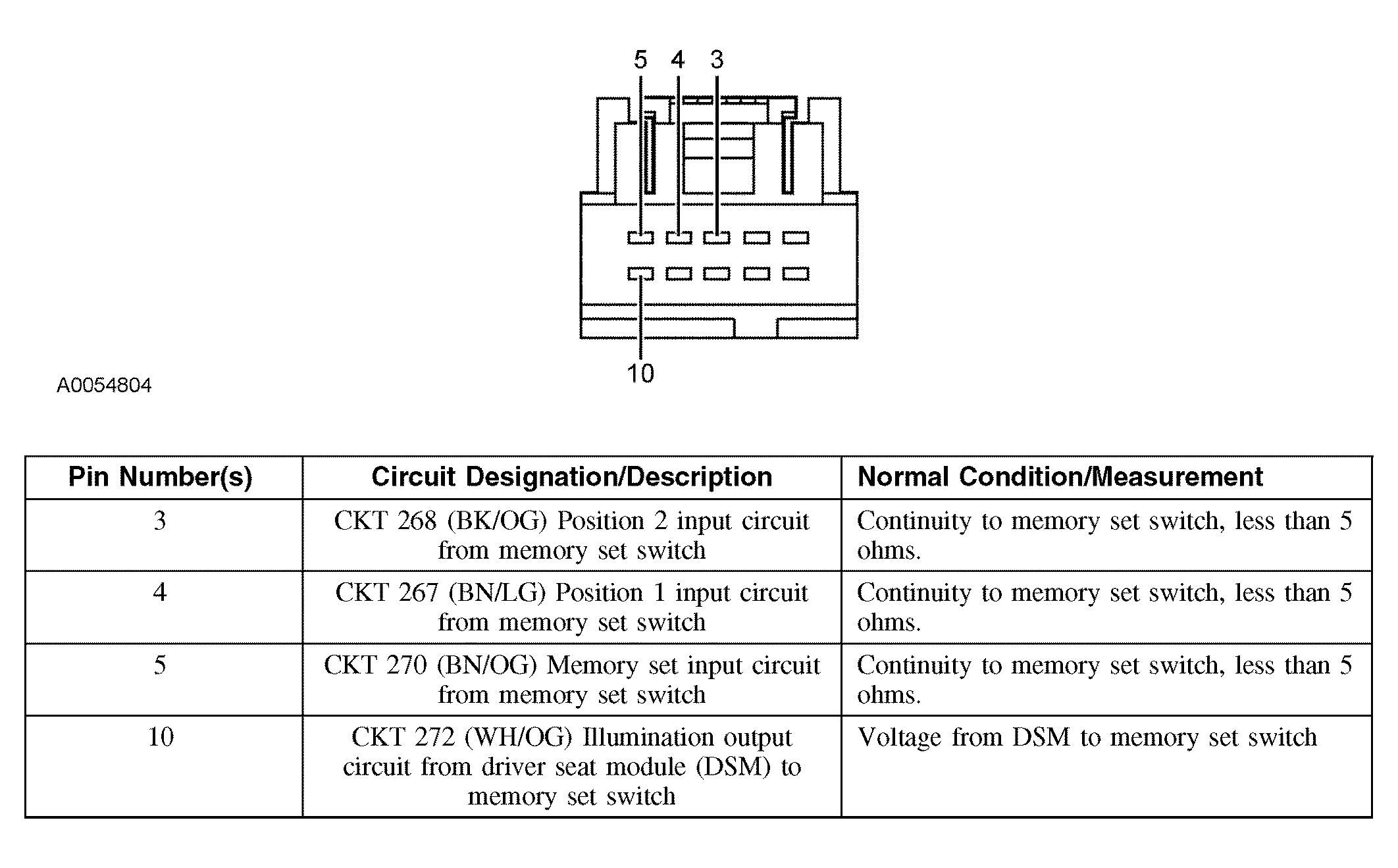

Fig 10: Driver Memory Seat Module C341c Connector Circuit Reference Table
G04010678Courtesy of FORD MOTOR CO.

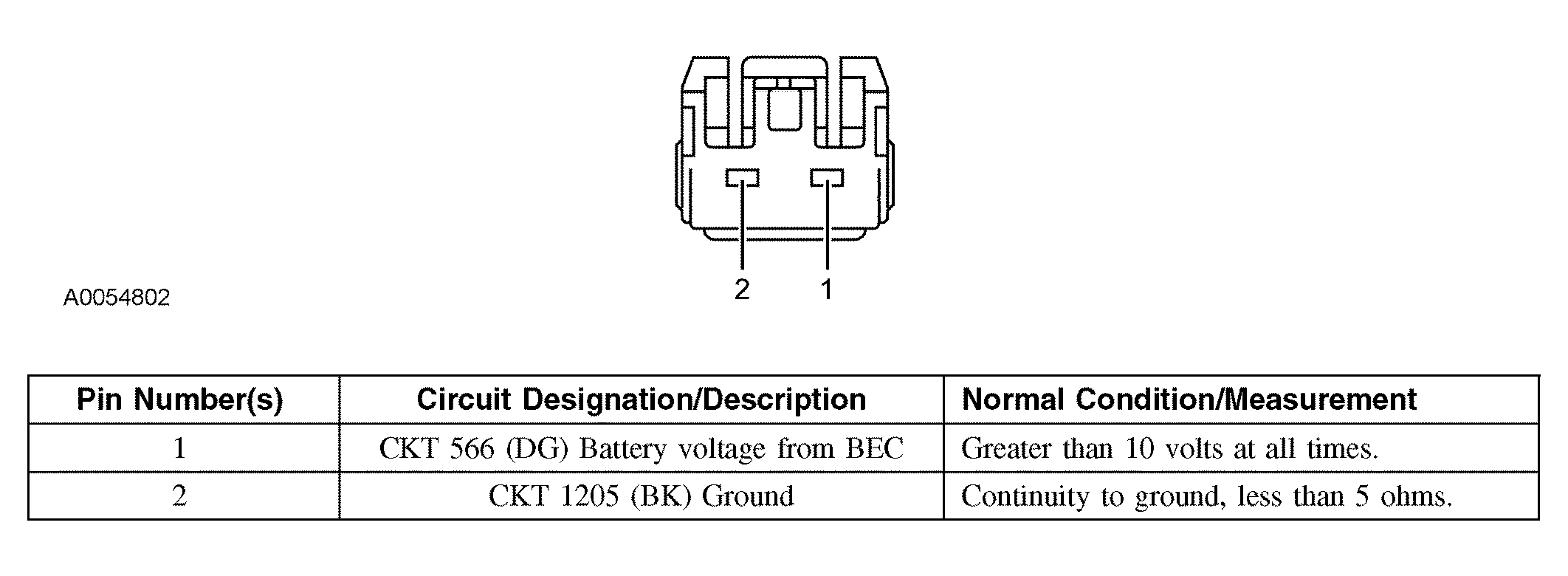

Fig 11: Driver Memory Seat Module C341a Connector Circuit Reference Table
G04010679Courtesy of FORD MOTOR CO.

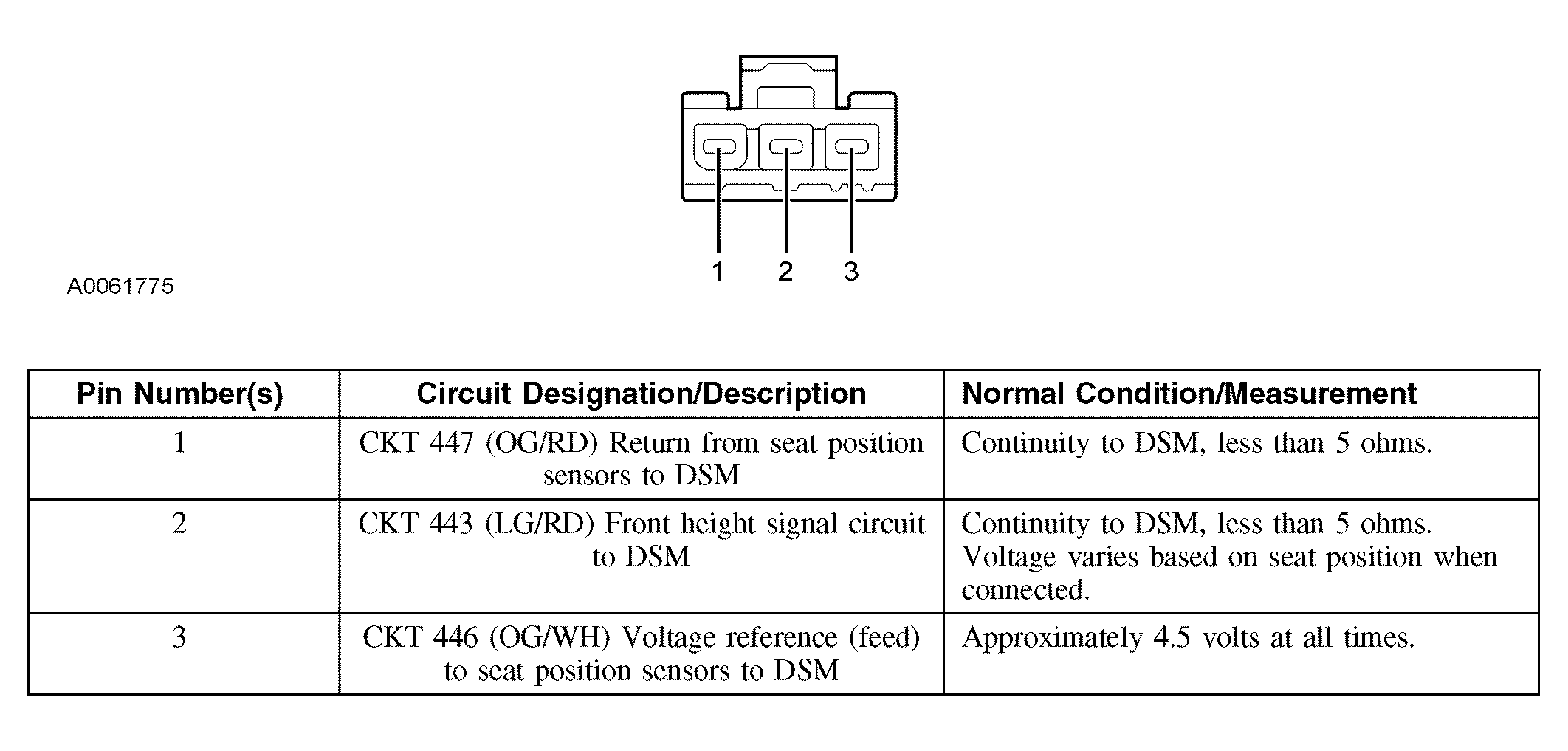

Fig 12: Driver Front Tilt Memory Seat Motor Position Sensor C383 Connector Circuit Reference Table
G04010680Courtesy of FORD MOTOR CO.
Fig 13: Driver Rear Tilt Memory Seat Motor Position Sensor C373 Connector Circuit Reference Table
G04010681Courtesy of FORD MOTOR CO.

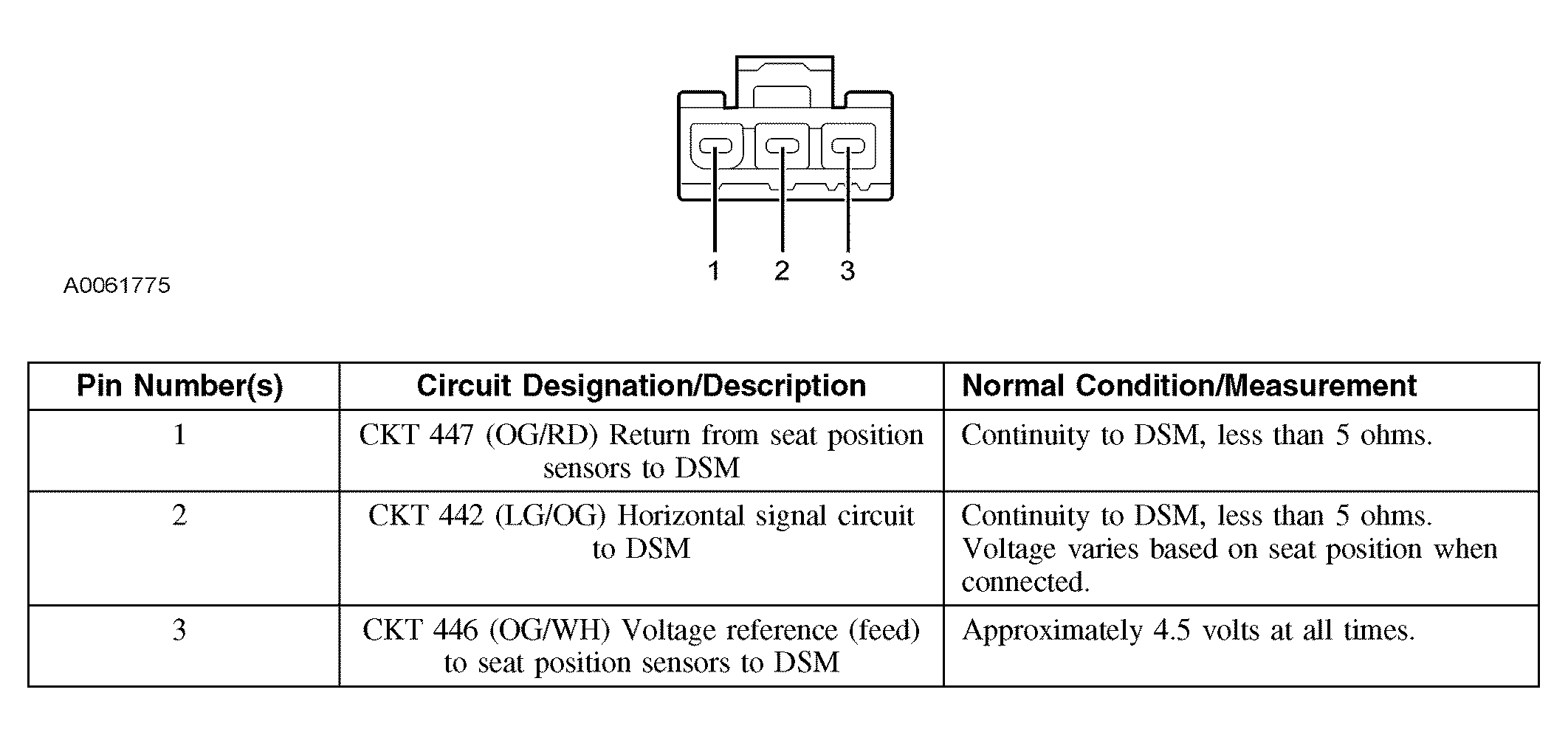

Fig 14: Driver Horizontal Memory Seat Motor Position Sensor C372 Connector Circuit Reference Table
G04010682Courtesy of FORD MOTOR CO.

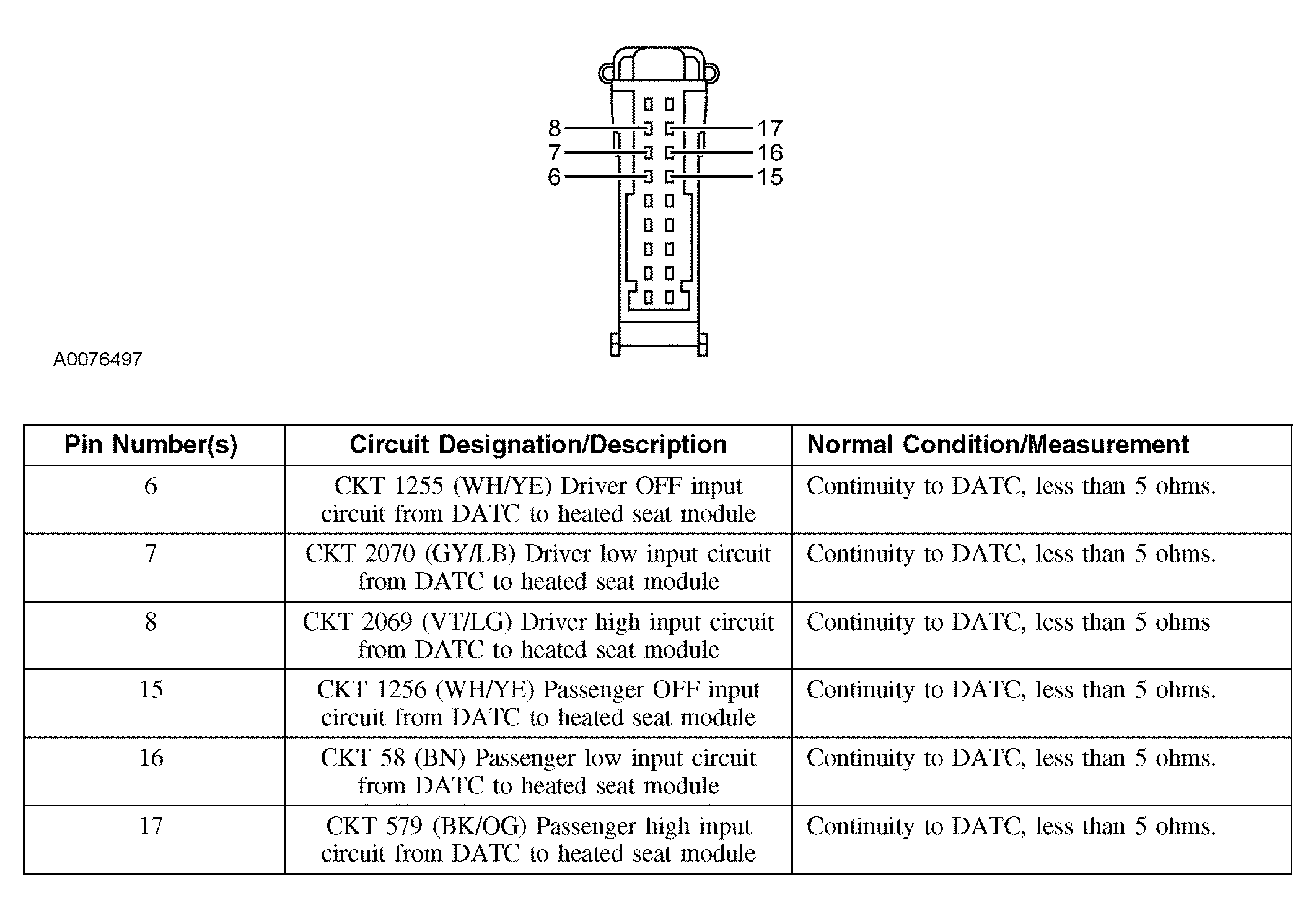

Fig 15: DATC Module C228b Connector Circuit Reference Table
G04010683Courtesy of FORD MOTOR CO.

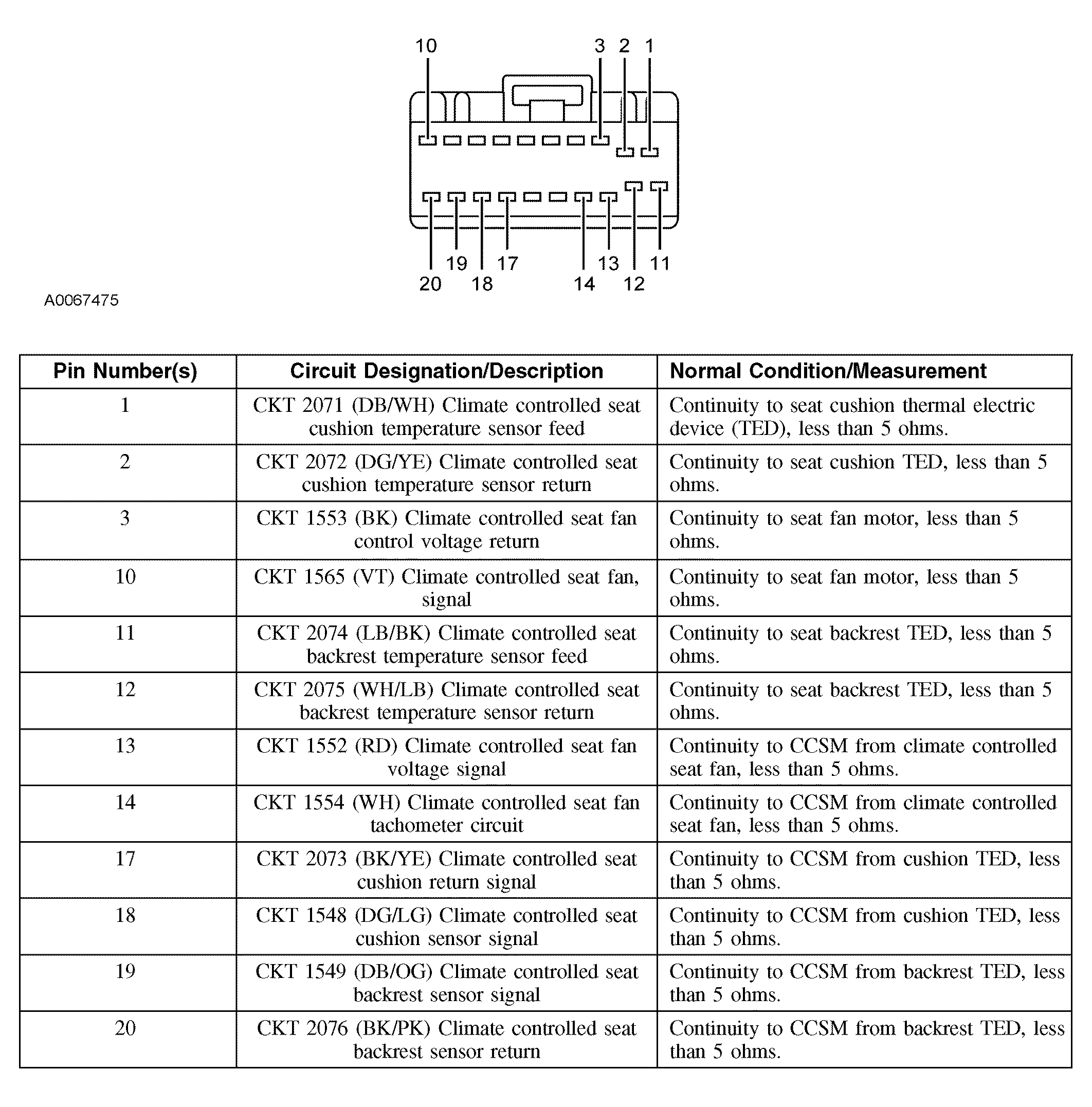

Fig 16: Driver Climate Controlled Seat Module (CCSM) C3031b Connector Circuit Reference Table
G04010684Courtesy of FORD MOTOR CO.

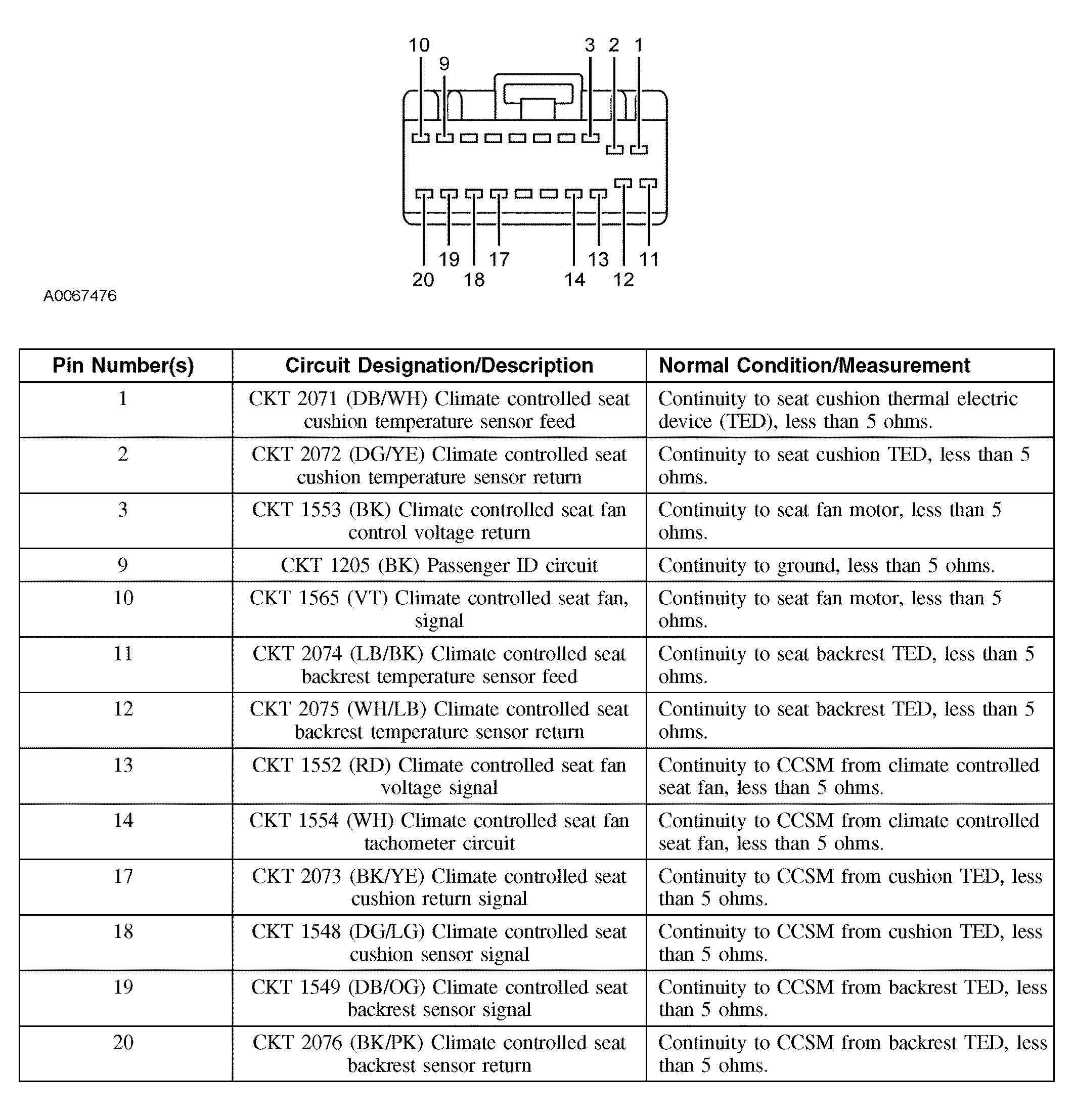

Fig 17: Passenger Climate Controlled Seat Module (CCSM) C3036b Connector Circuit Reference Table
G04010685Courtesy of FORD MOTOR CO.

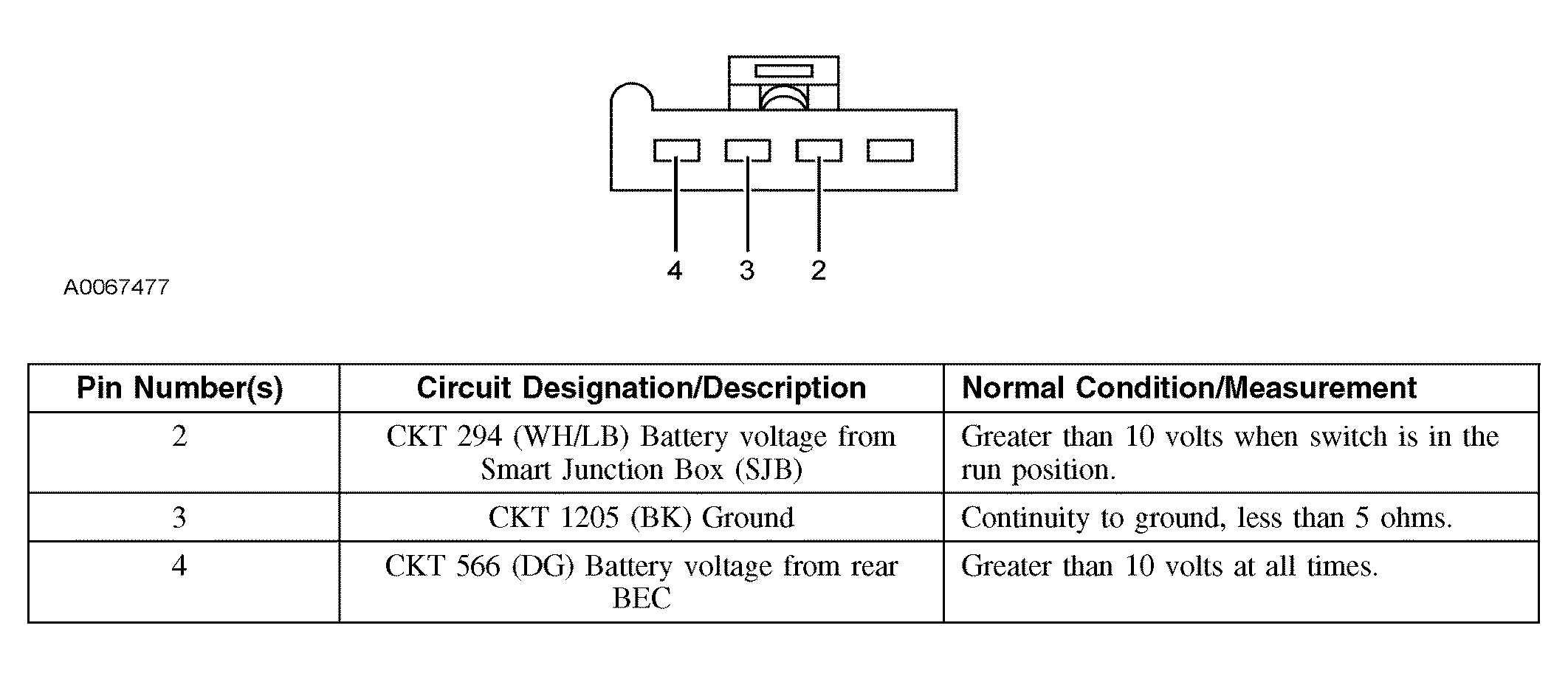

Fig 18: Driver Climate Controlled Seat Module C3031a Connector Circuit Reference Table
G04010686Courtesy of FORD MOTOR CO.

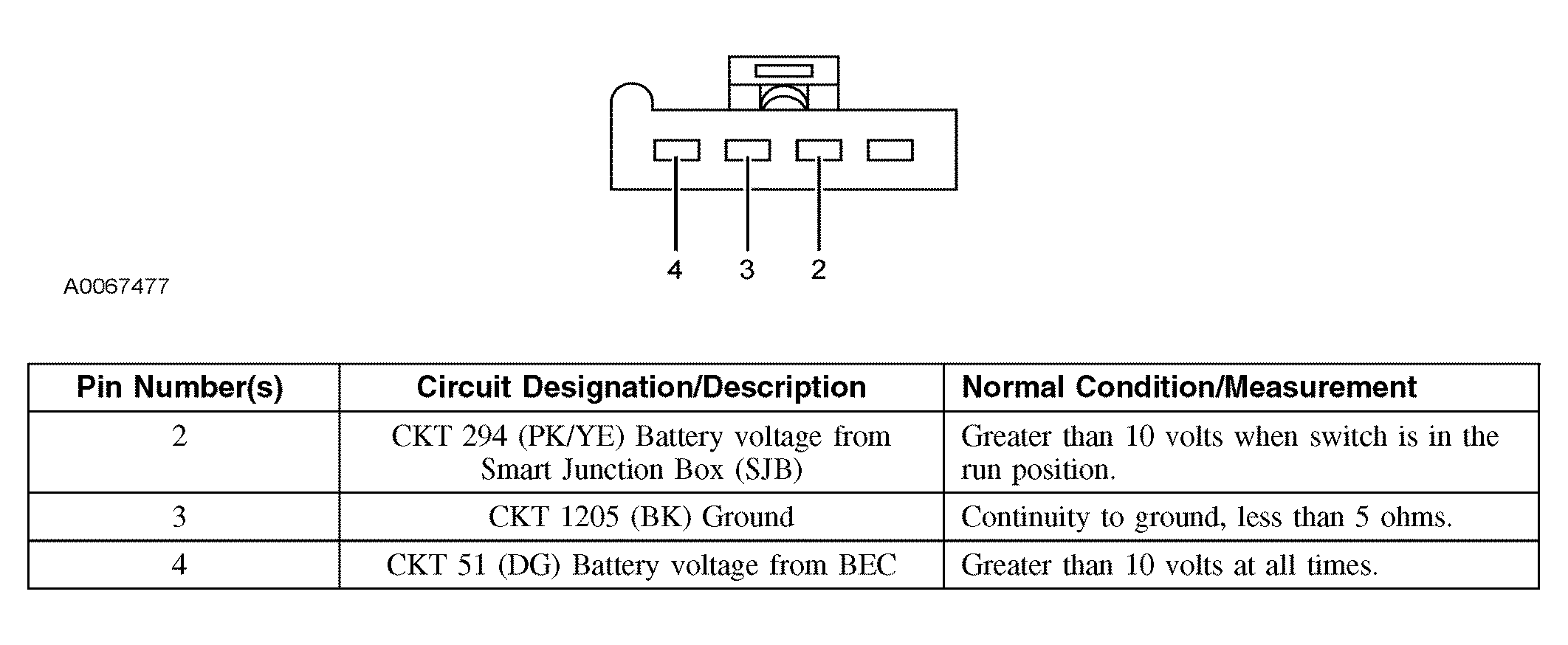

Fig 19: Passenger Climate Controlled Seat Module C3036a Connector Circuit Reference Table
G04010687Courtesy of FORD MOTOR CO.

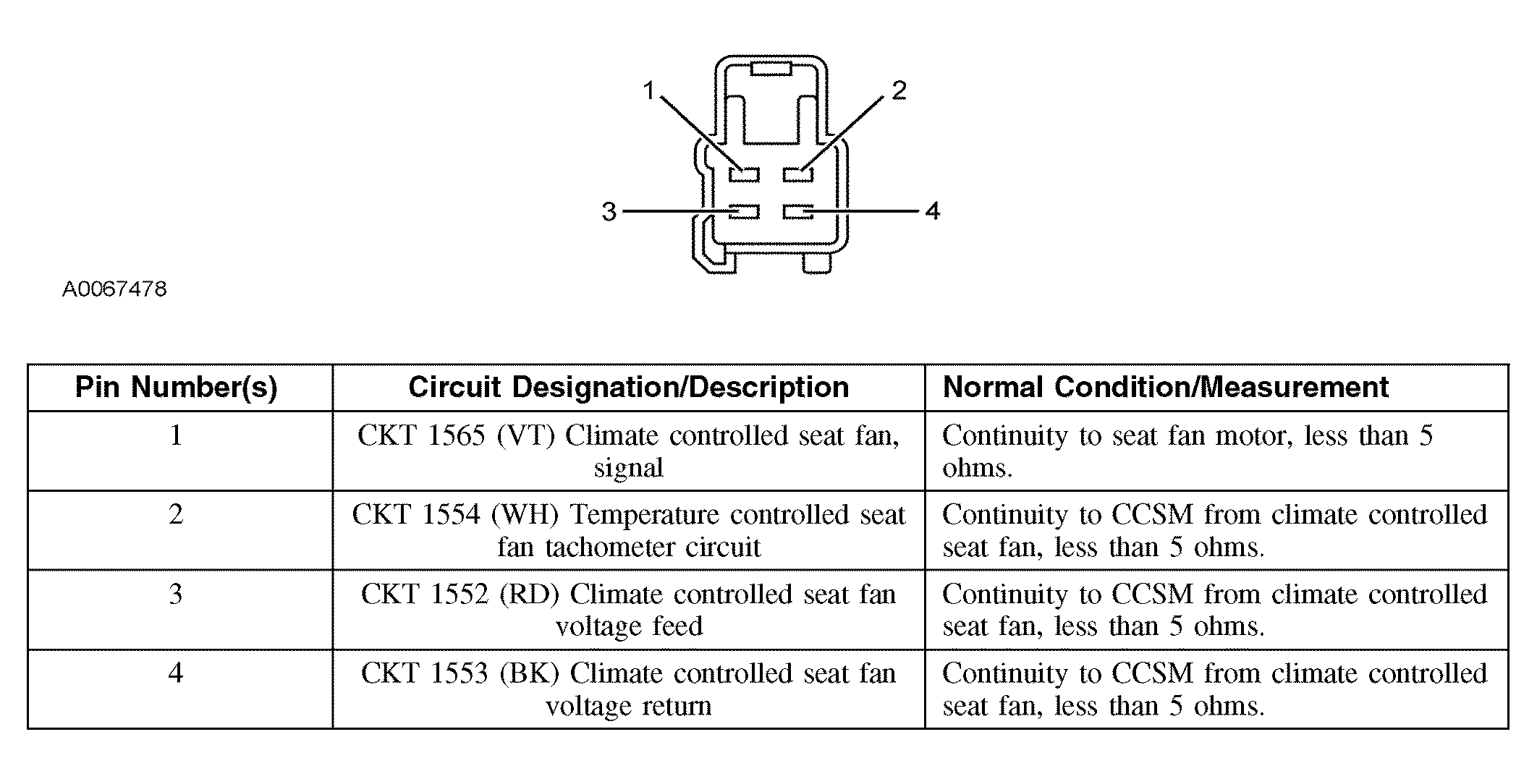

Fig 20: Driver And Passenger Climate Controlled Seat Fan C3033/C3038 Connector Circuit Reference Table
G04010688Courtesy of FORD MOTOR CO.

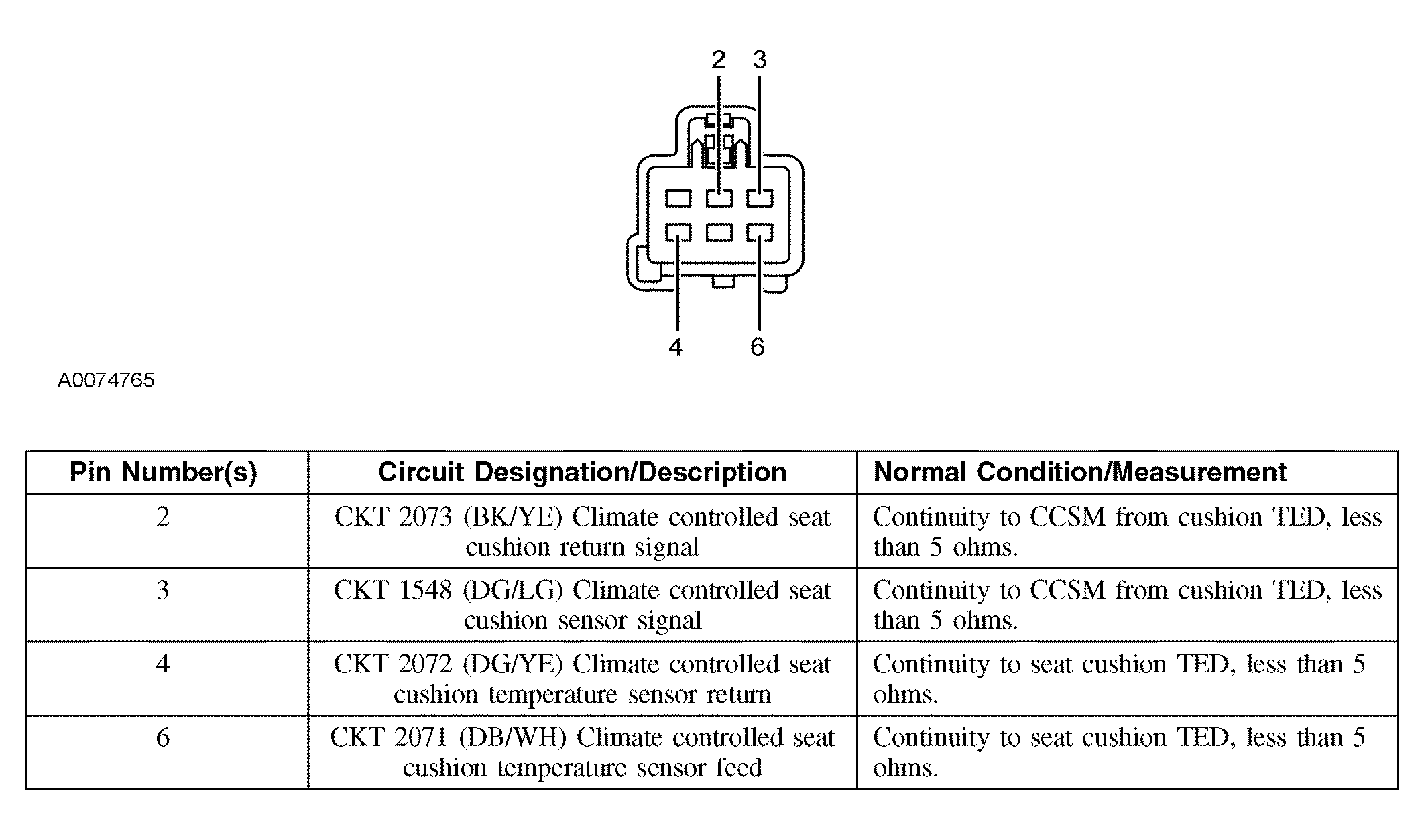

Fig 21: Driver And Passenger Climate Controlled Seat Cushion TED C3035/C3040 Connector Circuit Reference Table
G04010689Courtesy of FORD MOTOR CO.

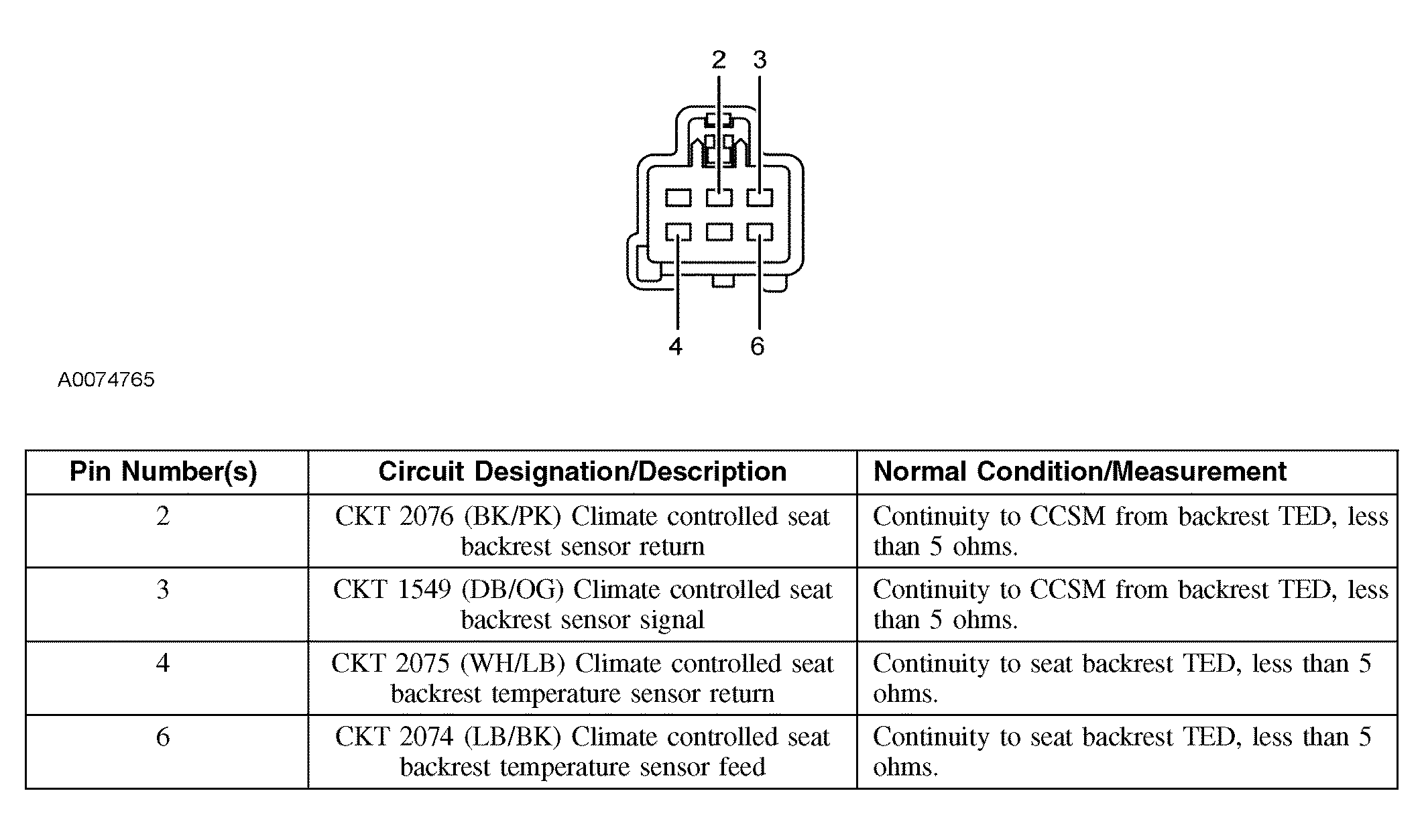

Fig 22: Driver And Passenger Climate Controlled Seat Backrest TED C3034/C3039 Connector Circuit Reference Table
G04010690Courtesy of FORD MOTOR CO.

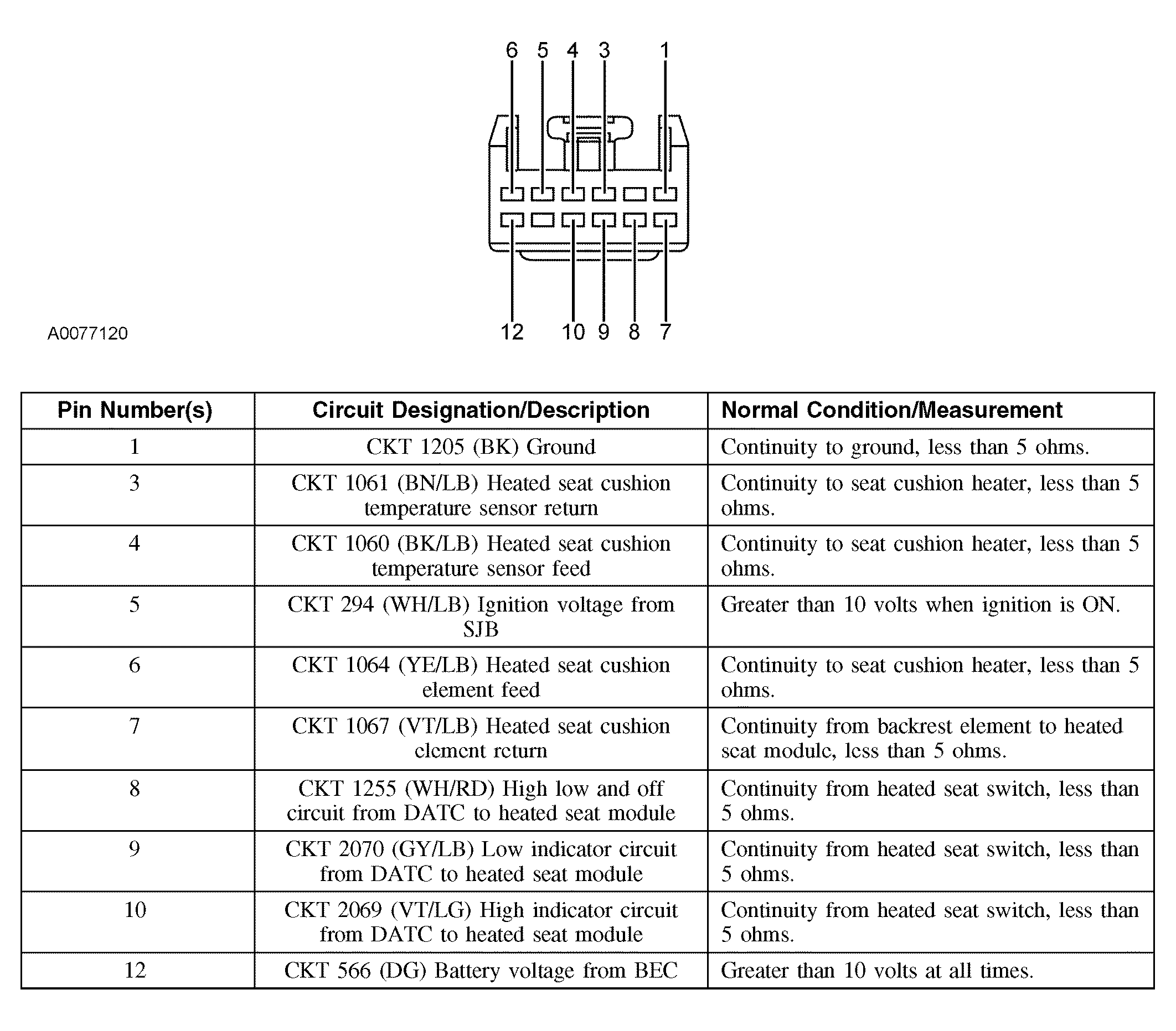

Fig 23: Driver Heated Seat Module C359 Connector Circuit Reference Table
G04010691Courtesy of FORD MOTOR CO.

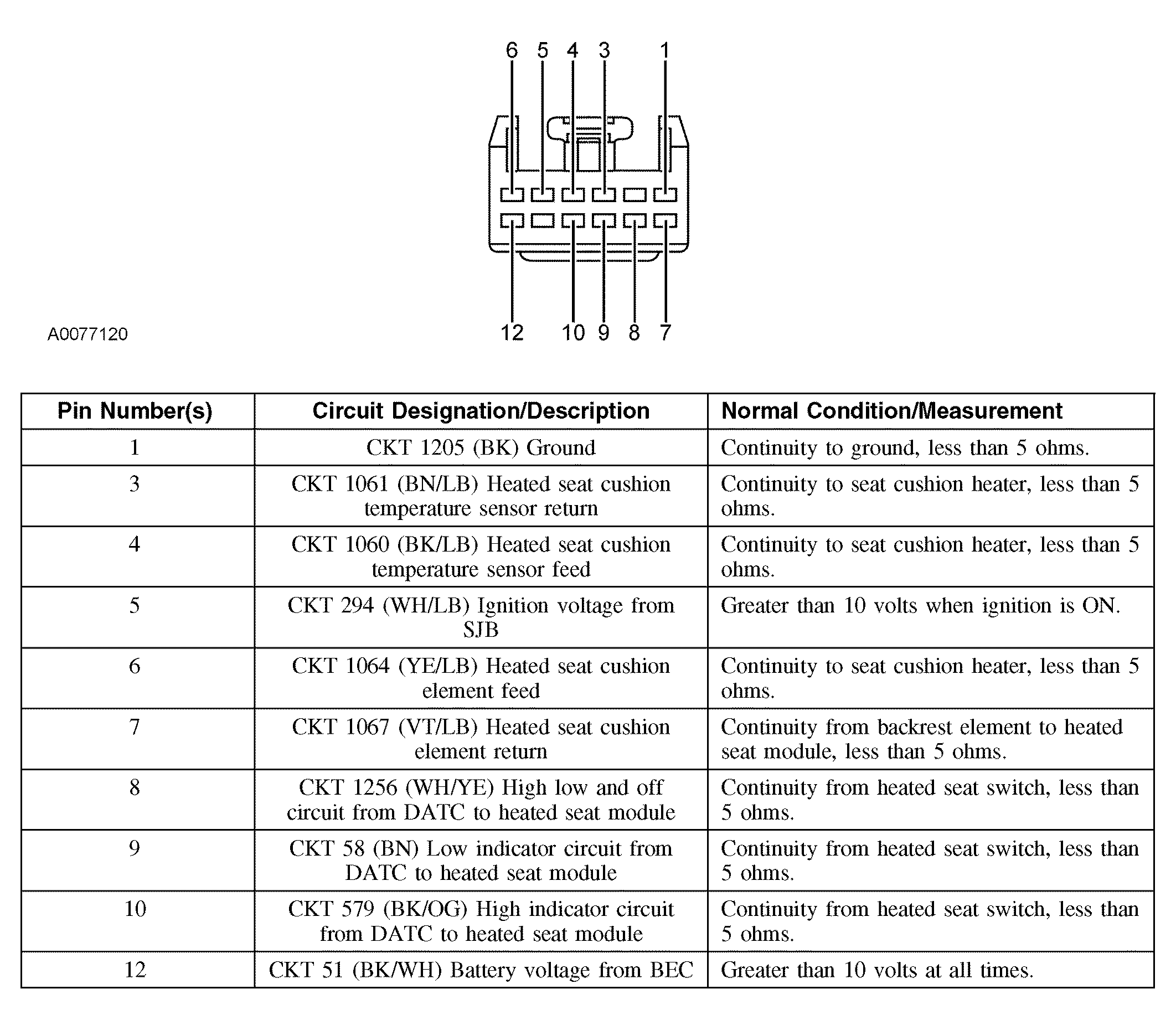

Fig 24: Passenger Heated Seat Module C329 Connector Circuit Reference Table
G04010692Courtesy of FORD MOTOR CO.

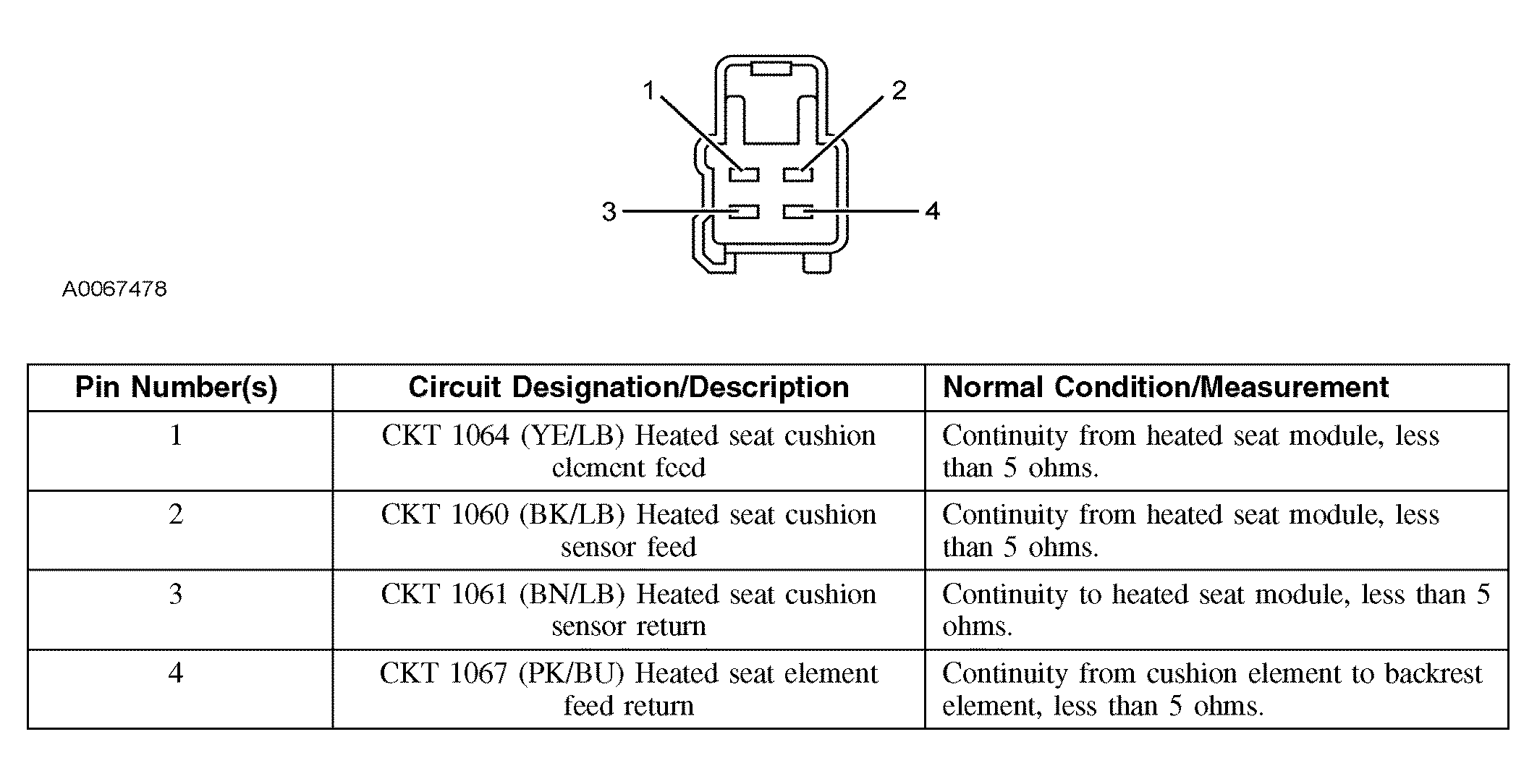

Fig 25: Driver And Passenger Heated Seat Cushion Element C364/C334 Connector Circuit Reference Table
G04010693Courtesy of FORD MOTOR CO.
