Bumper - Exploded View, Front
Bumper - Exploded View, Front

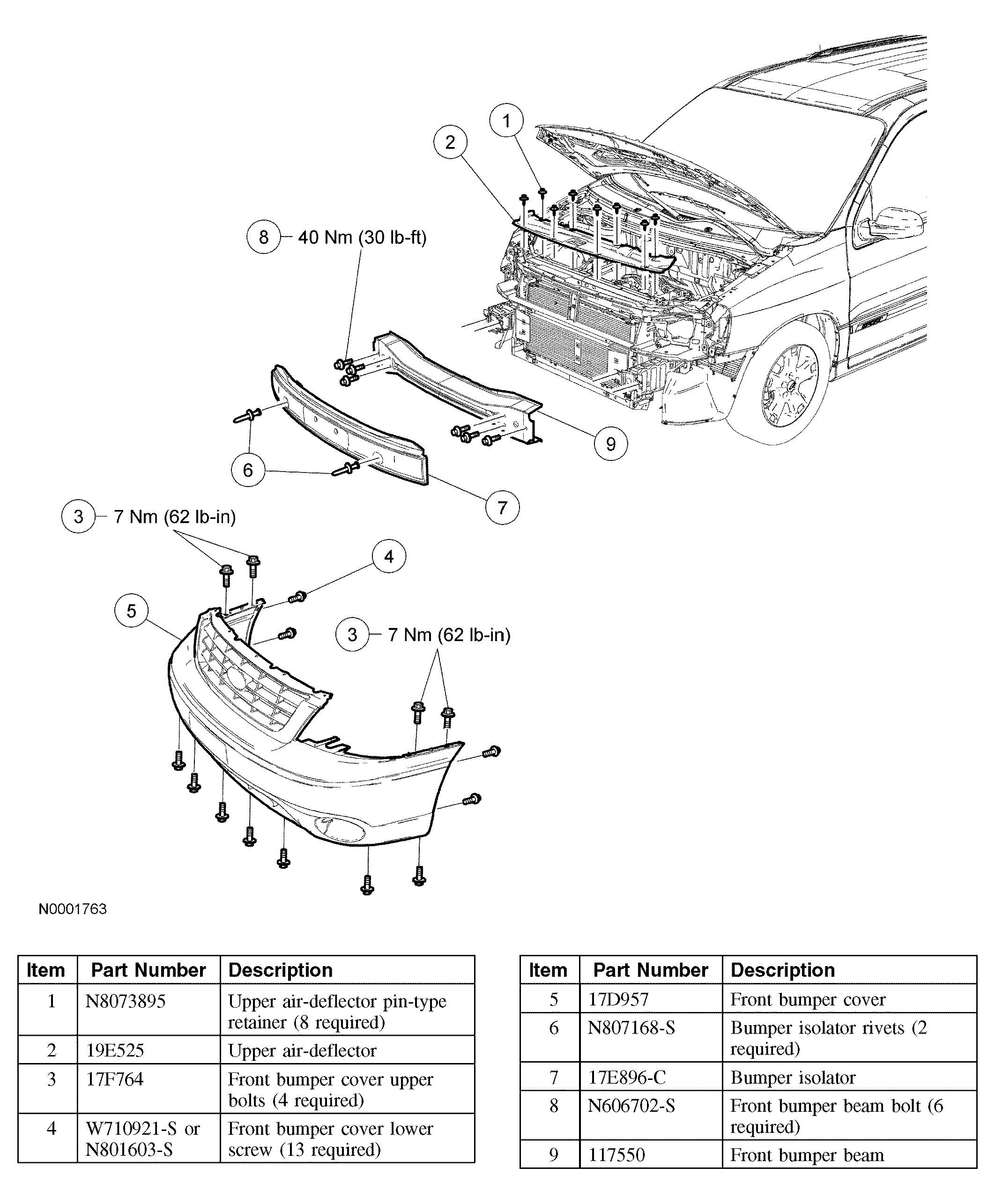

Fig 1: Exploded View Of Front Bumper
Courtesy of FORD MOTOR CO.
For additional information, refer to the appropriate component procedures.
Courtesy of FORD MOTOR CO.
