Hood Latch and Components - Exploded View

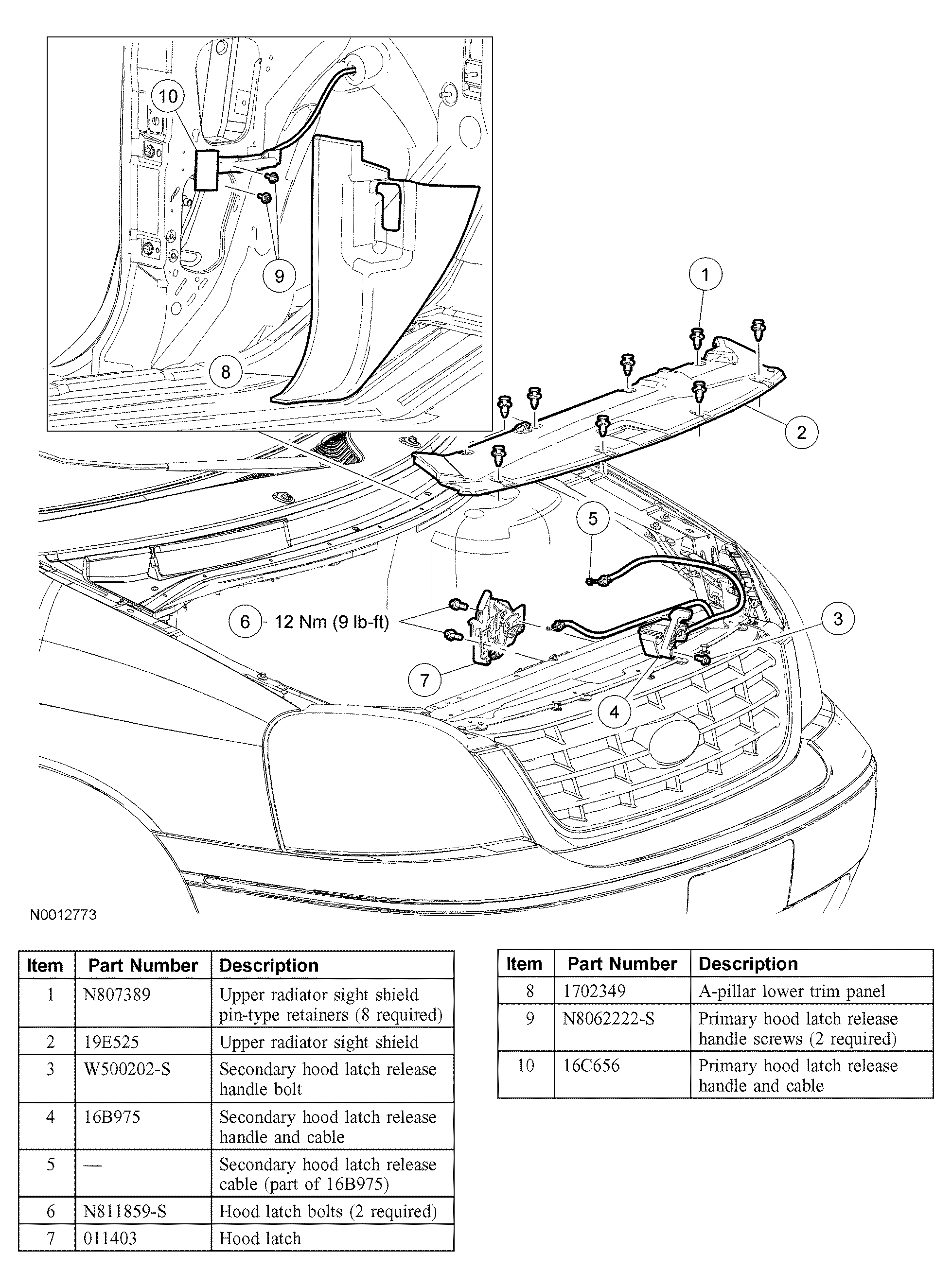

Fig 1: Exploded View Of Hood Latch And Components
G04011194Courtesy of FORD MOTOR CO.
  1. For additional information, refer to the appropriate component procedures.
