Connector Circuit Reference

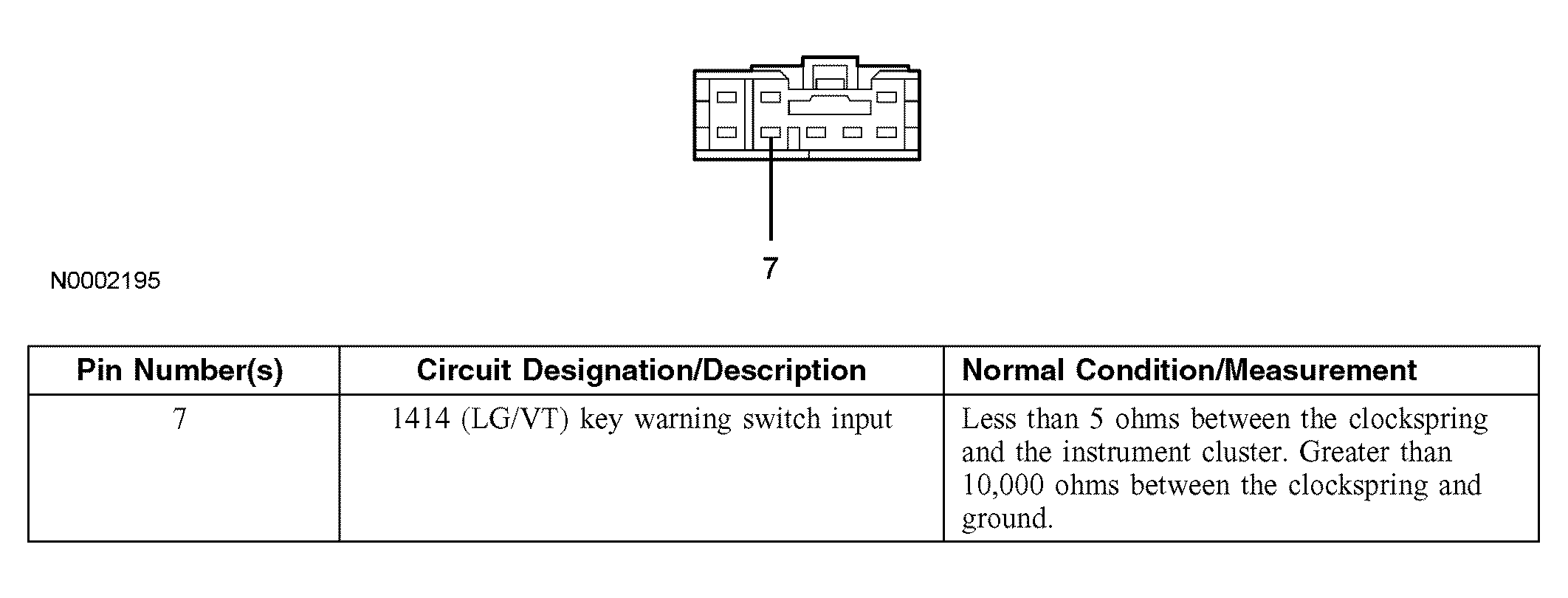

Fig 1: Identifying Clockspring C218b Connector Pinout
G04006005Courtesy of FORD MOTOR CO.

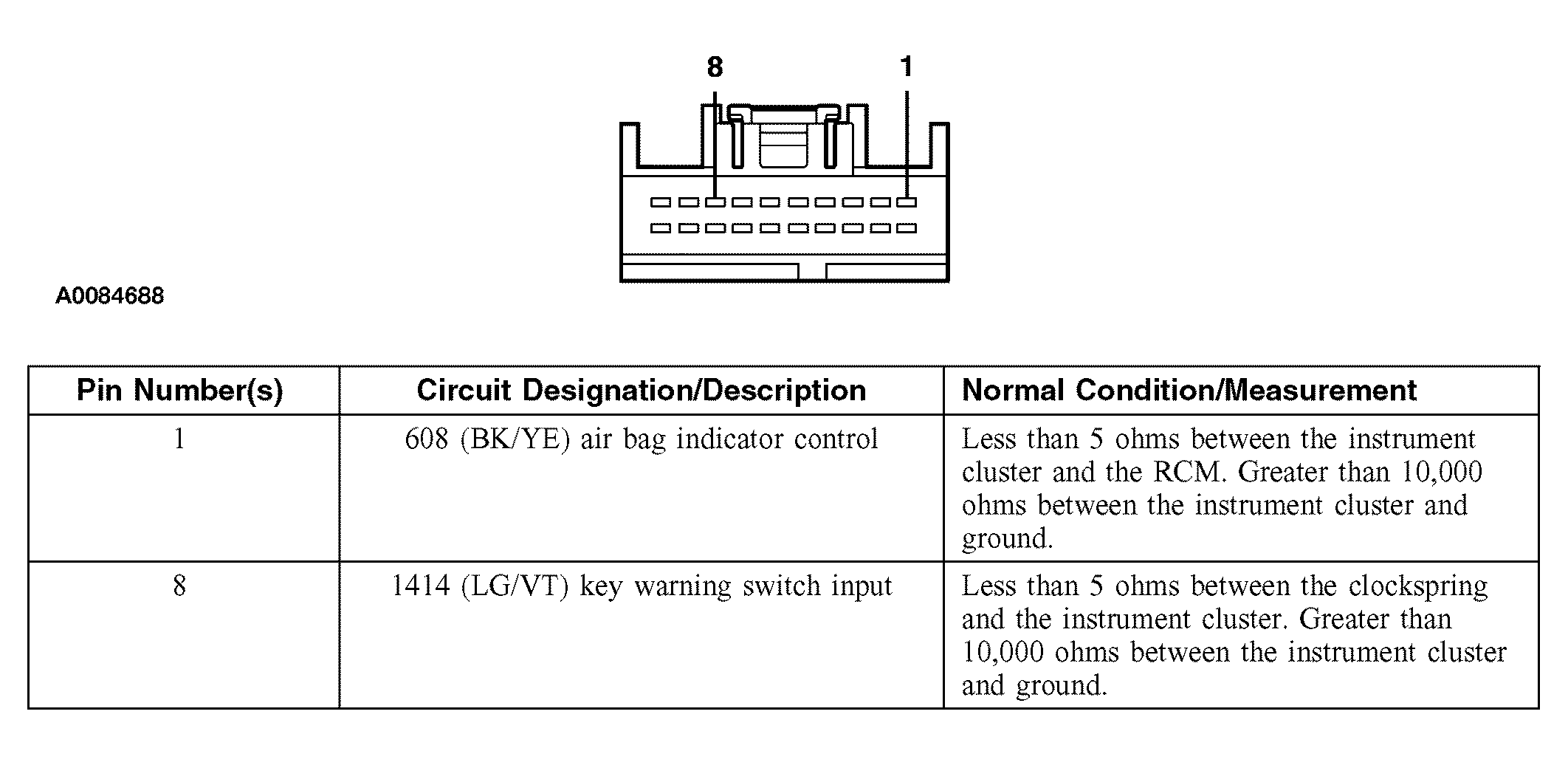

Fig 2: Identifying Instrument Cluster C220a Connector Pinout
G04006006Courtesy of FORD MOTOR CO.

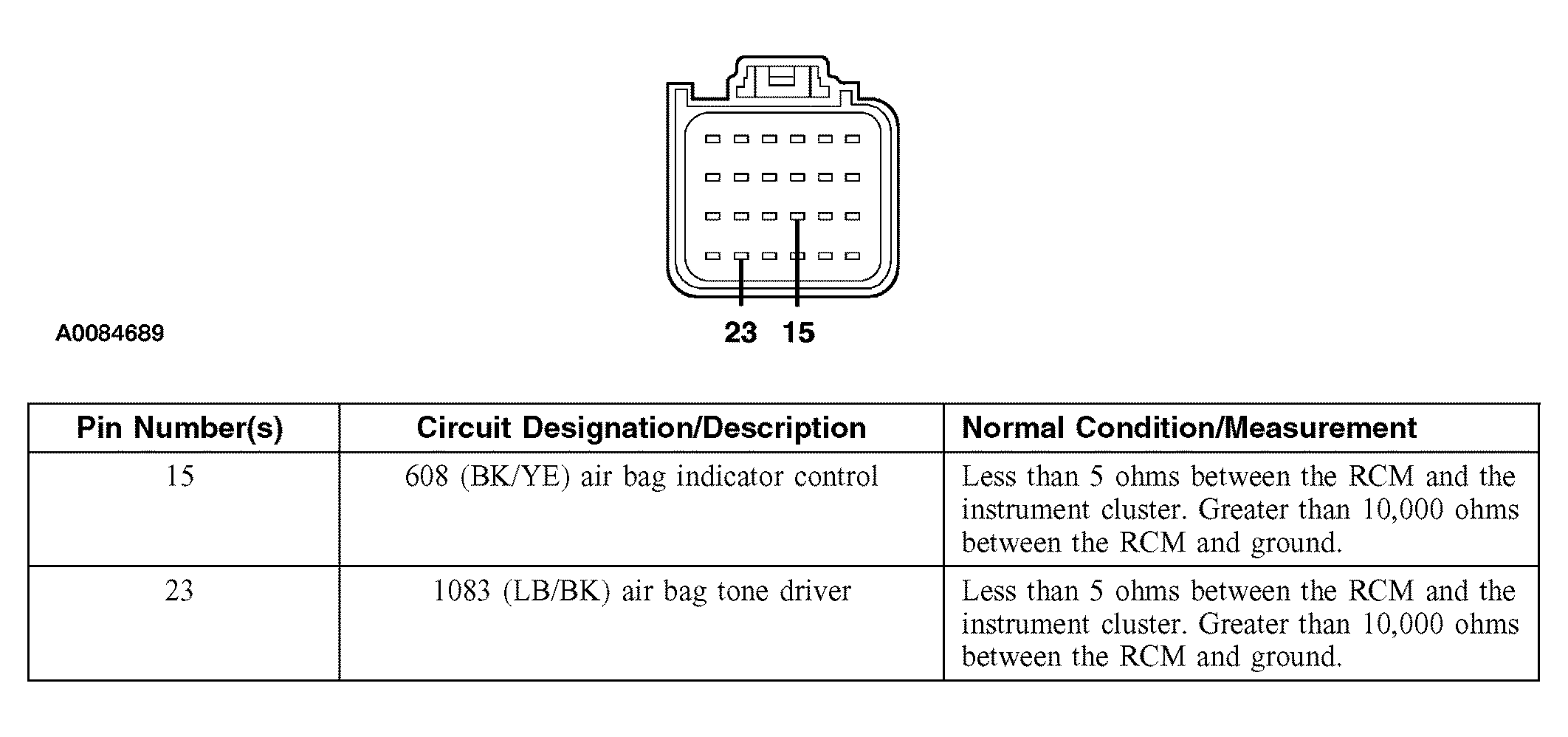

Fig 3: Identifying Restraint Control Module (RCM) C310a Connector Pinout
G04006007Courtesy of FORD MOTOR CO.
