Home >> Ford >> 2005 >> Freestar Base >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Removal And Installation >> Speed Control Actuator >> Notes

Speed Control Actuator: Notes

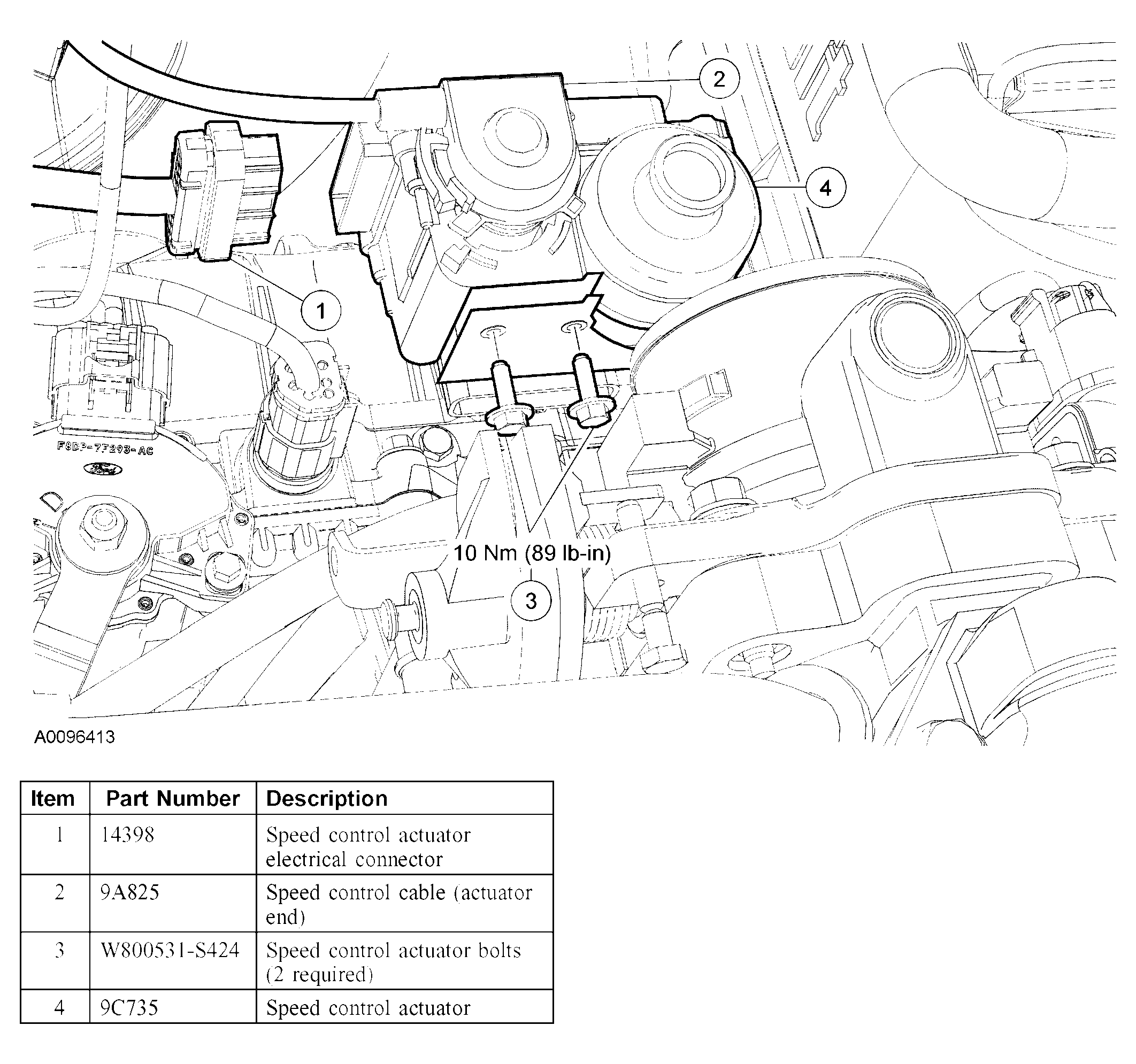

Fig 1: Removing Speed Control Actuator

G04016529

Courtesy of FORD MOTOR CO.
