Steering Column - Exploded View

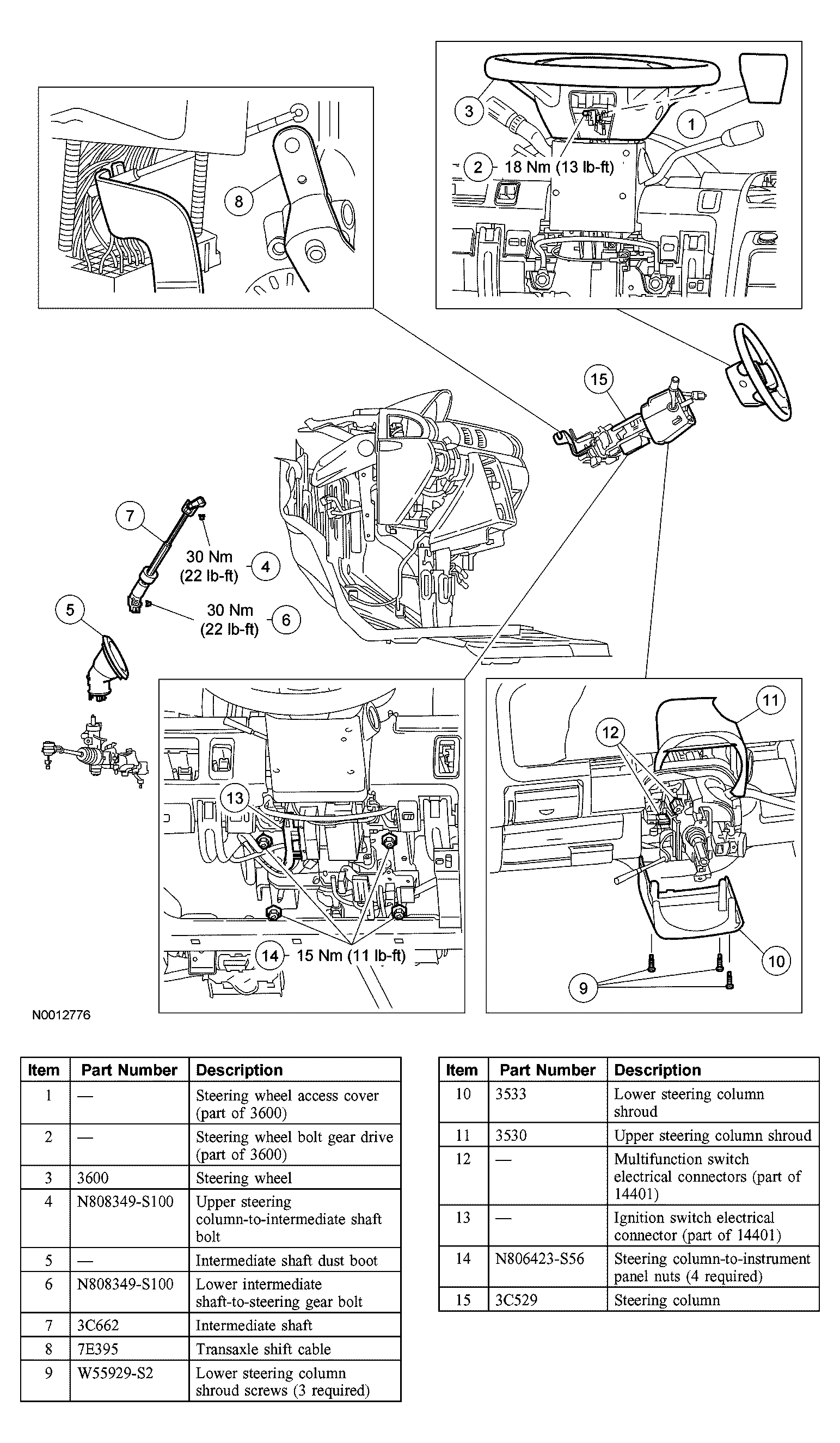

Fig 1: Exploded View Of Steering Column

G04000731

Courtesy of FORD MOTOR CO.

For additional information, refer to the appropriate component procedures.
