Connector Circuit Reference

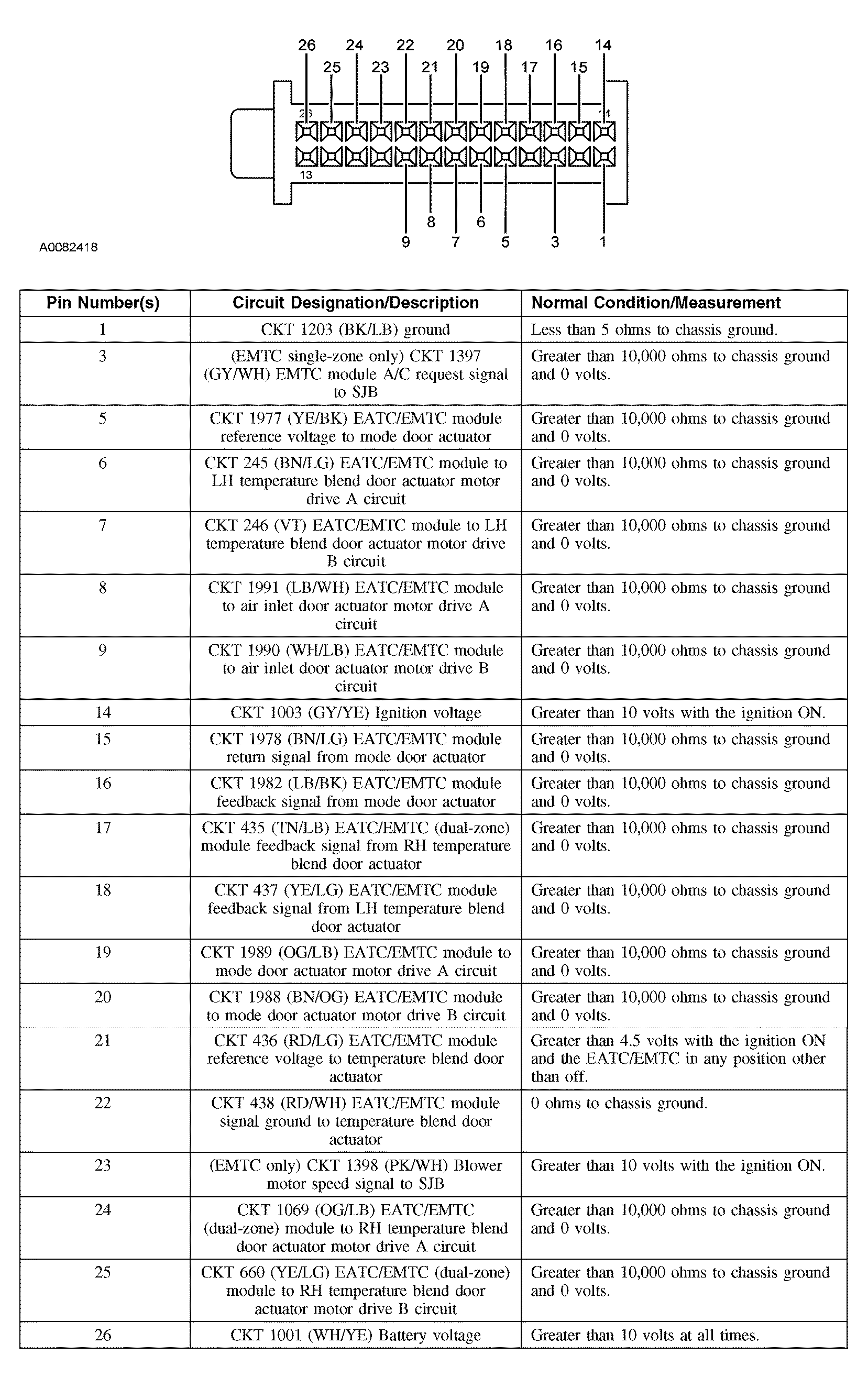

Fig 1: Identifying EATC Module C228a/EMTC Module C294a Connector Pins
G04005490Courtesy of FORD MOTOR CO.

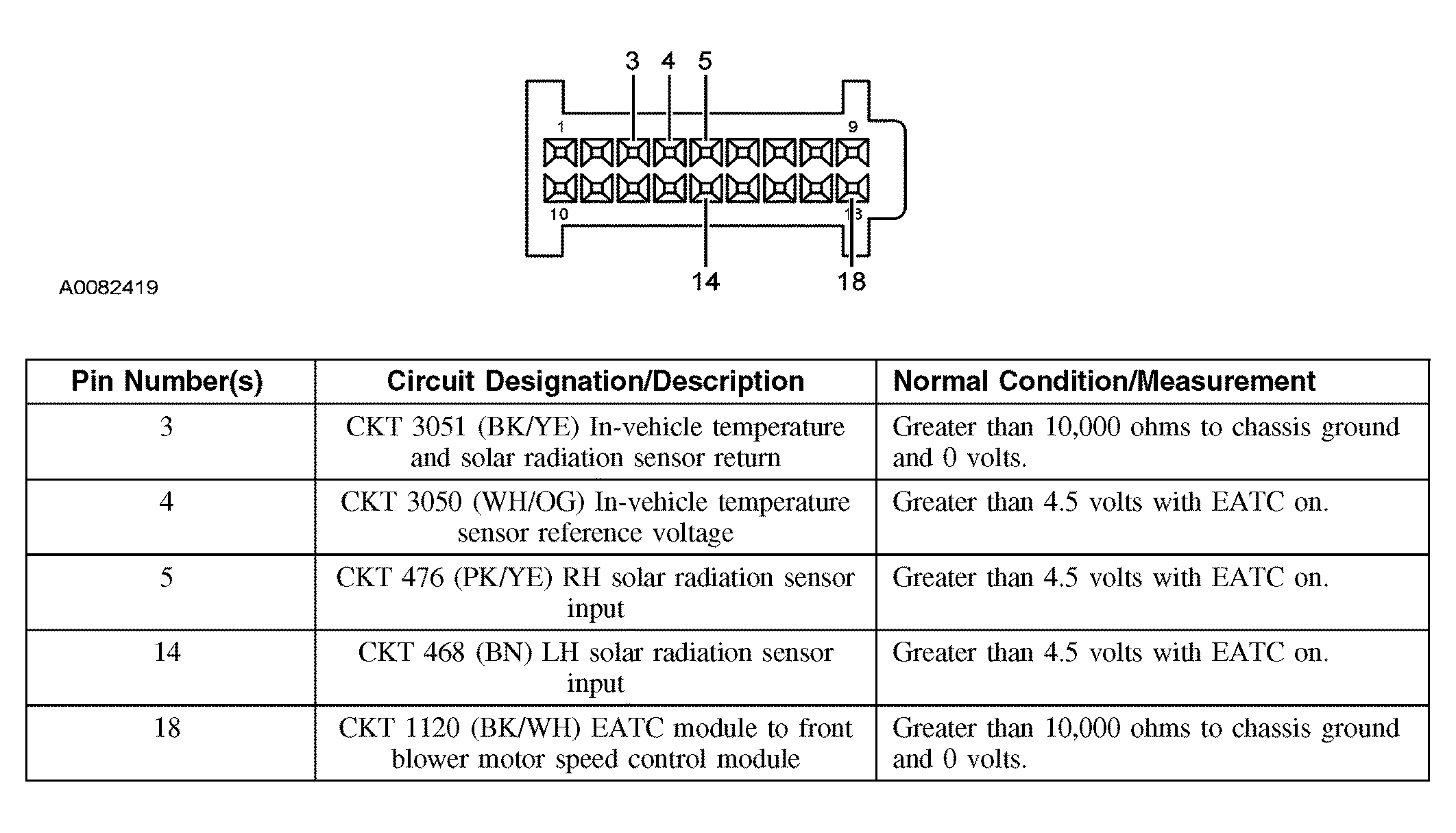

Fig 2: Identifying EATC Module C228b Connector Pins
G04005491Courtesy of FORD MOTOR CO.

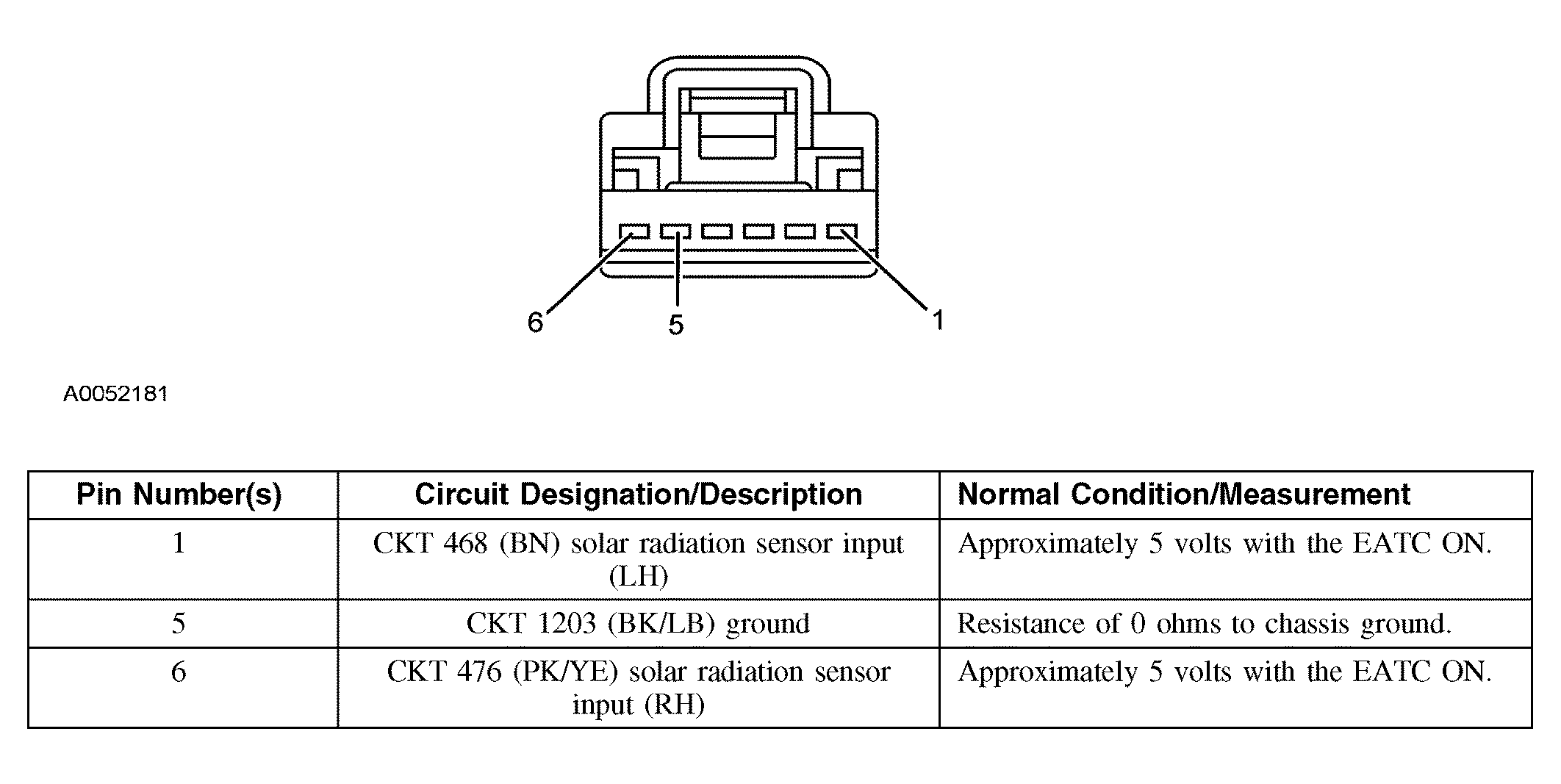

Fig 3: Identifying Solar Radiation Sensor C286 Connector Pins
G04005492Courtesy of FORD MOTOR CO.

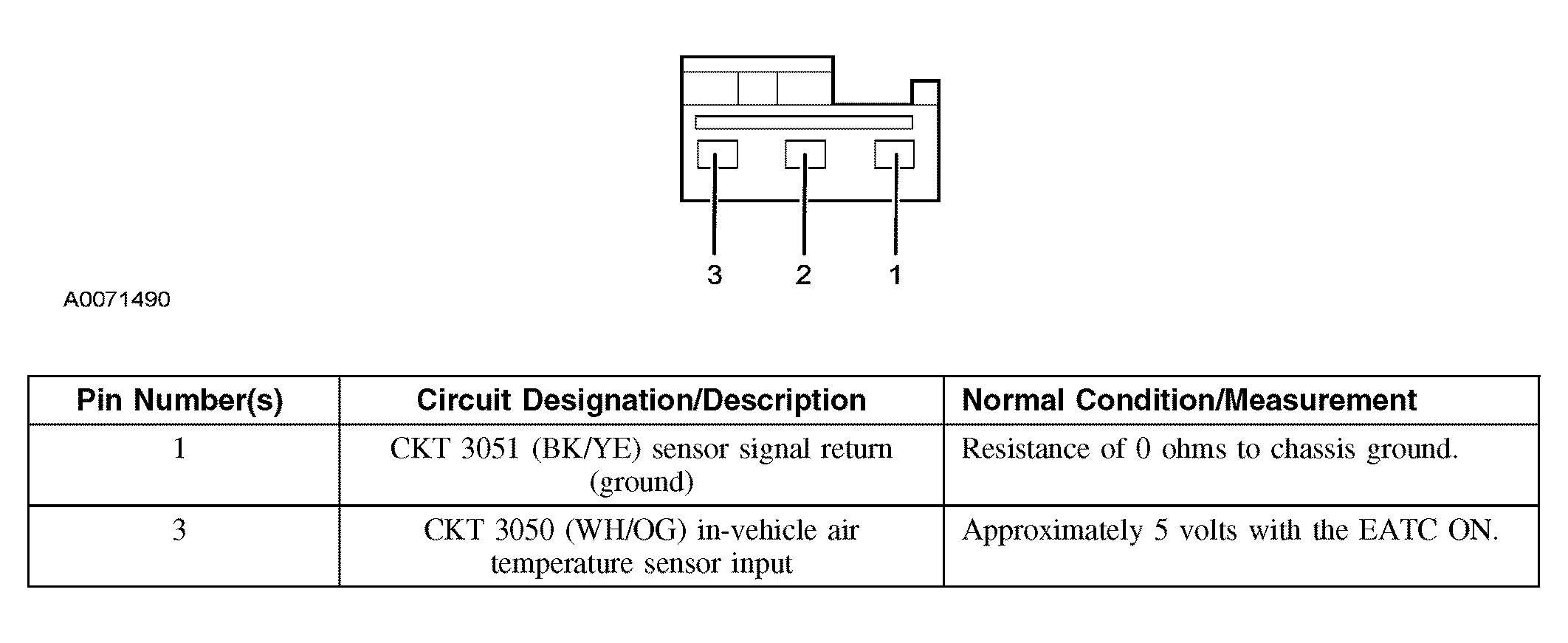

Fig 4: Identifying In-Vehicle Temperature Sensor C233 Connector Pins
G04005493Courtesy of FORD MOTOR CO.

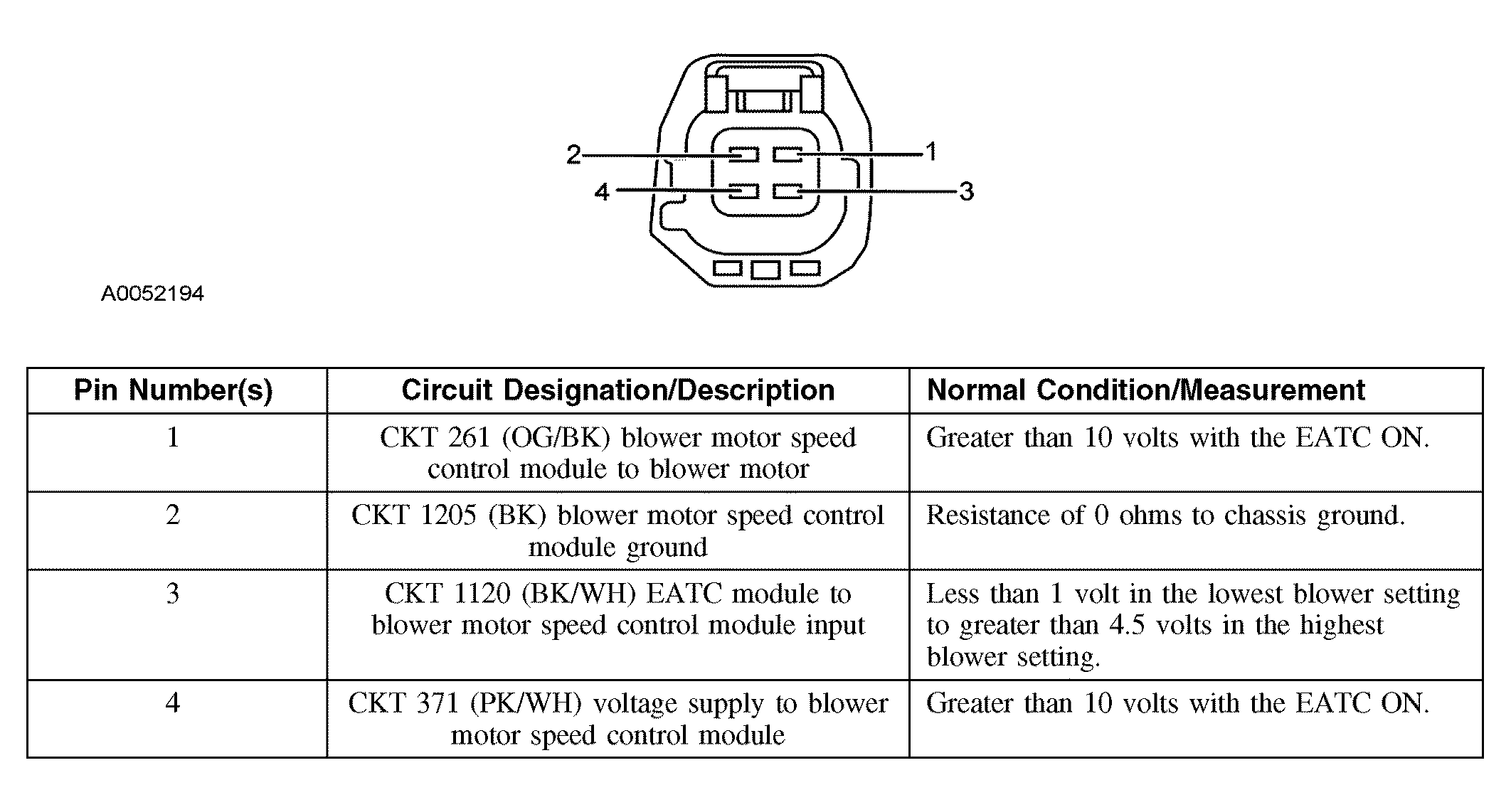

Fig 5: Identifying Blower Motor Speed Control Module C271 Connector Pins
G04005494Courtesy of FORD MOTOR CO.

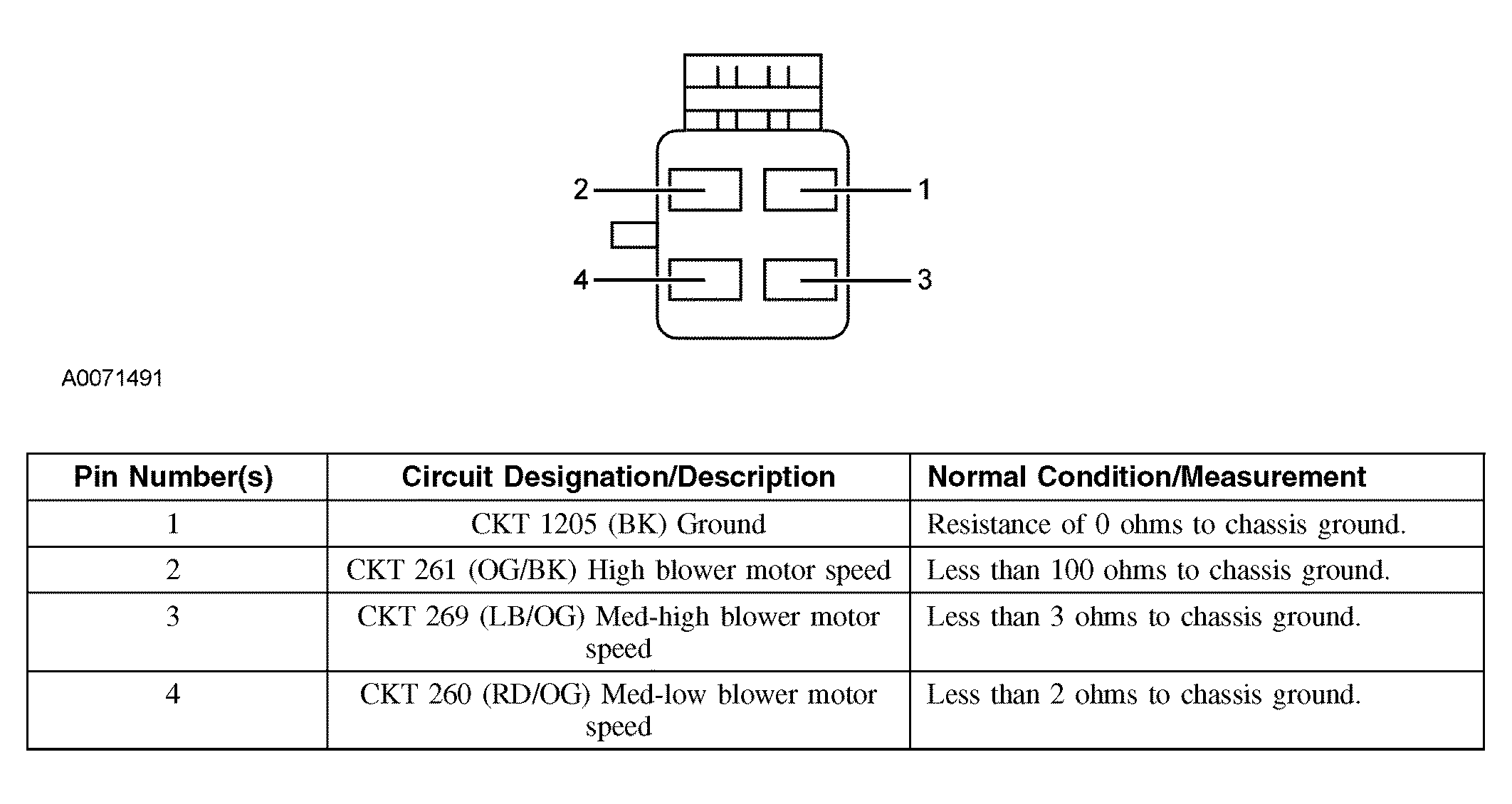

Fig 6: Identifying Blower Motor Switch C294b Connector Pins
G04005495Courtesy of FORD MOTOR CO.

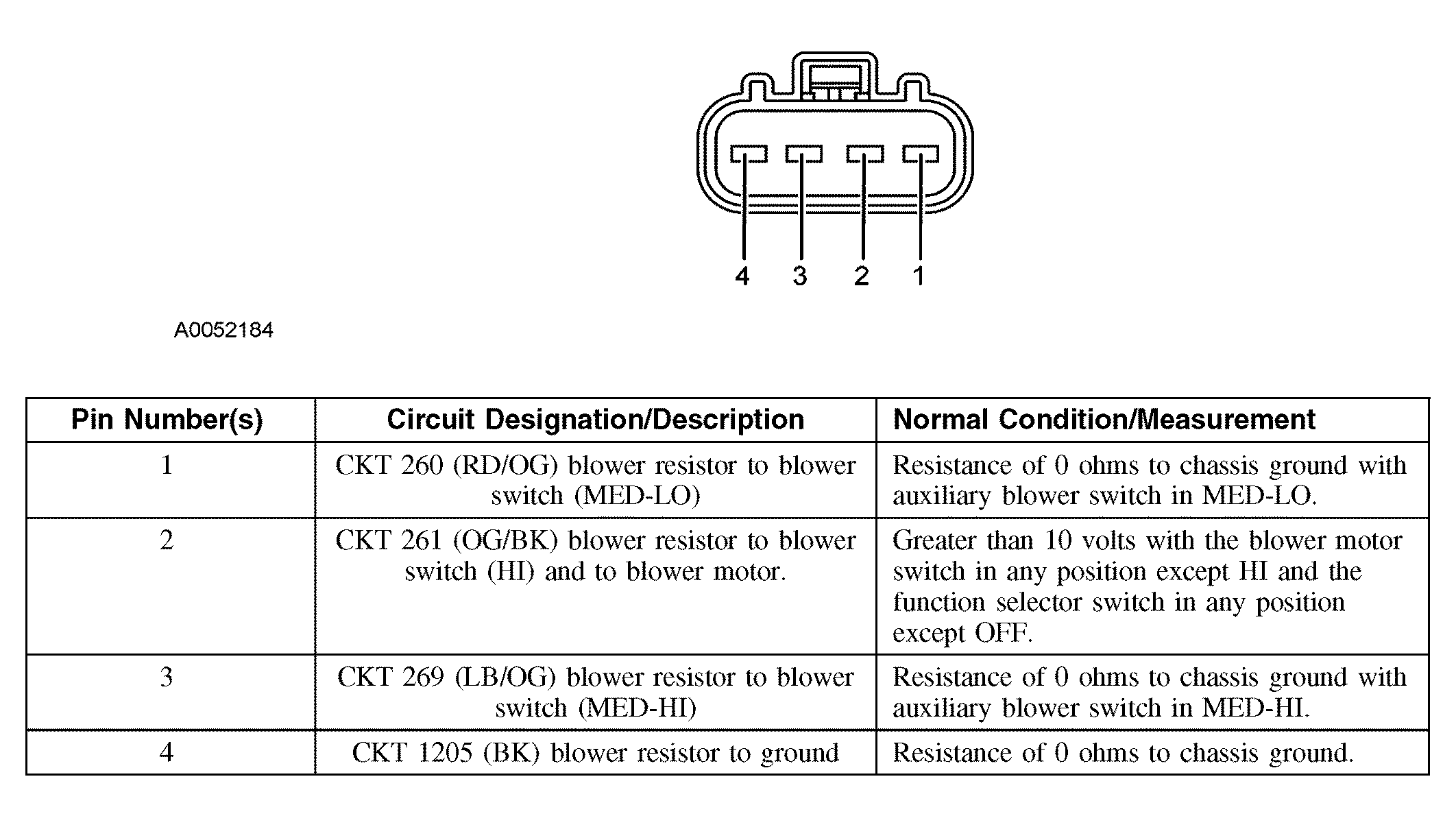

Fig 7: Identifying Blower Motor Resistor C293 Connector Pins
G04005496Courtesy of FORD MOTOR CO.

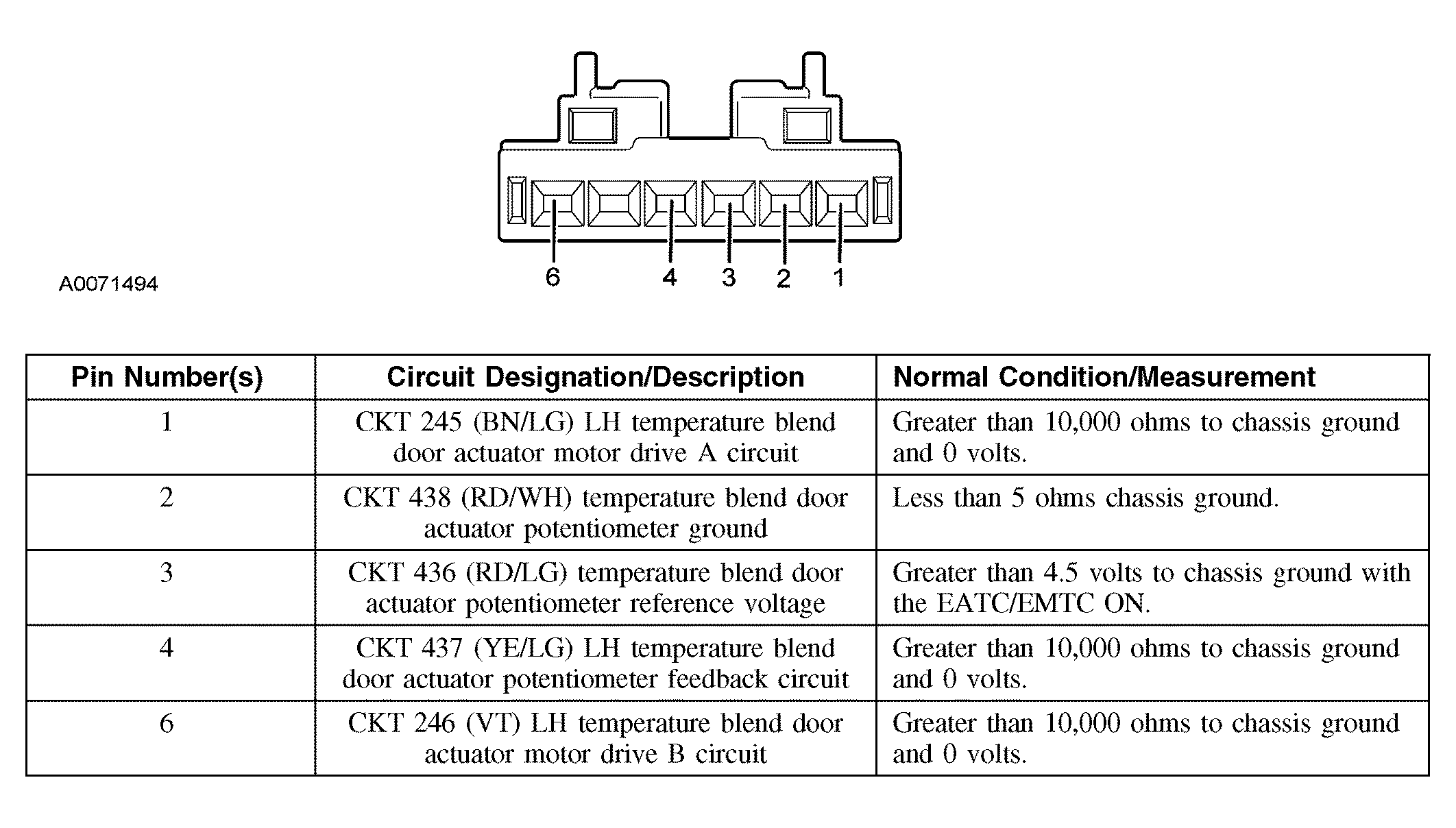

Fig 8: Identifying LH Temperature Blend Door Actuator C2091 Connector Pins
G04005497Courtesy of FORD MOTOR CO.

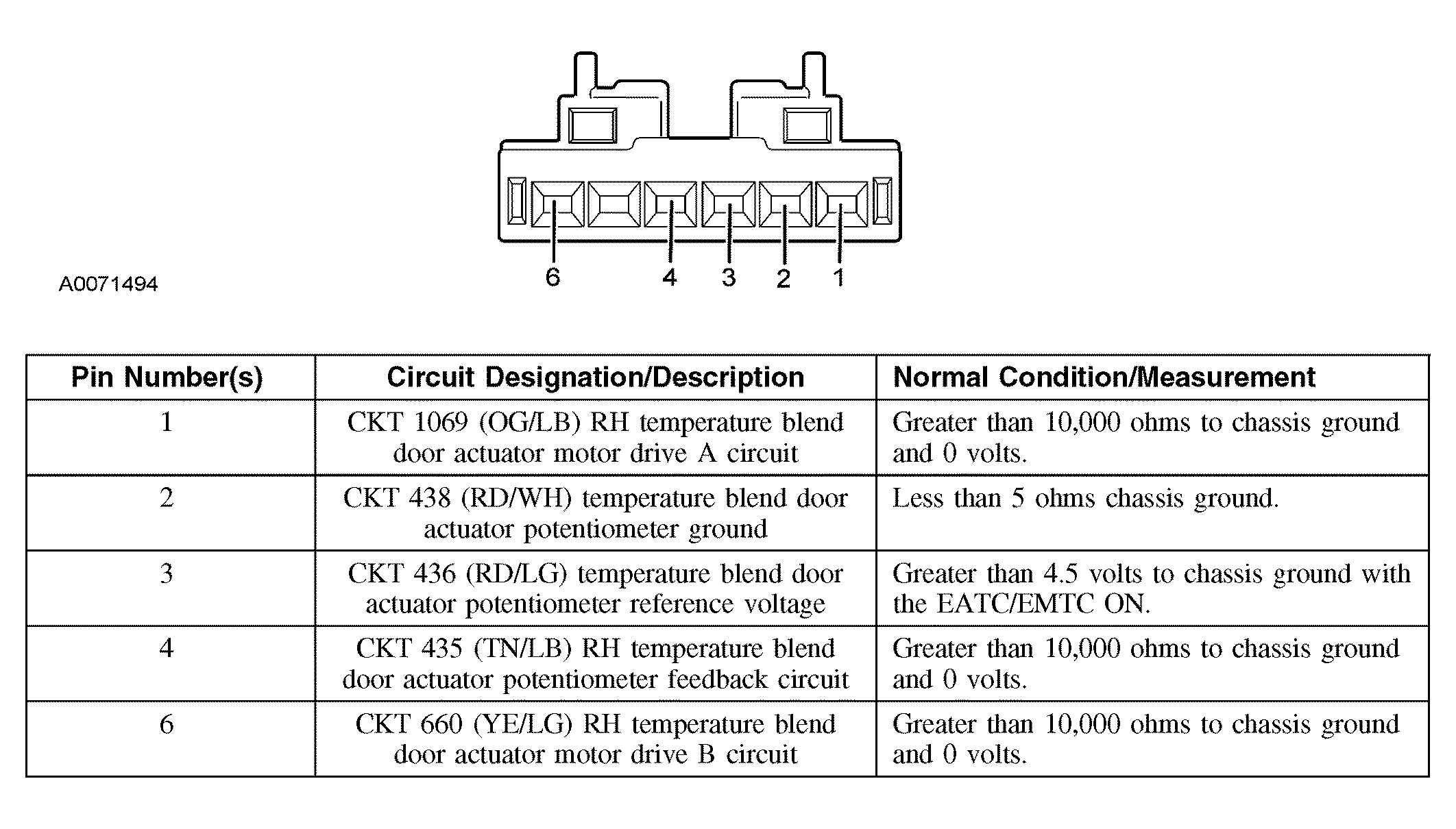

Fig 9: Identifying RH Temperature Blend Door Actuator C2092 Connector Pins
G04005498Courtesy of FORD MOTOR CO.

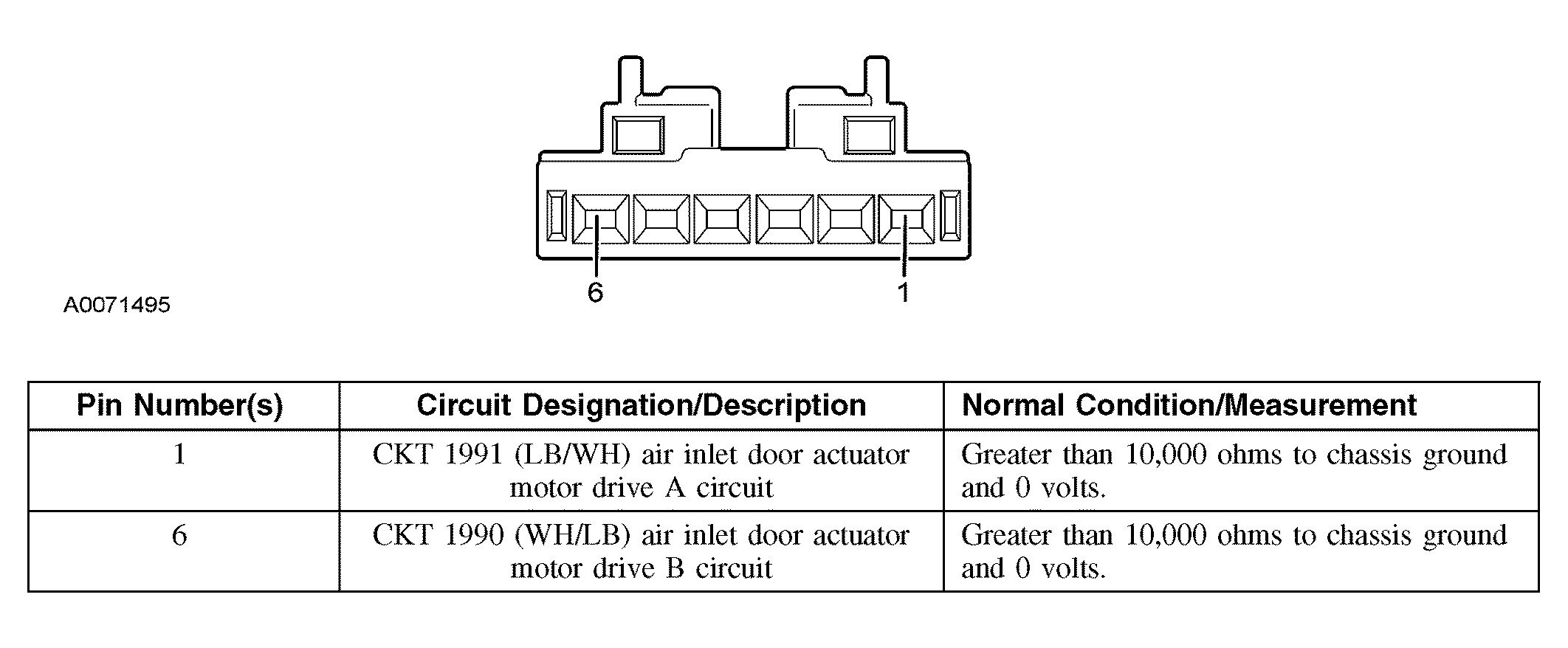

Fig 10: Identifying Air Inlet Actuator C289 Connector Pins
G04005499Courtesy of FORD MOTOR CO.

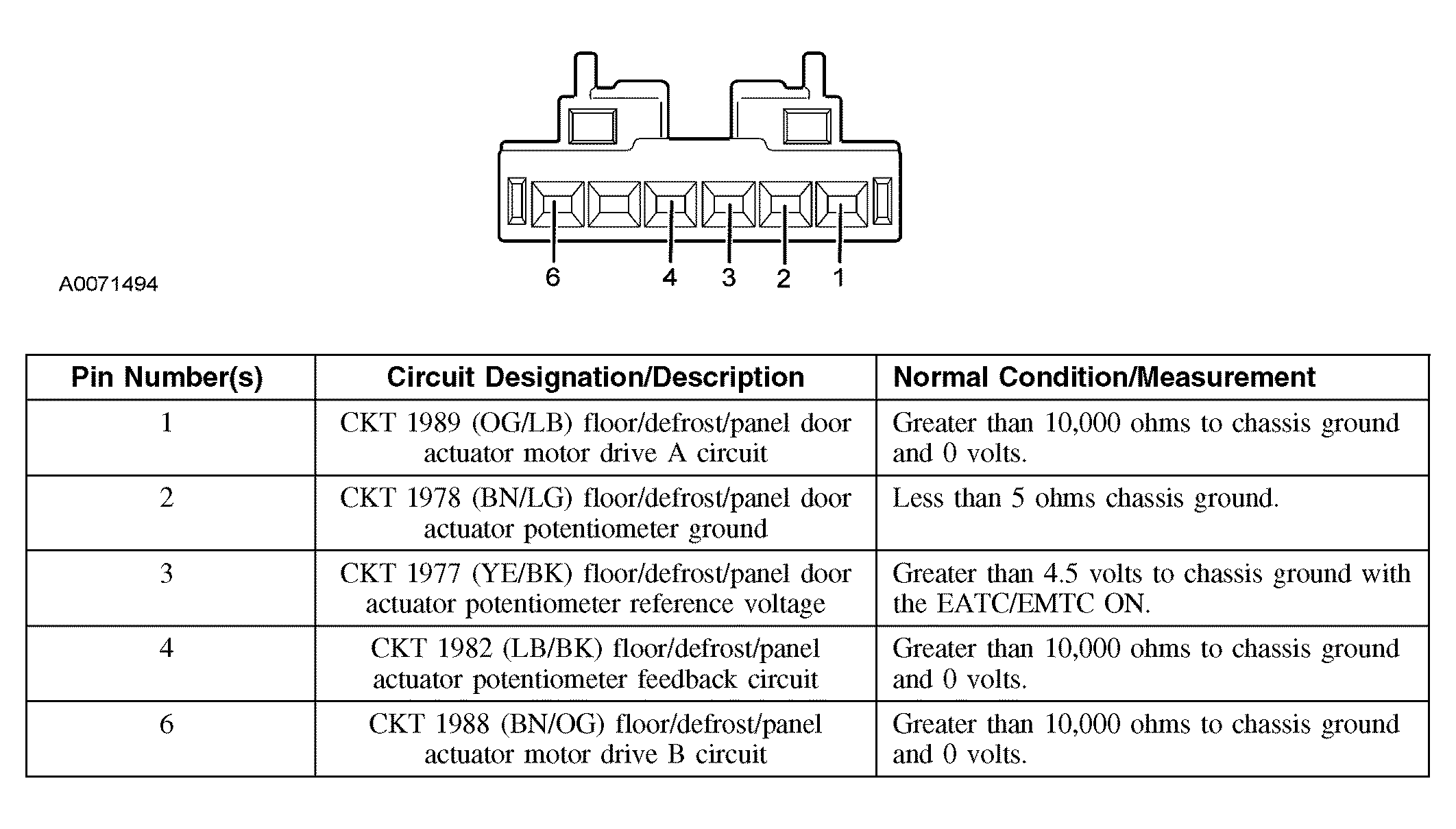

Fig 11: Identifying Floor/Defrost Actuator C2278 Connector Pins
G04005500Courtesy of FORD MOTOR CO.

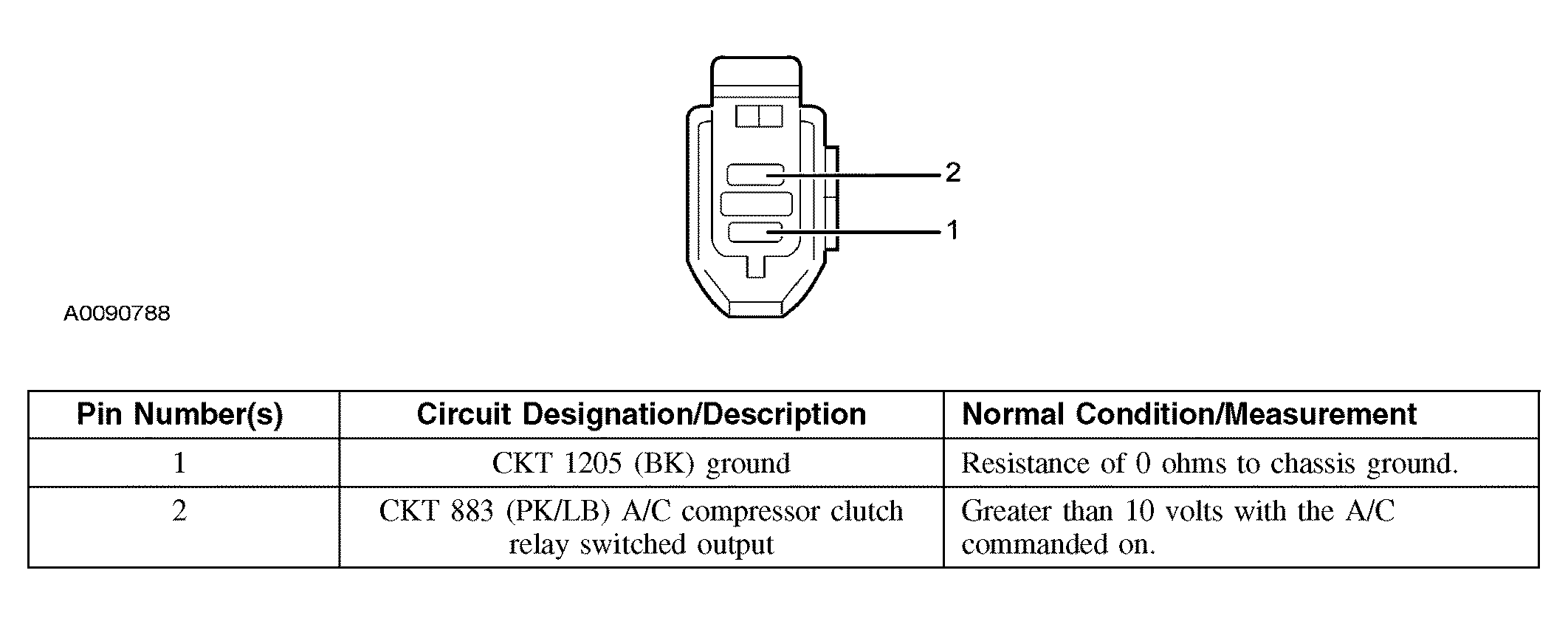

Fig 12: Identifying A/C Compressor Clutch Field Coil C100 Connector Pins
G04005501Courtesy of FORD MOTOR CO.

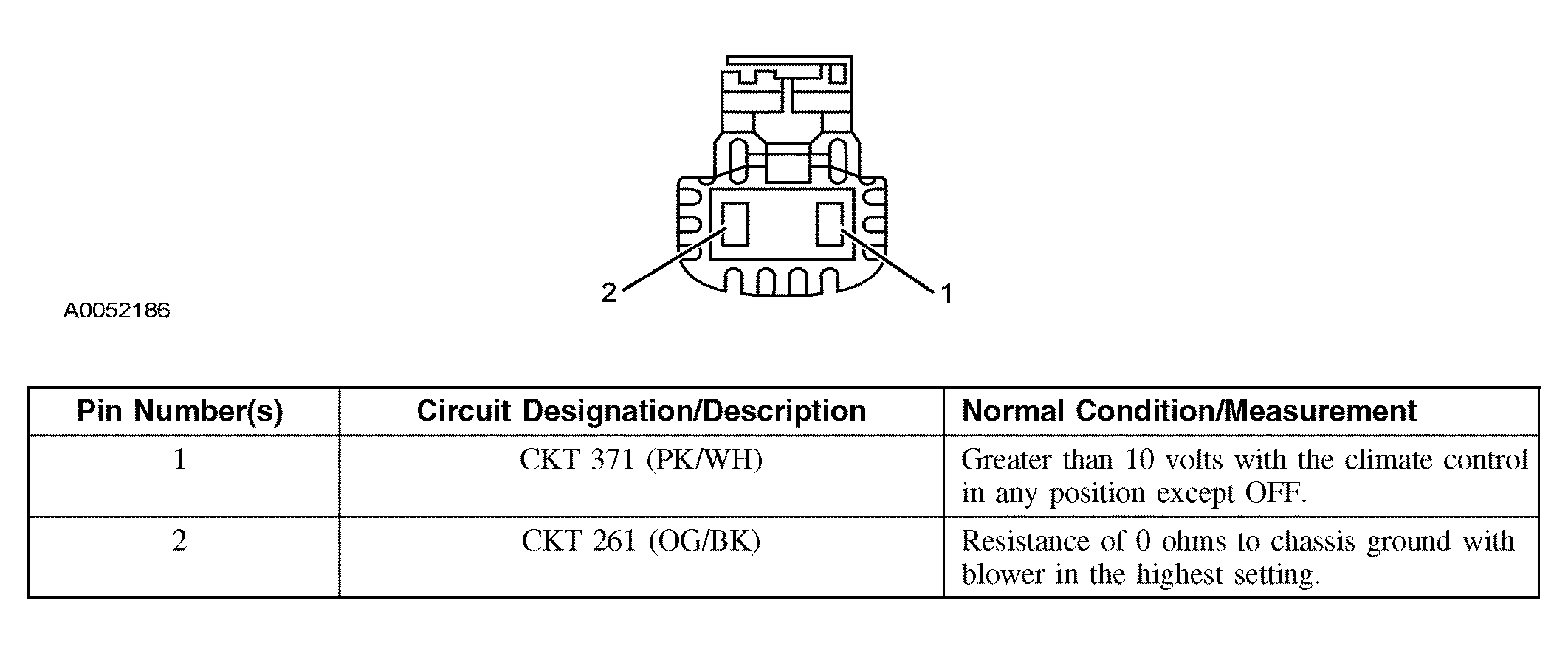

Fig 13: Identifying Blower Motor C2004 Connector Pins
G04005502Courtesy of FORD MOTOR CO.

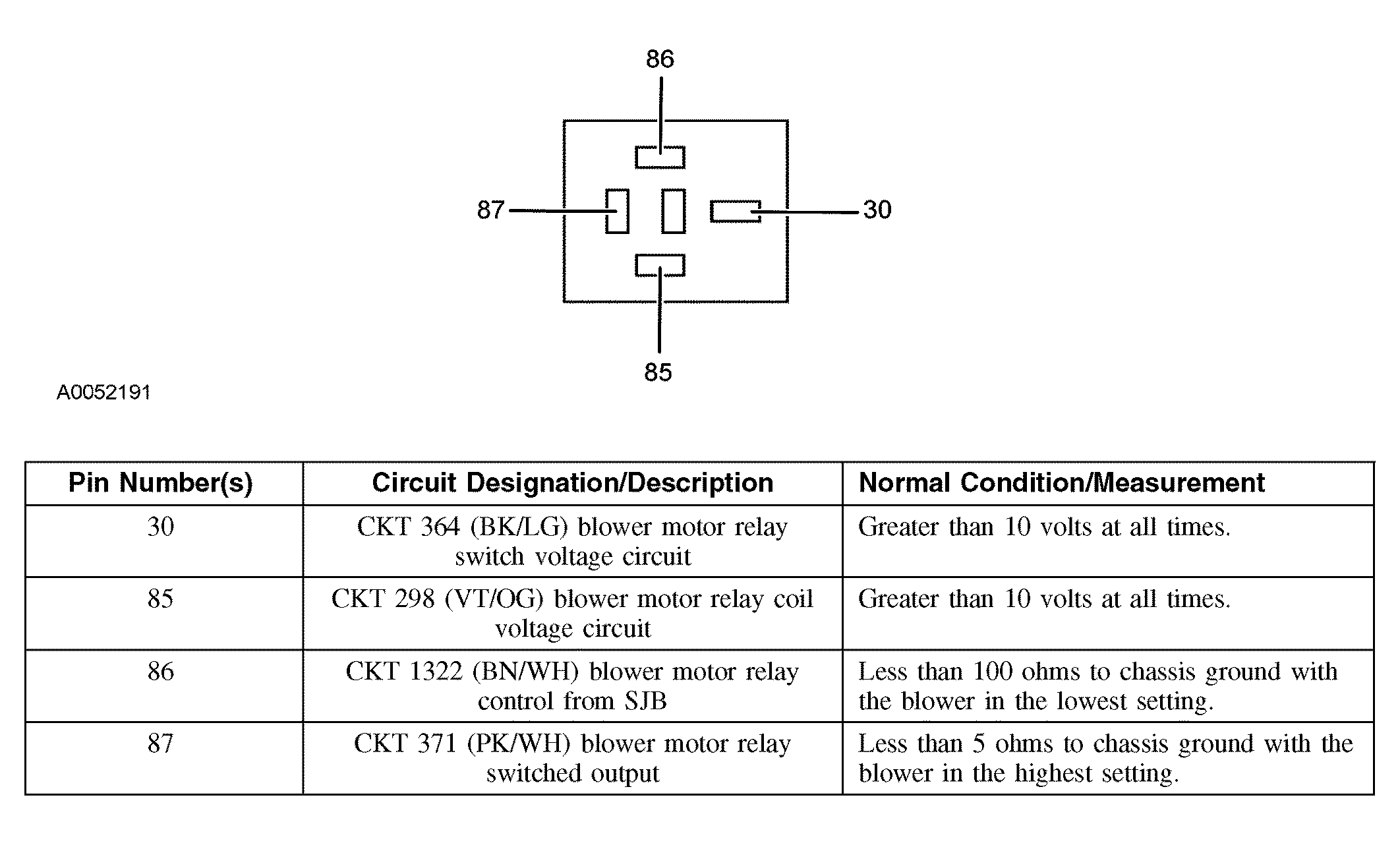

Fig 14: Identifying Blower Motor Relay Connector Pins
G04005503Courtesy of FORD MOTOR CO.

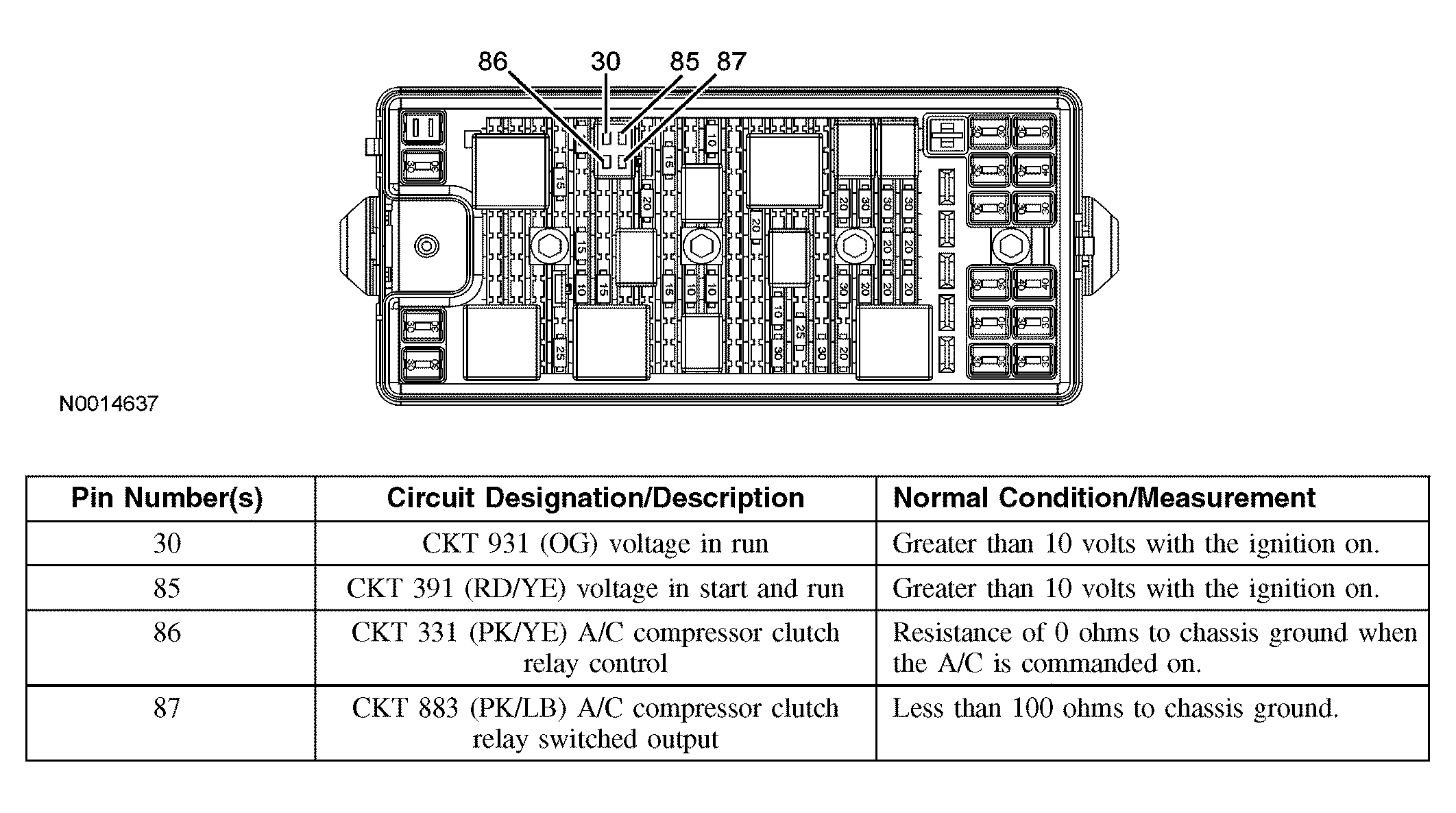

Fig 15: Identifying A/C Compressor Clutch Relay Connector Pins
G04005504Courtesy of FORD MOTOR CO.

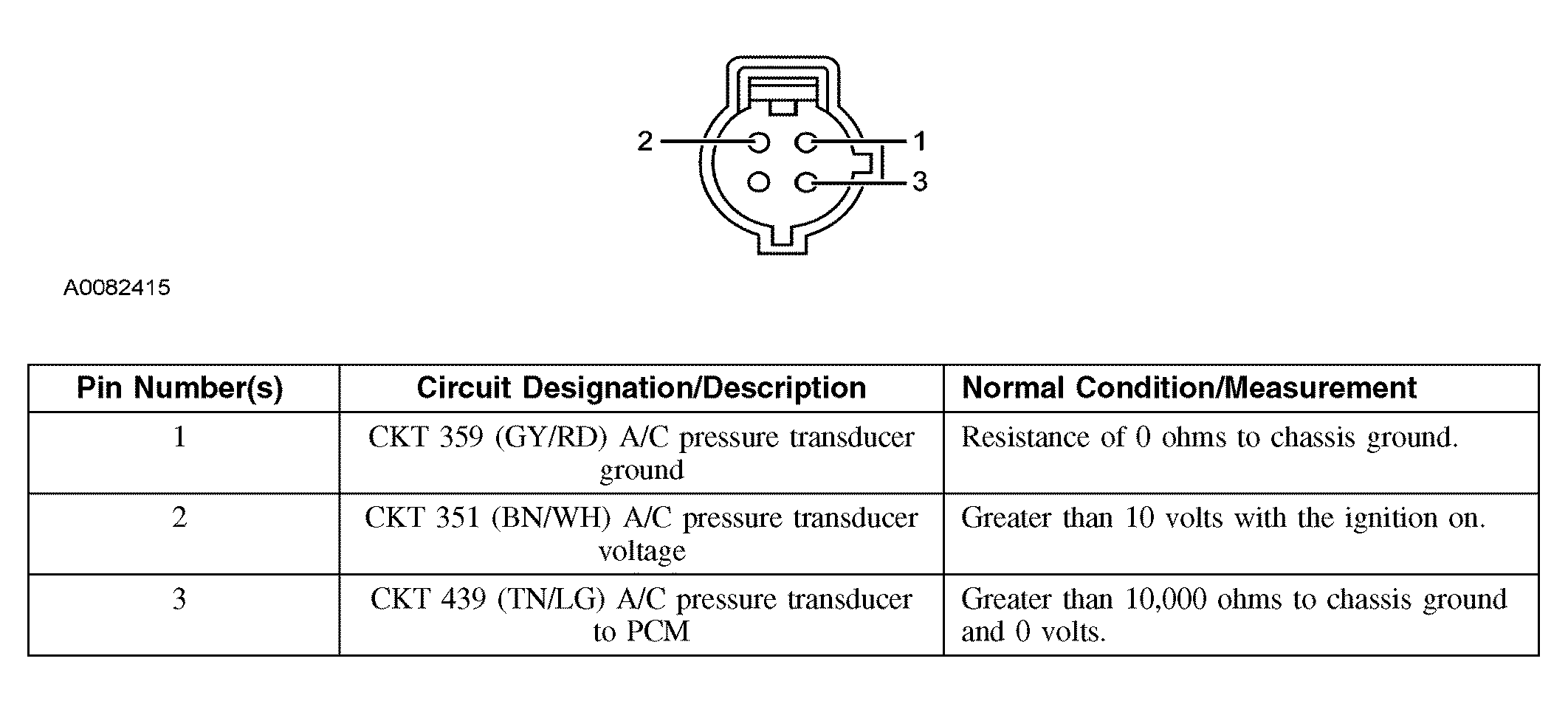

Fig 16: Identifying A/C Pressure Transducer C1078 Connector Pins
G04005505Courtesy of FORD MOTOR CO.

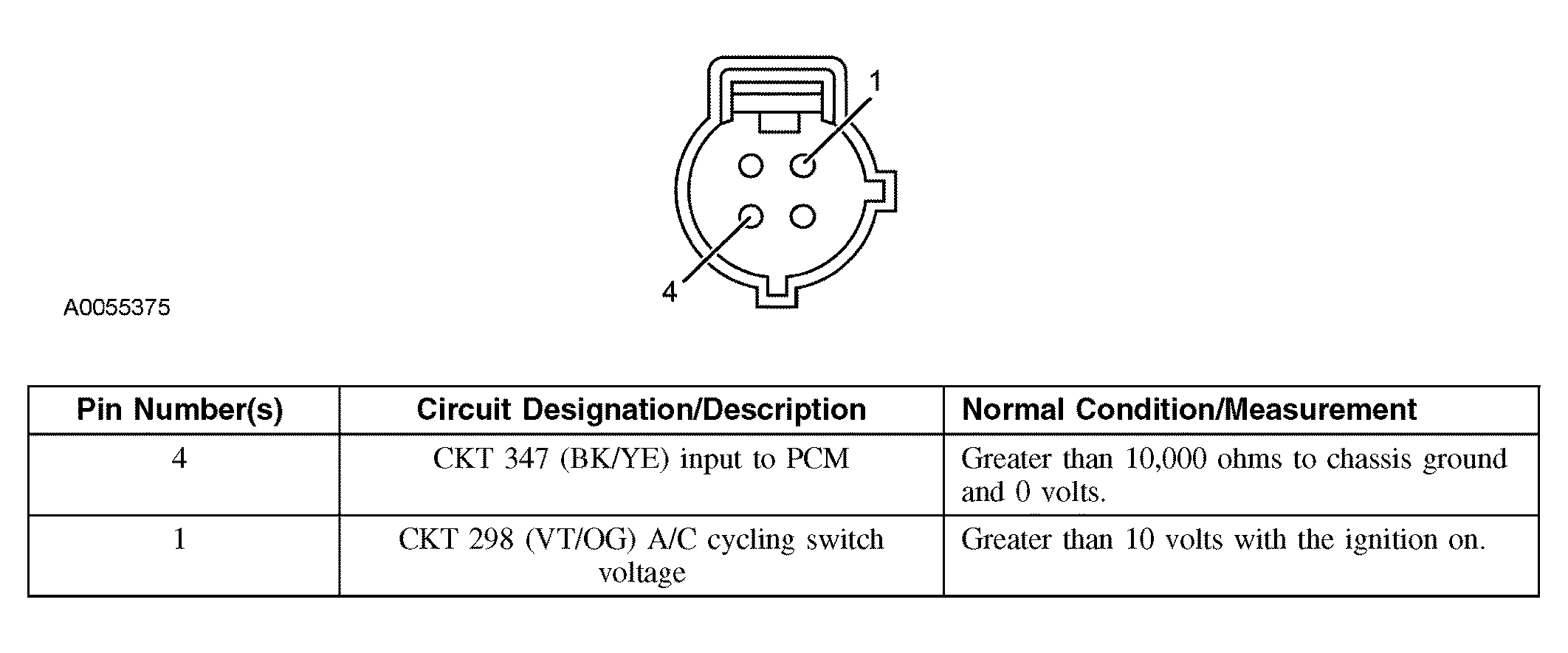

Fig 17: Identifying A/C Cycling Switch C130 Connector Pins
G04005506Courtesy of FORD MOTOR CO.

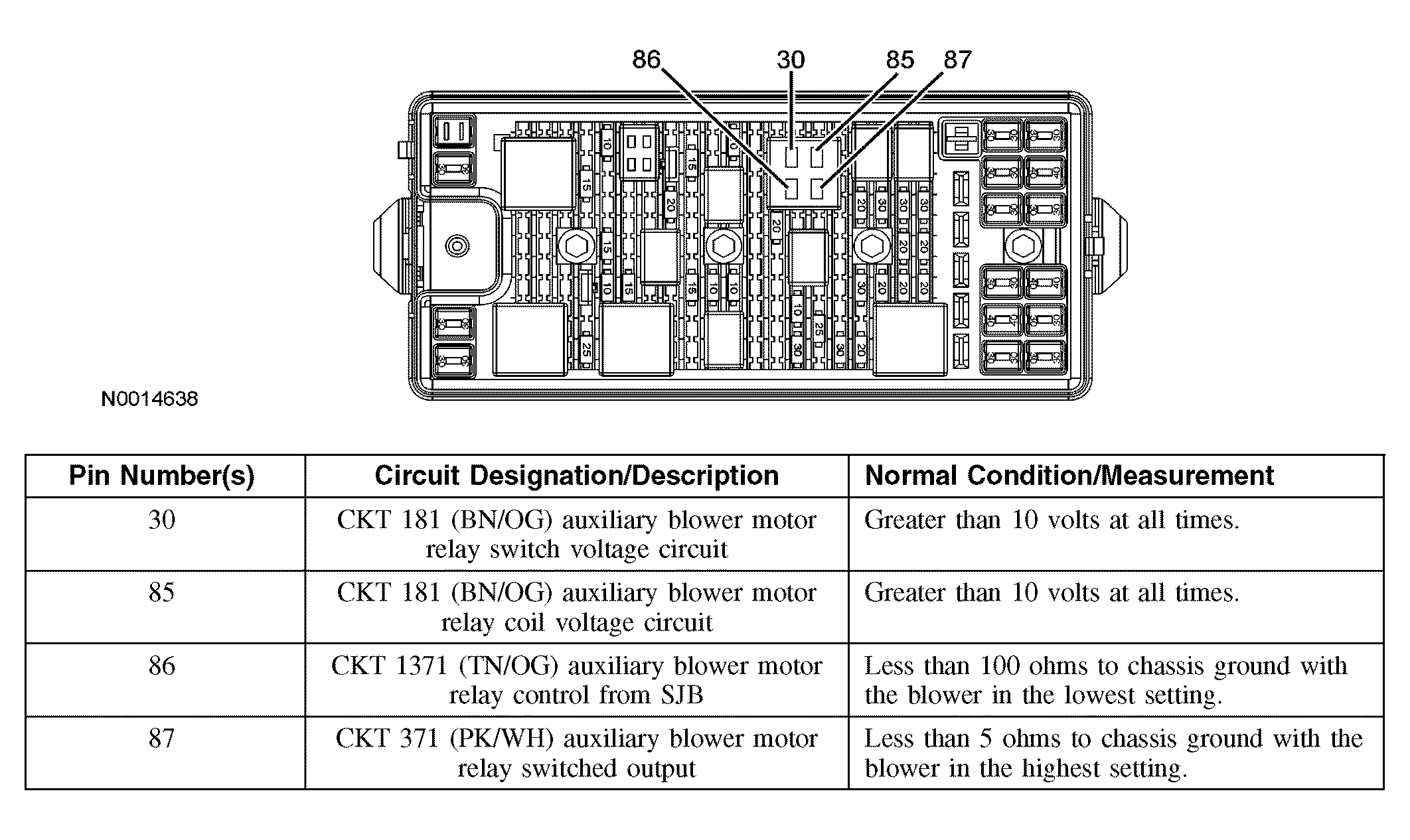

Fig 18: Identifying Auxiliary Blower Motor Relay Connector Pins
G04005507Courtesy of FORD MOTOR CO.

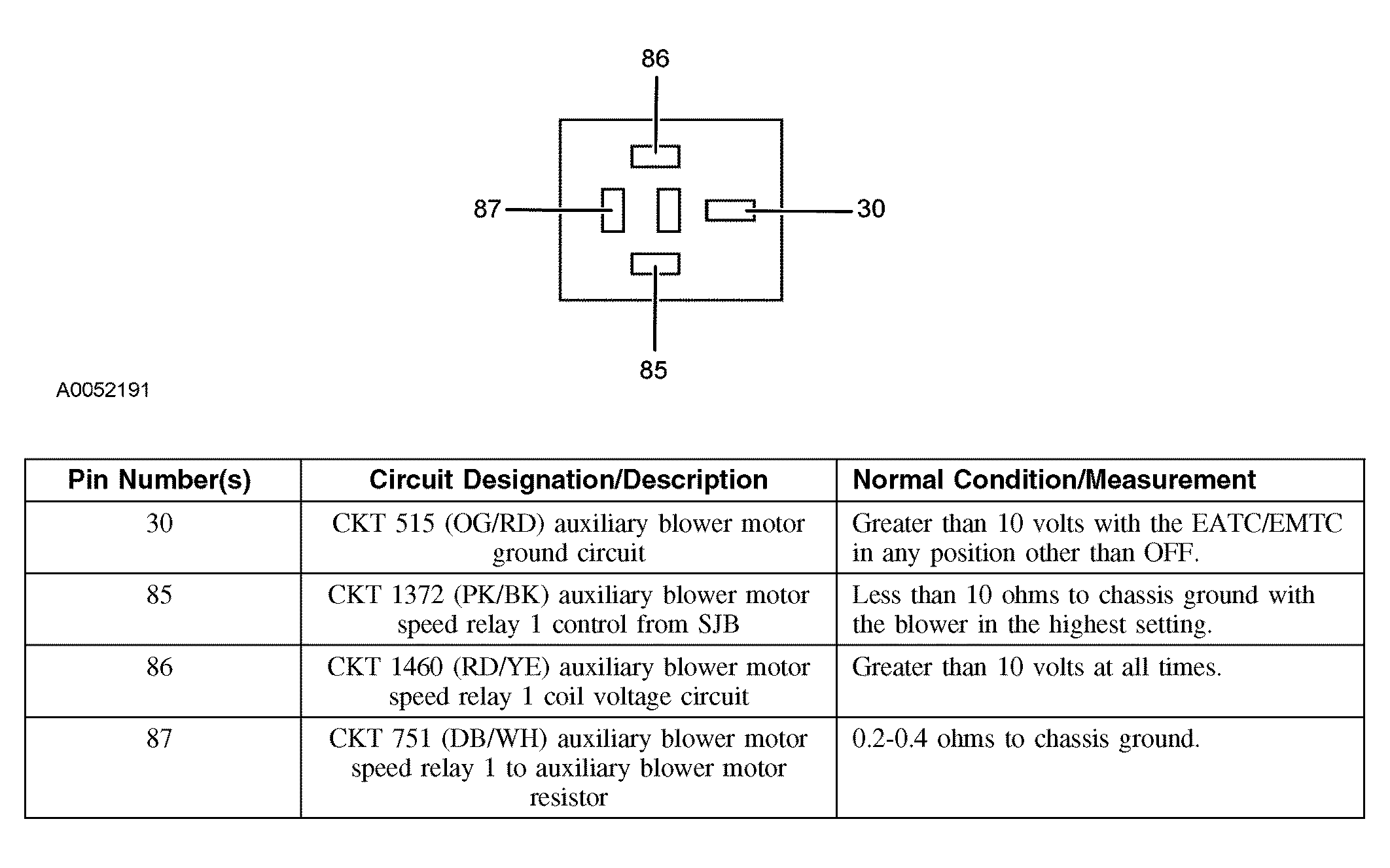

Fig 19: Identifying Auxiliary Blower Motor Speed Relay 1 Connector Pins
G04005508Courtesy of FORD MOTOR CO.

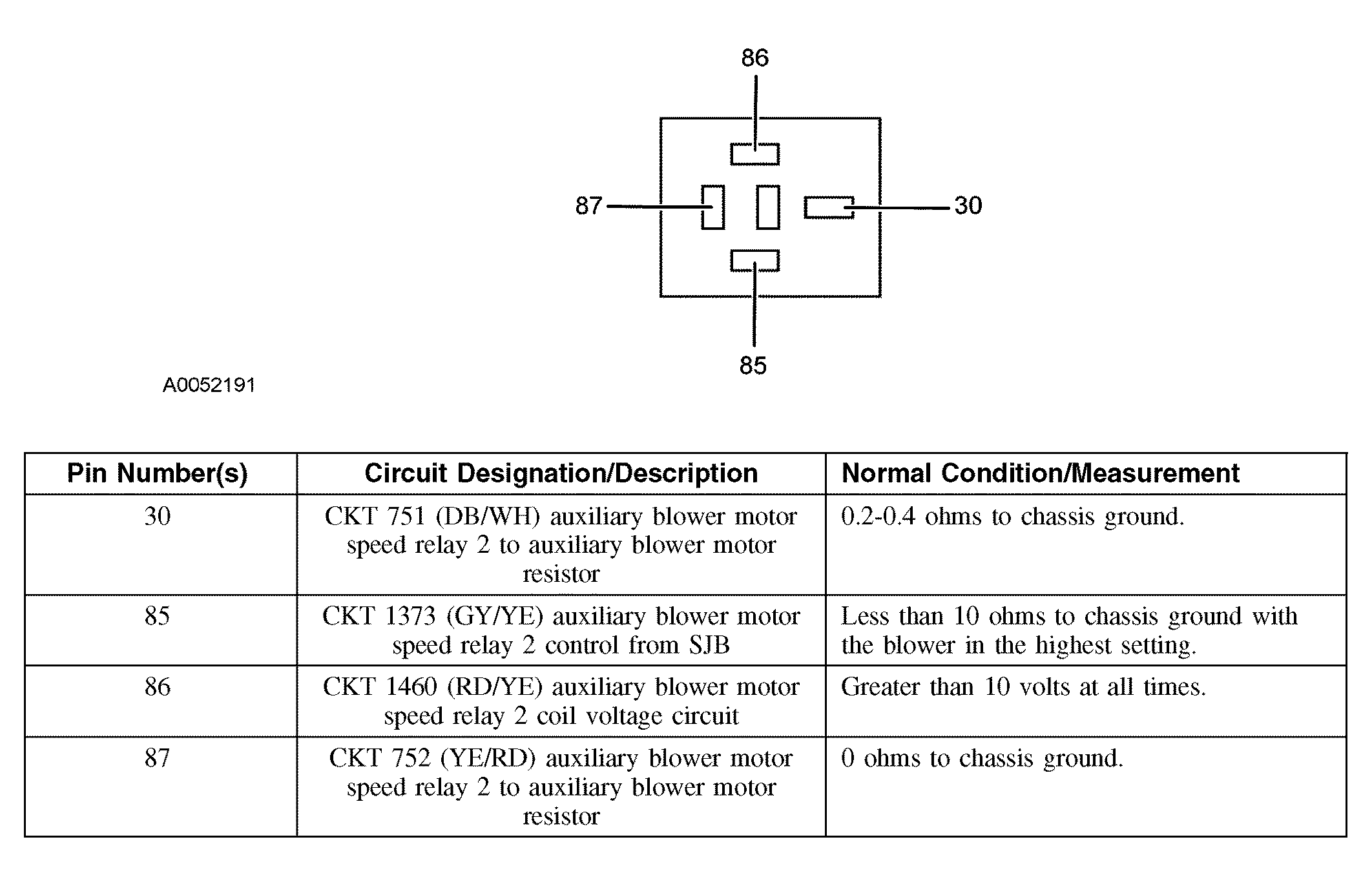

Fig 20: Identifying Auxiliary Blower Motor Speed Relay 2 Connector Pins
G04005509Courtesy of FORD MOTOR CO.

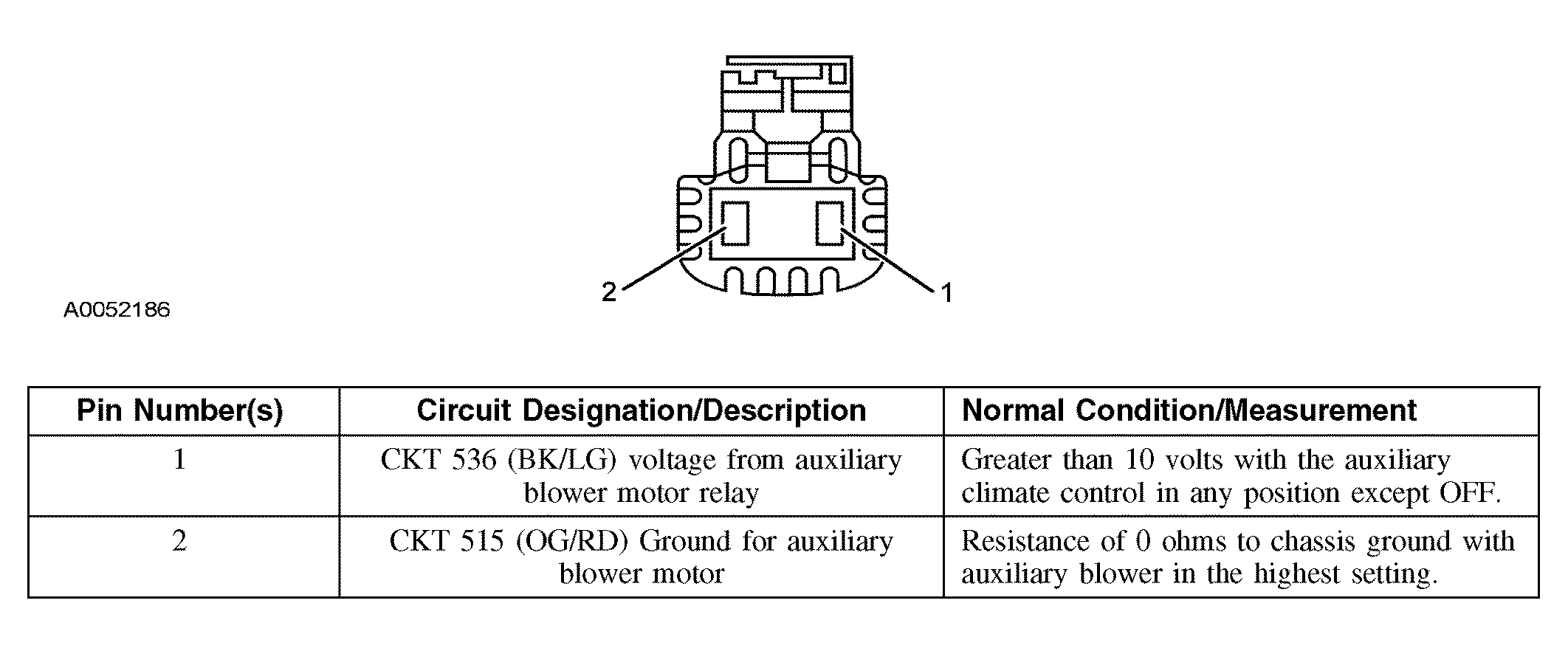

Fig 21: Identifying Blower Motor C3021 Connector Pins
G04005510Courtesy of FORD MOTOR CO.

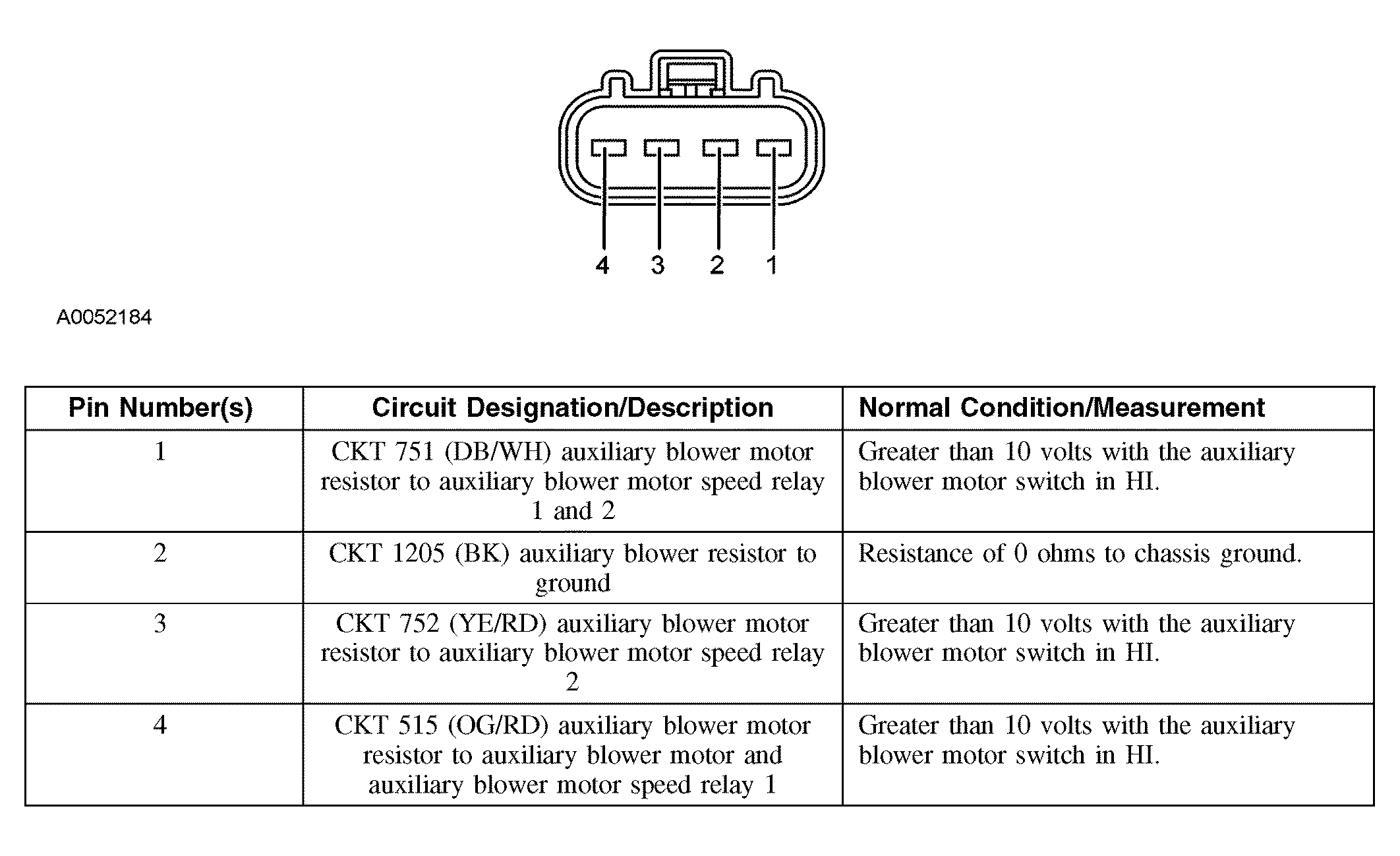

Fig 22: Identifying Auxiliary Blower Motor Resistor C3022 Connector Pins
G04005511Courtesy of FORD MOTOR CO.

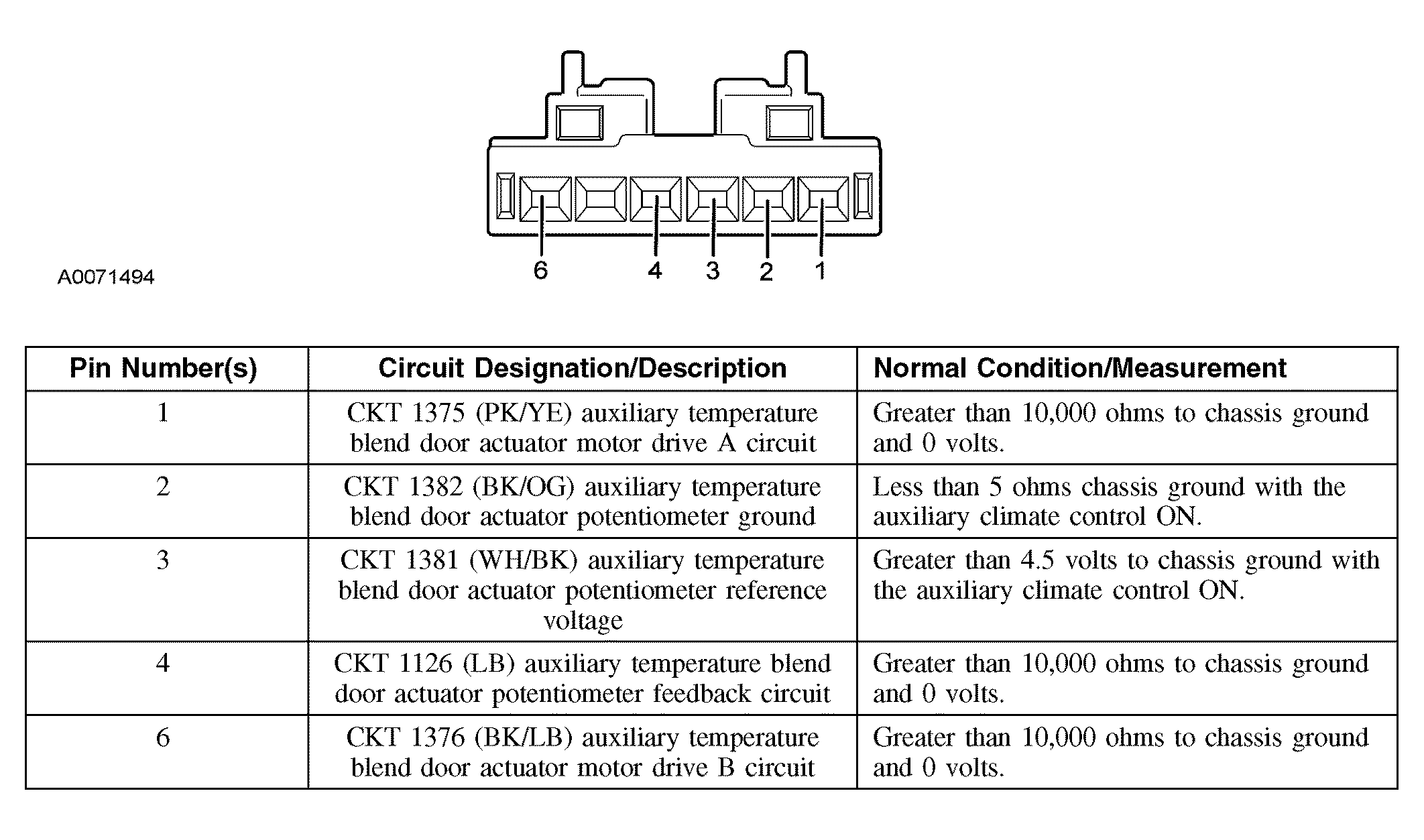

Fig 23: Identifying Auxiliary Temperature Blend Door Actuator C3004 Connector Pins
G04005512Courtesy of FORD MOTOR CO.

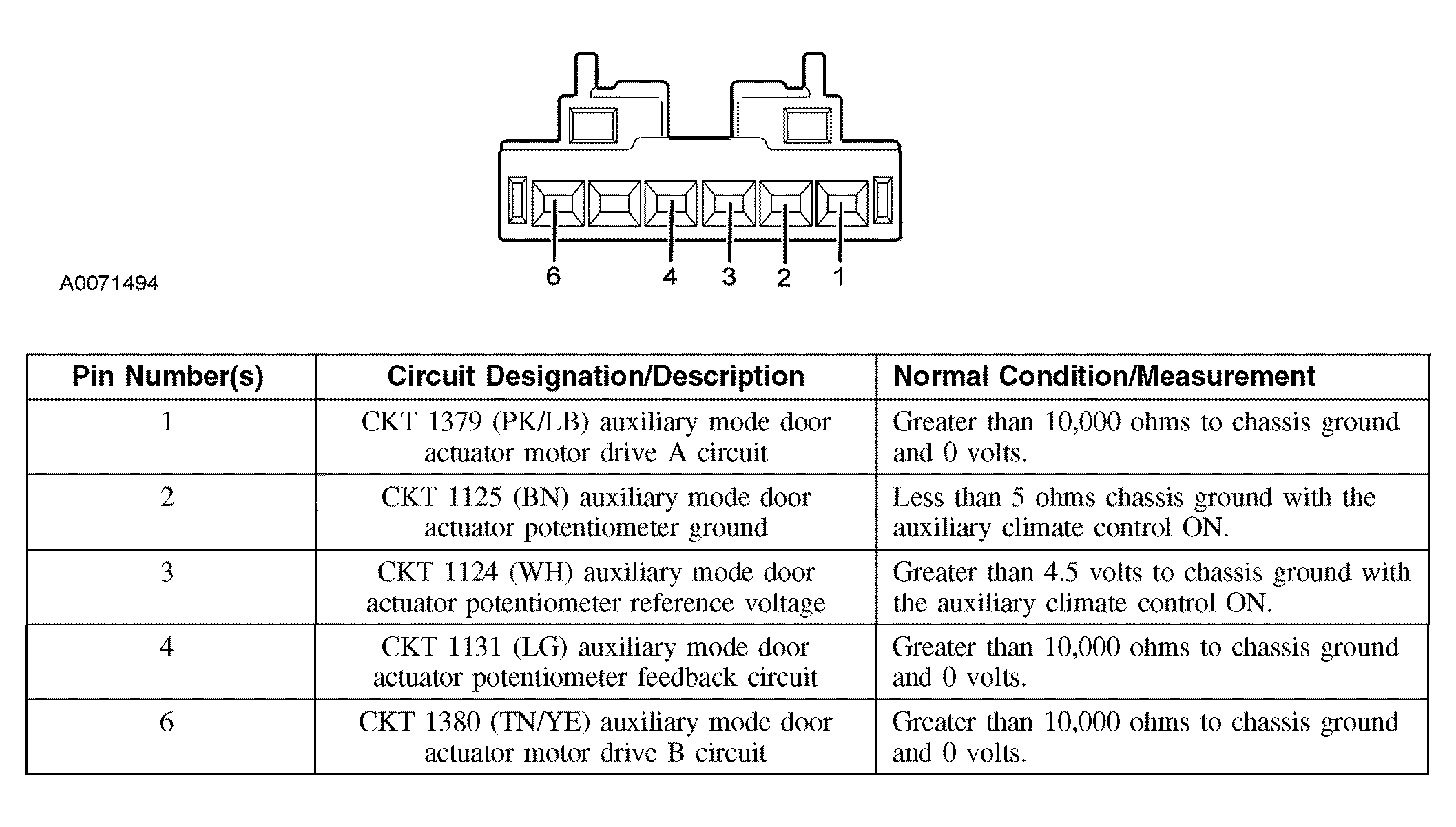

Fig 24: Identifying Auxiliary Mode Door Actuator C3044 Connector Pins
G04005513Courtesy of FORD MOTOR CO.

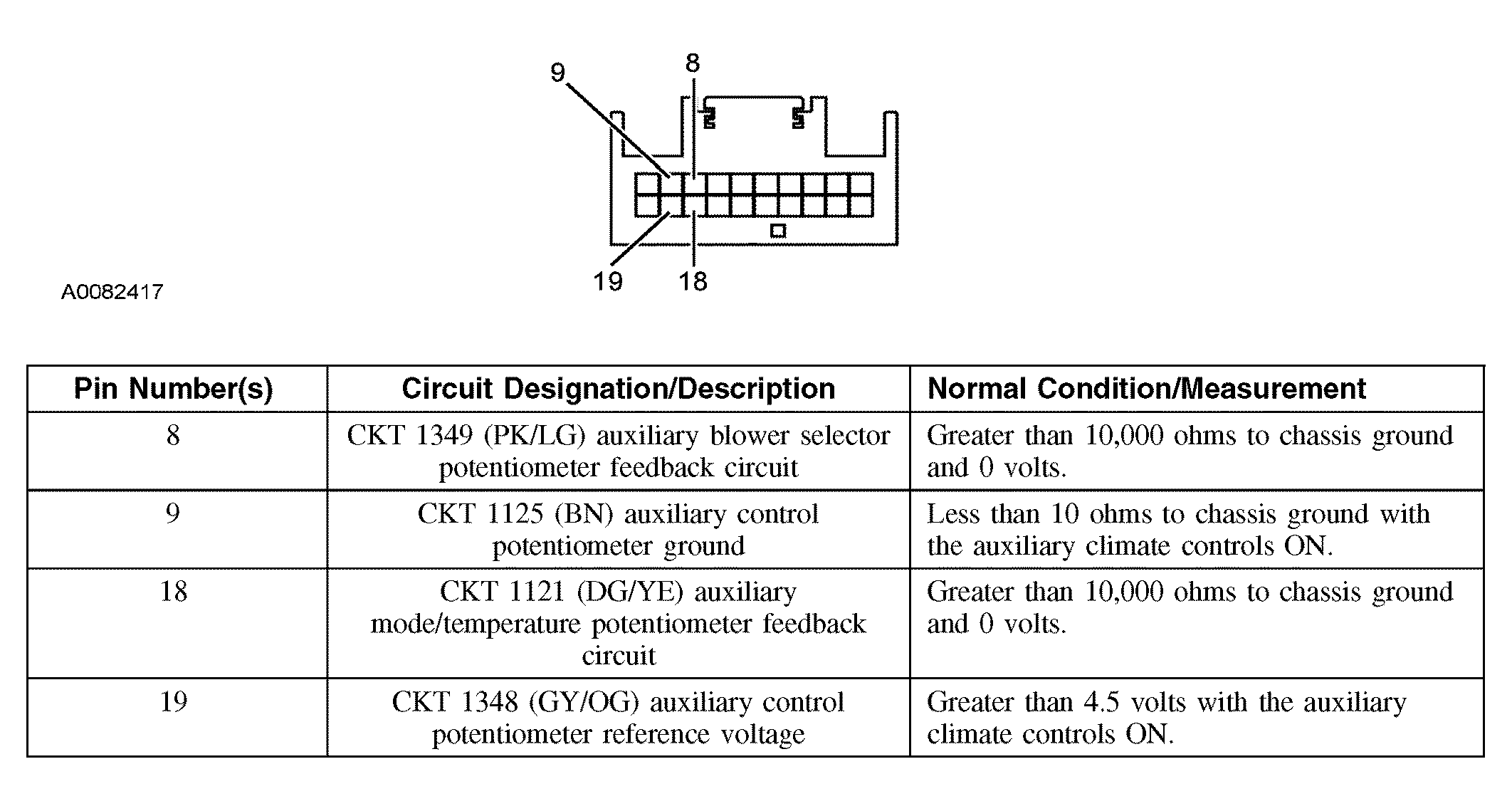

Fig 25: Identifying Auxiliary Climate Control C9025 Connector Pins
G04005514Courtesy of FORD MOTOR CO.

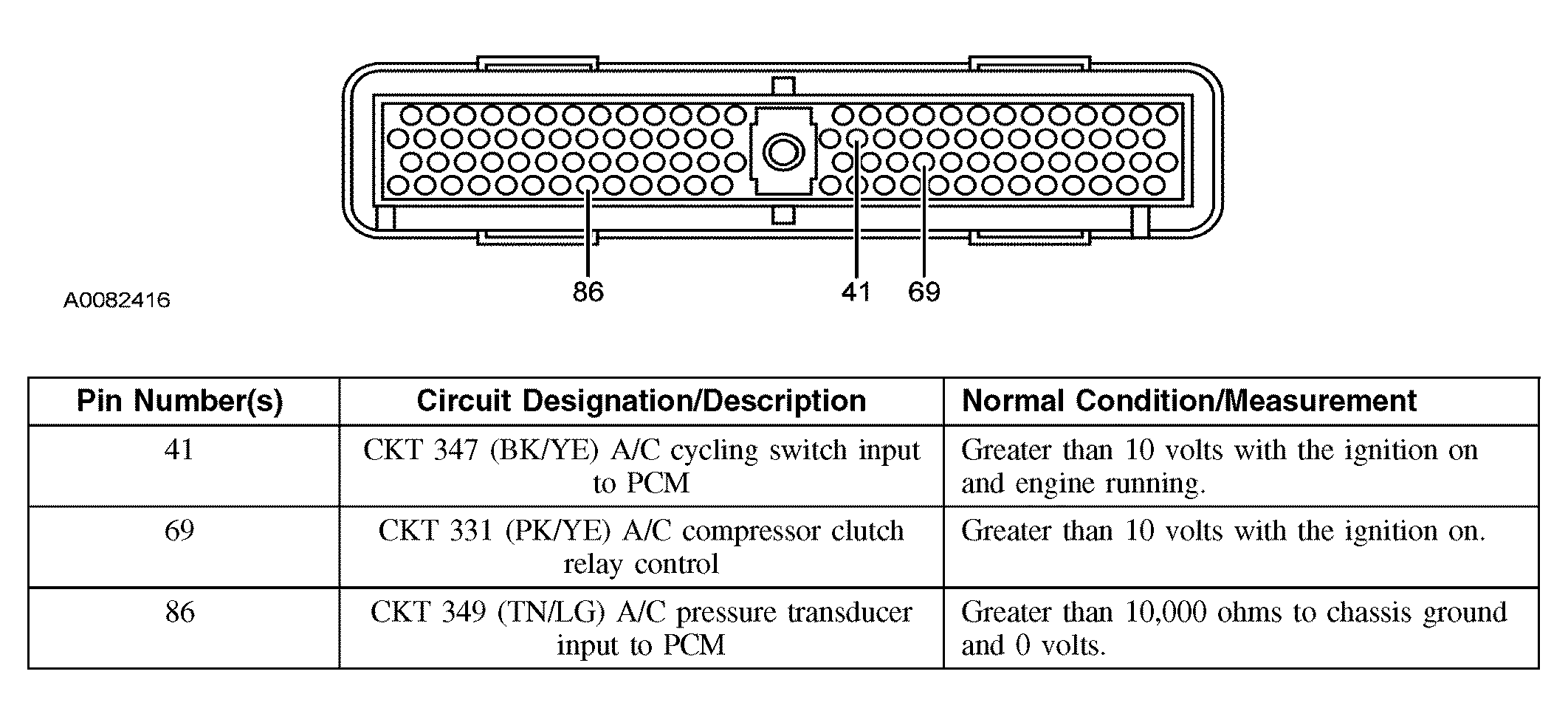

Fig 26: Identifying Powertrain Control Module C175 Connector Pins
G04005515Courtesy of FORD MOTOR CO.

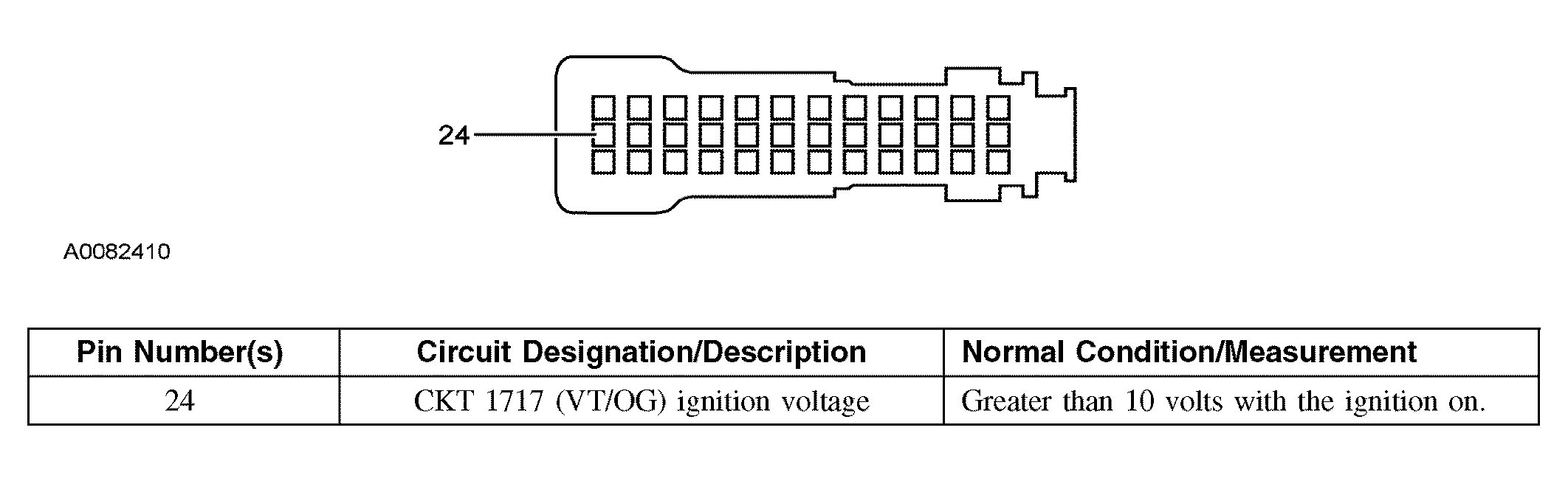

Fig 27: Identifying Smart Junction Box C2280a Connector Pins
G04005516Courtesy of FORD MOTOR CO.

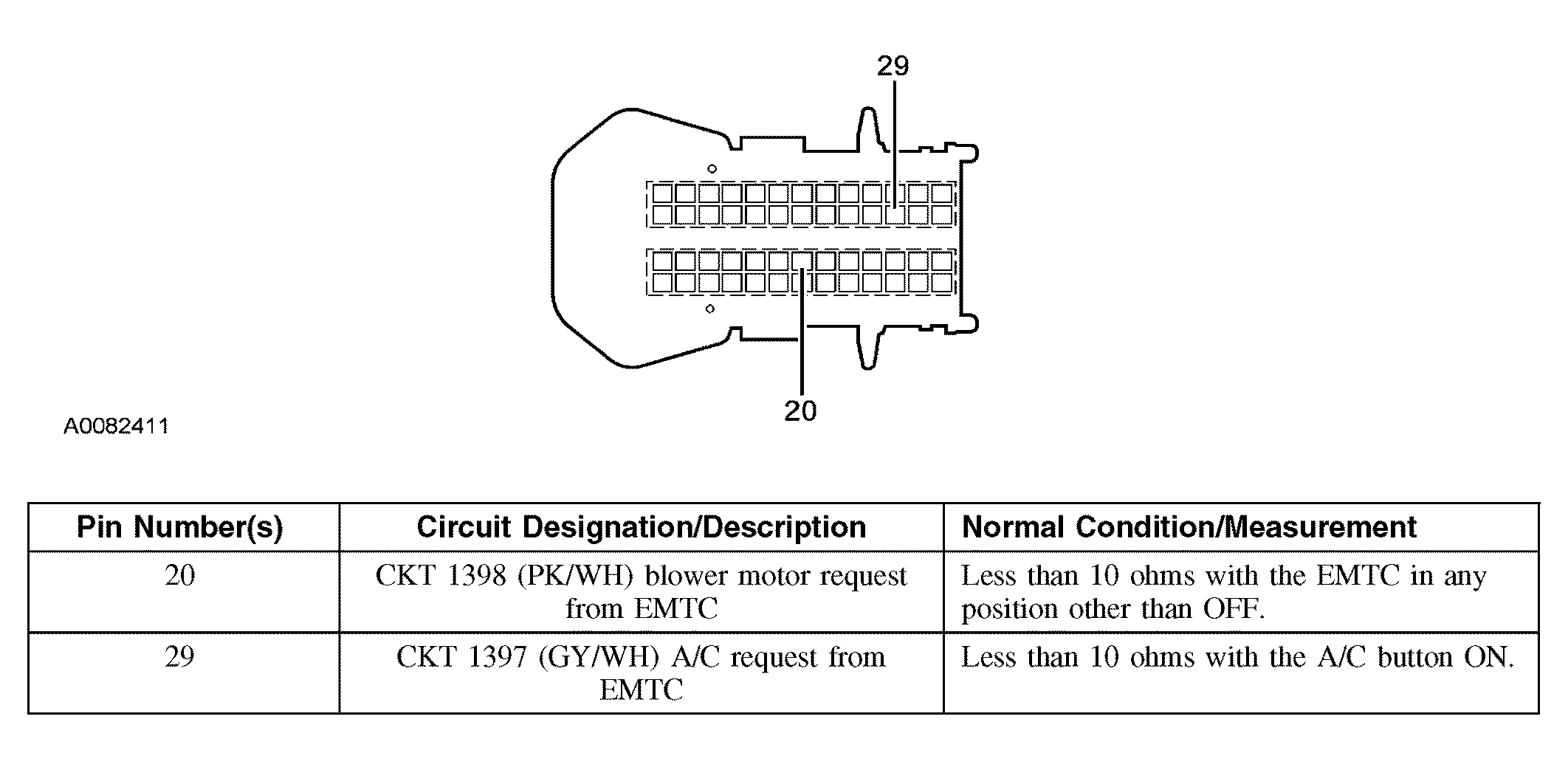

Fig 28: Identifying Smart Junction Box C2280b Connector Pins
G04005517Courtesy of FORD MOTOR CO.

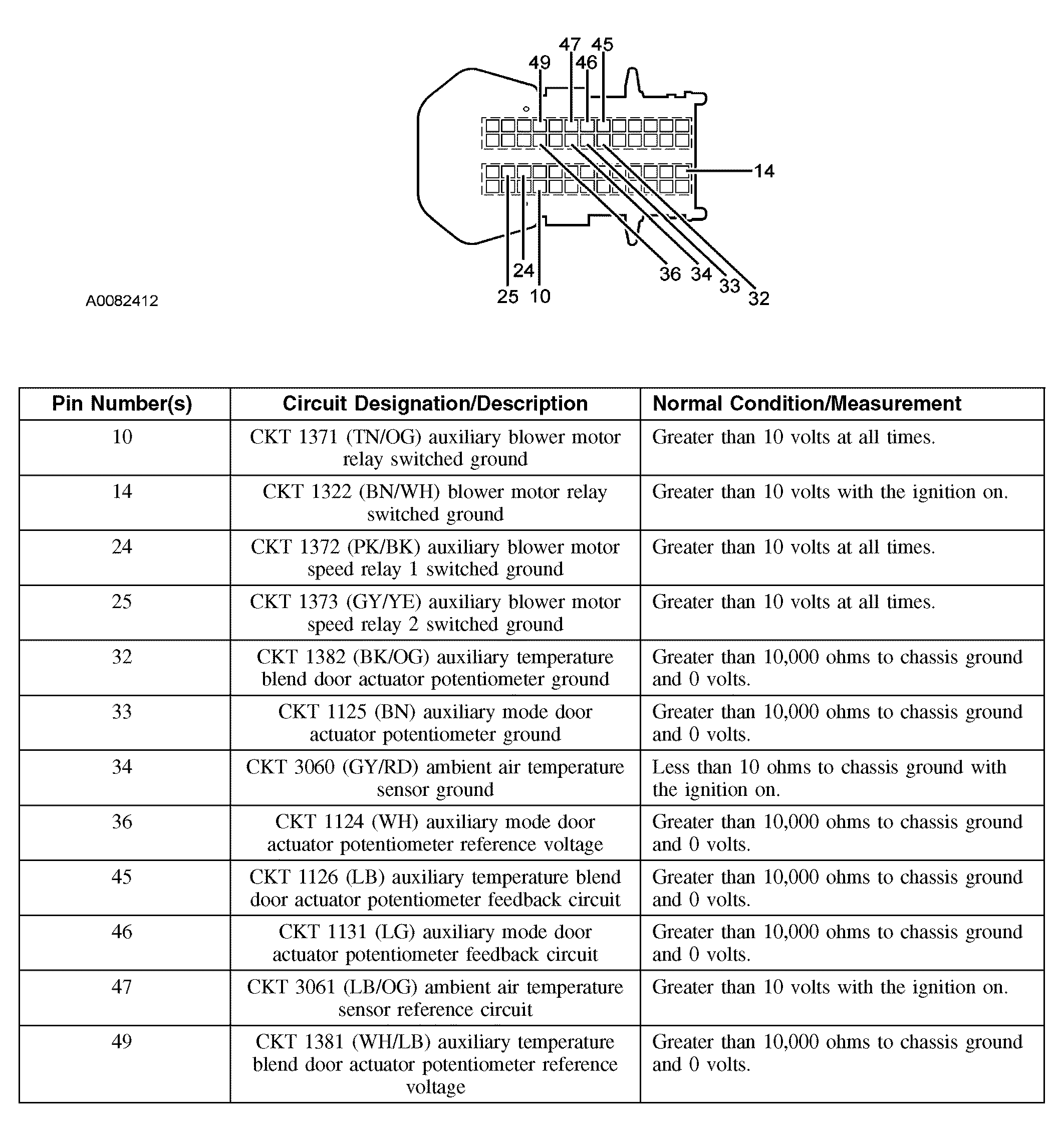

Fig 29: Identifying Smart Junction Box C2280c Connector Pins
G04005518Courtesy of FORD MOTOR CO.

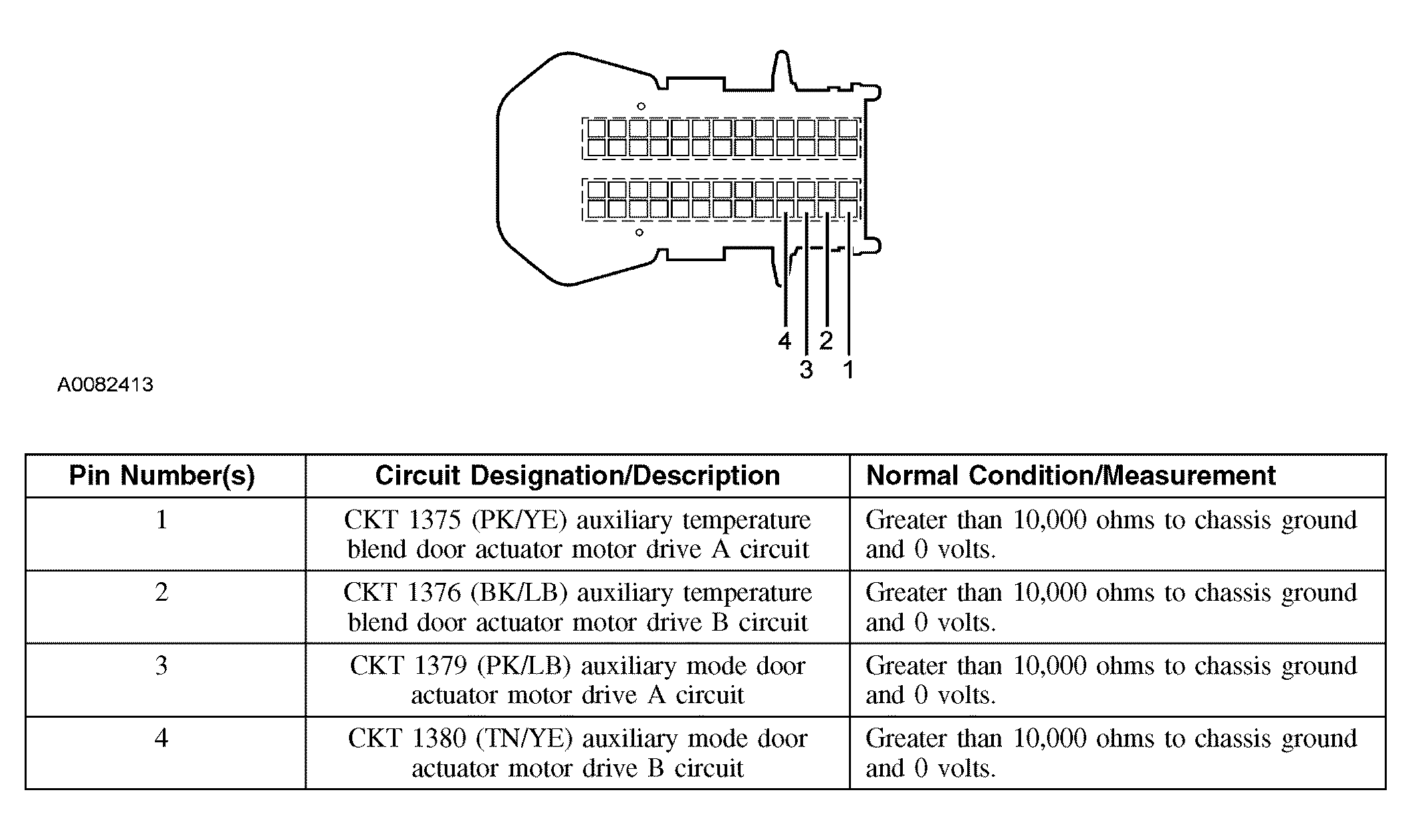

Fig 30: Identifying Smart Junction Box C2280d Connector Pins
G04005519Courtesy of FORD MOTOR CO.
Fig 31: Identifying Smart Junction Box C2280f Connector Pins
G04005520Courtesy of FORD MOTOR CO.
