Fuel Pump Driver Module Power (FPDM PWR) Relay Connector

Refer to SYSTEM WIRING DIAGRAMS for specific vehicle application and pin locations.

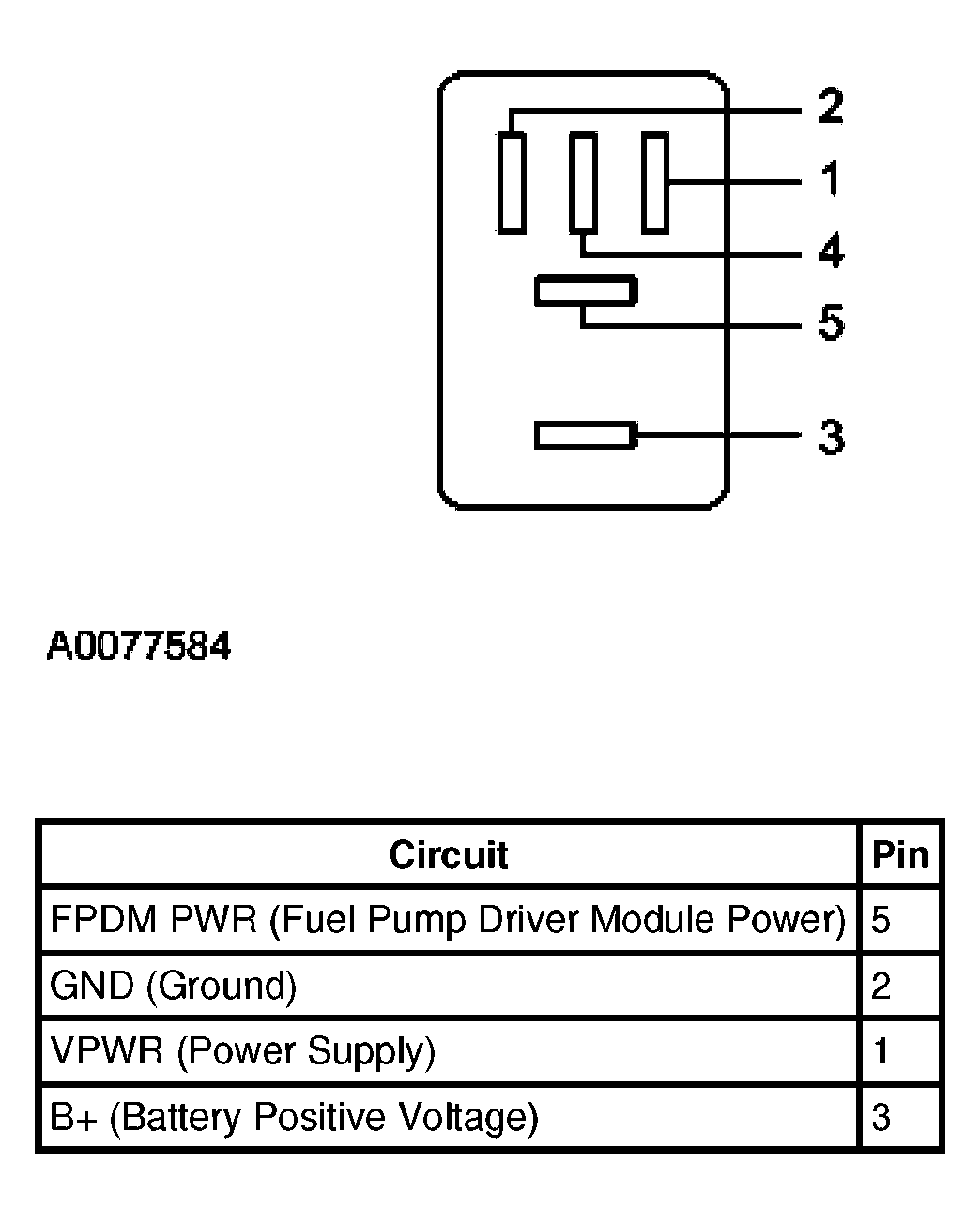

Fig 1: Fuel Pump Driver Module Power (FPDM PWR) Relay Connector
G03878139Courtesy of FORD MOTOR CO.
