Engine Controls - Pinpoint Test JE: Integrated Ignition Coil Pack A, B, Or C Failure Through Pinpoint Test KP: Charge Air Cooler (CAC) Pump - (Except Diesel & Hybrid)
>>
Pinpoint Test KB: Fuel Pump Driver Module
>>
Introduction
>>
Fuel Pump Driver Module 2 (FPDM2) Connector
Fuel Pump Driver Module 2 (FPDM2) Connector

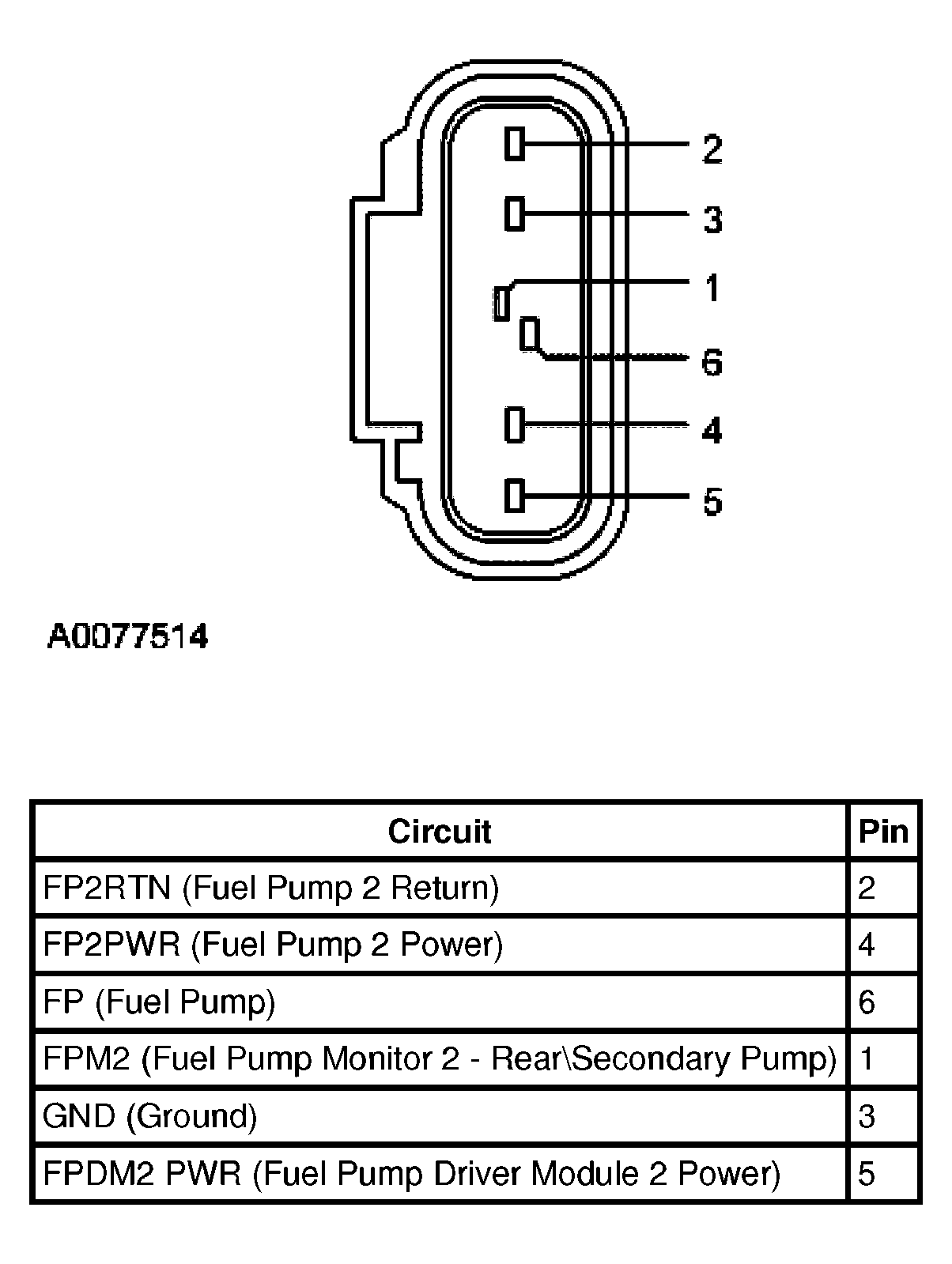

Fig 1: Fuel Pump Driver Module 2 (FPDM2) Connector
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
