Camshaft Position (CMP) Sensor and Synchronizer - Exploded View

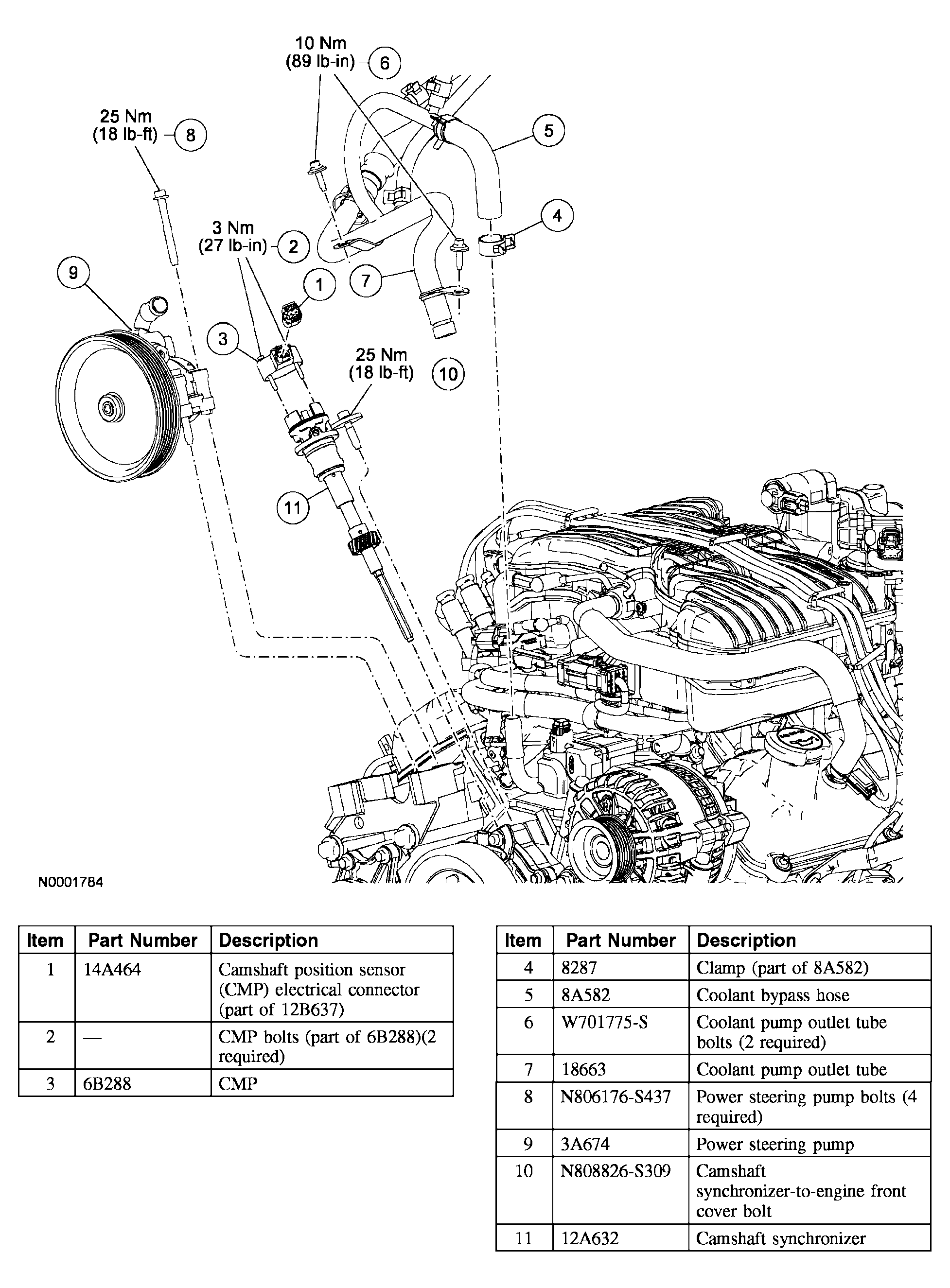

Fig 1: Exploded View Of Camshaft Position Sensor And Synchronizer
G04004495Courtesy of FORD MOTOR CO.

For additional information, refer to the component removal and installation procedures.
