Exhaust Gas Recirculation (EGR) System Components - Exploded View

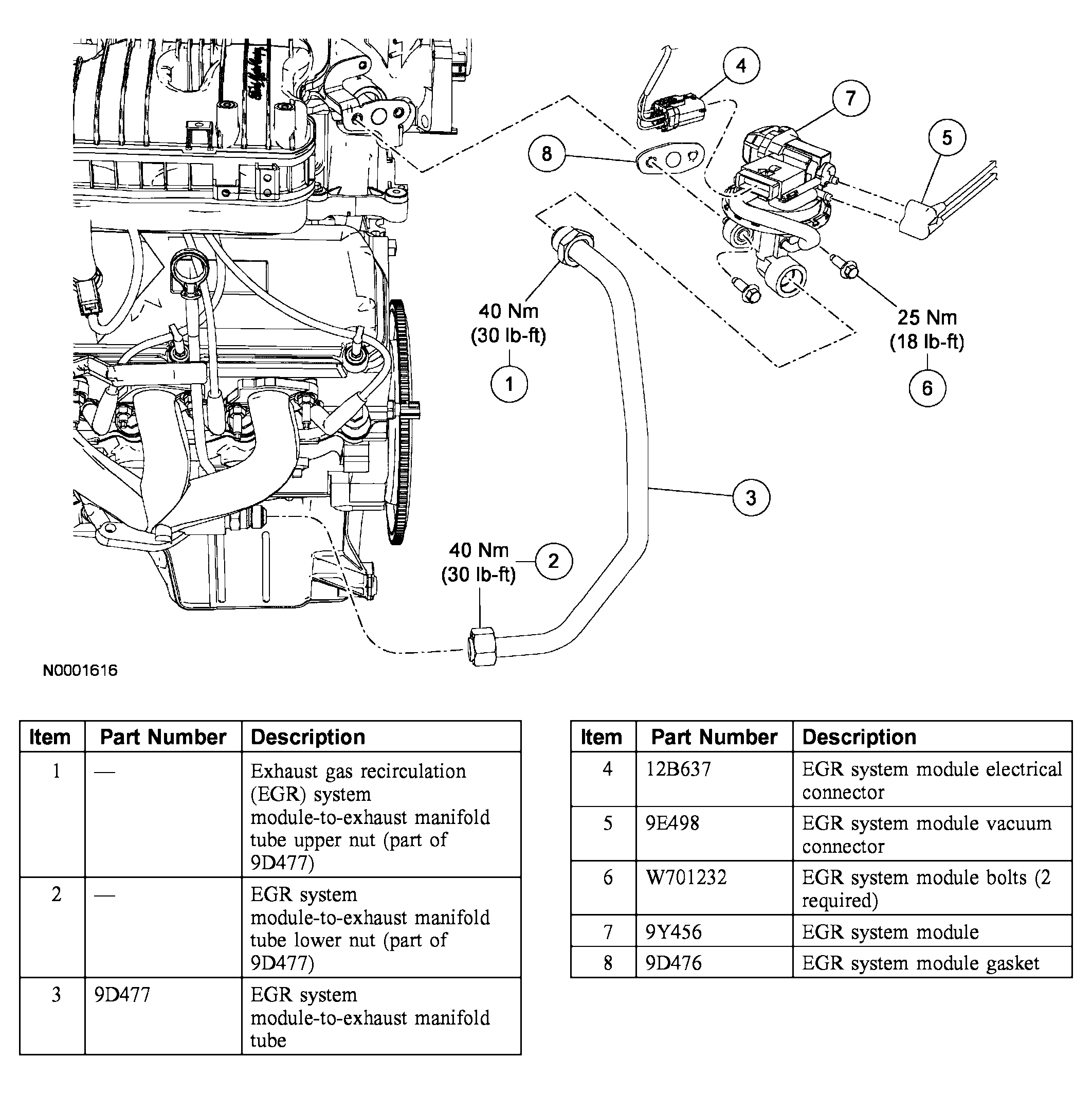

Fig 1: Exploded View Of Exhaust Gas Recirculation (EGR) System Components

Courtesy of FORD MOTOR CO.

For additional information, refer to the Exhaust Gas Recirculation (EGR) and PCV Valve component removal and installation procedures.
