Pinpoint Test A: No Communication With The Anti-Lock Brake System (Abs) Module

  1. A1 CHECK CIRCUITS 601 (LB/PK) AND 483 (RD) FOR AN OPEN
    • Key in OFF position.
    • Disconnect: ABS Module C155.
    • Key in ON position.
    • Measure the voltage between the ABS module C155-32, circuit 601 (LB/PK), harness side and ground; and between the ABS module C155-2, circuit 483 (RD), harness side and ground.
      • Fig 1: Measuring Voltage Between ABS Module C155-32 And Ground
      G04000654Courtesy of FORD MOTOR CO.
    • Are the voltages greater than 10 volts?
    • YES  : GO to  A2.
    • NO  : REPAIR the circuit in question. REPEAT the self-test.
  2. A2 CHECK CIRCUIT 1205 (BK) FOR AN OPEN
    • Key in OFF position.
    • Measure the resistance between the ABS module C155-16, circuit 1205 (BK), harness side and ground; and between the ABS module C155-45, circuit 1205 (BK), harness side and ground.

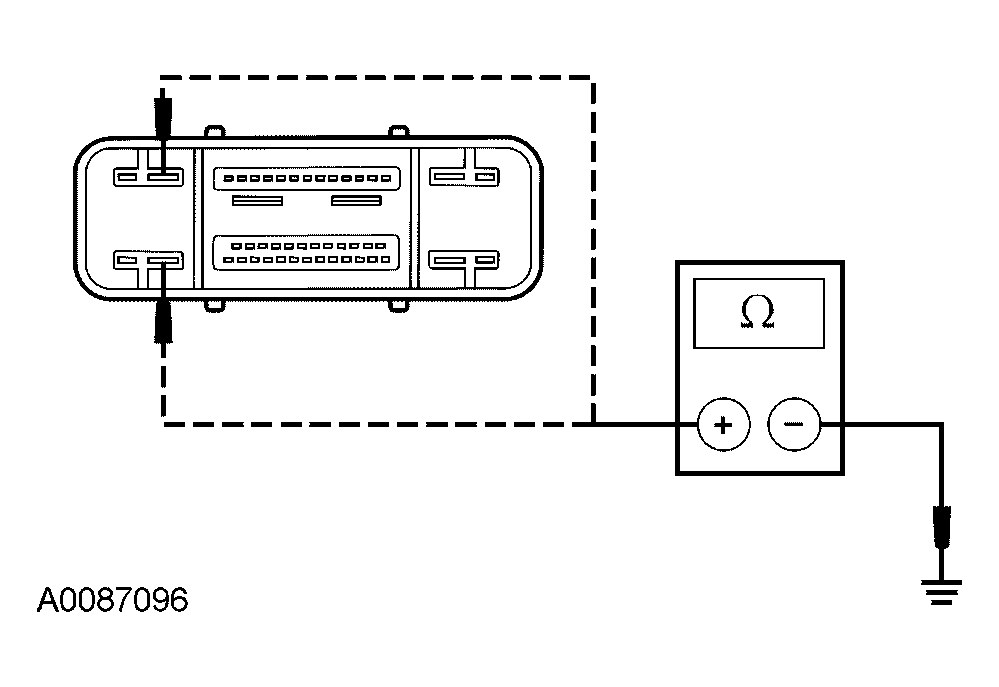

      • Fig 2: Checking Circuit 1205 (BK) For Open
      G04000655Courtesy of FORD MOTOR CO.
    • Is the resistance less than 5 ohms?
