Driver Seat Module (DSM): Notes

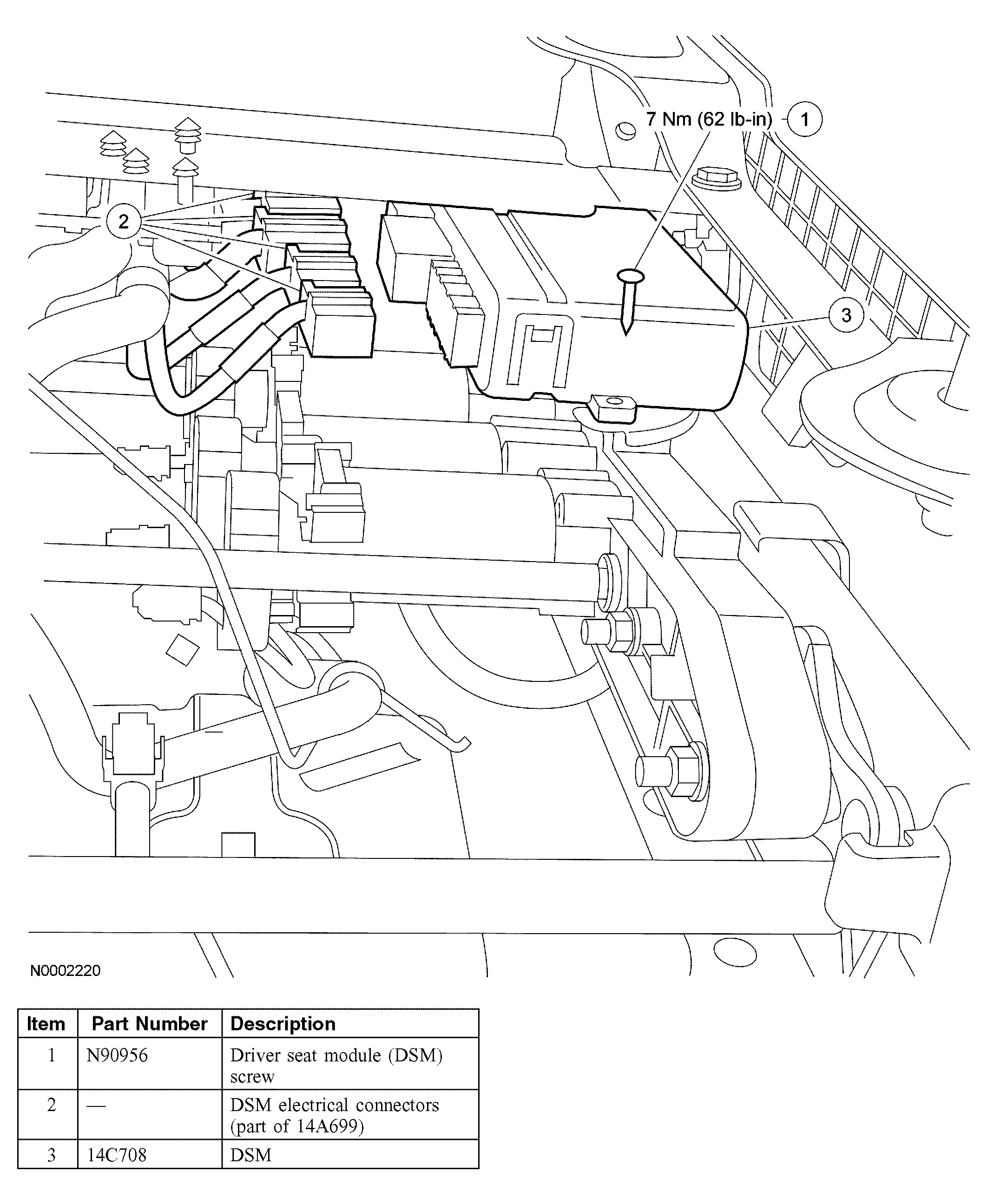

Fig 1: Removing & Installing Driver Seat Module (DSM)

G04006468

Courtesy of FORD MOTOR CO.
